Product Description

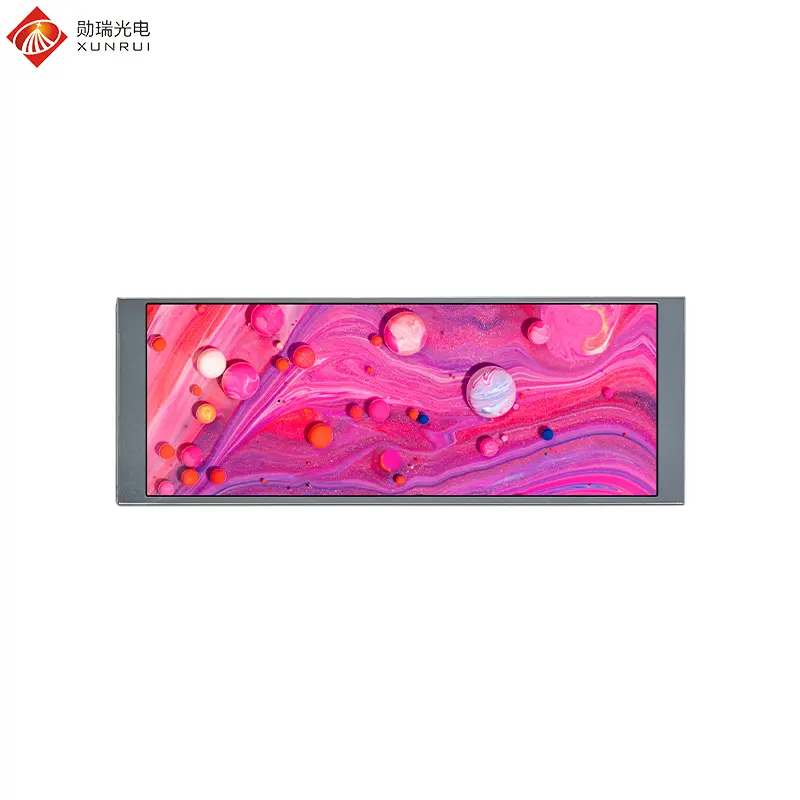

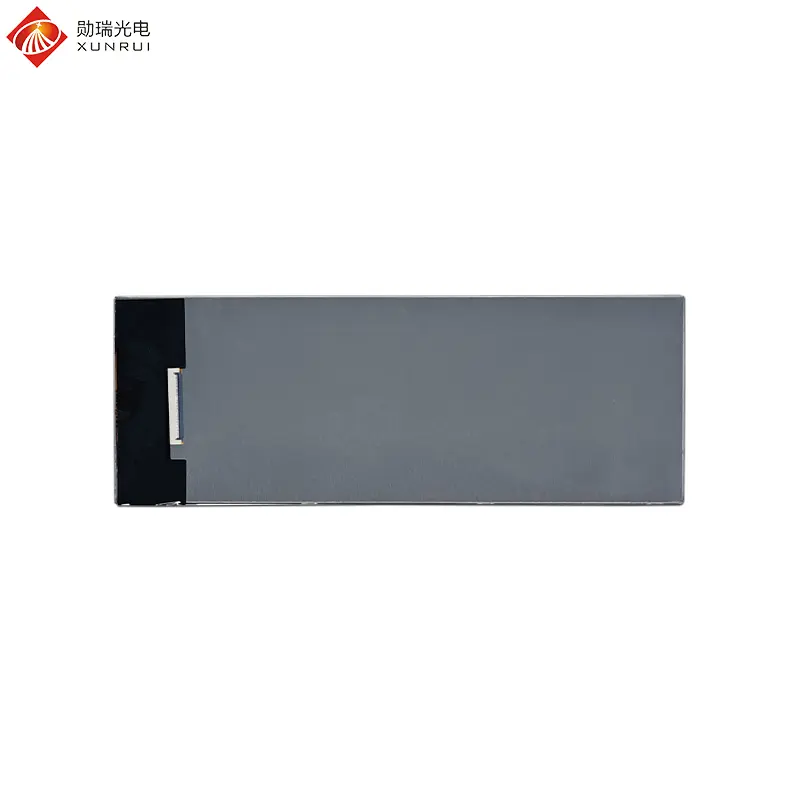

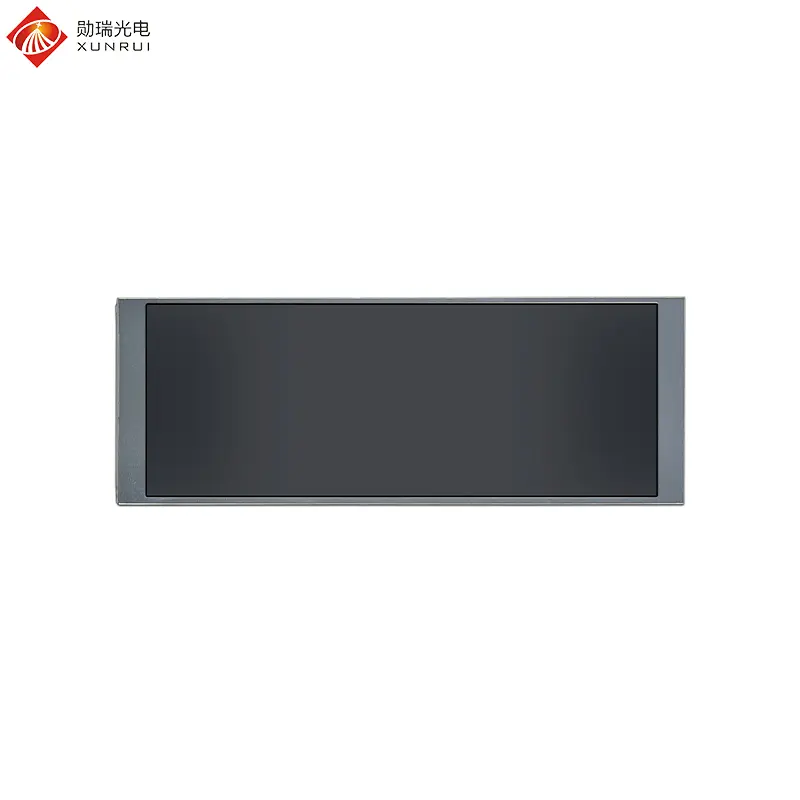

H069KHD40I7003 is a 6.86-inch TFT LCD module with a bar design, featuring a resolution of 480×1280, an IPS panel, supporting full-view viewing, a MIPI 40-pin interface, and the option to equip a capacitive touchscreen (multi-touch, glove touch), a protective glass lamination, anti-reflection treatment, a driver board package, and HDMI adapter solutions, etc. This 6.86-inch TFT LCD Display is widely used in industrial equipment: for HMI human-machine interfaces, PLC control panels, automated production line operation terminals, etc., with features of being sturdy and having strong anti-interference capabilities. In automotive systems: applied to intelligent rearview mirrors, driving recorders, and auxiliary screens for vehicle navigation. In smart home appliances: integrated into high-end refrigerators, washing machines, ovens, etc., enhancing the intelligent experience of the products. In security and face recognition: used in access control systems, gates, attence machines, etc., supporting touch functions and operating in high-temperature and high-humidity environments. In medical and POS terminals: providing clear and stable display support in portable medical equipment, cash registers (POS), self-service terminals, etc.
Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H069KHD40I7003 |
| LCD Size | 6.86 inch |
| Display Format | 480×1280 |
| Interface | MIPI 40pin |
| Luminance | 700 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | FL7705N |
| LCM (W x H x D) (mm) | 66.3*174*4.5 |
| Active Area(mm) | 60.25*160.81 |
| Operating Temperature | -20℃ ~ +85℃ |
| Storage Temperature | -30℃ ~ +85℃ |
| Operating Voltage | 9.0V |
Interface Definition
| Pin No. | Symbol | Functional | Notes |
|---|---|---|---|
| 1 | GND | Ground | - |
| 2 | NOP | MIPI data input | - |
| 3 | DON | MIPI data input | - |
| 4 | GND | Ground | - |
| 5 | D1P | MIPI data input | - |
| 6 | D1N | MIPI data input | - |
| 7 | GND | Ground | - |
| 8 | CLKP | MIPI data input | - |
| 9 | CLKN | MIPI data input | - |
| 10 | GND | Ground | - |
| 11 | D2P | MIPI data input | - |
| 12 | D2N | MIPI data input | - |
| 13 | GND | Ground | - |
| 14 | D3P | MIPI data input | - |
| 15 | D3N | MIPI data input | - |
| 16 | GND | Ground | - |
| 17 | GND | Ground | - |
| 18, 19 | IOVCC | Power supply(1.8V) | - |
| 20~23 | NC | No connection | - |
| 24 | RSTB | Global reset pin | - |
| 25 | STBYB | Standby mode, Normally pulled high | - |
| 26 | NC | No connection | - |
| 27 | GND | Ground | - |
| 28-29 | BL-K | Back light-K | - |
| 30 | GND | Ground | - |
| 31 | NC | No connection | - |
| 32-33 | GND | Ground | - |
| 34 | NC | No connection | - |
| 35-36 | BL-A | Back light-A | - |
| 37 | GND | Ground | - |
| 38-39 | VDD | Power supply for digital circuits +3.3V input | - |
| 40 | NC | No connection | - |
Frequently Asked Questions
What is the resolution and display type of the H069KHD40I7003?
The H069KHD40I7003 features a 6.86-inch stretched bar IPS panel with a sharp 480×1280 resolution, supporting full viewing angles (ALL direction) and 16.7M colors.
Does this 6.86-inch display support touch interaction?
Yes, touch functionality is optional. It can be integrated with a capacitive touchscreen supporting multi-touch, glove touch, and protective glass cover lamination.
What interface does the display use?
This display utilizes a 40-pin MIPI interface driven by the FL7705N driver IC, and can also be equipped with custom driver boards and HDMI adapter solutions.
Can this LCD screen be operated in outdoor or harsh environments?
Yes, it offers a high brightness of 700 cd/m2 and has a wide operating temperature range from -20℃ to +85℃ (storage from -30℃ to +85℃), making it ideal for automotive, industrial, and outdoor applications.
What are the primary applications for this display module?
Major applications include industrial HMI panels, automotive rearview mirrors and dashcams, smart appliances, face recognition security devices, portable medical devices, and POS terminals.
