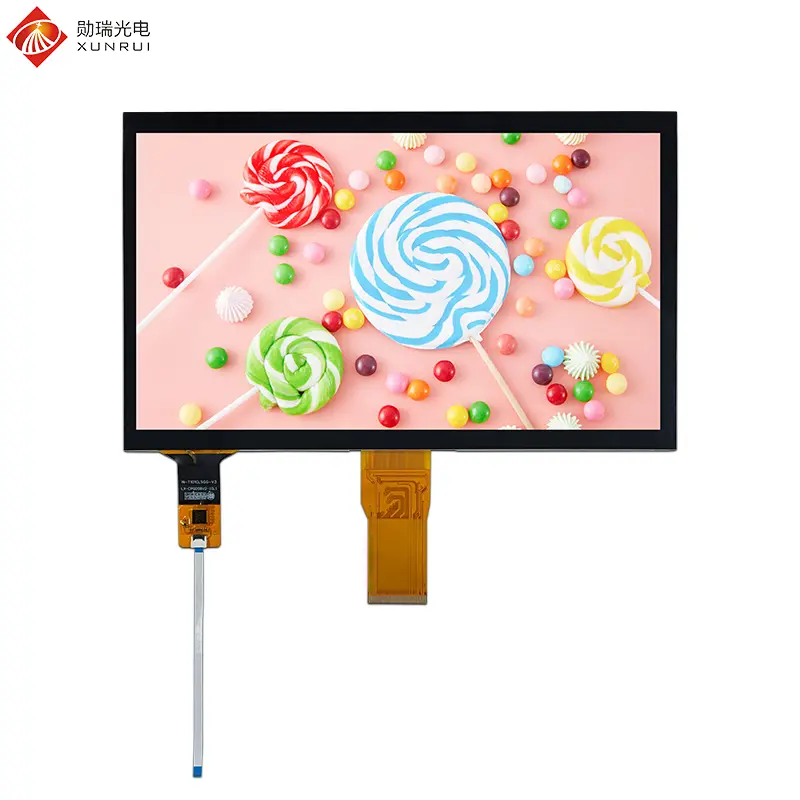

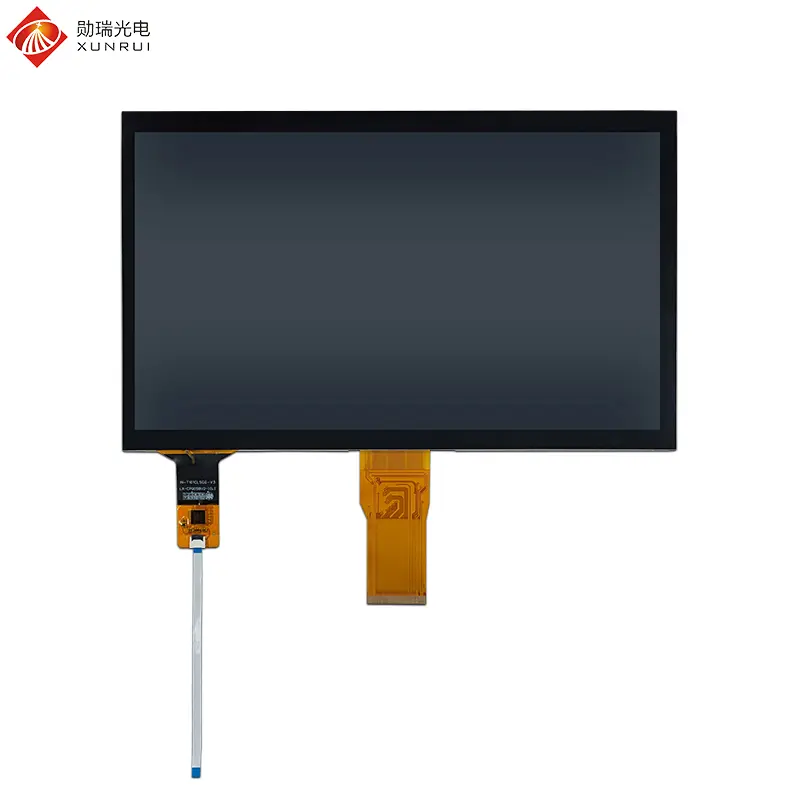

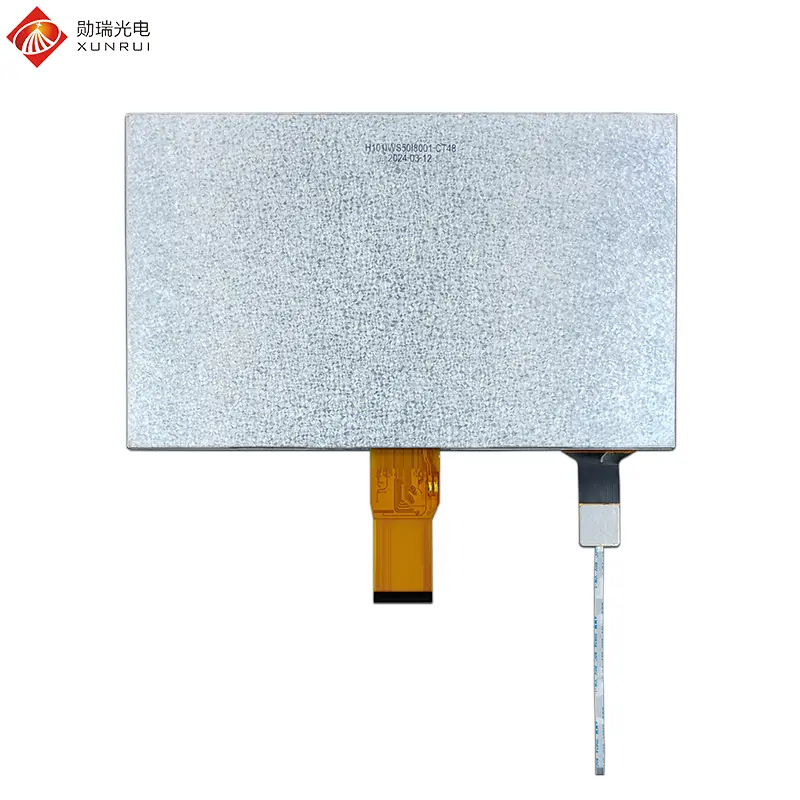

H101IWS50I8001-CT48 is a 10.1-inch TFT LCD module with capacitive touch function. This LCD screen adopts IPS full-view technology, with a resolution of 1024×600 (16:9 aspect ratio). This resolution can display clear text and images on a 10.1-inch screen, meeting the needs of most human-machine interaction interfaces (HMI). It is equipped with a capacitive touch screen (supporting multi-touch), with a response time of less than 10ms, and the touch is sensitive and the operation is smooth. It adopts the G+G or G+F structure, with good wear resistance and anti-interference ability. Some products support full-coating process, improving light transmittance and screen strength. RGB 50-pin interface, 900nit brightness, suitable for outdoor equipment or industrial sites in strong light environments. This 10.1-inch TFT LCD Display is mainly applied in industrial control and HMI equipment: used for production line control panels, PLC human-machine interfaces, CNC machines, automation instruments, etc., providing intuitive operation interfaces and real-time data display. Medical equipment: used for portable monitors, ultrasound equipment, self-service registration machines, etc., requiring high reliability and precise touch control. Some models support anti-static design. Vehicle and transportation systems: used for vehicle navigation, bus information screens, vehicle monitoring terminals, etc., high brightness and wide temperature characteristics ensure stable operation in all weather conditions. Self-service terminals: including ATM machines, hospital self-payment machines, cinema ticket vending machines, intelligent vending machines, etc., capacitive touch enhances user experience and supports long-term continuous operation. Education and smart home: used for AI learning machines, teaching tablets, smart home control screens, etc., 10.1-inch size balances portability and display area. Robots and IoT devices: as the main control display screen in service robots and industrial inspection robots, supporting Android or Windows system operation.
| Feature | Spec |
|---|---|
| Model Name | H101IWS50I8001-CT48 |
| LCD Size | 10.1 inch |
| Display Format | 1024×600 |
| Interface | RGB 50pin |
| Luminance | 900 cd/m² |
| Touch screen | Capacitive touch |
| Viewing Direction | ALL (IPS Full View) |
| Color Depth | 16.7M |
| Driver IC | HX8282 & HX8696 |
| LCM+CTP (W x H x D) (mm) | 235 * 143 * 6.64 |
| Active Area (mm) | 222.72 x 125.28 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 18V |
| No. | Symbol | I/O | Function |
|---|---|---|---|
| 1~2 | LEDA | P | LED Anode |
| 3~4 | LEDK | P | LED Cathode |
| 5 | GND | P | Ground |
| 6 | VCOM(NC) | P | Common voltage |
| 7 | DVDD | P | Digital power |
| 8 | MODE | I | DE/SYNC mode select MODE=H: DE mode (normally pull high) MODE=L: HSD/VSD mode |
| 9 | DE | I | Data enable signal |
| 10 | VS | I | Vertical sync input. Negative polarity |
| 11 | HS | I | Horizontal sync input. Negative polarity |
| 12~19 | B7~B0 | I | Blue data Input |
| 20~27 | G7~G0 | I | Green data Input |
| 28~35 | R7~R0 | I | Red data Input |
| 36 | GND | P | Ground |
| 37 | DCLK | I | Clock input |
| 38 | GND | P | Ground |
| 39 | L/R | I | Source right or left sequence control SHLR=H: right shift, Left → Right (Default) SHLR=L: left right, Right → Left |
| 40 | U/D | I | Gate up or down scan control UPDN=H: up shift, Down → Up UPDN=L: down shift, Up → Down (Default) |
| 41 | VGH | P | Positive power for TFT |
| 42 | VGL | P | Negative power for TFT |
| 43 | AVDD | P | Power for Analog Circuit |
| 44 | RESET | I | Global reset pin. Active low to enter reset state. Suggest connecting with an RC reset circuit for stability. Normally pull high (R=10K, C=1μF). |
| 45 | NC | - | Not connect |
| 46 | VCOM(NC) | P | Common voltage |
| 47 | DITHB | I | Dithering function |
| 48 | GND | P | Ground |
| 49~50 | NC | - | Not connect |
Yes. With a high luminance rating of 900 cd/m² and IPS all-angle viewing technology, the screen delivers clear visual clarity even under bright ambient and outdoor lighting conditions.
It utilizes a capacitive multi-touch structure (available in G+G or G+F designs) providing less than 10ms quick response time, durable wear resistance, and strong anti-interference performance.
The display is equipped with a standard RGB 50-pin interface supporting DE and SYNC mode configurations.
The module supports an operating temperature range from -20℃ to +70℃ and a storage temperature range from -30℃ to +80℃, making it suitable for tough industrial environments.
Yes, the display driver IC and capacitive touch panel can readily interface with development boards and embedded architectures running either Android or Windows operating systems.
