Product Description

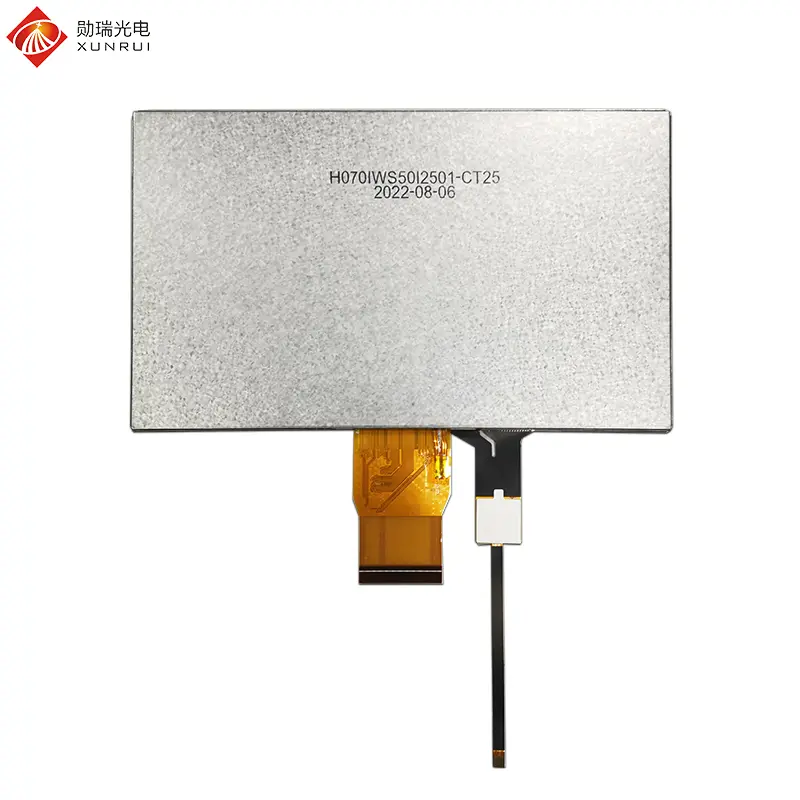

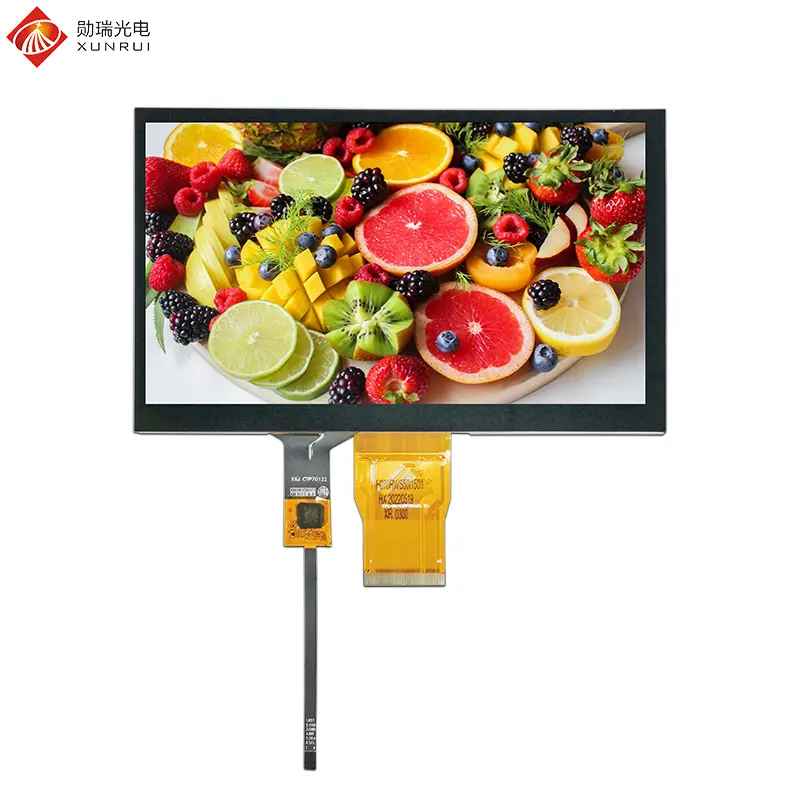

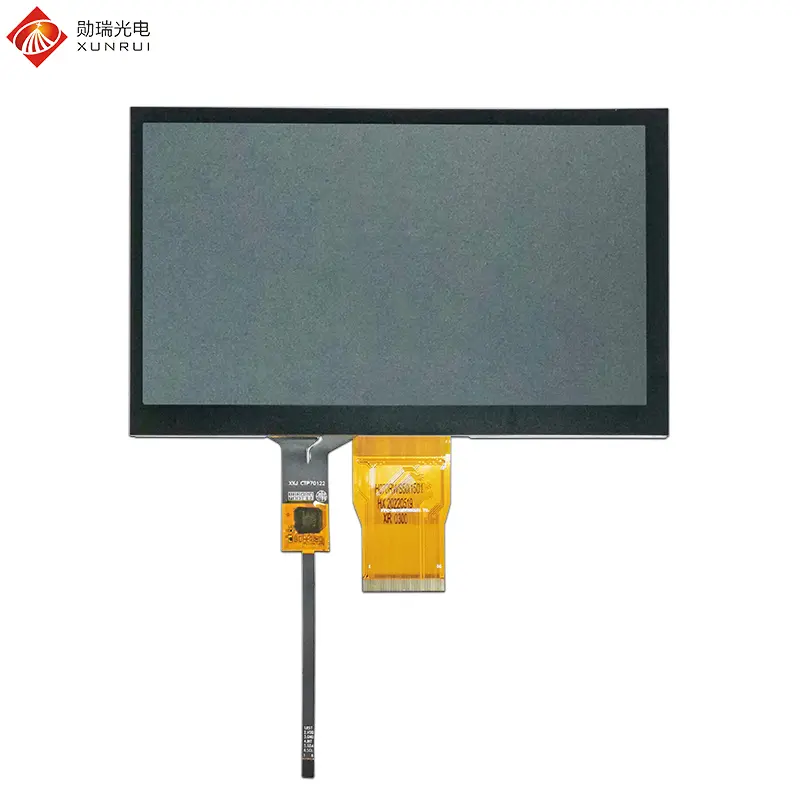

H070IWS50I2501-CT25 is a 7-inch TFT LCD module with capacitive touch function. This LCD screen adopts IPS panel, with a resolution of 1024×600, full viewing Angle, 24-bit RGB 50-pin interface HX8282/HX8696 Driver IC, with a brightness of 210 nits, can withstand operating temperatures ranging from -10℃ to +50℃. This 7-inch TFT LCD screen is mainly applied in the field of industrial control. Such touch screens are often integrated into industrial control all-in-one computers, embedded tablet computers or automated equipment for human-machine interaction interfaces (HMI), such as production line monitoring, equipment configuration or data acquisition terminals. For instance, some industrial tablet computers directly use 7-inch capacitive screens as the core display components. In the field of consumer electronics, 7-inch capacitive screens are commonly used as expansion displays for single-board computers such as Raspberry PI, serving as mini touch screens for educational, development or embedded projects. In addition, the portable secondary screen or expansion screen also adopts this size to meet the requirements of multitasking. Other applications include medical equipment, in-vehicle systems, self-service terminals, etc.

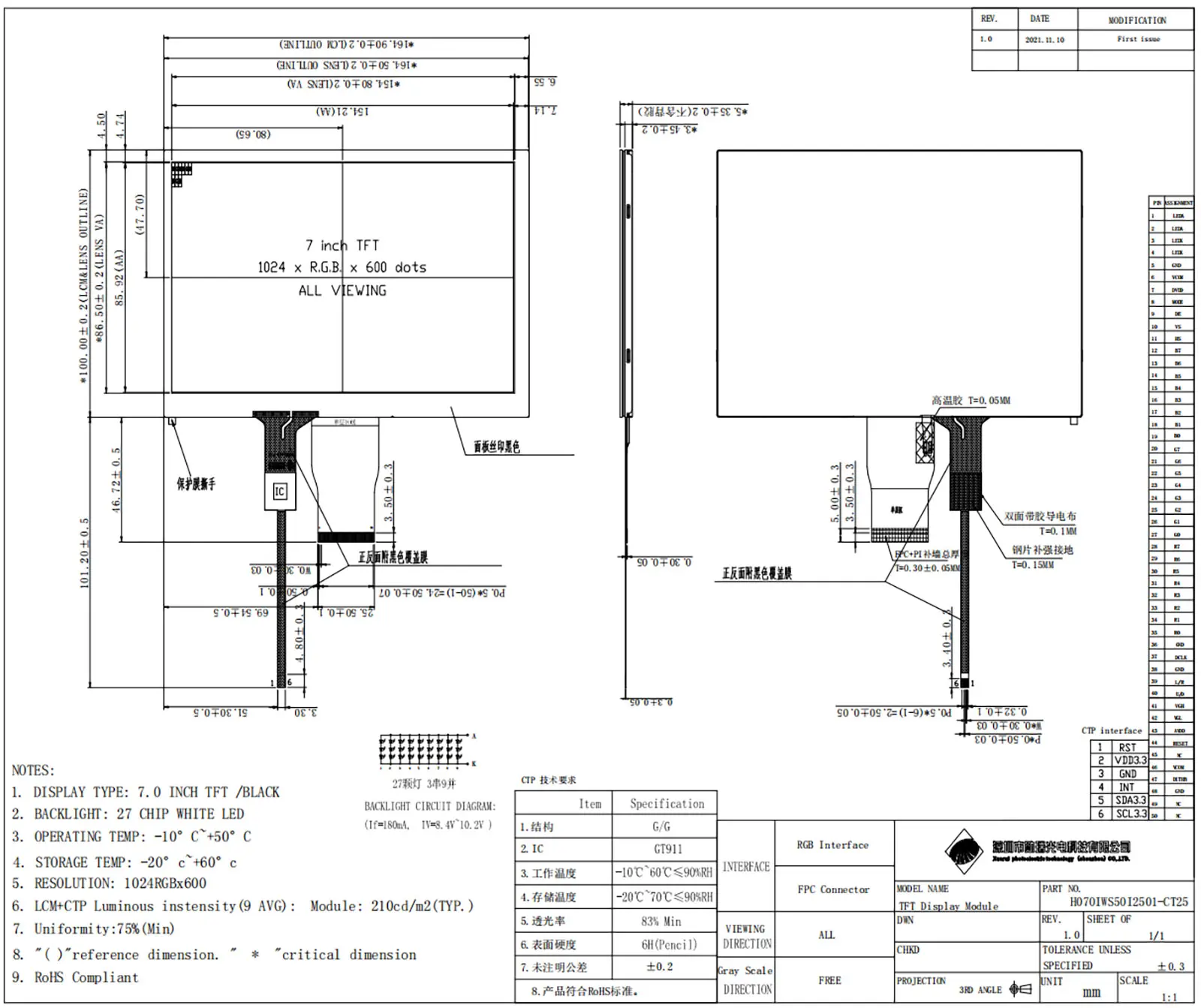

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H070IWS50I2501-CT25 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | 24-bit RGB 50pin |
| Luminance | 210 cd/m2 |
| Touch screen | capacitive touch |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | HX8282/HX8696 |
| LCM+CTP (W x H x D) (mm) | 164.9(W)×100(H)×5.35(D) |
| Active Area(mm) | 154.21(H)x85.92(V) |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Voltage | 9.0V |
Interface Definition
| No. | Symbol | Description |
|---|---|---|
| 1,2 | LEDA | LED Anode |
| 3,4 | LEDK | LED Cathode |
| 5 | GND | Power Ground |
| 6 | VCOM | Common Voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12 | B7 | Blue data(MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data |
| 19 | B0 | Blue data(LSB) |
| 20 | G7 | Green data(MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data |
| 27 | G0 | Green data (LSB) |
| 28 | R7 | Red Data(MSB) |
| 29 | R6 | Red Data |
| 30 | R5 | Red Data |
| 31 | R4 | Red Data |
| 32 | R3 | Red Data |
| 33 | R2 | Red Data |
| 34 | R1 | Red Data |
| 35 | R0 | Red Data(LSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left/right selection |
| 40 | U/D | up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | NO connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | NO connection |
| 50 | NC | NO connection |
Frequently Asked Questions (FAQ)
What are the primary applications of the H070IWS50I2501-CT25 7-inch TFT LCD module?
This display is commonly utilized in industrial control all-in-one panels, embedded HMI devices, production line monitoring, Raspberry Pi expansion screens, medical diagnostics equipment, and automotive self-service terminals.
What is the advantage of the IPS technology in this 7-inch screen?
The IPS (In-Plane Switching) panel delivers true full viewing angles (ALL direction) with consistent color reproduction and sharp 1024×600 resolution without color shifting from extreme angles.
What interface does this module use for signal transmission?
It integrates a standard 24-bit RGB 50-pin interface powered by HX8282 and HX8696 driver ICs, ensuring reliable, high-speed data transmission for real-time visual output.
What operating temperatures can this touch display module handle?
The unit operates reliably across temperatures from -10℃ to +50℃, and can be stored between -20℃ and +60℃, accommodating diverse standard industrial working conditions.
Does the module come integrated with capacitive touch?
Yes, the module is equipped with a factory-bonded capacitive touch panel (CTP), offering sensitive, precise multi-touch control with a compact overall depth of just 5.35 mm.
Can this display be interfaced directly with development boards like Raspberry Pi?
Yes, with an appropriate RGB adapter board or driver shield, it serves as an ideal interactive touch screen for single-board computers, embedded Linux systems, and maker projects.
