China 12.1 inch 1024×768 LVDS 900nit IPS TFT LCD display with capacitive touch panel Manufacturers, Suppliers

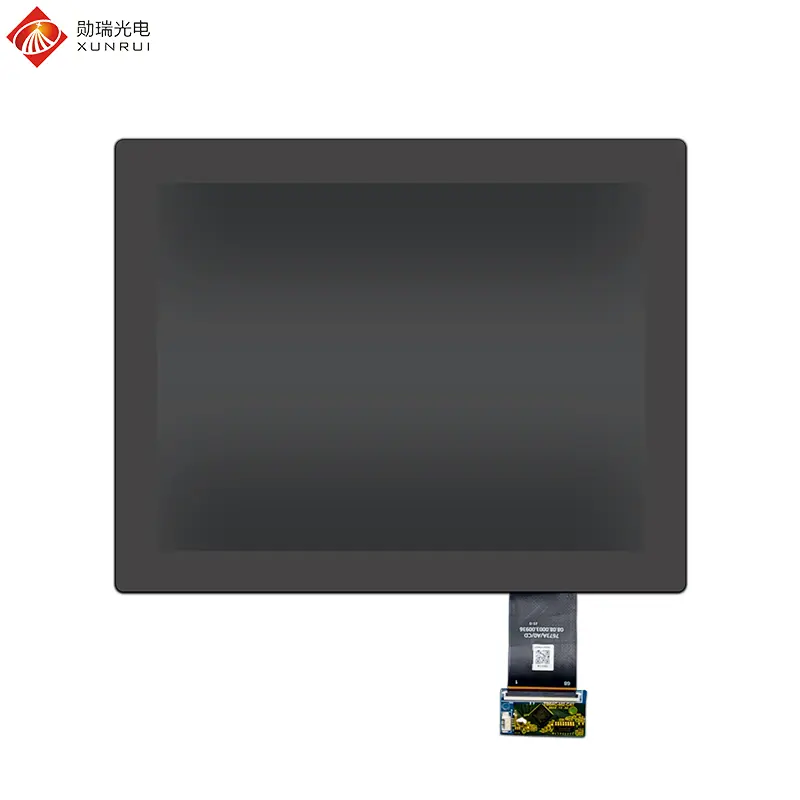

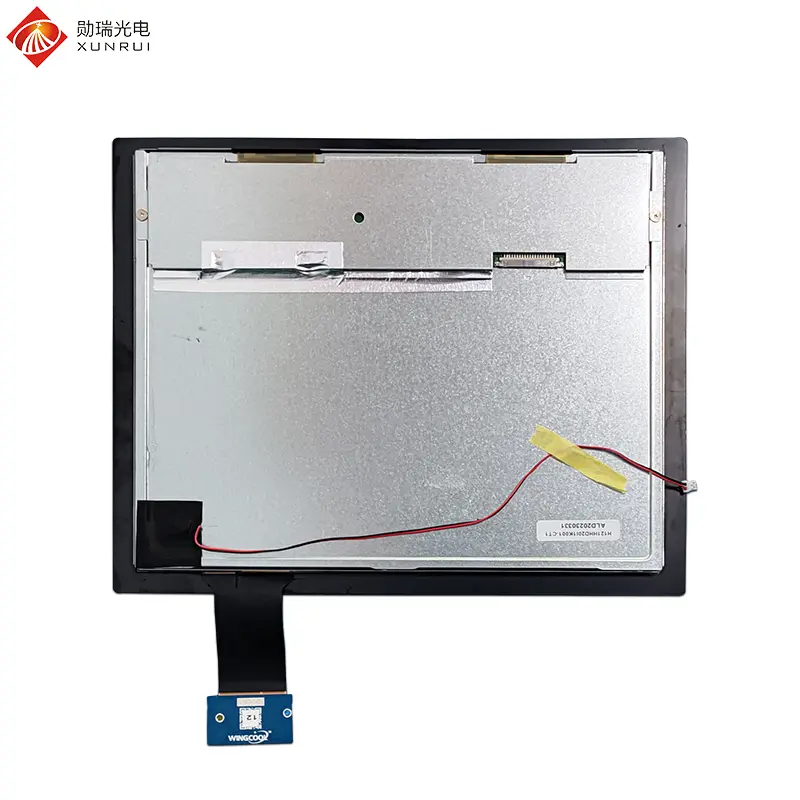

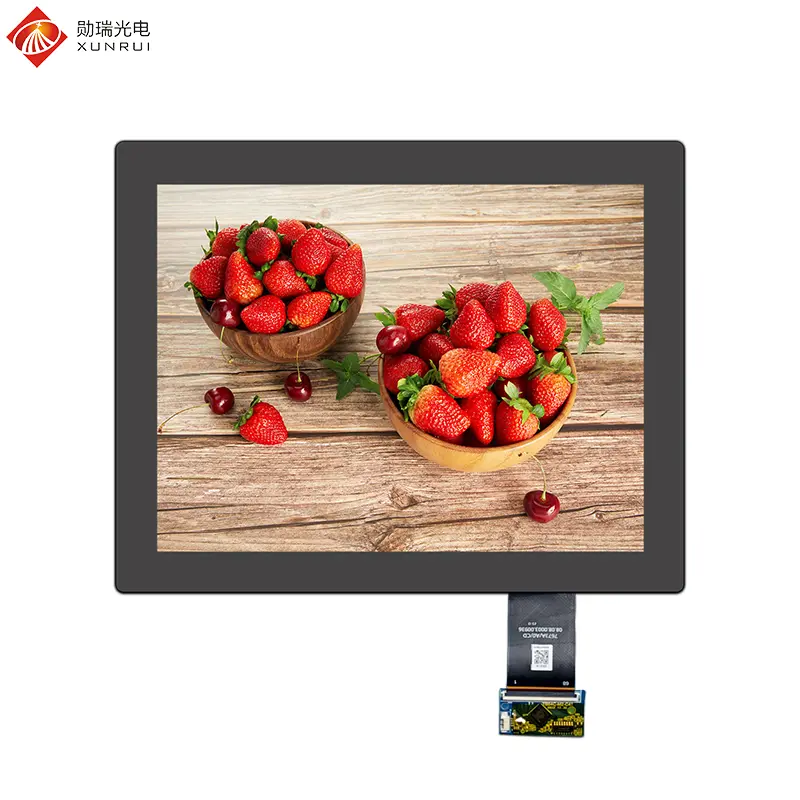

H121HHD20I1K001-CT1 is a 12.1 inch TFT LCD module with capacitive touch function. The capacitive touch screen supports multi-touch, has fast response and no pressure required, and is highly sensitive and smooth to operate. This LCD panel uses IPS panel technology to provide full viewing angles and rich display colors. The resolution is 1024×768 (XGA), with moderate pixel density, and the display of text, images and videos is clear and detailed, providing a high-definition visual experience. The LVDS 20PIN interface, with a 900nit high brightness design, can maintain clear display even in outdoor or strong light conditions. It is made of reinforced glass and impact-resistant materials, capable of withstanding external impacts and scratches. The working temperature can withstand -10℃ to +60℃, and can adapt to harsh environments such as industrial and vehicle use. This 12.1 inch TFT LCD panel is mainly applied in professional instruments and testing equipment: used for oscilloscopes, spectrum analyzers, etc., for displaying waveforms and data, with high resolution and touch function facilitating operation. Public information and advertising: used as information screens or billboards in airports, stations, shopping malls, etc., with high-definition display to attract attention. Industrial control and automation: used for HMI panels, PLC controllers, data acquisition terminals, for real-time monitoring and operation of equipment. Additionally, it can also be used in fields such as vehicle and transportation, medical equipment, etc.
