Custom 23.8 inch 1920×1080 IPS TFT LCD display with capacitive touch panel Manufacturer, Manufacturers
Product Description

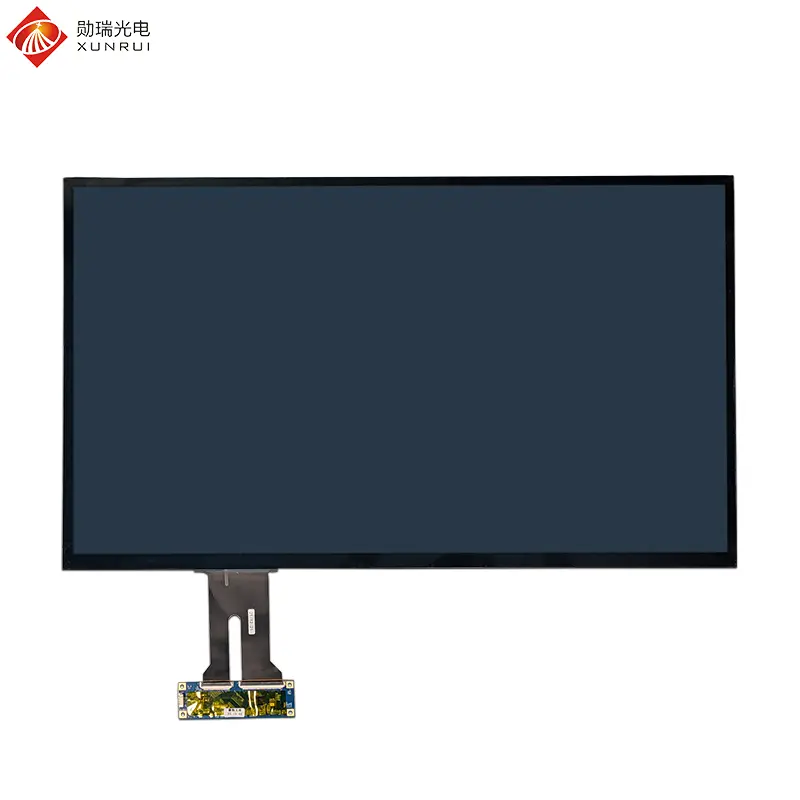

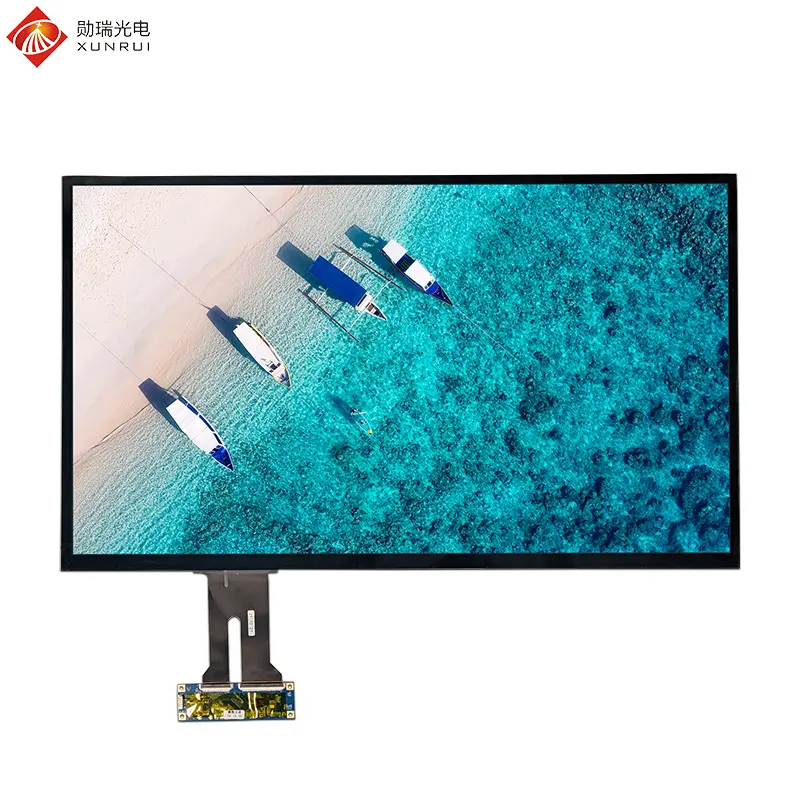

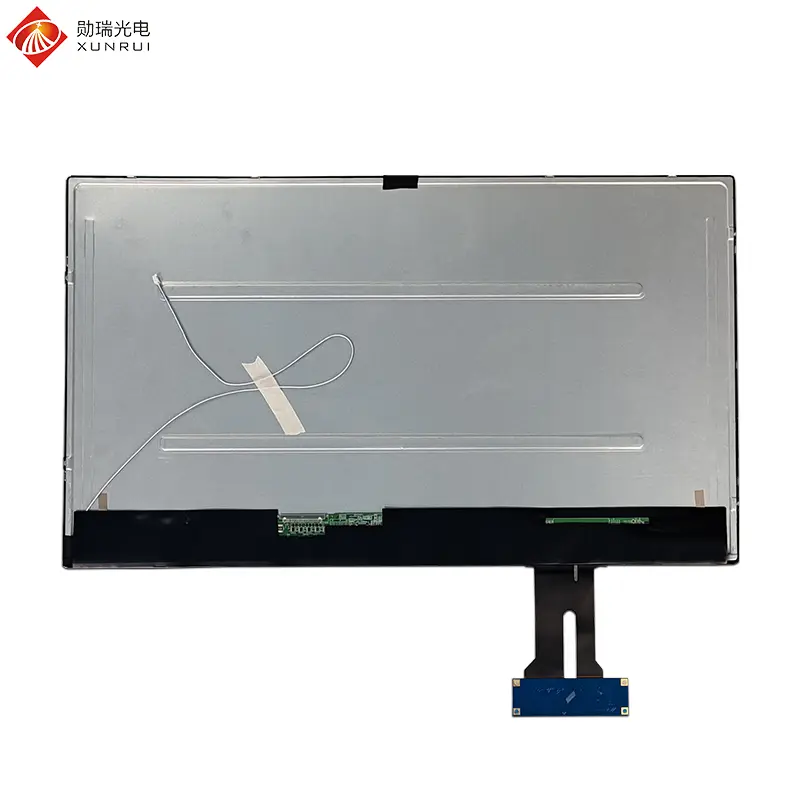

H238BFH30I3501-CT1 is a 23.8 inch TFT LCD module equipped with capacitive touch. This LCD screen uses an IPS panel with a full viewing angle, has a resolution of 1920×1080, an LVDS 30-pin interface, and a brightness of 250 nit. The capacitive touch technology delivers high sensitivity, precise responsiveness to light touch from fingers or conductive styluses, and multi-touch capabilities for complex gestures like zooming and rotation. With an industrial-grade G+G structure, it guarantees surface hardness, impact resistance, and durability. Widely applied in commercial retail self-checkout systems, information query terminals, public guidance screens, industrial automation, education displays, and computing equipment.
High Sensitivity & Accuracy
Swift, precise response to light finger touches and conductive pens, ensuring seamless user operation.
Multi-Touch Support
Identifies multi-point interactions, allowing gesture controls like zooming, sliding, and screen rotation.
Industrial G+G Durability
Features rugged Glass-on-Glass construction with high surface hardness to prevent scratch and impact wear.
Broad Field Applications
Engineered for retail self-service kiosks, public terminals, municipal halls, and factory automation.
| Feature | Specification |
|---|---|
| Model Name | H238BFH30I3501-CT1 |
| LCD Size | 23.8 inch |
| Display Format | 1920×1080 |
| Interface | LVDS 30pin |
| Luminance | 250 cd/m² |
| Touch Screen | Capacitive Touch |
| Viewing Direction | ALL (Full Viewing Angle) |
| Color Depth | 16.7M |
| Driver IC | TBD |

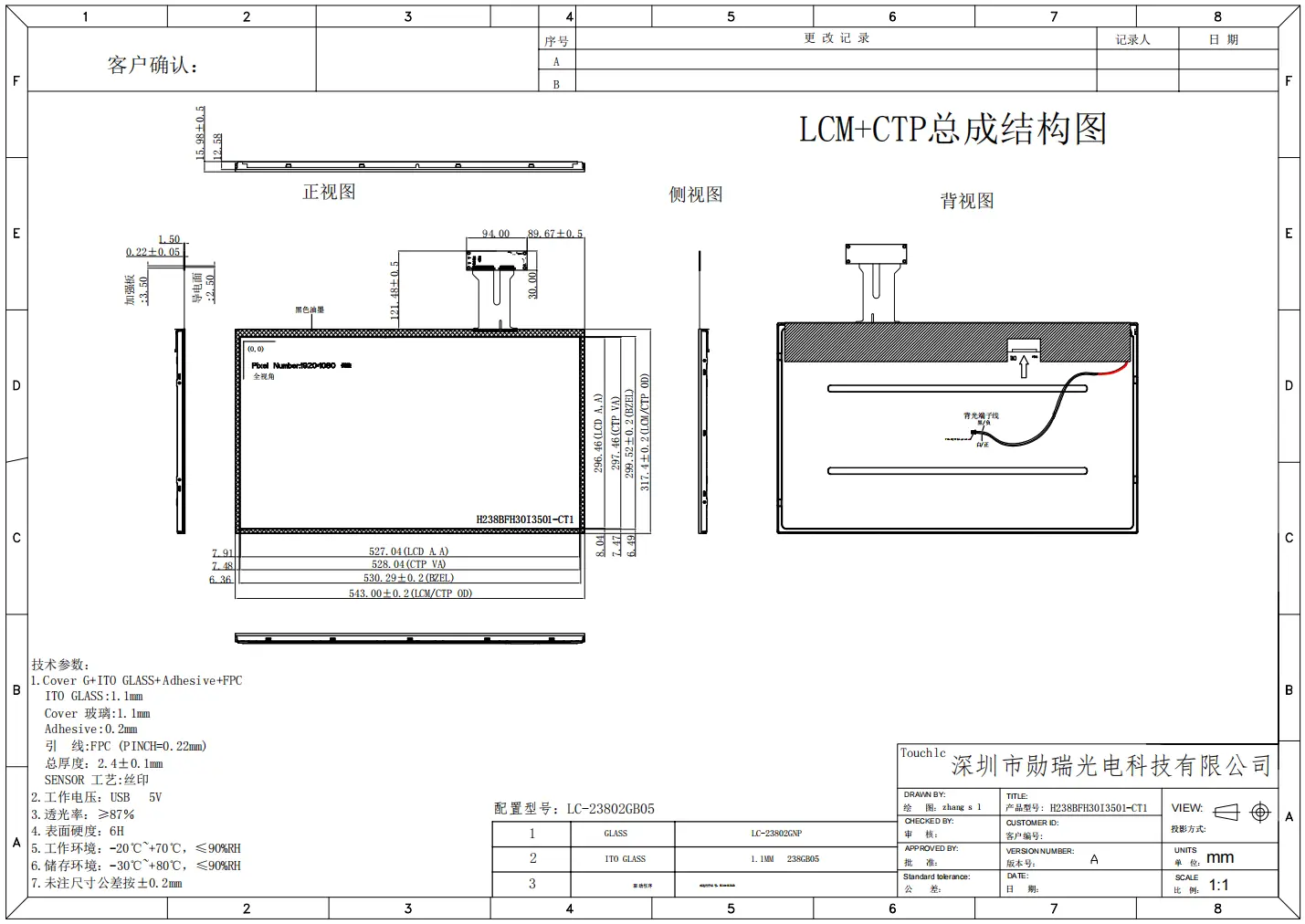

| LCM+CTP Dimension (W × H × D) | 543 × 317.4 × 15.98 mm |
| Active Area | 527.04 (H) × 296.46 (V) mm |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Voltage | 55V |
| Pin No | Symbol | Function |
|---|---|---|
| 1 | RXO0- | Negative Transmission data of Pixel 0 (ODD) |
| 2 | RXO0+ | Positive Transmission data of Pixel 0 (ODD) |
| 3 | RXO1- | Negative Transmission data of Pixel 1 (ODD) |
| 4 | RXO1+ | Positive Transmission data of Pixel 1 (ODD) |
| 5 | RXO2- | Negative Transmission data of Pixel 2 (ODD) |
| 6 | RXO2+ | Positive Transmission data of Pixel 2 (ODD) |
| 7 | GND | Ground |
| 8 | RXOC- | Negative Transmission Clock (ODD) |
| 9 | RXOC+ | Positive Transmission Clock (ODD) |
| 10 | RXO3- | Negative Transmission data of Pixel 3 (ODD) |
| 11 | RXO3+ | Positive Transmission data of Pixel 3 (ODD) |
| 12 | RXE0- | Negative Transmission data of Pixel 0 (EVEN) |
| 13 | RXE0+ | Positive Transmission data of Pixel 0 (EVEN) |
| 14 | GND | Ground |
| 15 | RXE1- | Negative Transmission data of Pixel 1 (EVEN) |
| 16 | RXE1+ | Positive Transmission data of Pixel 1 (EVEN) |
| 17 | GND | Ground |
| 18 | RXE2- | Negative Transmission data of Pixel 2 (EVEN) |
| 19 | RXE2+ | Positive Transmission data of Pixel 2 (EVEN) |
| 20 | RXEC- | Negative Transmission Clock (EVEN) |
| 21 | RXEC+ | Positive Transmission Clock (EVEN) |
| 22 | RXE3- | Negative Transmission data of Pixel 3 (EVEN) |
| 23 | RXE3+ | Positive Transmission data of Pixel 3 (EVEN) |
| 24 | GND | Ground |
| 25 | NC | No Connection |
| 26 | NC | No Connection |
| 27 | NC | No Connection |
| 28 | VDD | Power Supply: +5V |
| 29 | VDD | |
| 30 | VDD |
