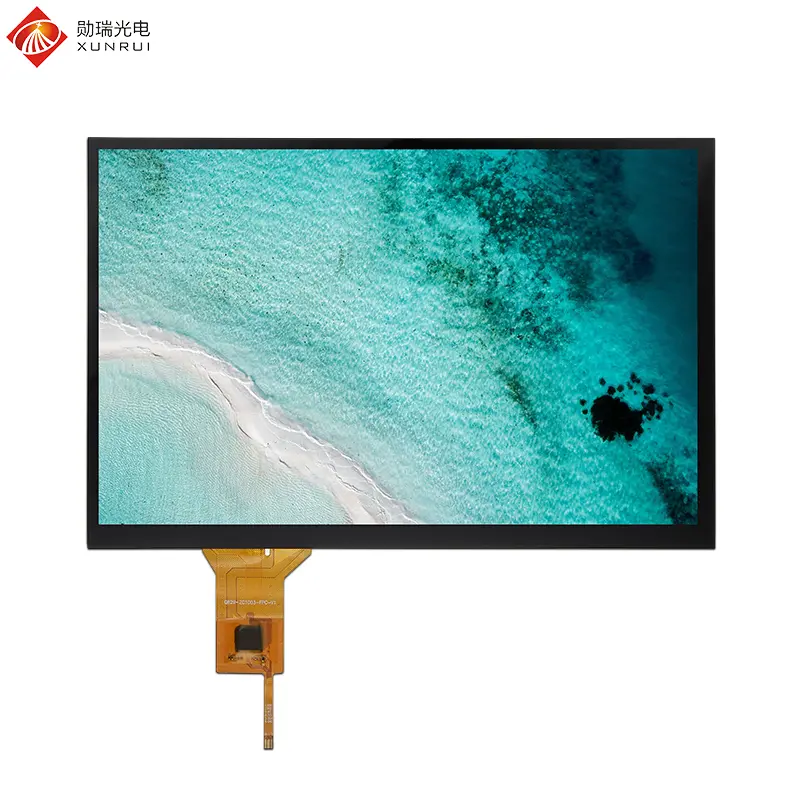

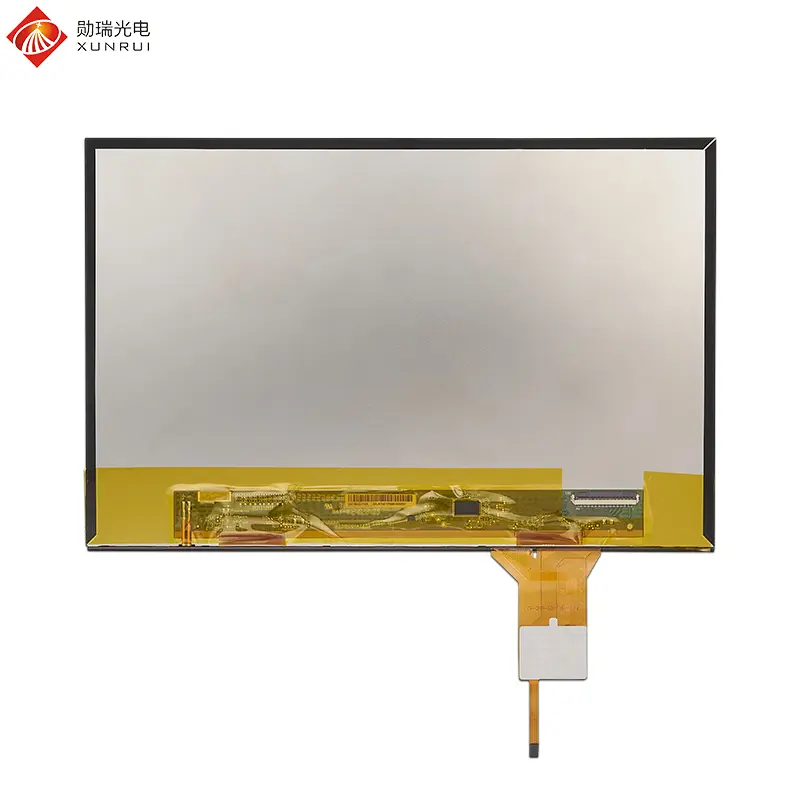

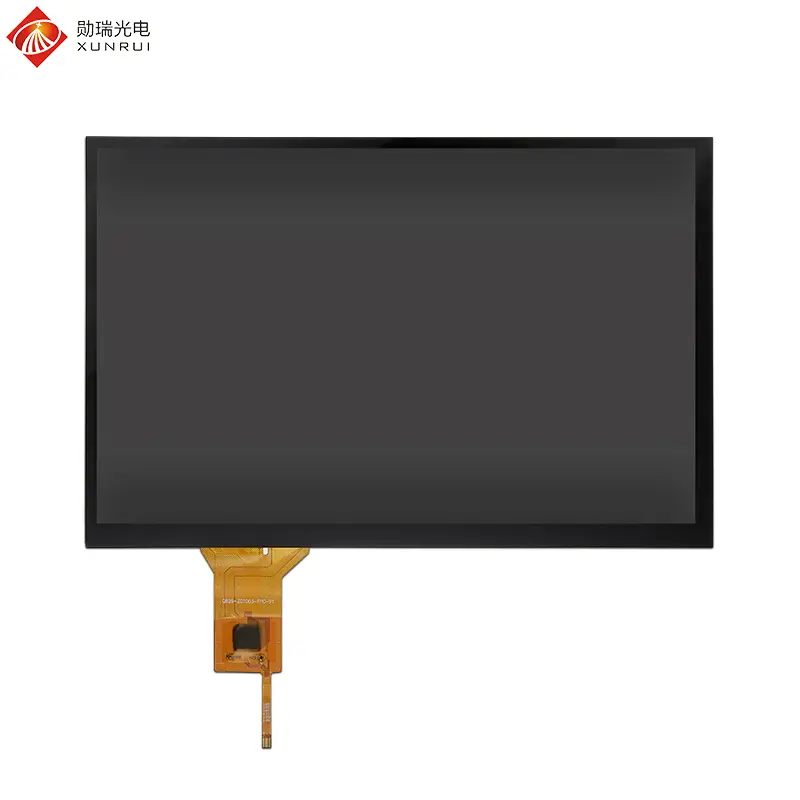

H101IFH40I3516-CT19 is a 10.1-inch TFT LCD module with capacitive touch functionality. This LCD screen adopts an IPS panel, featuring a resolution of 1280×800, full viewing angle, LVDS 40-pin interface, and a brightness of 290 cd/m². The working temperature operates stably from -20℃ to +70℃. This 10.1-inch TFT LCD display is primarily engineered for industrial automation equipment demanding high operational stability and durability. It serves seamlessly as a human-machine interface (HMI), presenting real-time system data, process graphics, and equipment status inside PLC panels and industrial control systems. Additionally, it provides vivid visual output for commercial and retail terminals including POS devices, self-service information kiosks, interactive advertising screens, and queuing systems. In medical healthcare environments, it ensures sharp rendering for portable color Doppler ultrasound devices, vital sign monitors, and electrocardiogram analyzers, alongside integration potentials in consumer electronics, automotive information consoles, and rugged industrial tablets.

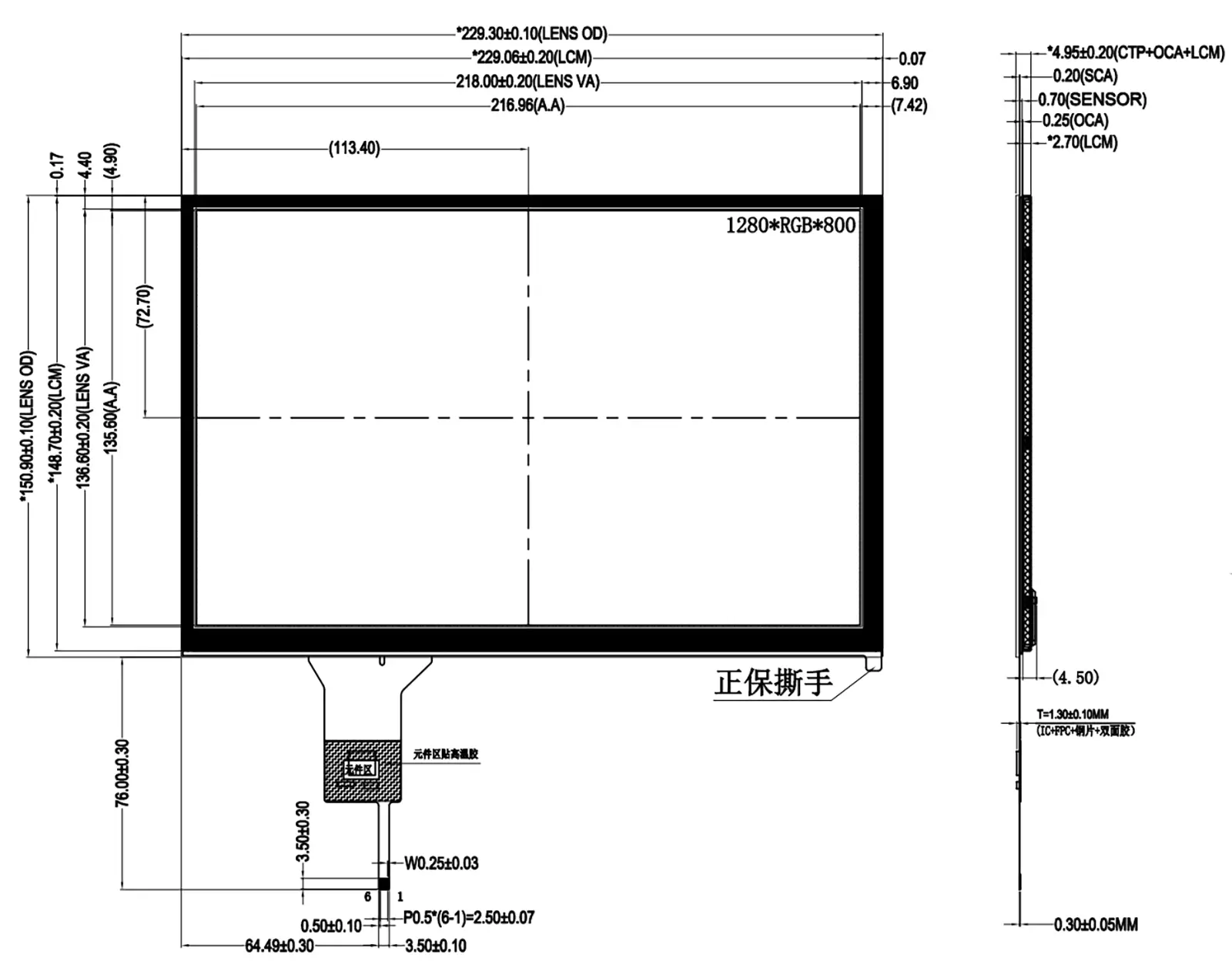

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H101IFH40I3516-CT19 |
| LCD Size | 10.1 inch |
| Display Format | 1280×800 |
| Interface | LVDS 40pin |
| Luminance | 290 cd/m² |
| Touch Screen | Capacitive Touch |
| Viewing Direction | ALL (IPS Full View) |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM + CTP (W × H × D) (mm) | 229.30 × 150.90 × 4.95 |
| Active Area (mm) | 216.96 × 135.60 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.6V |
Interface Definition
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VCOM | Common Voltage |
| 2 | VDD | Power Voltage for digital circuit |
| 3 | VDD | Power Voltage for digital circuit |
| 4 | NC | No connection |
| 5 | NC | No connection |
| 6 | NC | No connection |
| 7 | GND | Ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXIN0+ | +LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | +LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | +LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | -LVDS differential clock input |
| 18 | RXCLKIN+ | +LVDS differential clock input |
| 19 | GND | Ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | +LVDS differential data input |
| 22 | GND | Ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | NC | No connection |
| 28 | NC | No connection |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31 | LED- | LED Cathode |
| 32 | LED- | LED Cathode |
| 33 | NC | No connection |
| 34 | NC | No connection |
| 35 | VGL | Gate OFF Voltage |
| 36 | NC | No connection |
| 37 | NC | No connection |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
