1 / 3
China 4 inch 480×480 RGB Square IPS TFT LCD Module with capacitive touch Manufacturer, Supplier
Product Description
Product Description

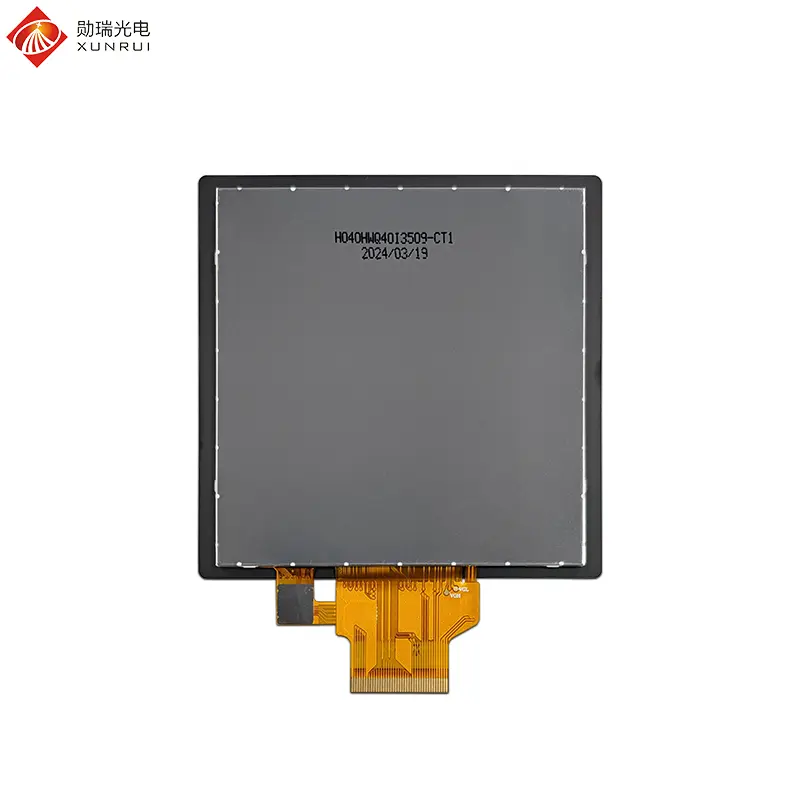

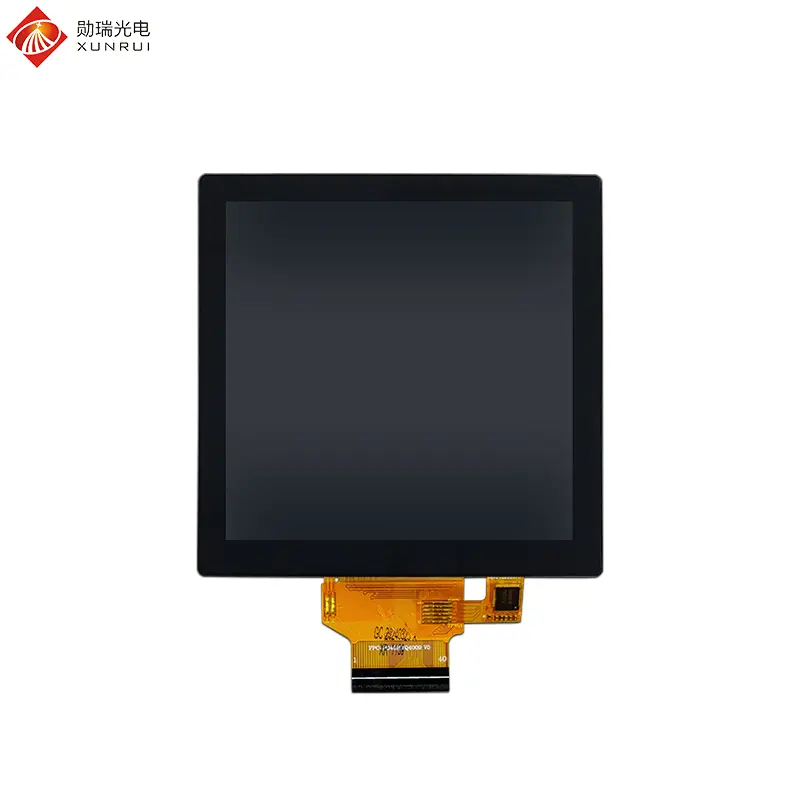

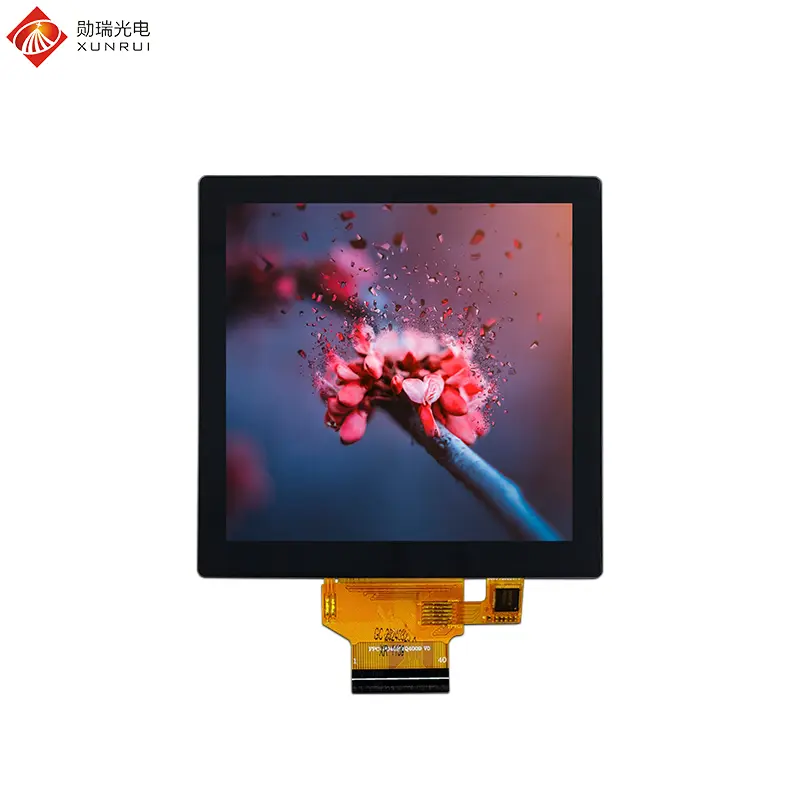

H040HWQ40I3509-CT1 is a 4-inch TFT LCD module. This is a square-display TFT LCD module with a resolution of 480×480 pixels. It features IPS full-view technology, capacitive multi-touch technology, and uses the GC9503CV driving chip. It supports RGB or MIPI interface methods. It has anti-interference design, supports wide temperature operation, and some models integrate tempered glass covers to enhance durability. The 1:1 square ratio is more suitable for UI icon layout, especially for smart panels, HMI human-machine interface design, and improving interaction experience. This product is widely used in smart home, industrial control, medical equipment, and IoT terminals. For example, it is used in smart panels installed in 86 boxes to achieve one-click control of lights, air conditioners, and curtains. As an industrial human-machine interface (HMI), it is used for PLC control, equipment monitoring, and data acquisition systems. It is used in portable medical instruments, such as blood pressure monitors and monitors, requiring high reliability and clear display, and supporting low-temperature environment startup.
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen

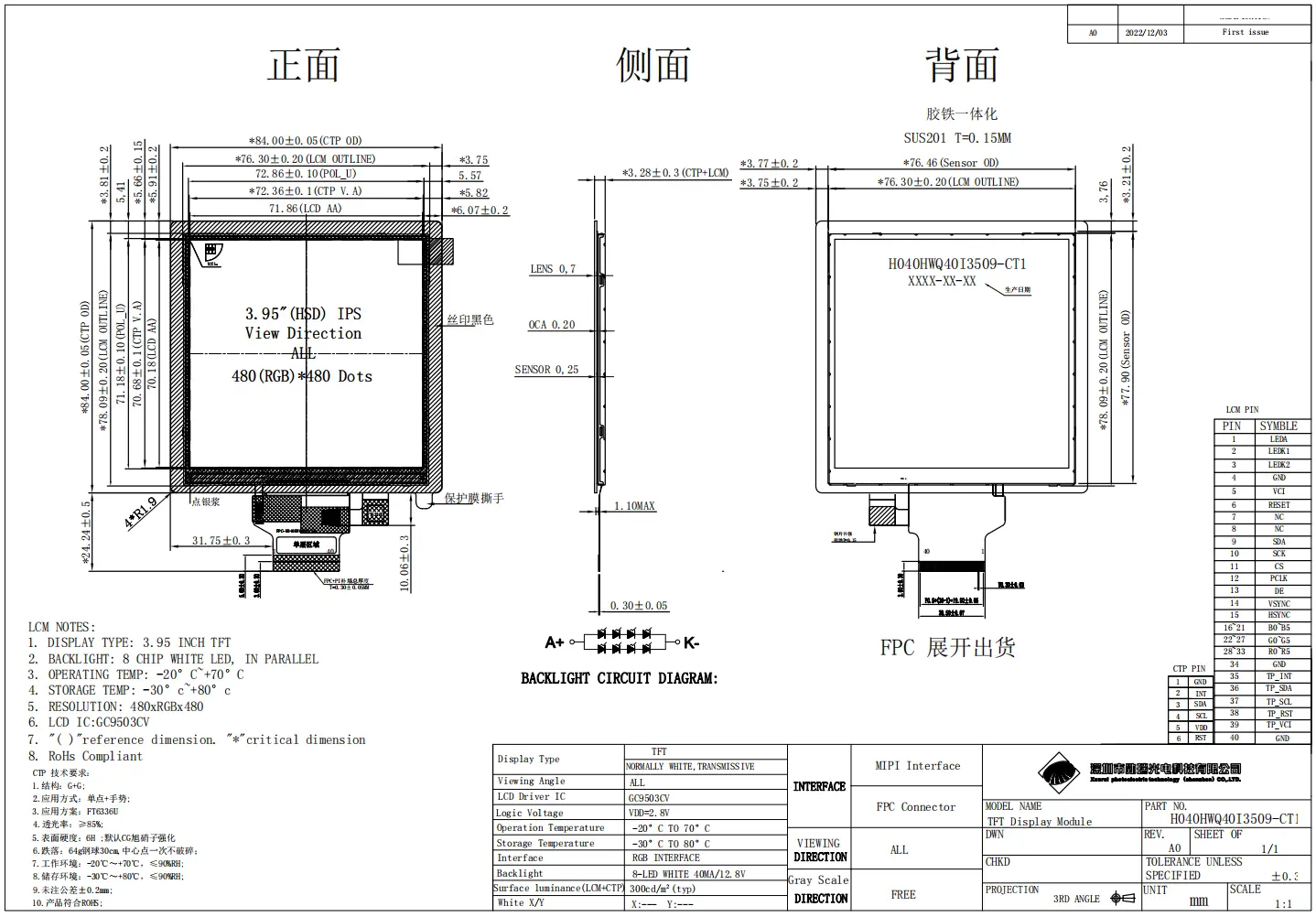

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H040HWQ40I3509-CT1 |
| LCD Size | 4.0 inch |
| Display Format | 480×480 |
| Interface | RGB 40pin |
| Luminance | 300 cd/m² |
| Touch Screen | Capacitive Touch |
| Viewing Direction | ALL (IPS Full View) |
| Color Depth | 262K |
| Driver IC | GC9503CV |
| LCM (W x H x D) (mm) | 84 × 84 × 3.22 |
| Active Area (mm) | 72.36 × 70.68 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 12.8V |
Interface Definition
| Pin No. | Symbol | I/O | Description |
|---|---|---|---|
| 1 | LEDA | P | Power supply for backlight anode |
| 2 | LEDK1 | P | Power supply for backlight cathode |
| 3 | LEDK2 | P | Power supply for backlight cathode |
| 4 | GND | P | Power Ground |
| 5 | VCI | P | Power supply to the internal logic power regulator (3.3V) |
| 6 | RESET | I | The signal will reset the LCM, Signal is active low. |
| 7-8 | NC | - | No connected |
| 9 | SDA | I/O | Serial in/out signal, for initial RGB I/F. |
| 10 | SCK | I | Serial interface clock, for initial RGB I/F. |
| 11 | CS | I | Chip select input pin ("Low" enable), for initial RGB I/F. |
| 12 | PCLK | I | Pixel clock input pin, Negative polarity |
| 13 | DE | I | Data input enable. Display access is enabled when DE is "H" |
| 14 | VSYNC | I | Vertical sync signal, Negative polarity |
| 15 | HSYNC | I | Horizontal sync signal, Negative polarity |
| 16-21 | B0-B5 | I | Blue data input. |
| 22-27 | G0-G5 | I | Green data input. |
| 28-33 | R0-R5 | I | Red data input. |
| 34 | GND | P | Power Ground |
| 35 | TP_INT | O | Interrupt signals for TP |
| 36 | TP_SDA | I/O | I2C data signals for TP |
| 37 | TP_SCL | I | I2C clock signals for TP |
| 38 | TP_RST | I | The signal will reset the TP, Signal is active low |
| 39 | TP_VCI | P | TP_VDD (2.8V) Power Supply for TP |
| 40 | GND | P | Power Ground |
Frequently Asked Questions (FAQ)
1. What is the primary application for this 4-inch square TFT LCD module?
This 1:1 square ratio display is primarily engineered for standard 86-box smart home wall panels, HMI human-machine interfaces, industrial control instruments, and medical monitoring equipment.
2. Does this display module include a touch panel?
Yes, it features integrated capacitive multi-touch technology, providing responsive and durable touch performance for interactive UI systems.
3. What interface options are supported by the GC9503CV driver IC?
The GC9503CV driver supports standard RGB (such as 40-pin RGB) and MIPI interface configurations, making it compatible with various embedded platforms.
4. Can this TFT LCD operate in harsh outdoor or industrial environments?
Yes, the module is built for wide temperature operation, with an operating temperature range from -20℃ to +70℃ and storage limits between -30℃ and +80℃, along with anti-interference protection.
5. What viewing angle does this display support?
It utilizes IPS display technology, providing full viewing angles (ALL direction) with consistent color depth and contrast from almost any perspective.
