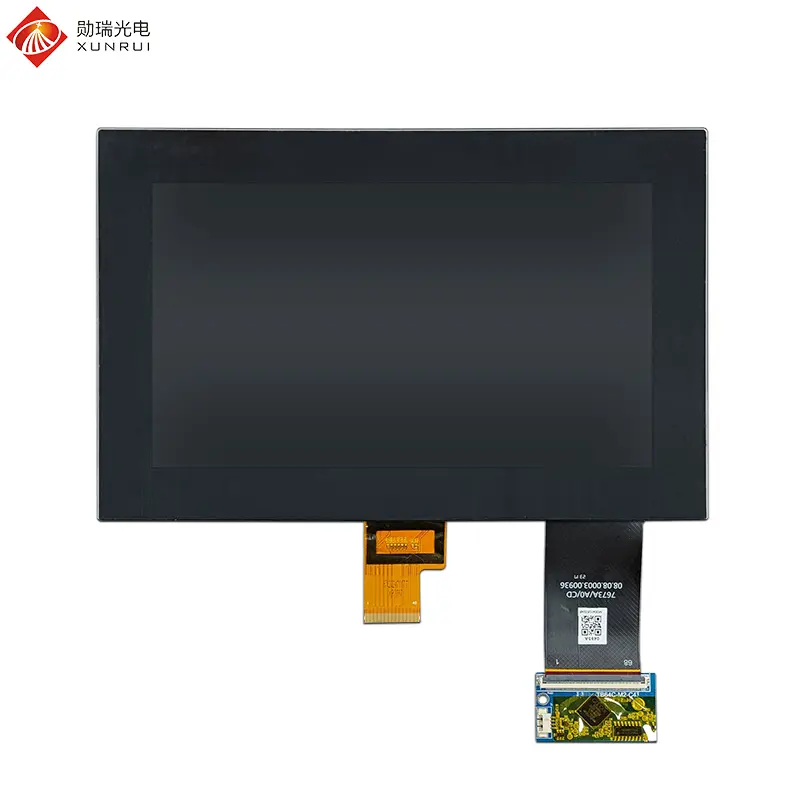

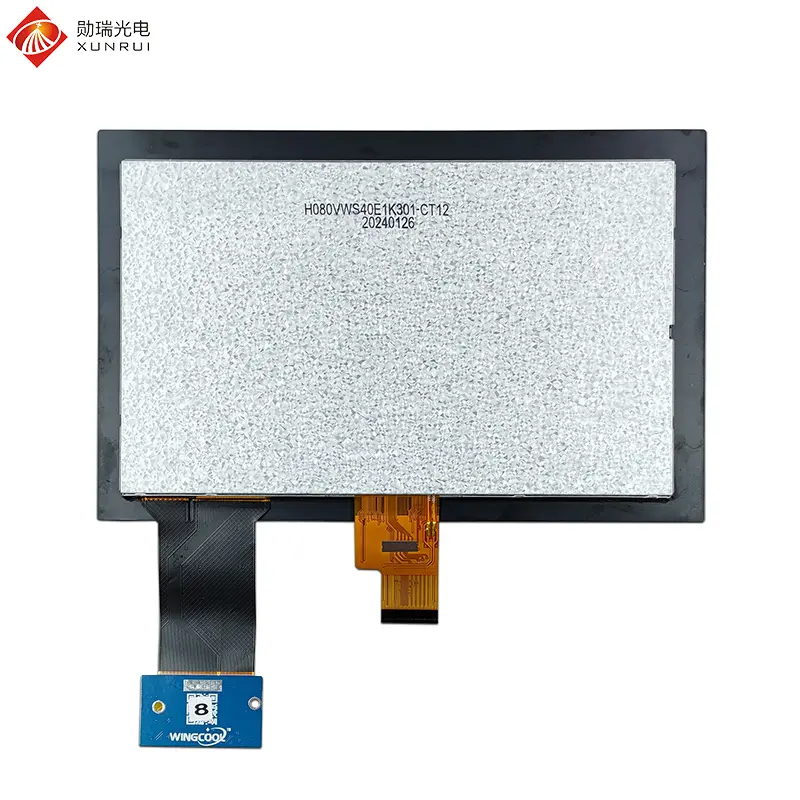

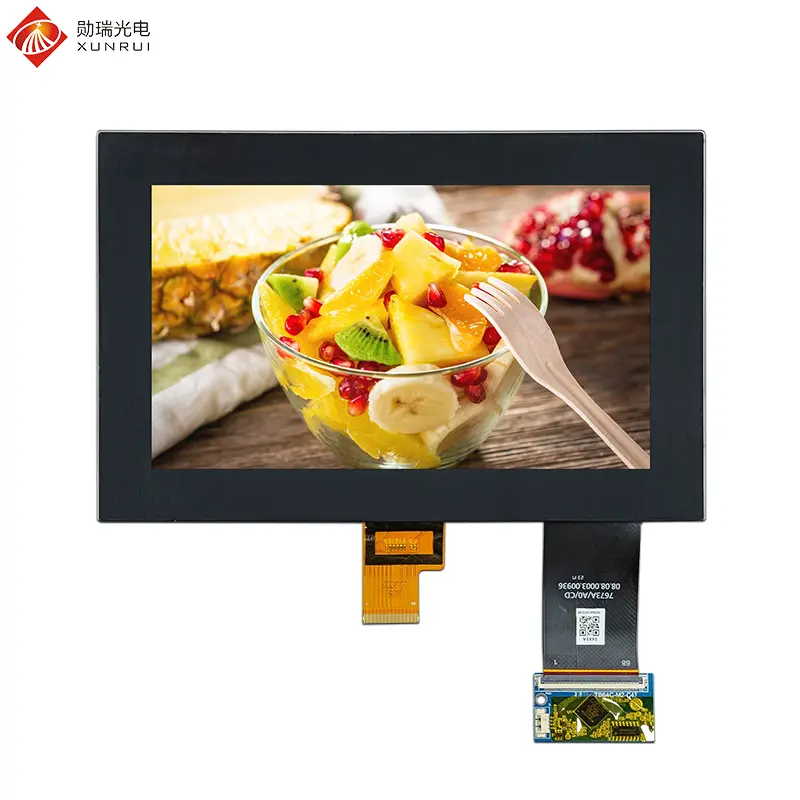

H080VWS40E1K301-CT12 is an 8-inch TFT LCD module with capacitive touch function. This LCD screen adopts a TN panel with a resolution of 1024×600 and an LVDS 40-pin interface. HX8282_A02+ HX8696_A01 Driver IC, visible in sunlight with a brightness of 1300 nits, can withstand operating temperatures ranging from -20℃ to +70℃. This 8-inch TFT LCD screen is mainly applied in industrial control and automation: In the field of industrial automation, 8-inch capacitive touch screens are often used as control panels or display interfaces, such as PLC control panels, production line operation terminals, industrial data acquisition and display devices, etc. Its high brightness, heat resistance, dust-proof and shock-resistant features enable it to adapt to various harsh industrial environments. Some models also support operation while wearing gloves, facilitating workers to accurately control the equipment even under special protection. Automotive electronics: 8-inch capacitive touch screens are very common in automotive applications and are one of the important symbols of modern automobiles' "intelligence". It is often used in car navigation systems, center console touch screens, reversing camera displays, and information display screens of construction machinery. Its high brightness and fast response characteristics ensure clear visibility under various lighting conditions. Medical equipment: Medical equipment has extremely high requirements for the clarity, color accuracy and operational stability of display screens. 8-inch capacitive touch screens are widely used in medical monitors, portable diagnostic devices (such as B-ultrasound machines), surgical operation screens, and control panels of ventilators and other equipment. The feature that its surface is easy to clean and disinfect also meets the requirements for preventing cross-infection in the medical environment. In addition, it can also be used in fields such as smart home, educational office, and security monitoring.

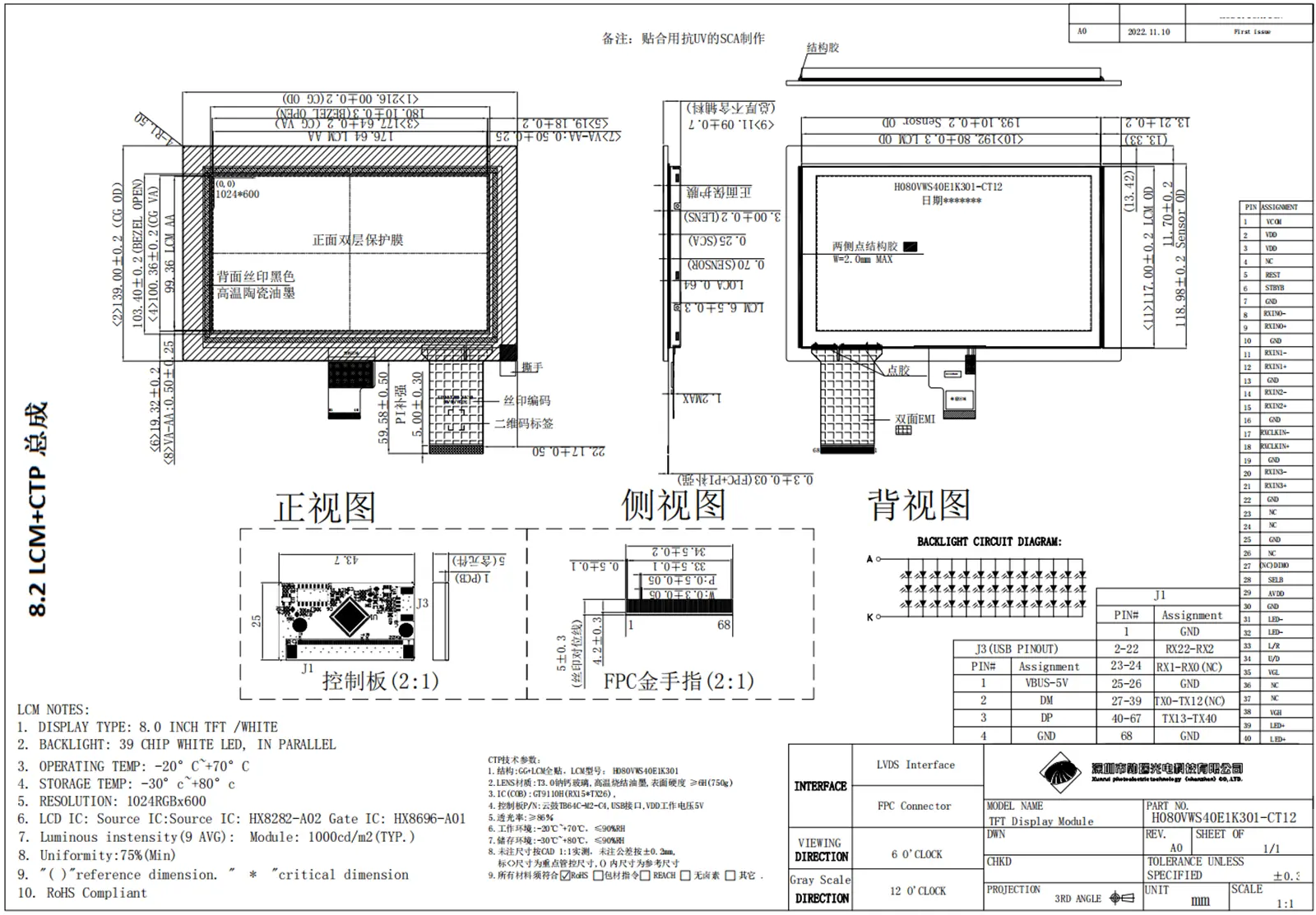

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H080VWS40E1K301-CT12
LCD Size
8 inch
Display Format
1024×600
Interface
LVDS 40pin
Luminance
1300 cd/m2
Touch screen
capacitive touch
Viewing Direction
6 O’clock
Color Depth
16.7M
Driver IC
HX8282_A02+ HX8696_A01
LCM+CTP (W x H x D) (mm)
216.00*139.00*11.09
Active Area(mm)
176.64*99.36
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-30℃ ~ +80℃
Operating Voltage
9.0V
Interface Definition
No.
Symbol
Description
1
VCOM
Common Voltage
2
VDD
Digital power_3.3V
3
VDD
Digital power_3.3V
4
NC
Not connect
5
RESET
Global reset pin
6
STBYB
Standby mode
7
GND
Ground
8
RXIN0-
Negative LVDS differential data input
9
RXIN0+
Positive LVDS differential data input
10
GND
Ground
11
RXIN1-
Negative LVDS differential data input
12
RXIN1+
Positive LVDS differential data input
13
GND
Ground
14
RXIN2-
Negative LVDS differential data input
15
RXIN2+
Positive LVDS differential data input
16
GND
Ground
17
RXCLKIN-
Negative LVDS differential clock input
18
RXCLKIN+
Positive LVDS differential clock input
19
GND
Ground
20
RXIN3-
Negative LVDS differential data input
21
RXIN3+
Positive LVDS differential data input
22
GND
Ground
23
NC
Not connect
24
NC
Not connect
25
GND
Ground
26
NC
Not connect
27
NC(DIM0)
Not connect
28
SELB
6bit/8bit mode select
29
AVDD
Power for Analog Circuit
30
GND
Ground
31
LED-
LED cathode
32
LED-
LED cathode
33
L/R
Horizontal inversion
34
U/D
Vertical inversion
35
VGL
Negative power for TFT
36
NC
Not connect
37
NC
Not connect
38
VGH
Positive power for TFT
39
LED+
LED Anode
40
LED+
LED Anode
Frequently Asked Questions (FAQ)
What are the resolution and brightness specifications of model H080VWS40E1K301-CT12?
This 8-inch TFT LCD module features a high resolution of 1024×600 and a high luminance of 1300 nits (cd/m²), making it clearly visible in outdoor direct sunlight.
Which interface and driver IC does this display module use?
The module utilizes an LVDS 40-pin interface and is powered by the HX8282_A02 + HX8696_A01 driver IC setup, supporting 16.7M colors.
What operating and storage temperature ranges are supported?
The display has an industrial-grade operating temperature range from -20℃ to +70℃ and a storage temperature range from -30℃ to +80℃, suitable for harsh environments.
Does the capacitive touch screen support glove operation?
Yes, its high-performance capacitive touch panel supports operation while wearing gloves, facilitating accurate machine control under industrial and medical safety protocols.
What are the primary applications for this 8-inch LCD module?
Primary applications include industrial control and automation (PLC panels, data acquisition), automotive electronics (car navigation, center consoles), medical equipment (monitors, diagnostic tools), smart home, and security monitoring.
