Product Description

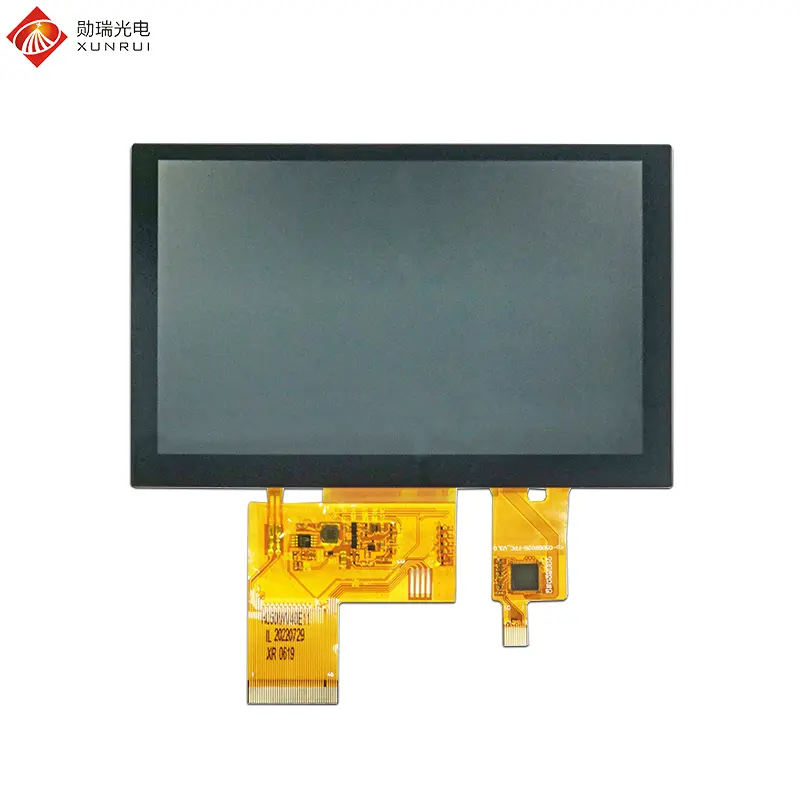

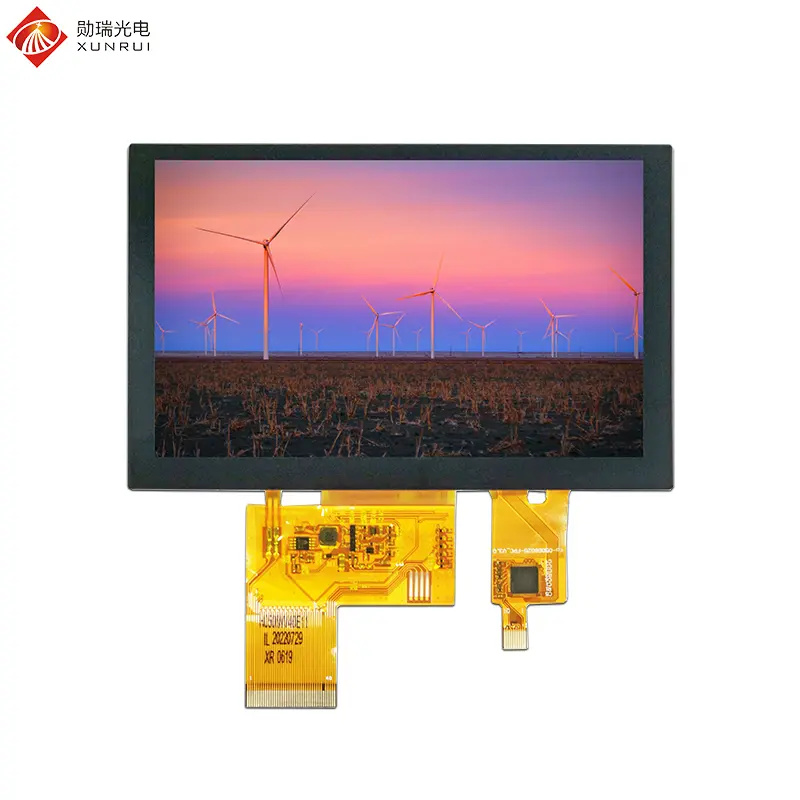

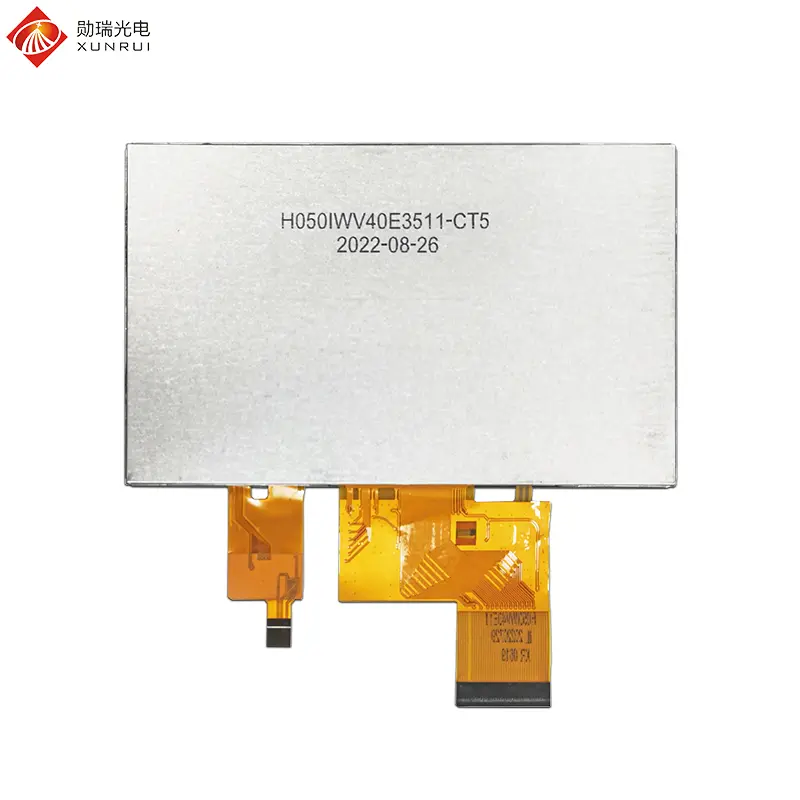

H050IWV40E3511-CT5 is a 5-inch TFT LCD module with capacitive touch function. This LCD screen adopts a TN panel with a resolution of 800×480, a 24-bit RGB 40-pin interface, and ILI5960+ILI6122 Driver IC. It has a brightness of 350 nits and can withstand operating temperatures ranging from -20℃ to +70℃.
This 5-inch TFT LCD screen is widely applied in industrial control and handheld devices: used for industrial control panels, handheld terminals (such as data collectors, barcode scanners), and three-proof equipment. It supports touch operation with gloves or water, meeting the rigorous stability requirements of industrial environments.
It is also integrated into portable medical equipment (such as blood glucose meters, blood pressure monitors, and ultrasound diagnostic instruments), facilitating data monitoring and operation by medical staff or patients. In security and monitoring, it is used for monitoring terminals and access control systems (such as video doorbells) for real-time picture display and remote control. In in-vehicle navigation and entertainment systems, it is applied to navigation devices and intelligent cockpit display terminals supporting gesture operation and high-brightness display to ensure driving safety. Furthermore, it serves applications across smart home systems, consumer electronics, and the Internet of Things (IoT).
| Feature | Spec |
|---|---|
| Model Name | H050IWV40E3511-CT5 |
| LCD Size | 5 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 40pin |
| Luminance | 350 cd/m² |
| Touch Screen | Capacitive Touch |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | ILI5960+ILI6122 |
| LCM (W x H x D) (mm) | 120.7 * 75.8 * 2.9 |
| Active Area (mm) | 108.00 x 64.80 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 19.2V |
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VBL- | Backlight LED Cathode |
| 2 | VBL+ | Backlight LED Anode |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5 ~ 12 | R0 ~ R7 | Data bus (Red) |
| 13 ~ 20 | G0 ~ G7 | Data bus (Green) |
| 21 ~ 28 | B0 ~ B7 | Data bus (Blue) |
| 29 | GND | System Ground |
| 30 | CLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vertical Sync signal |
| 34 | DEN | Data Enable |
| 35 | NC | No connect |
| 36 | GND | System Ground |
| 37 | XR(NC) | The right side signal of TP |
| 38 | YD(NC) | The down side signal of TP |
| 39 | XL(NC) | The left side signal of TP |
| 40 | YU(NC) | The up side signal of TP |
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
The H050IWV40E3511-CT5 is a 5-inch TFT LCD featuring a resolution of 800×480, 16.7M color depth, 350 cd/m² luminance, and a 12 O’clock viewing direction powered by ILI5960+ILI6122 driver ICs.
Yes. The capacitive touch screen supports operation with gloves or with water present on the surface, making it dependable for industrial control environments and three-proof handheld devices.
This display module utilizes a standard 24-bit RGB 40-pin interface for video signals, timing controls, power supply, and touch panel signal connectivity.
The module is designed for wide-temperature operation from -20℃ to +70℃ and can be safely stored within temperatures ranging from -30℃ to +80℃.

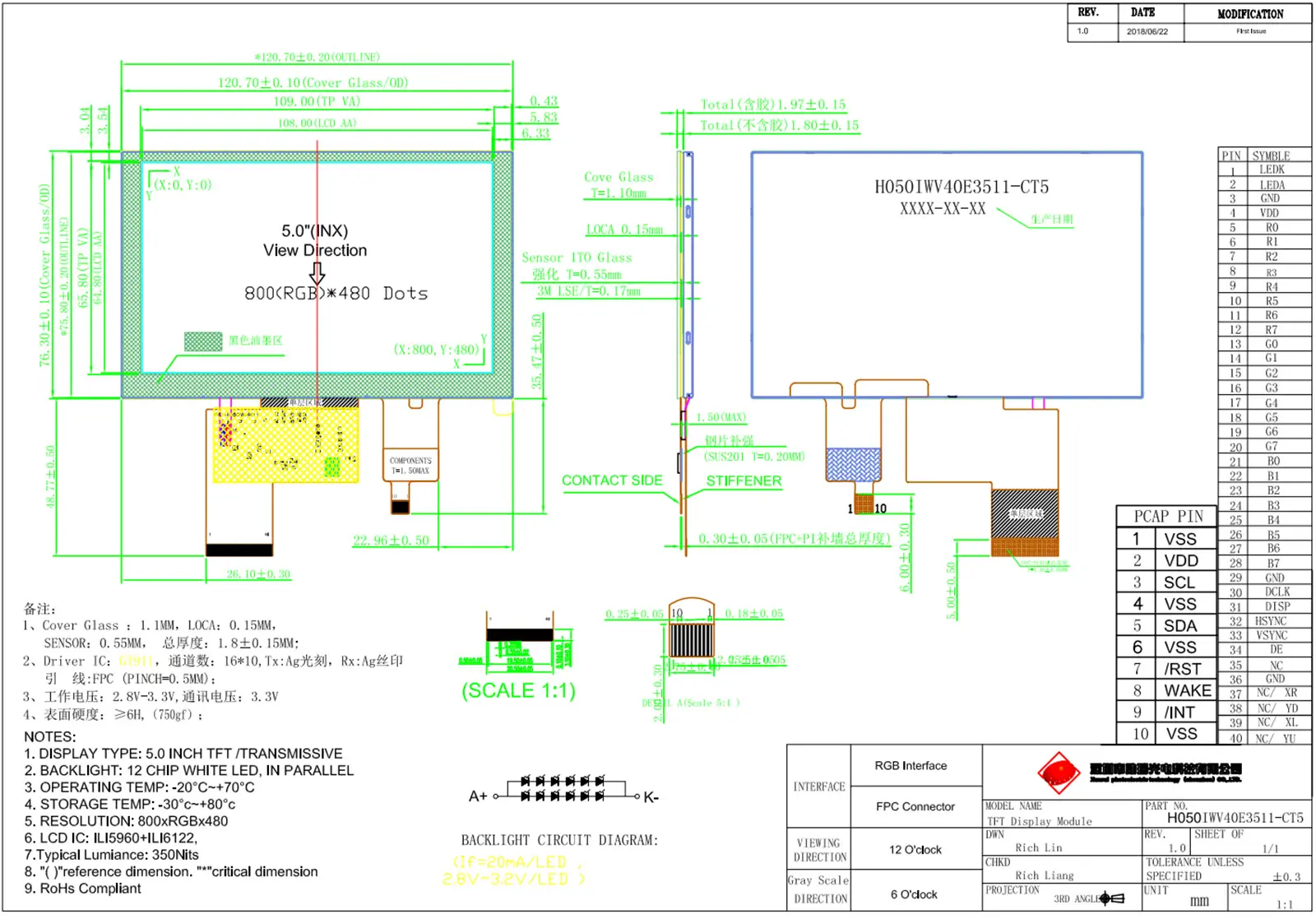

The outer LCM module dimensions measure 120.7 mm (W) × 75.8 mm (H) × 2.9 mm (D), with an active display area of 108.00 mm × 64.80 mm.
It is widely used in industrial control panels, handheld data collectors, barcode scanners, portable medical instruments, access control security terminals, in-vehicle navigation systems, smart home devices, and IoT terminals.
