Product Description
Product Description

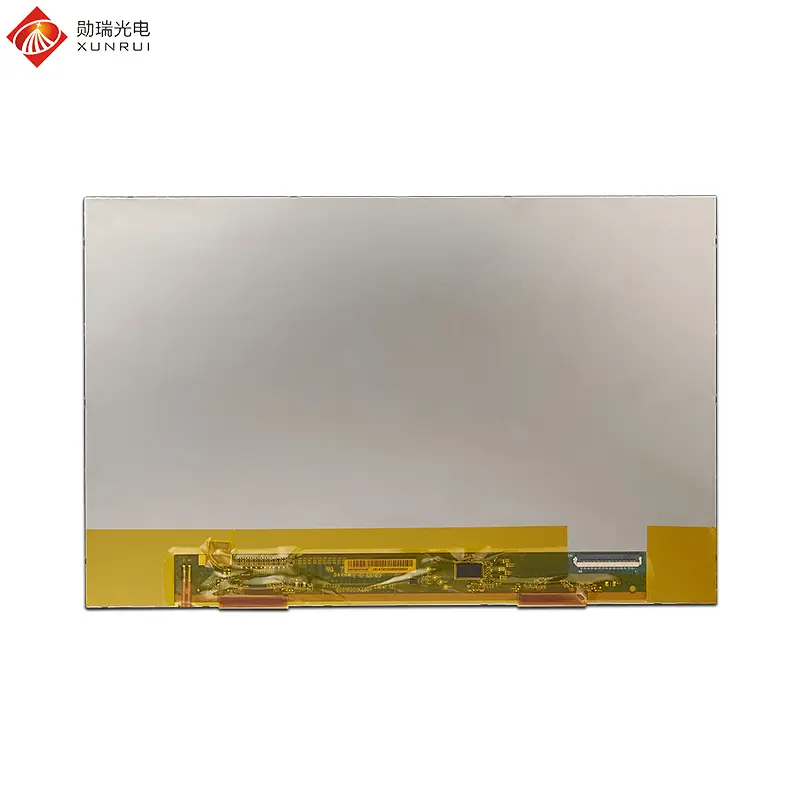

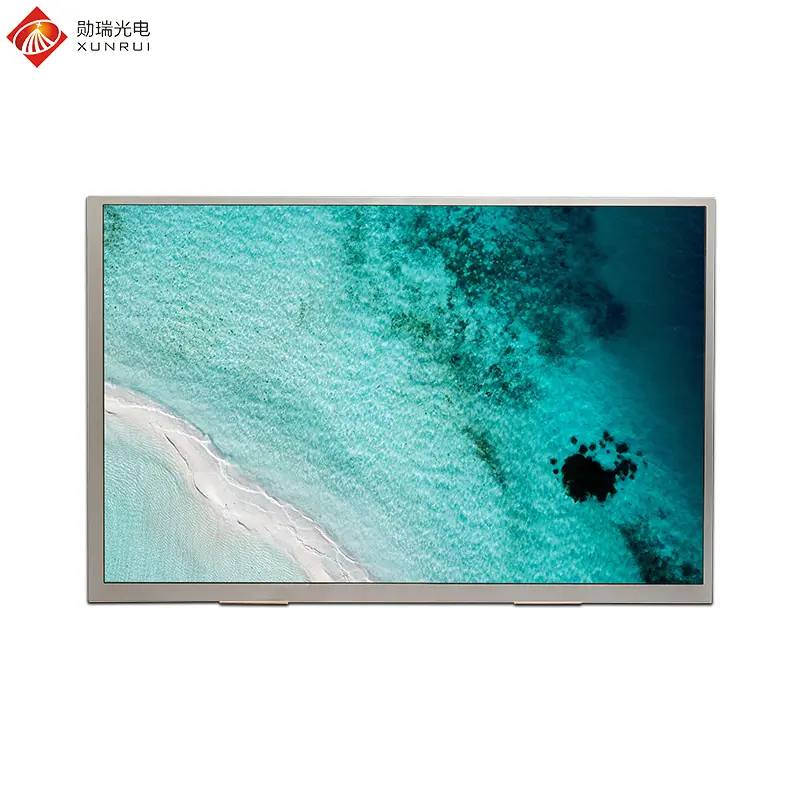

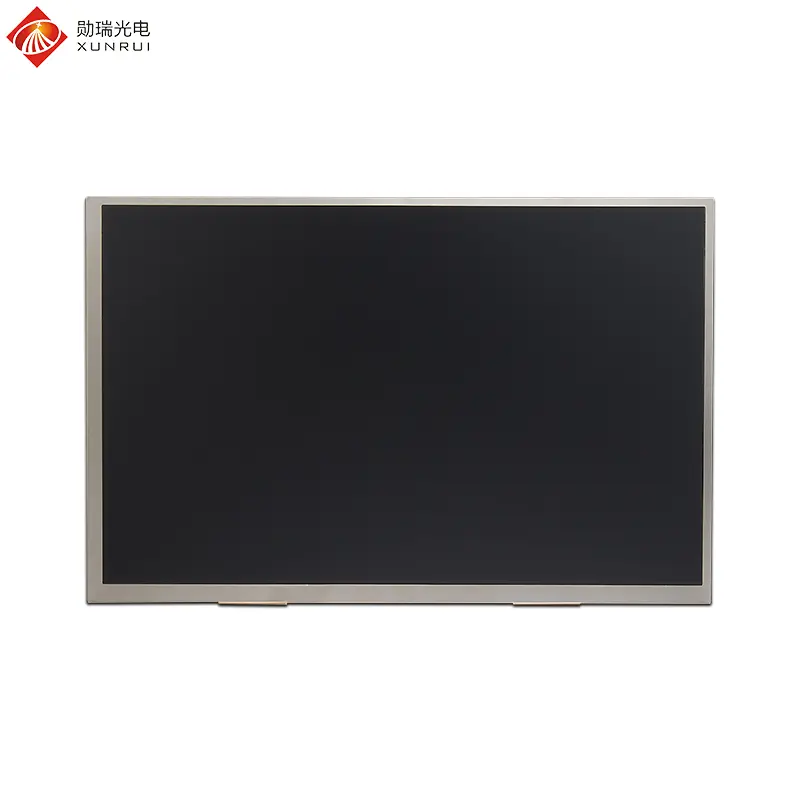

H101IFH40I3516 is a 10.1-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 1280×800, a full viewing Angle, an 8-bit 40-pin LVDS interface, and a brightness of 350 nits. The working temperature can withstand -10℃ to +60℃, and capacitive touch screen or resistive touch screen can be optionally equipped. This 10.1-inch TFT LCD screen is mainly applied in security and monitoring : such as surveillance video displays, security monitors and drone control screens, for real-time video monitoring. Consumer electronics : including portable displays, mini computers and raspberry PI expansion screens, meeting the needs of mobile office work and entertainment. Advertising and commercial display : for example, outdoor advertising machines, elevator advertising screens and smart parking barriers, used for dynamic information display. In addition, it can also be used in industrial machinery and equipment, in-vehicle displays, medical devices and other fields.

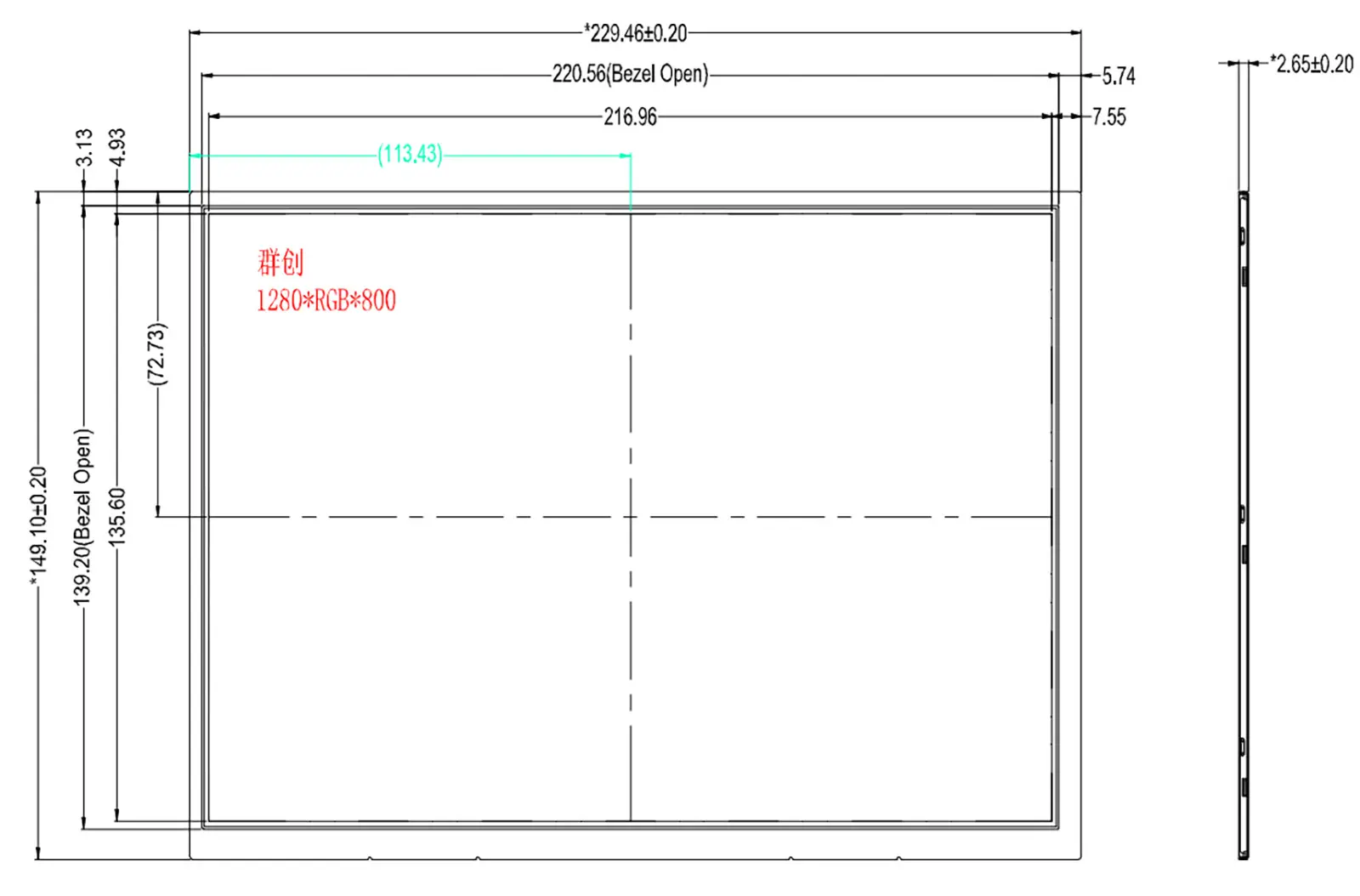

Mechanical Drawing
Specification parameters
| Feature | Spec |
| Model Name | H101IFH40I3516 |
| LCD Size | 10.1 inch |
| Display Format | 1280×800 |
| Interface | LVDS 8bit 40pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 229.06*148.7*2.65 |
| Active Area(mm) | 216.96 x 135.6 |
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Operating Voltage | 9.6V |
Interface definition
| No. | Symbol | Description |
| 1 | VCOM | Common Voltage |
| 2 | VDD | Power Voltage for digital circuit |
| 3 | VDD | Power Voltage for digital circuit |
| 4 | NC | No connection |
| 5 | NC | No connection |
| 6 | NC | No connection |
| 7 | GND | Ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXIN0+ | +LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | +LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | +LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | -LVDS differential clock input |
| 18 | RXCLKIN+ | +LVDS differential clock input |
| 19 | GND | Ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | +VDS differential data input |
| 22 | GND | Ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | NC | No connection |
| 28 | NC | No connection |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31 | LED- | LED Cathode |
| 32 | LED- | LED Cathode |
| 33 | NC | No connection |
| 34 | NC | No connection |
| 35 | VGL | Gate oFF Voltage |
| 36 | NC | No connection |
| 37 | NC | No connection |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
Frequently Asked Questions (FAQ)
Q1: What is the native resolution and viewing angle of model H101IFH40I3516?
This display features a 1280×800 resolution with an IPS panel, providing full viewing angles (ALL direction) and consistent color accuracy.
Q2: Can this 10.1-inch display be customized with a touch screen?
Yes, although the standard module comes without touch, both capacitive touch screen and resistive touch screen integration are available as optional configurations.
Q3: Which interface does this display module use for connection?
The module utilizes an industry-standard 8-bit 40-pin LVDS interface for differential data and clock communication.
Q4: What are the operating and storage temperature ranges?
The display supports an operating temperature range of -10℃ to +60℃ and can be safely stored in environments ranging from -20℃ to +70℃.
Q5: What are the primary commercial and industrial applications for this screen?
Common applications include security surveillance systems, drone controls, consumer electronics (portable displays, mini-PCs), advertising screens, medical equipment, and automotive displays.
