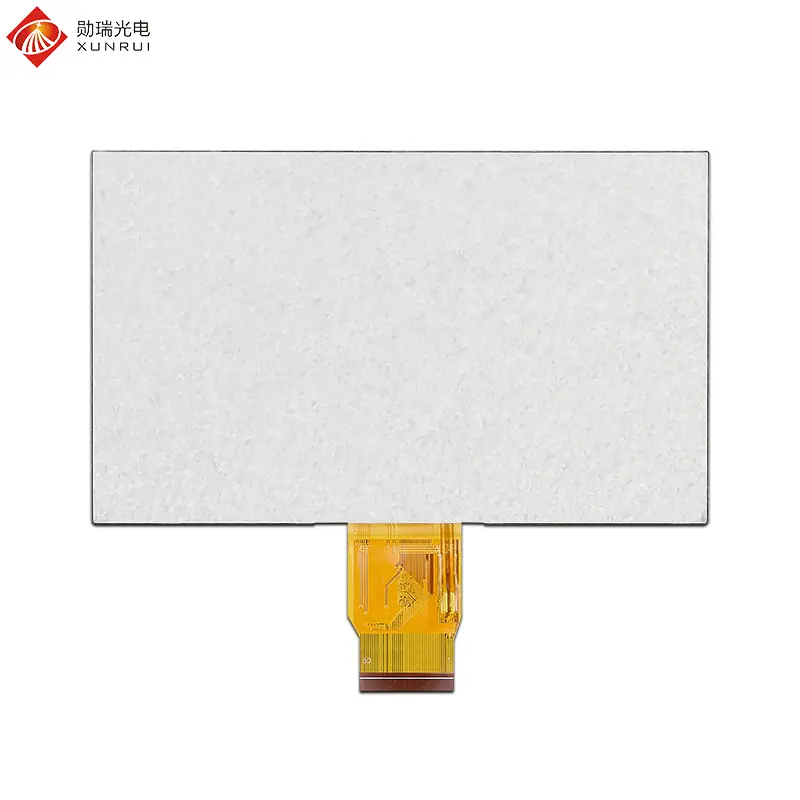

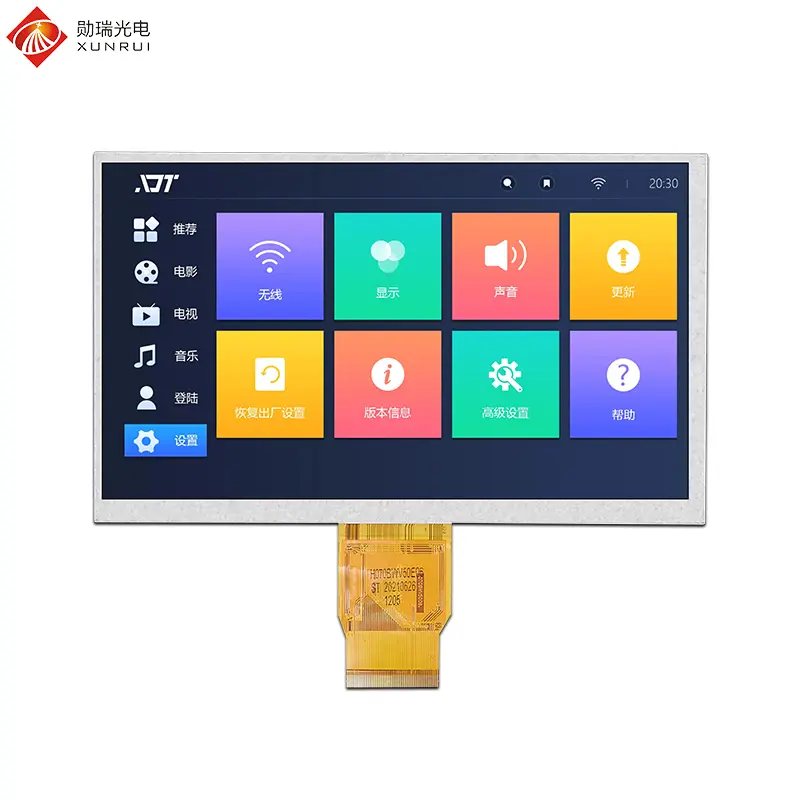

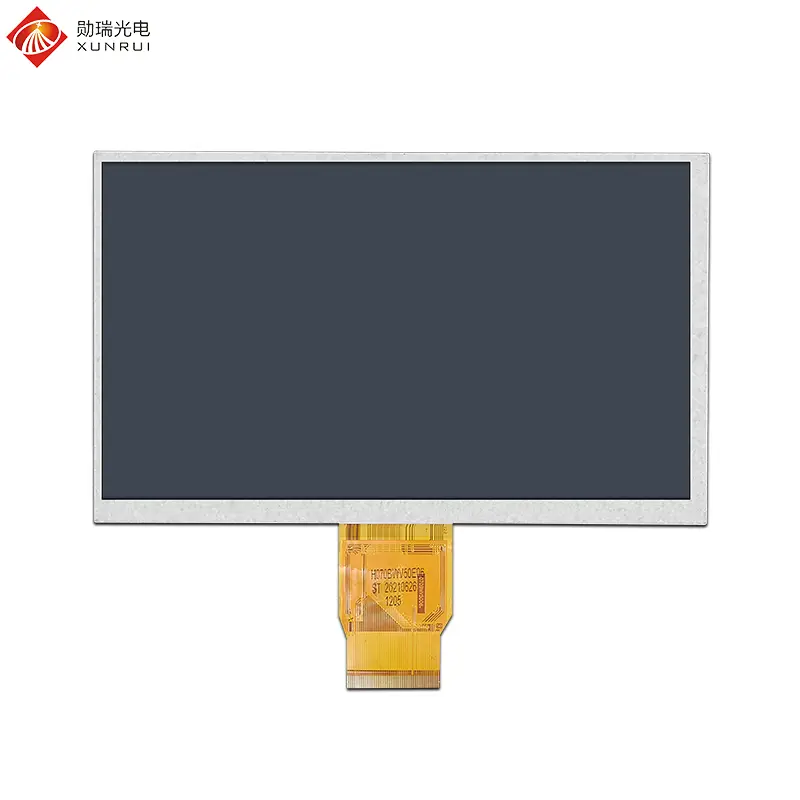

Product Description
H070BWV50E2506 is a 7-inch TFT LCD module. This LCD screen adopts a TN panel, with a resolution of 800×480, a 24-bit RGB 50-pin interface, a brightness of 250 nits, and a working temperature range of -20℃ to +70℃. Optional resistive touch screens or capacitive touch screens are available. This 7-inch TFT LCD screen is mainly applied in industrial equipment: for example, portable weather stations, used for real-time display of wind speed, wind direction, temperature and other data; In industrial automation, PLC control panels or HMI human-machine interfaces are often embedded to display production parameters. On-board electronic system: commonly found on car center consoles, rearview mirrors or navigation terminals, it displays reversing images, driving information, etc. Instruments, meters and retail equipment: such as POS terminals, thermometers or oscilloscopes, display measurement data or transaction information. And other fields, etc.

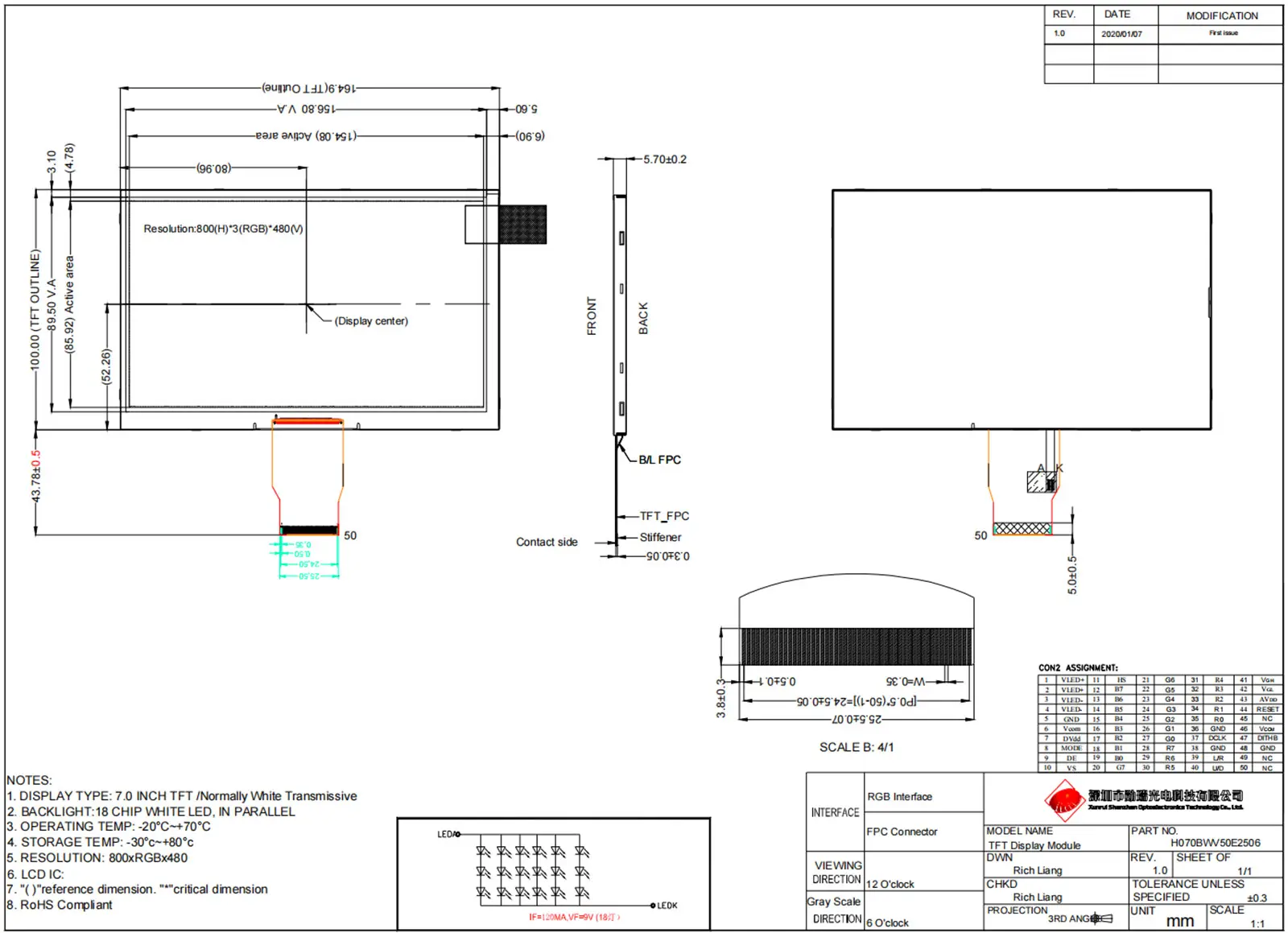

Mechanical Drawing
Specification Parameters
| Feature |
Spec |
| Model Name |
H070BWV50E2506 |
| LCD Size |
7 inch |
| Display Format |
800×480 |
| Interface |
24-bit RGB 50pin |
| Luminance |
250 cd/m2 |
| Touch screen |
None, optional |
| Viewing Direction |
6 O’clock |
| Color Depth |
16.7M |
| Driver IC |
TBD |
| LCM (W x H x D) (mm) |
164.9*100.0*5.7 |
| Active Area(mm) |
154.08 x 85.92 |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Operating Voltage |
9.0V |
Interface Definition
| No. |
Symbol |
Description |
| 1, 2 |
VLED+ |
Power for LED backlight (Anode) |
| 3, 4 |
VLED- |
Power for LED backlight (Cathode) |
| 5 |
GND |
Power Ground |
| 6 |
VCOM |
Common voltage |
| 7 |
DVDD |
Power for Digital Circuit |
| 8 |
MODE |
DE/SYNC mode select Note1 |
| 9 |
DE |
Data Enable |
| 10 |
VS |
Vertical sync signal |
| 11 |
HS |
Horizontal sync Signal |
| 12 |
B7 |
Blue data(MSB) |
| 13 |
B6 |
Blue data |
| 14 |
B5 |
Blue data |
| 15 |
B4 |
Blue data |
| 16 |
B3 |
Blue data |
| 17 |
B2 |
Blue data |
| 18 |
B1 |
Blue data Note2 |
| 19 |
B0 |
Blue data(LSB) Note2 |
| 20 |
G7 |
Green data(MSB) |
| 21 |
G6 |
Green data |
| 22 |
G5 |
Green data |
| 23 |
G4 |
Green data |
| 24 |
G3 |
Green data |
| 25 |
G2 |
Green data |
| 26 |
G1 |
Green data Note2 |
| 27 |
G0 |
Green data (LSB) Note2 |
| 28 |
R7 |
Red Data(MSB) Note2 |
| 29 |
R6 |
Red Data |
| 30 |
R5 |
Red Data |
| 31 |
R4 |
Red Data |
| 32 |
R3 |
Red Data |
| 33 |
R2 |
Red Data |
| 34 |
R1 |
Red Data Note2 |
| 35 |
R0 |
Red Data(LSB) Note2 |
| 36 |
GND |
Power Ground |
| 37 |
DCLK |
Pixel clock Note3 |
| 38 |
GND |
Power Ground |
| 39 |
L/R |
Left/right selection Note4/5 |
| 40 |
U/D |
up/down selection Note4/5 |
| 41 |
VGH |
Gate ON Voltage |
| 42 |
VGL |
Gate OFF Voltage |
| 43 |
AVDD |
Power for Analog Circuit |
| 44 |
RESET |
Global reset pin Note6 |
| 45 |
NC |
NO connection |
| 46 |
Vcom |
Common Voltage |
| 47 |
DITHB |
Dithering function Note7 |
| 48 |
GND |
Power Ground |
| 49 |
NC |
NO connection |
| 50 |
NC |
NO connection |
Frequently Asked Questions (FAQ)
What interface is used for the H070BWV50E2506 display module?
This 7-inch TFT LCD module utilizes a standard 24-bit RGB 50-pin interface for reliable data transmission and signal connectivity.
Can this 7-inch TFT LCD module be configured with touch functionality?
Yes, touch panels are optional. You can choose either a capacitive touch screen or a resistive touch screen depending on your project needs.
What is the operating temperature range of this display?
The module features an industrial operating temperature range from -20°C to +70°C, and can be stored in conditions ranging from -30°C to +80°C.
What are the primary applications for this screen?
It is primarily applied in industrial automation (PLC, HMI), automotive displays (center consoles, rear-view navigation), retail POS terminals, and diagnostic equipment.
What is the resolution and display luminance?
The screen features an 800×480 resolution (WVGA) with a display brightness of 250 cd/m² (nits), offering 16.7M colors for vivid image presentation.
