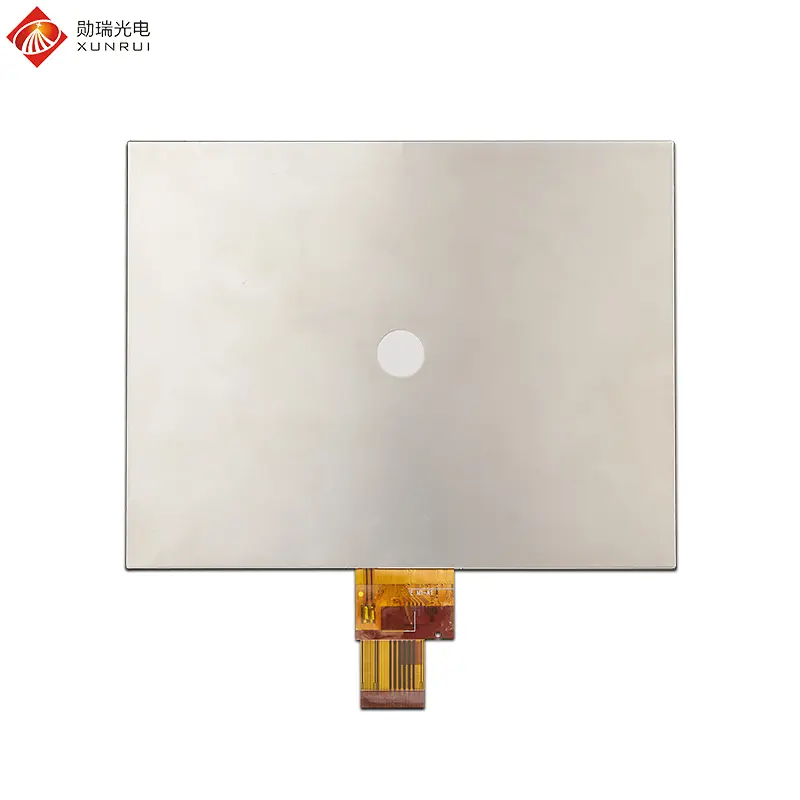

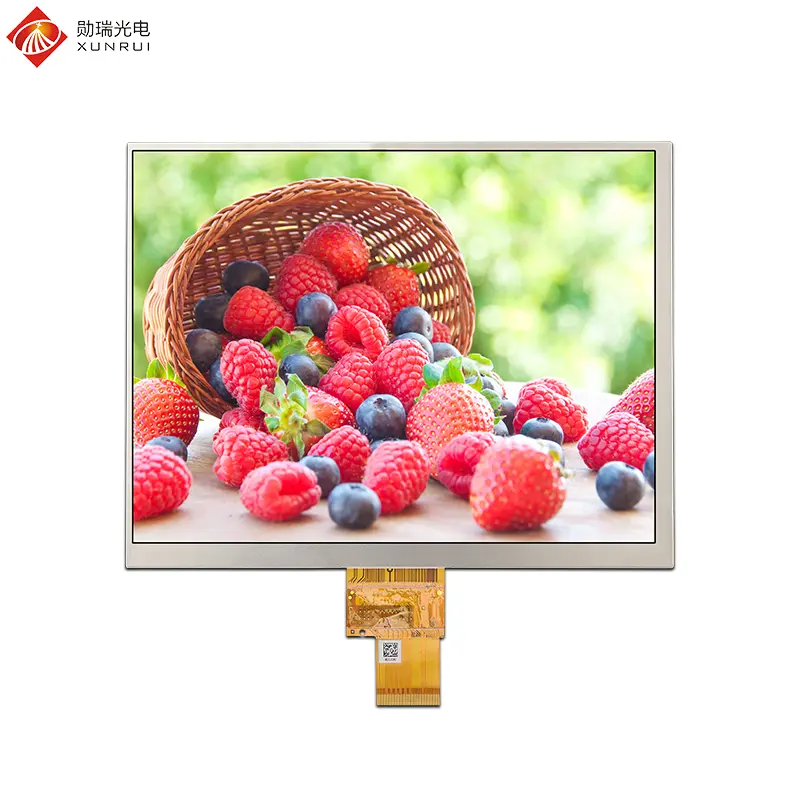

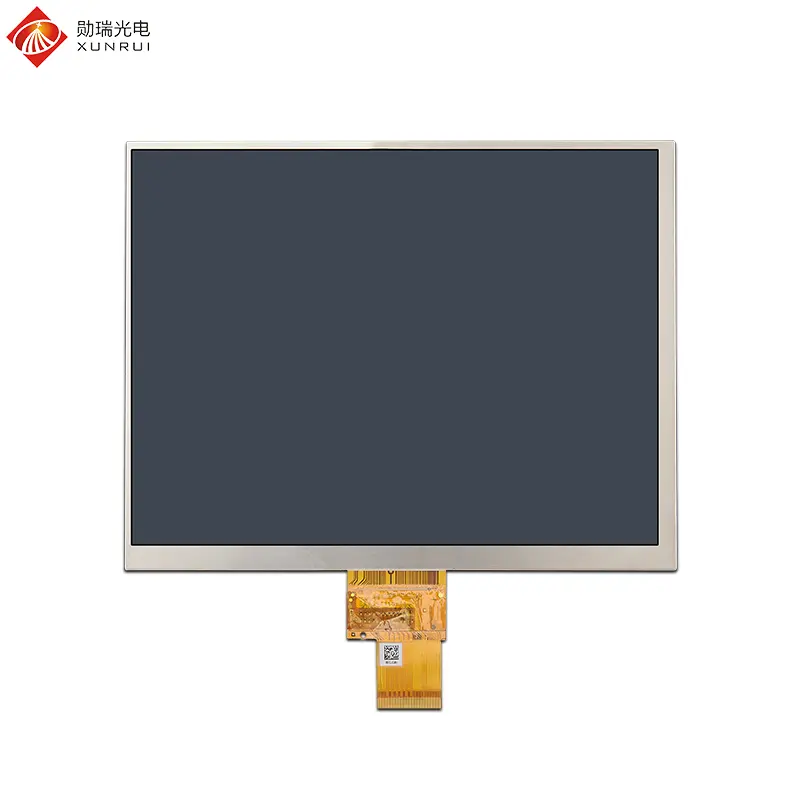

H080IWX40I3508 is an 8-inch TFT LCD module. This LCD screen adopts an IPS panel, offers a full viewing Angle, has a resolution of 1024×768, an LVDS 40-pin interface, a brightness of 300 nits, and can withstand an operating temperature range of -20℃ to +70℃. Optional resistive touch screens or capacitive touch screens are available. This 8-inch TFT LCD screen is mainly applied in industrial control: industrial automation equipment such as PLC controllers, intelligent instruments and robot control panels often integrate 8-inch LCD screens for operation interface display and human-machine interaction. Automobile navigation and in-vehicle systems: 8-inch LCD screens are often used in the navigation systems of car center consoles, rearview camera displays, and rear-seat entertainment systems, providing clear maps and multimedia displays. Medical equipment: In the medical field, 8-inch LCD screens are used in devices such as electrocardiogram machines, ultrasound image displays, and vital sign monitors, helping doctors clearly view disease data. In addition, it can also be used in fields such as smart home, industrial control instruments and meters, and consumer electronics.
| Feature | Specification |
|---|---|
| Model Name | H080IWX40I3508 |
| LCD Size | 8 inch |
| Display Format | 1024×768 |
| Interface | LVDS 40pin |
| Luminance | 300 cd/m2 |
| Touch Screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | TBD |

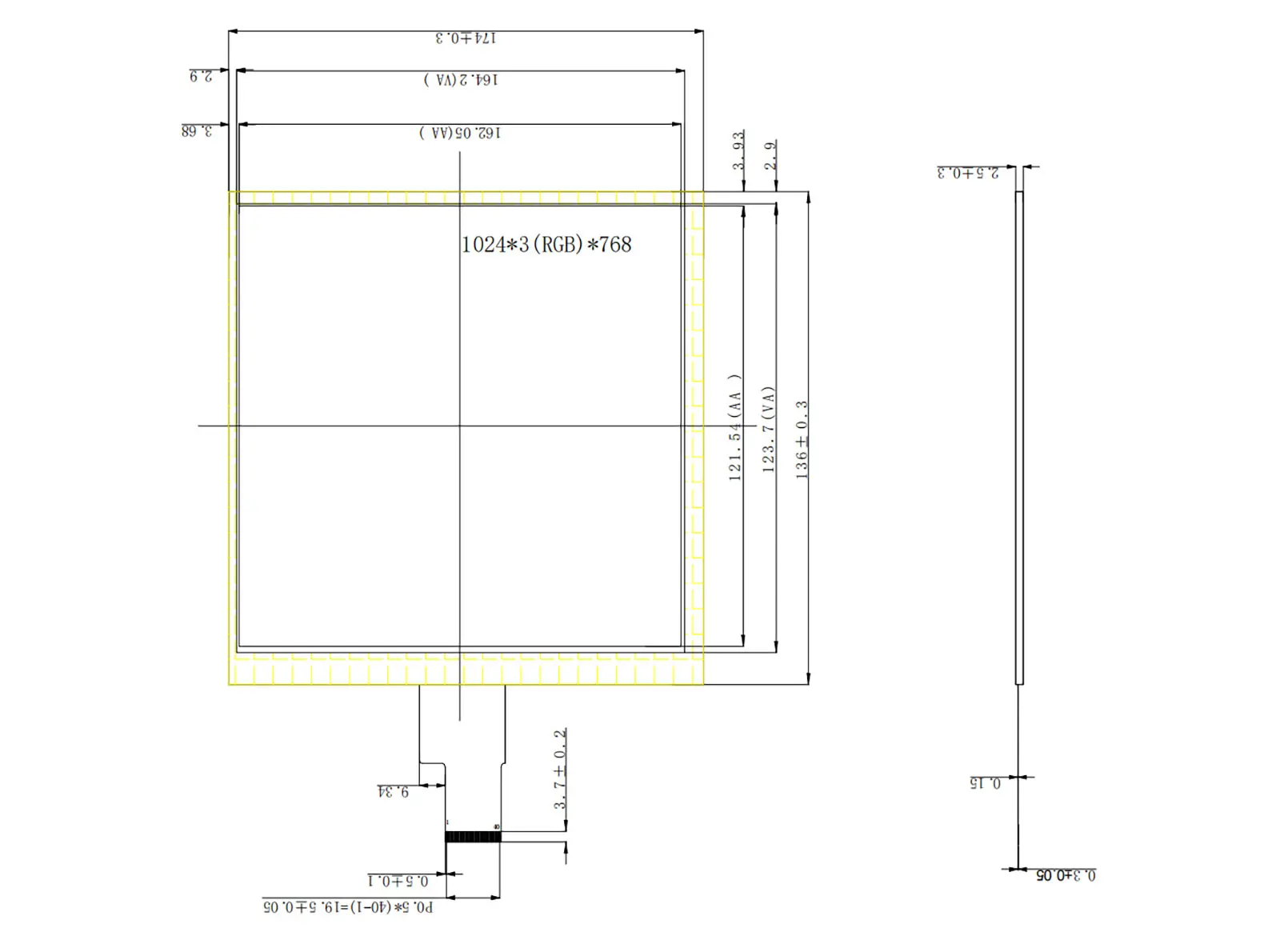

| LCM (W x H x D) (mm) | 174*136*2.5 |
| Active Area (mm) | 162.05*121.54 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 12V |
| No | Symbol | Description |
|---|---|---|
| 1 | VCOM | Common voltage |
| 2 | VDD | 3.3V Power |
| 3 | VDD | 3.3V Power |
| 4 | NC | Not connect |
| 5 | RESET | Global reset pin Active low enter reset state Suggest to connecting with an RC reset Normally pull high(R=100K,C=1UF) |
| 6 | STBYB | Standby mode, normally pull high STBYB="1", timing control, source driver will turn off, all output are high-Z |
| 7 | GND | System Ground |
| 8 | RXIN0- | Negative LVDS differential data input |
| 9 | RXIN0+ | Positive LVDS differential data input |
| 10 | GND | System Ground |
| 11 | RXIN1- | Negative LVDS differential data input |
| 12 | RXIN1+ | Positive LVDS differential data input |
| 13 | GND | System Ground |
| 14 | RXIN2- | Negative LVDS differential data input |
| 15 | RXIN12+ | Positive LVDS differential data input |
| 16 | GND | System Ground |
| 17 | RXCLK- | Negative LVDS differential clock input |
| 18 | RXCLK+ | Positive LVDS differential clock input |
| 19 | GND | System Ground |
| 20 | RXIN3- | Negative LVDS differential data input |
| 21 | RXIN3+ | Positive LVDS differential data input |
| 22 | GND | System Ground |
| 23 | NC | Not connect |
| 24 | NC | Not connect |
| 25 | GND | System Ground |
| 26 | NC | Not connect |
| 27 | NC(DIMO) | DIMO |
| 28 | SELB | 6bit/8bit mode select H:6bit / L:8bit Note1 |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | System Ground |
| 31 | LED- | Not connect |
| 32 | LED- | Not connect |
| 33 | L/R | Horizontal inversion Note3 |
| 34 | U/D | Vertical inversion Note3 |
| 35 | VGL | Positive power for TFT |
| 36 | CABCEN1 | Not connect Note2 |
| 37 | CABCEN0 | Not connect Note2 |
| 38 | VGH | Positive power for TFT |
| 39 | LED+ | Not connect |
| 40 | LED+ | Not connect |
