Product Description

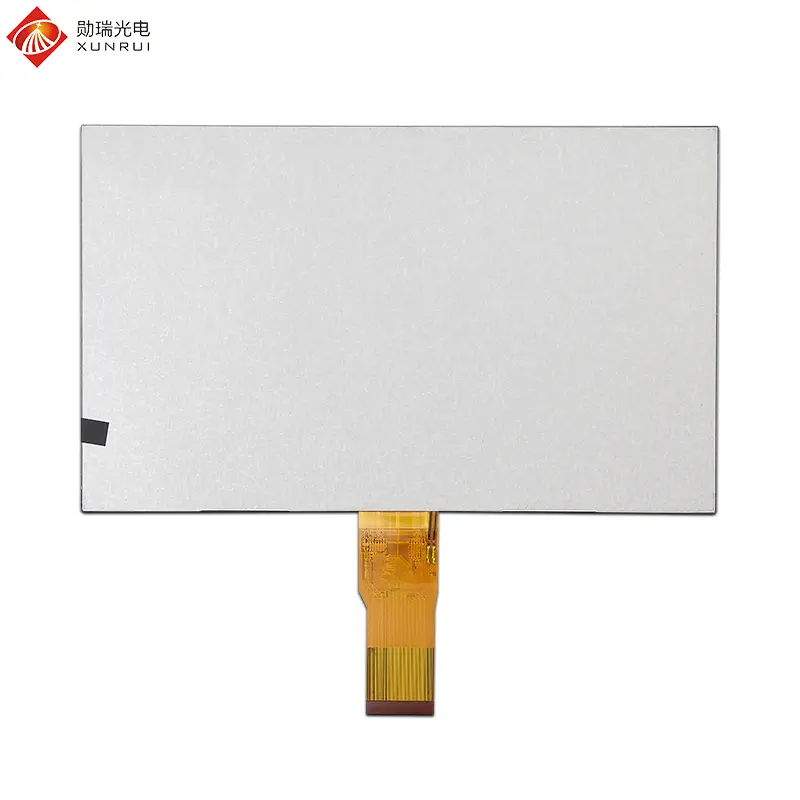

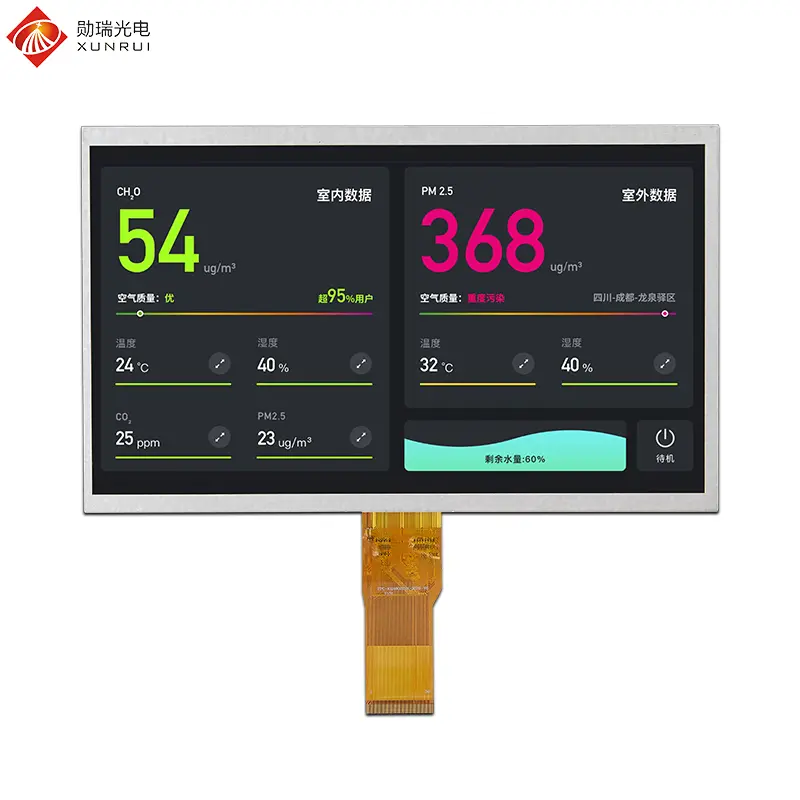

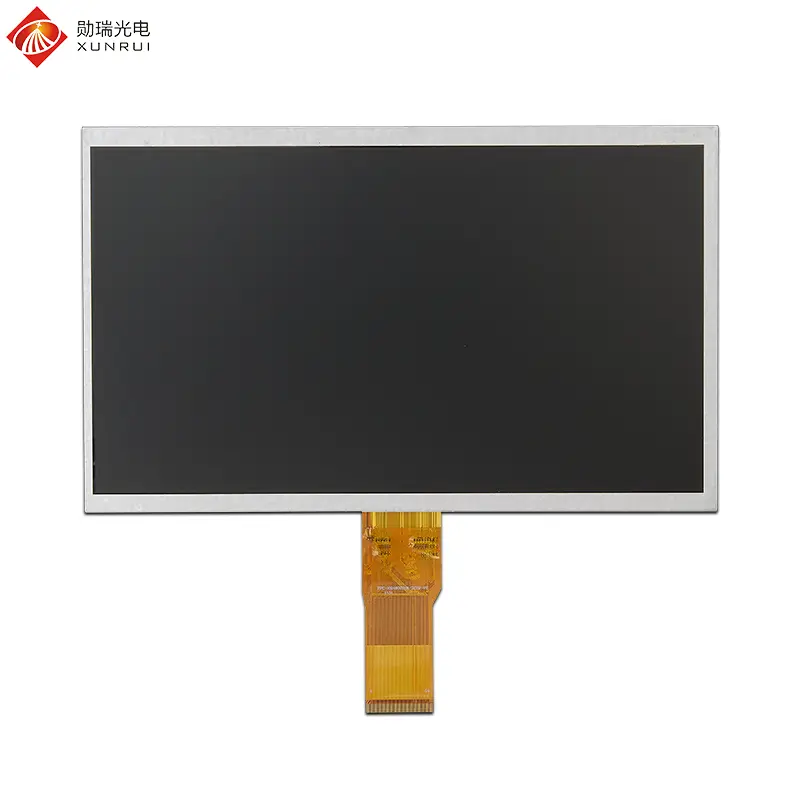

H101IWS50E3501 is a 10.1-inch TFT LCD module. This LCD screen adopts a TN panel with a resolution of 1024×600, an RGB 50-pin interface, and EK79001HM + EK73215BCGA Driver IC. It has a brightness of 350 nits and can withstand operating temperatures ranging from -20℃ to +70℃. Capacitive touch screens or resistive touch screens are available as options. This 10.1-inch TFT LCD screen is mainly applied in industrial control equipment : such as embedded industrial control computers, industrial touch screens and automatic monitoring systems, for displaying real-time data and operation interfaces. On-board system : including on-board navigator, on-board TV and dashcam, providing entertainment and information display functions. Medical equipment : such as portable ultrasound devices, monitors and diagnostic instruments, used for clearly presenting medical images and data. In addition, it can also be used in fields such as security monitoring, commercial advertising display, and consumer electronics

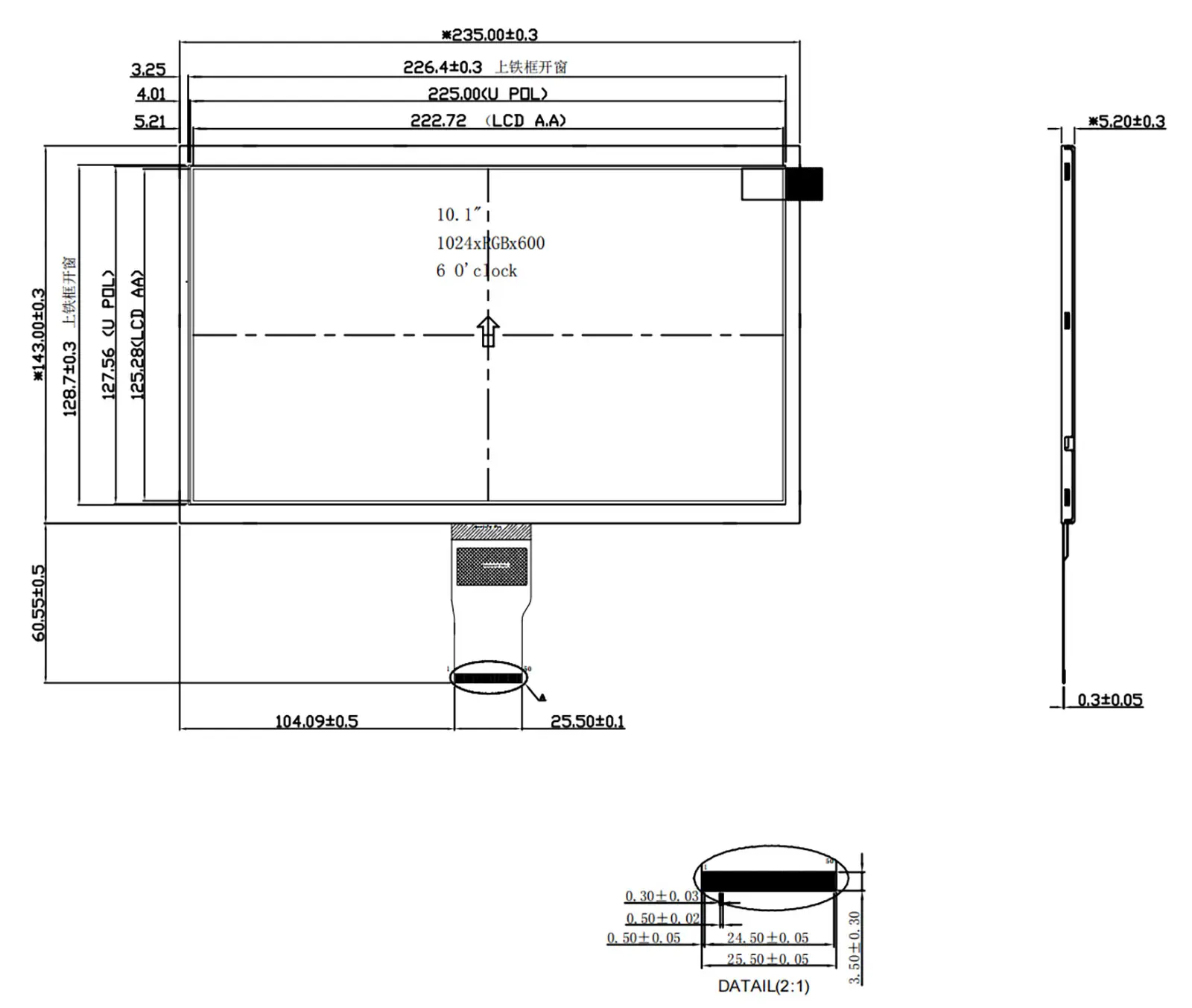

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H101IWS50E3501 |
| LCD Size | 10.1 inch |
| Display Format | 1024×600 |
| Interface | RGB 50pin |
| Luminance | 350 cd/m² |
| Touch screen | None, optional |
| Viewing Direction | 6 O’ Clock |
| Color Depth | 16.7M |
| Driver IC | Source IC: EK79001HM + Gate IC: EK73215BCGA |
| LCM (W x H x D) (mm) | 235(W) × 143(H) × 5.2(T) |
| Active Area (mm) | 222.72(W) × 125.28(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.6V |
Interface Definition
| No. | Symbol | I/O | Function |
|---|---|---|---|
| 1~2 | LEDA | P | LED Anode |
| 3~4 | LEDK | P | LED Cathode |
| 5 | GND | P | Ground |
| 6 | VCOM(NC) | P | Common voltage |
| 7 | DVDD | P | Digital power |
| 8 | MODE | I | DE/SYNC mode select MODE=H: DE mode (normally pull high) MODE=L: HSD/VSD mode |
| 9 | DE | I | Data enable signal |
| 10 | VS | I | Vertical sync input. Negative polarity |
| 11 | HS | I | Horizontal sync input. Negative polarity |
| 12~19 | B7~B0 | I | Blue data Input |
| 20~27 | G7~G0 | I | Green data Input |
| 28~35 | R7~R0 | I | Red data Input |
| 36 | GND | P | Ground |
| 37 | DCLK | I | Clock input |
| 38 | GND | P | Ground |
| 39 | L/R | I | Source right or left sequence control SHLR=H: right shift, Left → Right (Default) SHLR=L: left right, Right → Left |
| 40 | U/D | I | Gate up or down scan control UPDN=H: up shift, Down → Up UPDN=L: down shift, Up → Down (Default) |
| 41 | VGH | P | Positive power for TFT |
| 42 | VGL | P | Negative power for TFT |
| 43 | AVDD | P | Power for Analog Circuit |
| 44 | RESET | I | Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10K, C=1μF) |
| 45 | NC | - | Not connect |
| 46 | VCOM(NC) | P | Common voltage |
| 47 | DITHB | I | Dithering function |
| 48 | GND | P | Ground |
| 49~50 | NC | - | Not connect |
Frequently Asked Questions (FAQ)
What is the resolution and display panel type of model H101IWS50E3501?
The H101IWS50E3501 is a 10.1-inch TFT LCD module that uses a TN display panel featuring a resolution of 1024×600 pixels with 16.7M color depth.
What interface and driver IC are integrated into this display module?
This module is equipped with a standard RGB 50-pin interface and utilizes the EK79001HM Source IC together with the EK73215BCGA Gate IC.
Does this 10.1-inch TFT LCD support touch screen integration?
Yes. Although the standard module comes without touch, capacitive touch screens (PCAP) or resistive touch screens (RTP) are readily available as optional configurations.
What is the operating temperature range and display brightness?
The display provides a brightness of 350 cd/m² (nits) and is rated for an industrial operating temperature range from -20℃ to +70℃, with storage tolerance from -30℃ to +80℃.
What are the main application fields for this module?
It is broadly utilized across industrial control equipment, automotive on-board navigators and dashcams, medical instruments (diagnostic and ultrasound monitors), commercial displays, and security monitoring terminals.
