Product Description

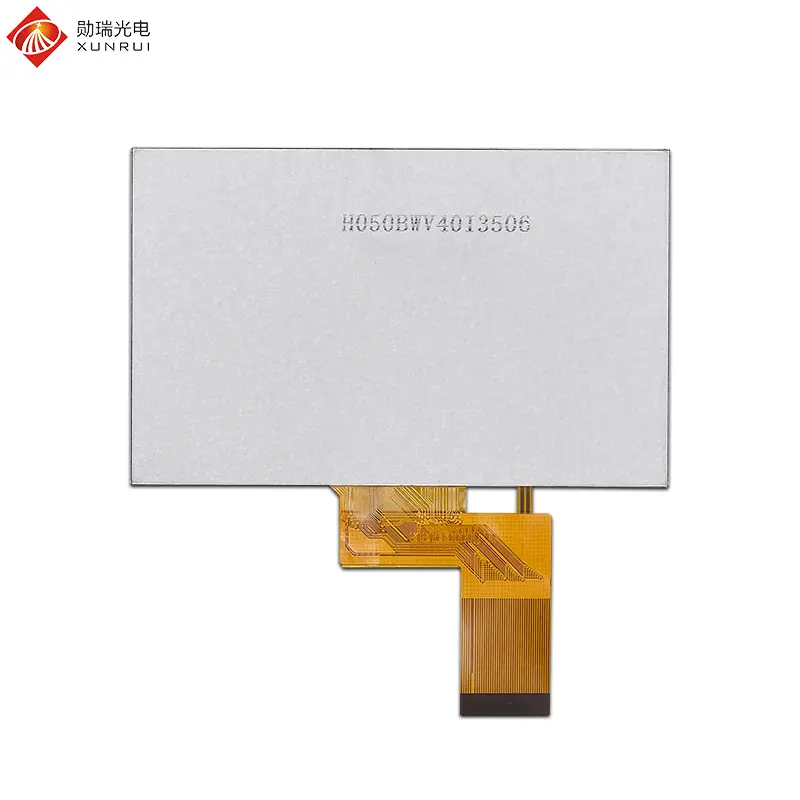

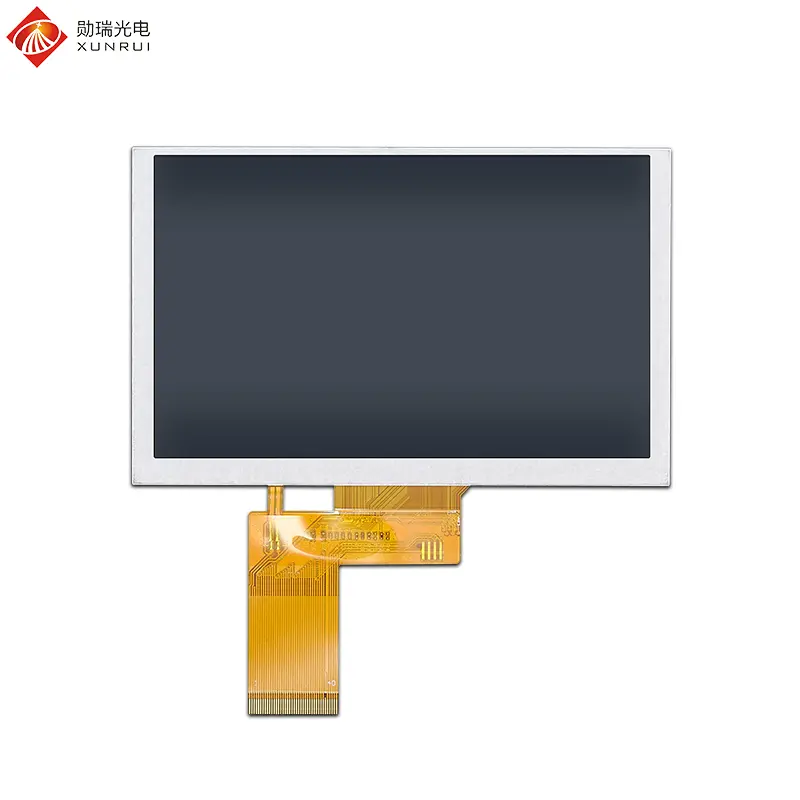

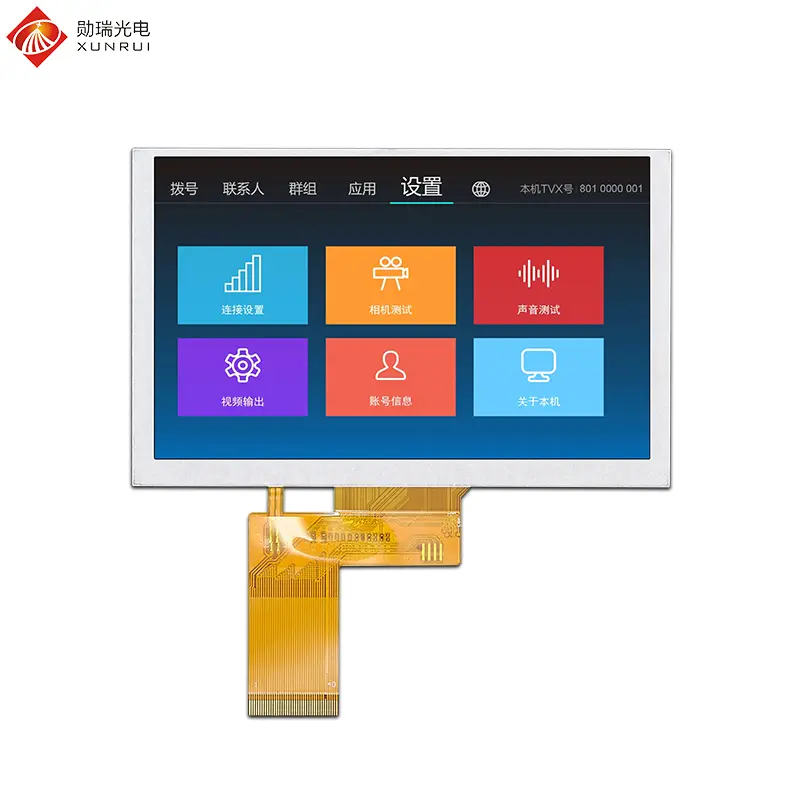

H050BWV40I3506 is a 5-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 800×480, a 24-bit RGB 40-pin interface, an ST7262 Driver IC, and a brightness of 350 nits. The operating temperature can withstand -20℃ to +70℃, and resistive touch screens or capacitive touch screens can be optionally equipped.
The 5-inch TFT LCD module has a clear and fine display effect. The mainstream resolutions include 480×272 (QVGA), 800×480 (WVGA), and 1280×720 (HD). Among them, 800×480 is very common in industrial scenarios and can clearly display tiny details at the 0.2mm level. For instance, blood clots in medical devices or icons in car navigation systems. High brightness and contrast: The brightness range is typically between 300 and 1000 cd/m², with some high-end models reaching up to 1500 cd/m². The contrast ratio varies from 500:1 to 1500:1, ensuring clear visibility even in strong light, making it suitable for outdoor or industrial environments.
This 5-inch TFT LCD screen is widely applied in:
- Medical Equipment: Display interface for portable diagnostic devices (such as ultrasound instruments and electrocardiogram machines), clearly presenting patient data and images to assist healthcare professionals.
- Internet of Things (IoT): Control interface for devices such as drone remote controllers, facilitating remote monitoring and data visualization.
- Industrial Control: Applied to industrial automation equipment, monitoring terminals, and human-machine interaction (HMI) interfaces to display real-time data, operation instructions, and alarms.

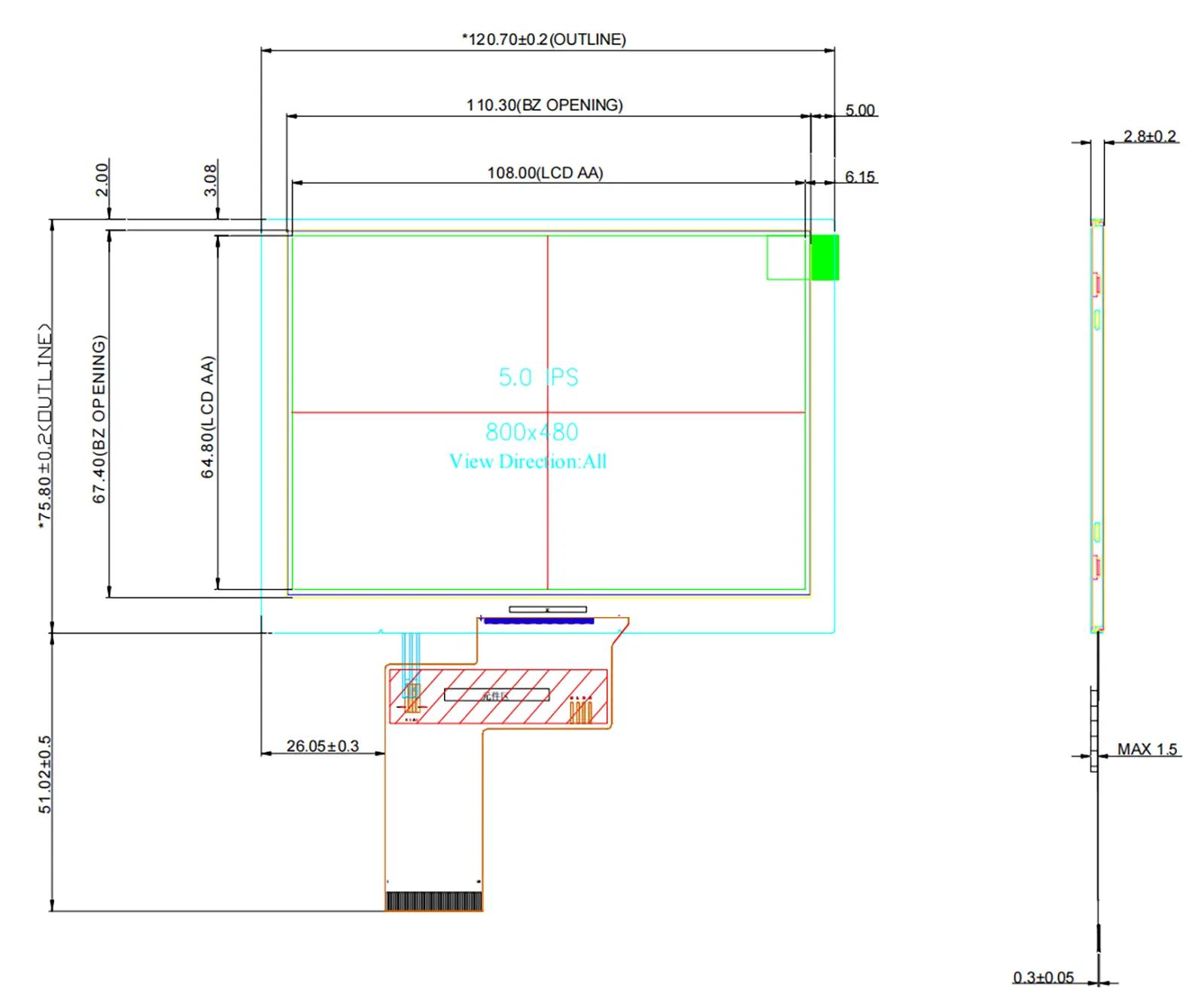

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H050BWV40I3506 |
| LCD Size | 5 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 40pin |
| Luminance | 350 cd/m² |
| Touch Screen | None (Optional RTP / CTP) |
| Viewing Direction | ALL (IPS Full Viewing Angle) |
| Color Depth | 16.7M |
| Driver IC | ST7262 |
| LCM Dimensions (W x H x D) | 120.7 × 75.8 × 2.8 mm |
| Active Area (W x H) | 108.00 × 64.80 mm |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 19.2V |
Interface Pin Definition
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDK | Backlight LED Cathode |
| 2 | LEDA | Backlight LED Anode |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5 ~ 12 | R0 ~ R7 | Red Data Bus |
| 13 ~ 20 | G0 ~ G7 | Green Data Bus |
| 21 ~ 28 | B0 ~ B7 | Blue Data Bus |
| 29 | GND | System Ground |
| 30 | CLK | Pixel Clock Signal |
| 31 | DISP | Display On / Off Control |
| 32 | HSYNC | Horizontal Sync Signal |
| 33 | VSYNC | Vertical Sync Signal |
| 34 | DEN | Data Enable |
| 35 | NC | No Connection |
| 36 | GND | System Ground |
| 37 | XR (NC) | Touch Panel Right Signal (or NC) |
| 38 | YD (NC) | Touch Panel Down Signal (or NC) |
| 39 | XL (NC) | Touch Panel Left Signal (or NC) |
| 40 | YU (NC) | Touch Panel Up Signal (or NC) |
Featured Products
Frequently Asked Questions (FAQ)
What are the core specifications of the H050BWV40I3506 TFT LCD module?
The H050BWV40I3506 is a 5.0-inch TFT LCD panel featuring an 800×480 (WVGA) resolution, IPS full viewing angle technology, 350 cd/m² luminance, an ST7262 driver IC, and a 24-bit RGB 40-pin interface.
Can this 5-inch TFT LCD be customized with a touch panel?
Yes, while the standard display comes without touch functionality, it can be optionally integrated with either a Capacitive Touch Panel (CTP) or a Resistive Touch Panel (RTP) based on application requirements.
What is the operating temperature range for this display?
This module operates reliably in temperatures ranging from -20℃ to +70℃, with a storage temperature tolerance of -30℃ to +80℃, making it suitable for tough industrial environments.
What are the typical industrial applications for this screen?
Major applications include medical monitoring systems (ECG, ultrasound), IoT remote control interfaces, industrial automation terminals, test equipment, and embedded HMI displays.
What viewing angles does the IPS panel offer?
Thanks to its IPS panel technology, this 5-inch display offers an "ALL" viewing direction (up to 80/80/80/80 degrees), preventing color shifting and inversion when viewed from any angle.
What are the physical dimensions and active area of the module?
The external module dimensions are 120.7 mm (W) × 75.8 mm (H) × 2.8 mm (D), with an active display area measuring 108.00 mm (W) × 64.80 mm (H).
