Custom 8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen Suppliers, Factories
Product Description
Product Description

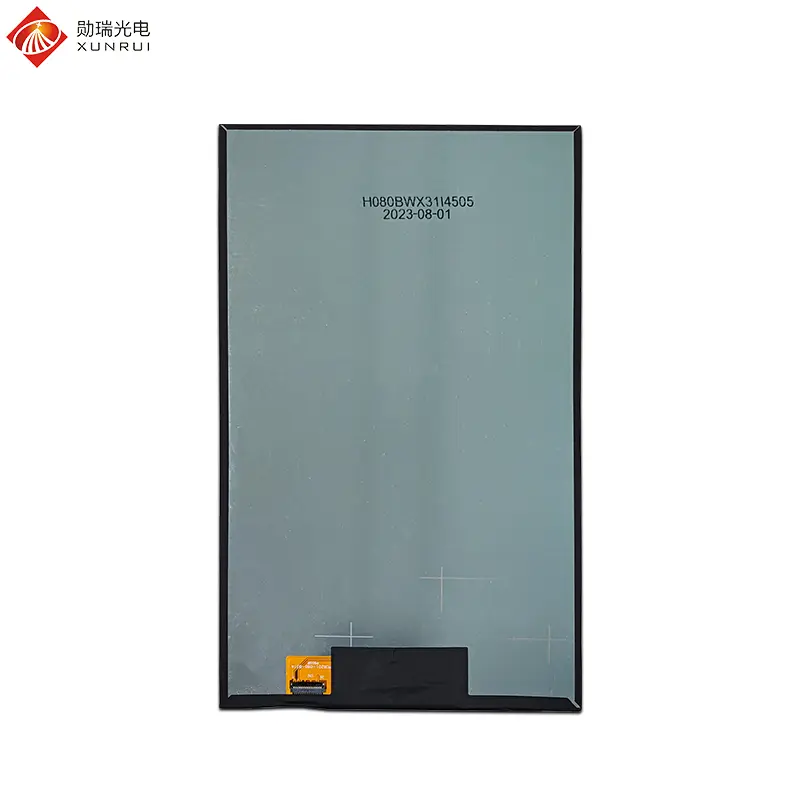

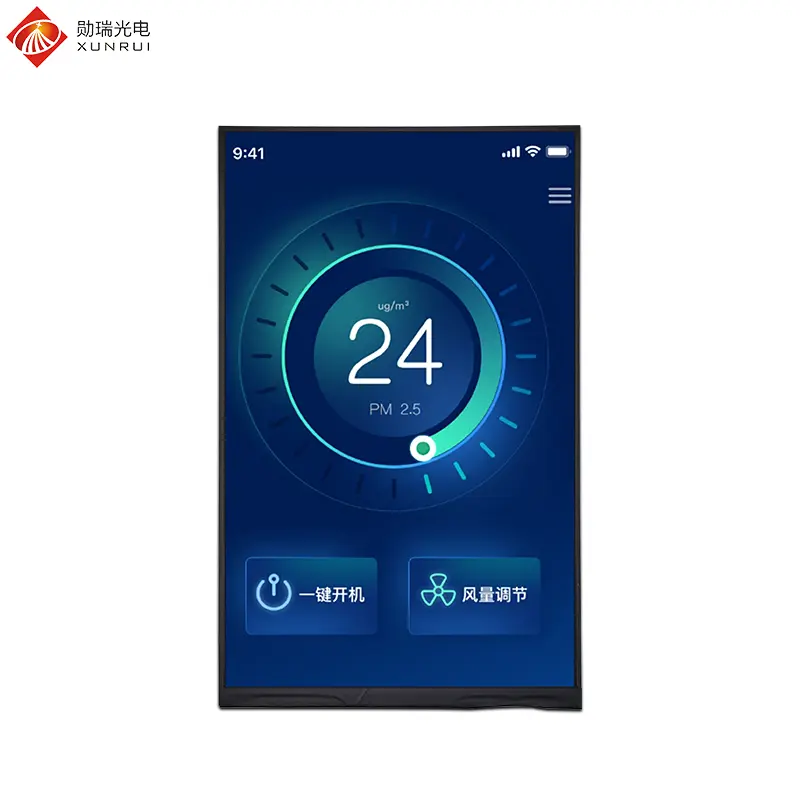

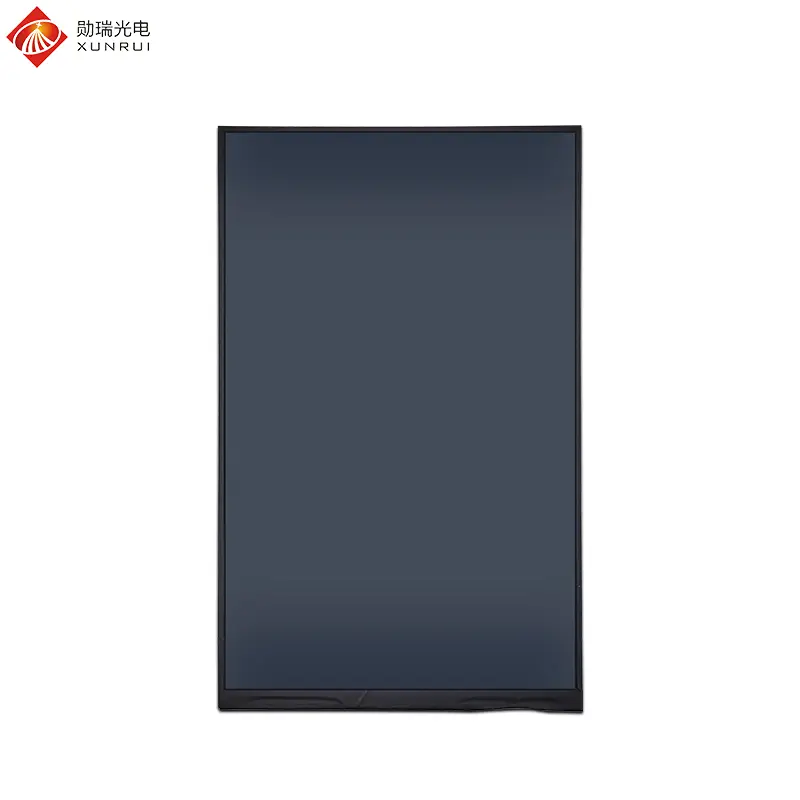

H080BWX31I4505 is an 8-inch TFT LCD module. This LCD screen adopts an IPS panel, offers a full viewing Angle, and has a resolution of 800×1280. It is a vertical screen with a MIPI 31-pin interface, JD9365 Driver IC, and a brightness of 480 nits. The working temperature can withstand -20℃ to +60℃, and a touch screen can be optionally equipped. This 8-inch TFT LCD screen is mainly applied in industrial equipment: such as industrial control panels, handheld terminals or test instruments, for displaying data, status information or operation interfaces. Security and access control system: integrated into facial recognition devices, access control controllers, etc., providing clear visual feedback. Smart home: as an intelligent central control screen, security monitoring display or home appliance control panel, it enhances the interactive experience. Medical equipment: Displays critical data such as vital signs in portable diagnostic instruments or monitoring devices. In addition, it can also be used in industrial control instruments and meters, consumer electronics and other fields.

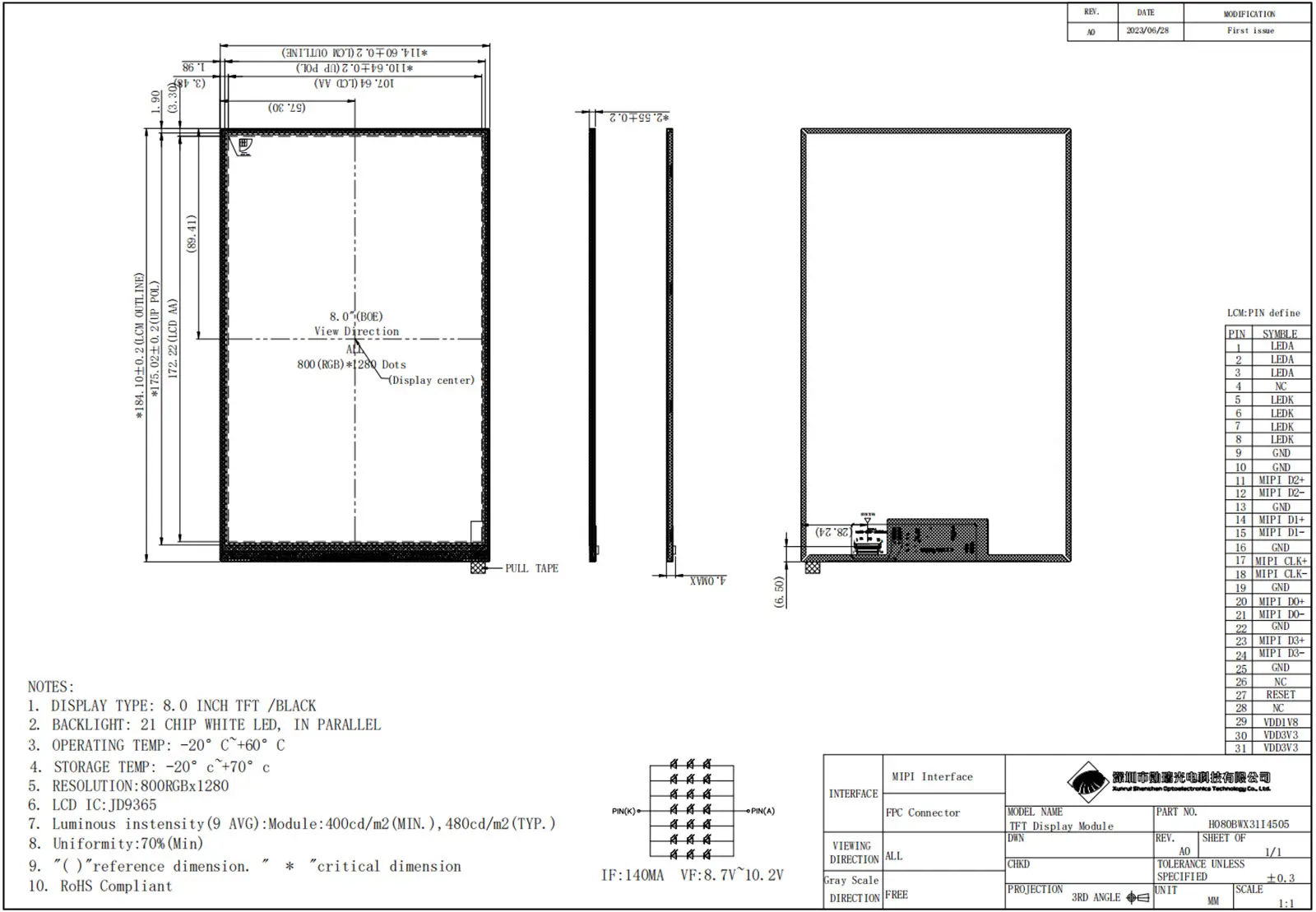

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H080BWX31I4505 |
| LCD Size | 8 inch |
| Display Format | 800×1280 |
| Interface | MIPI 31pin |
| Luminance | 480 cd/m² |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS Full View) |
| Color Depth | 16.7M |
| Driver IC | JD9365 |
| LCM (W x H x D) (mm) | 114.6 (H) x 184.1 (V) x 2.55 (D) |
| Active Area (mm) | 107.64 (H) x 172.224 (V) |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Operating Voltage | 9.6V |
Interface Definition
| PIN NO | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | LEDA | Power for LED backlight (Anode) |
| 2 | LEDA | Power for LED backlight (Anode) |
| 3 | LEDA | Power for LED backlight (Anode) |
| 4 | NC | No connect |
| 5 | LEDK | Power for LED backlight (Cathode) |
| 6 | LEDK | Power for LED backlight (Cathode) |
| 7 | LEDK | Power for LED backlight (Cathode) |
| 8 | LEDK | Power for LED backlight (Cathode) |
| 9 | GND | Ground |
| 10 | GND | Ground |
| 11 | MIPI_D2+ | HSSI_D2_Pare differential small amplitude signals |
| 12 | MIPI_D2- | HSSI_D2_Nare differential small amplitude signals |
| 13 | GND | Ground |
| 14 | MIPI_D1+ | HSSI_D1_Pare differential small amplitude signals |
| 15 | MIPI_D1- | HSSI_D1_Nare differential small amplitude signals |
| 16 | GND | Ground |
| 17 | MIPI_CLK+ | HSSI_CLK_Pare differential small amplitude signals |
| 18 | MIPI_CLK- | HSSI_CLK_Nare differential small amplitude signals |
| 19 | GND | Ground |
| 20 | MIPI_D0+ | HSSI_D0_Pare differential small amplitude signals |
| 21 | MIPI_D0- | HSSI_D0_Nare differential small amplitude signals |
| 22 | GND | Ground |
| 23 | MIPI_D3+ | HSSI_D3_Pare differential small amplitude signals |
| 24 | MIPI_D3- | HSSI_D3_Nare differential small amplitude signals |
| 25 | GND | Ground |
| 26 | NC | No connect |
| 27 | RESET | Reset signal |
| 28 | NC | No connect |
| 29 | VDD1V8 | I/O power supply |
| 30 | VDD3V3 | Power supply 3.0-3.6V |
| 31 | VDD3V3 | Power supply 3.0-3.6V |
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions
What are the main display specifications of model H080BWX31I4505?
H080BWX31I4505 is an 8-inch vertical IPS TFT LCD module with a resolution of 800×1280, a full viewing angle, 16.7M color depth, and a luminance rating of 480 cd/m².
What driver IC and interface does this 8-inch LCD module use?
The module utilizes a JD9365 driver IC and connects via a MIPI 31-pin interface, operating at a supply voltage of 9.6V with 1.8V and 3.3V power rails.
Can a touch screen be integrated with this display?
Yes, while standard configuration comes without touch, a touch screen overlay can be optionally equipped based on system requirements.
What are the operating and storage temperature limits?
The module operates reliably within a temperature range of -20℃ to +60℃ and can withstand storage conditions from -20℃ to +70℃.
What are the typical target applications for this module?
This display is engineered for industrial control panels, handheld testing instruments, facial recognition and security access systems, smart home controllers, and portable medical monitoring devices.
