Custom 6.9 Inch 280x1424 Stretched Bar TFT LCD Display MIPI 30 Pin IPS Long Strip Screen Module OEM Manufacturer Wholesale Supplier

Products Categories

Standard TFT LCD Module Capacitive Touch TFT LCD Resistive Touch TFT LCD High Brightness TFT LCD Circular Strip Square TFT LCD Product List

Product Description

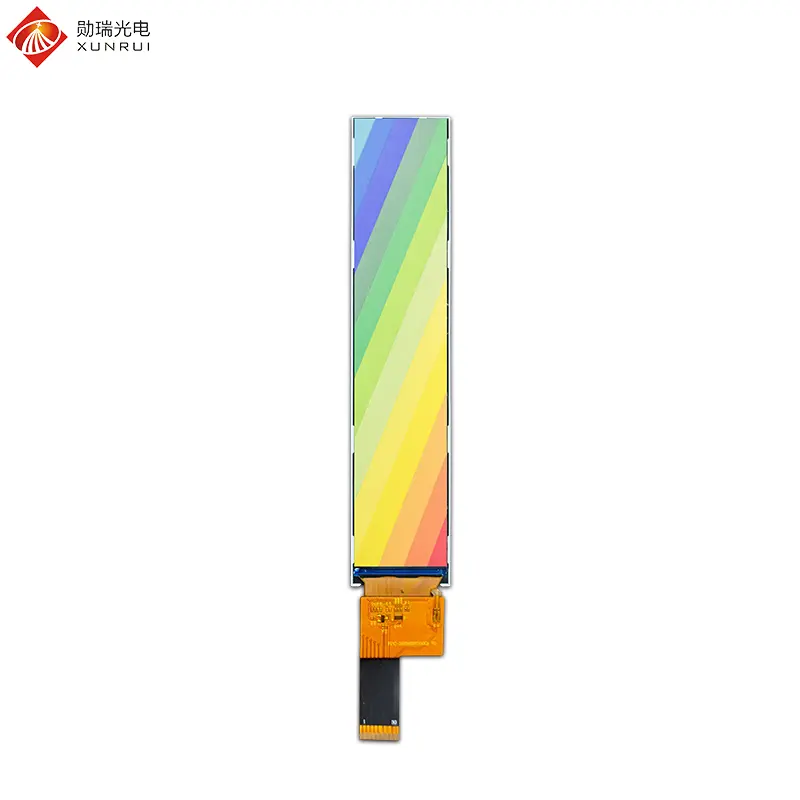

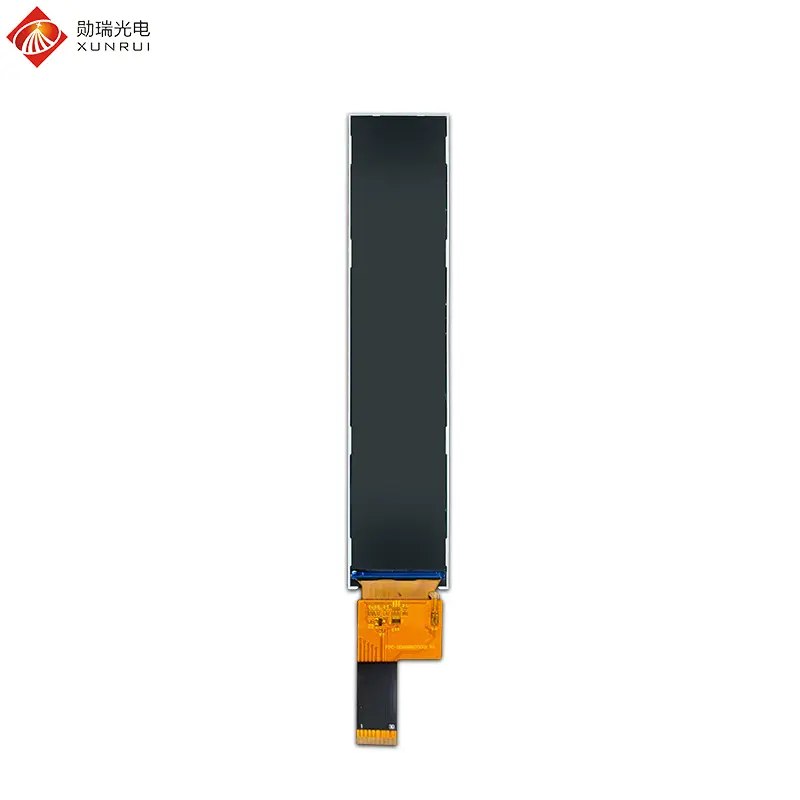

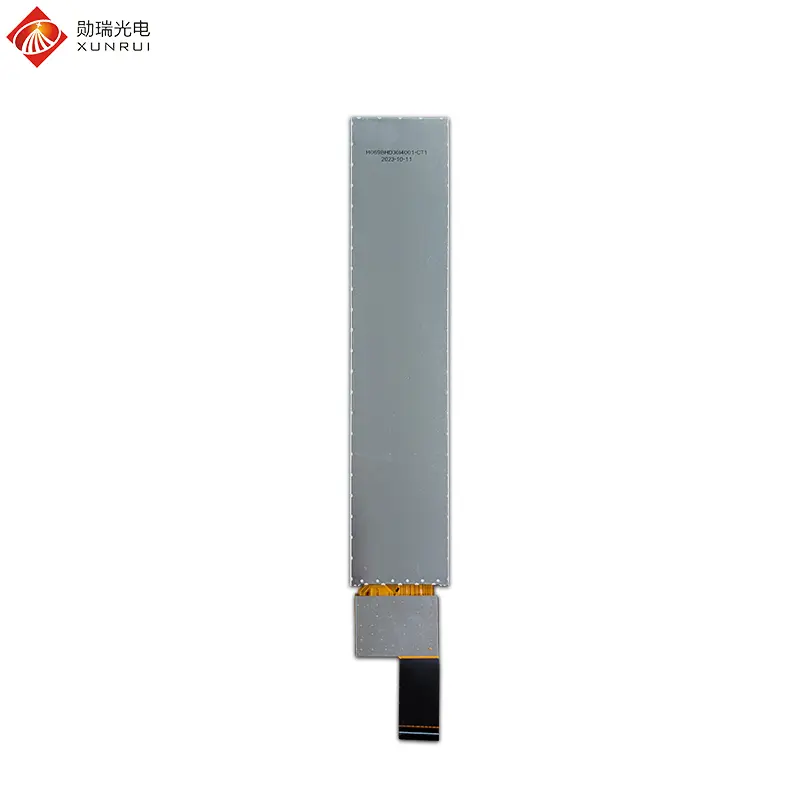

H069BHD30I4001 is a long, 6.9-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 280×1424, full viewing angle, MIPI 30-pin interface, ST7703I Driver IC, and a brightness of 400nit. The operating temperature can withstand -30℃ to +80℃, and a capacitive touch screen can be optionally equipped.

This 6.9-inch long strip TFT LCD screen is widely applied in:

Medical Equipment

Infusion pumps, injection pumps; shows liquid dosage & speed, touch-enabled.

Smart Home & Appliances

Smart speakers, control panels, ovens, and washing machine HMI systems.

Industrial Equipment

Instruments, meters, and control terminals for real-time monitoring and data display.

Commercial Display

Advertising machines and shelf-edge screens displaying dynamic vertical content.

Its long strip design is particularly suitable for scenarios where space is limited and a large amount of information needs to be displayed vertically.

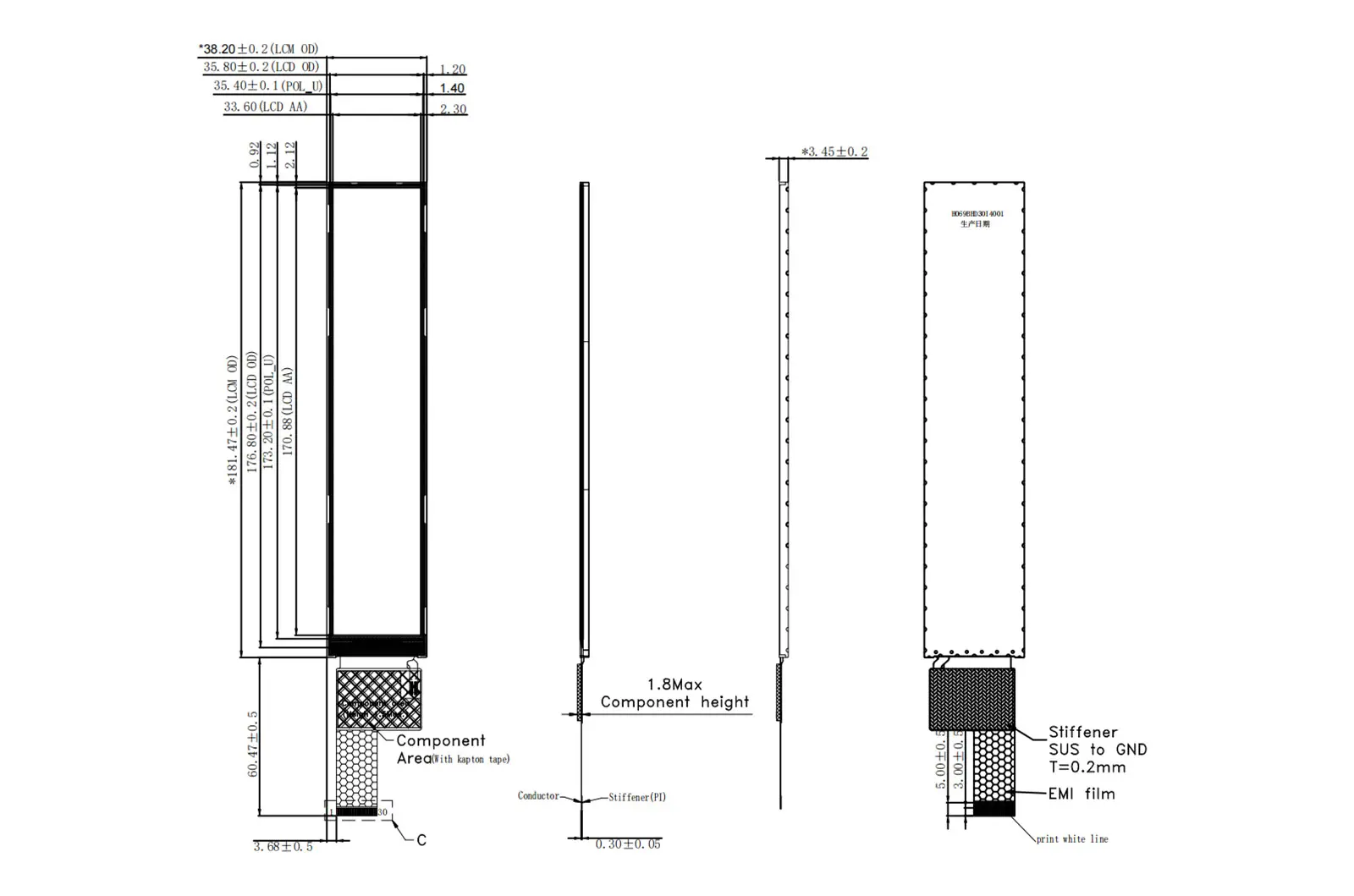

Mechanical Drawing

Specification Parameters

Feature	Specification
Model Name	H069BHD30I4001
LCD Size	6.9 inch
Display Format	280×1424
Interface	MIPI 30pin
Luminance	400 cd/m2
Touch Screen	None, optional
Viewing Direction	ALL (Full IPS)
Color Depth	16.7M
Driver IC	ST7703I
LCM (W x H x D) (mm)	38.20 (H) * 181.47 (V) * 3.45 (D)
Active Area (mm)	33.60 (H) * 170.88 (V)
Operating Temperature	-30℃ ~ +80℃
Storage Temperature	-40℃ ~ +85℃
Operating Voltage	12V

Interface Definition

Pin No.	Symbol	Description
1	GND	Power ground
2	D3N	MIPI-DSI data lane 3 negative input pin
3	D3P	MIPI-DSI data lane 3 positive input pin
4	GND	Power ground
5	D2N	MIPI-DSI data lane 2 negative input pin
6	D2P	MIPI-DSI data lane 2 positive input pin
7	GND	Power ground
8	CLKN	MIPI-DSI clock lane negative input pin
9	CLKP	MIPI-DSI clock lane positive input pin
10	GND	Power ground
11	D1N	MIPI-DSI data lane 1 negative input pin
12	D1P	MIPI-DSI data lane 1 positive input pin
13	GND	Power ground
14	D0N	MIPI-DSI data lane 0 negative input pin
15	D0P	MIPI-DSI data lane 0 positive input pin
16	GND	Power ground
17	GND	Power ground
18	TE	Frame synchronization output signal pin
19	RESET	Reset signal (low active)
20	GND	Power ground
21-23	VCC/VCI	Power supply for analog power
24	GND	Power ground
25-26	NC	No Connection
27-28	VLED-	LED backlight cathode
29-30	VLED+	LED backlight anode

Featured Products

2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display

2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module

2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display

3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module

4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module

5 inch 800×480 1200nit High brightness TN TFT LCD module

7 inch 1024×600 1000nit High brightness IPS TFT LCD module

8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen

10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen

13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module

Frequently Asked Questions (FAQ)

What are the primary display specifications of the H069BHD30I4001 module?

The H069BHD30I4001 is a 6.9-inch ultra-wide bar TFT LCD module featuring a 280×1424 resolution, full viewing angle (IPS panel), 400 cd/m² luminance, and 16.7M color depth driven by the ST7703I driver IC.

What interface does this 6.9-inch strip LCD module use?

It utilizes a 30-pin MIPI-DSI interface with 4 differential data lanes (D0 through D3) and 1 clock lane, ensuring high data transfer rates and stable video streaming.

Can this bar LCD screen be configured with a touch screen?

Yes, while the standard module comes without touch capability, a custom capacitive touch screen panel is optionally available based on project requirements.

What is the operating temperature range for this display?

The screen operates reliably across an industrial temperature range from -30℃ to +80℃, with a storage temperature tolerance of -40℃ to +85℃.

What are the typical applications for this long strip display?

Due to its elongated aspect ratio, it is primarily integrated into medical devices (infusion pumps), smart home appliances (control panels, ovens, washing machines), industrial meter terminals, and shelf-edge commercial advertising displays.

What are the module dimensions and active area measurements?

The overall module outline dimensions (LCM) are 38.20(H) × 181.47(V) × 3.45(D) mm, and the active display area measures 33.60(H) × 170.88(V) mm.
