| Feature | Spec |
| Model Name | H043IWQ40E3548 |
| LCD Size | 4.3 inch |
| Display Format | 480×272 |
| Interface | 8-bit RGB 40pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | ST7282 |

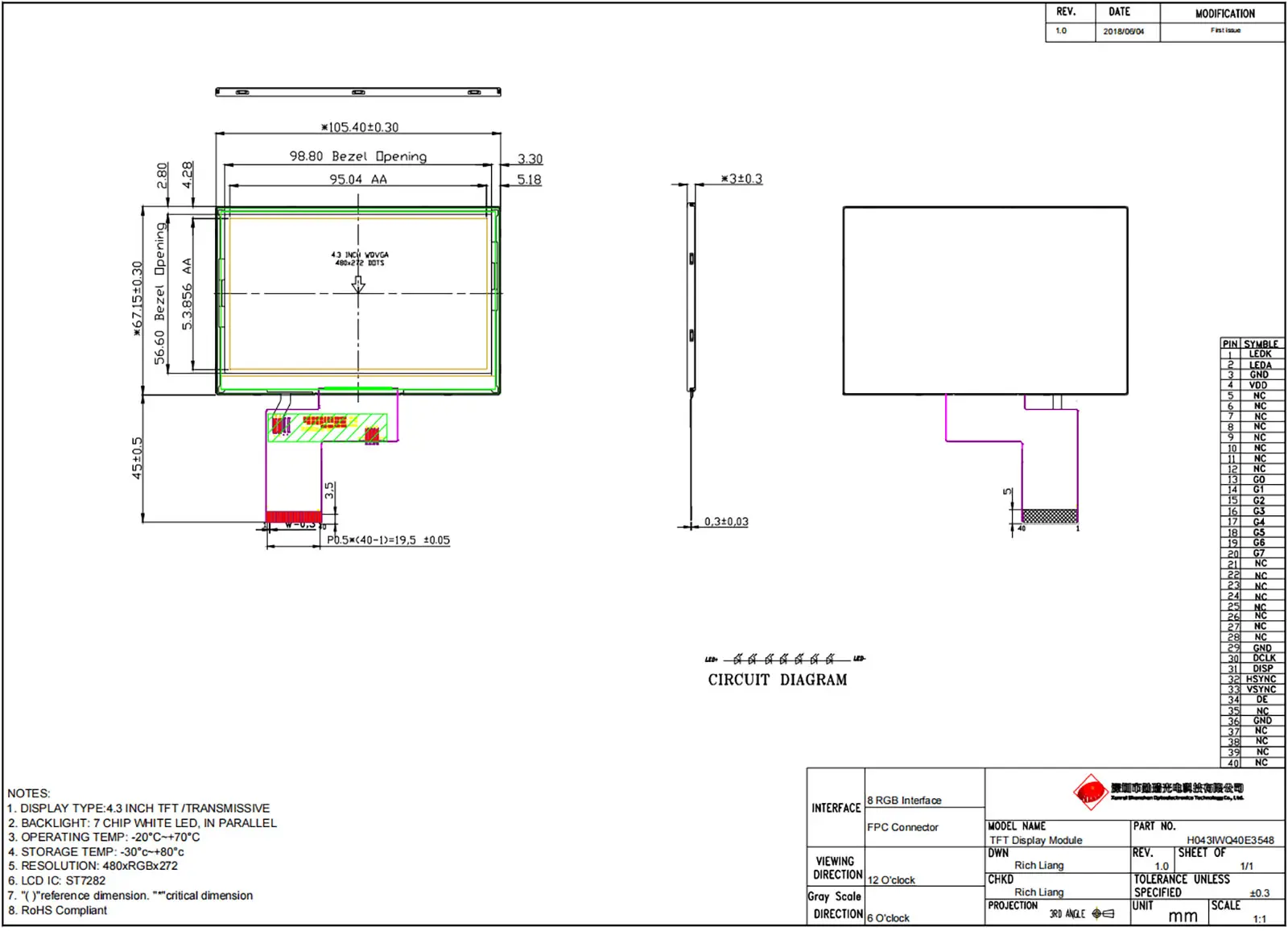

| LCM (W x H x D) (mm) | 105.45*67.15*3 |
| Active Area(mm) | 95.04 x 53.856 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 22.4V |
| No. | Symbol | Description |
| 1 | VBL- | Backlight LED Cathode |
| 2 | VBL+ | Backlight LED Anode. |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | NC | - |
| 13~20 | G0~G7 | Data bus |
| 21~28 | NC | - |
| 29 | GND | System Ground |
| 30 | CLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vertical Sync signal |
| 34 | DEN | Data Enable |
| 35 | NC | No connect |
| 36 | GND | System Ground |
| 37 | XR | TP pin XR |
| 38 | NC/YD | TP pin YD |
| 39 | NC/XL | TP pin XL |
| 40 | NC/YU | TP pin YU |

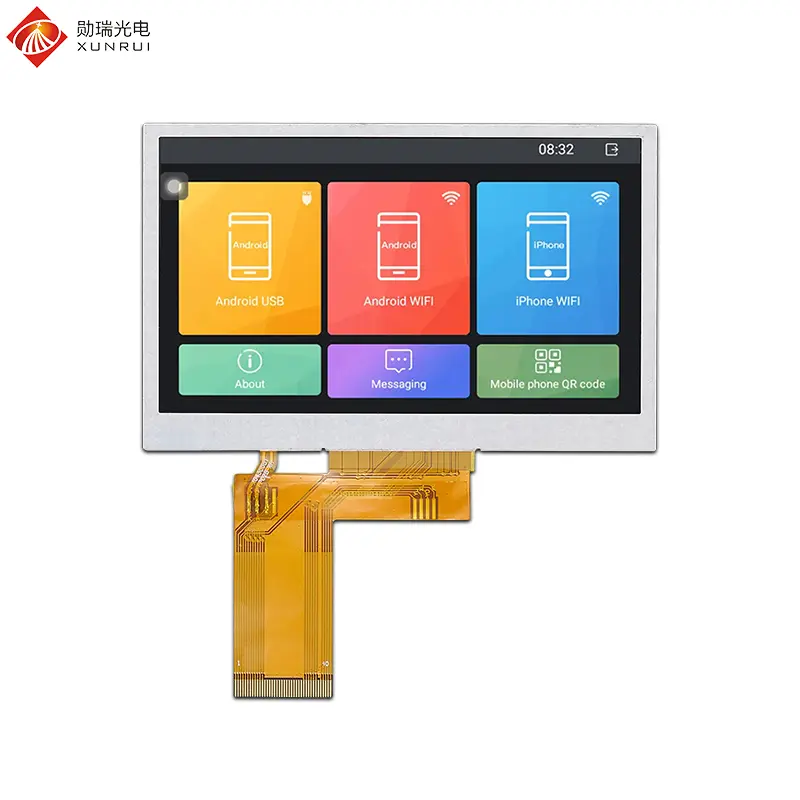

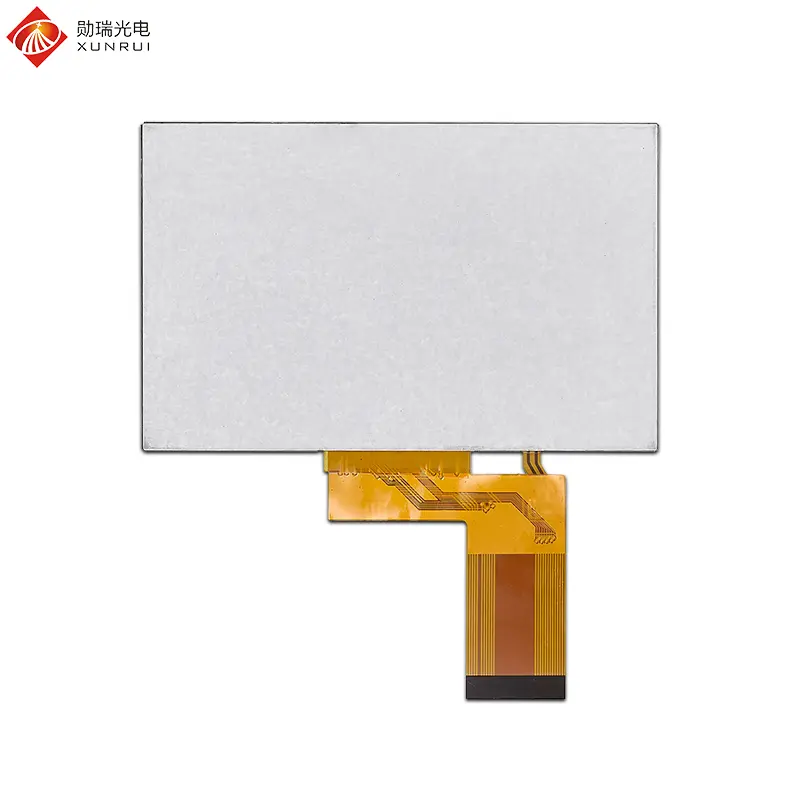

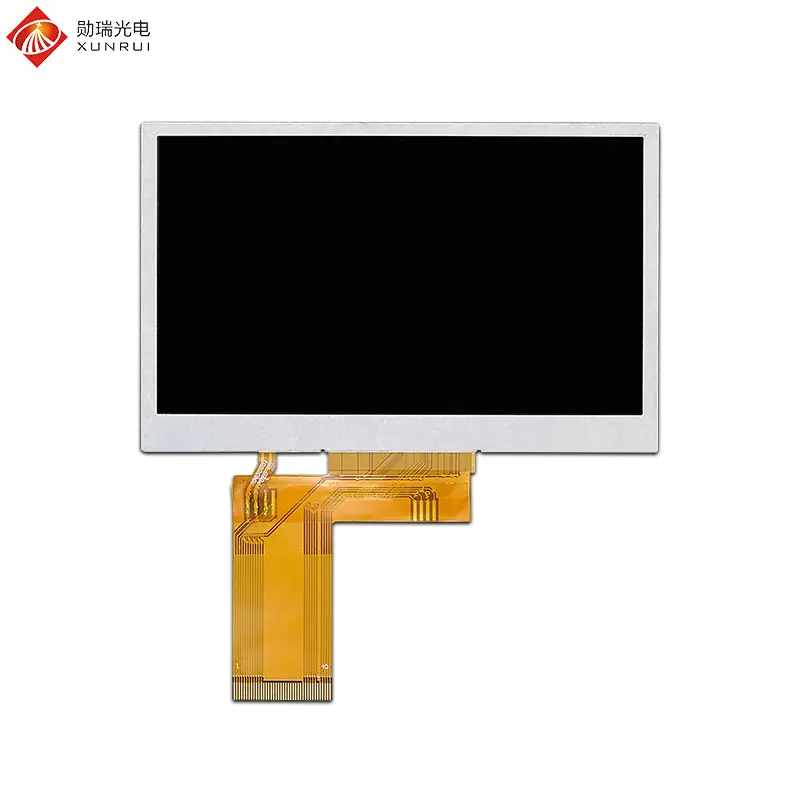

This display module features a 4.3-inch TN panel with a 480×272 resolution, 350 cd/m² luminance, and an ST7282 driver IC connected through an 8-bit RGB 40-pin interface.
Yes, touch functionality is optional. The module can be customized with either a resistive touch screen (RTP) or a capacitive touch screen (CTP) based on project needs.
The display operates reliably within a temperature range of -20℃ to +70℃, and can be safely stored between -30℃ and +80℃, suitable for challenging environments.
It is widely utilized in industrial automation (HMI interfaces, PLC control panels), medical devices (diagnostic equipment, monitors), smart energy meters, and IoT terminal systems.
It uses a standard 40-pin connection supporting an 8-bit RGB interface, complete with clock, sync, data enable, and dedicated touch panel signal pins.
