Product Description

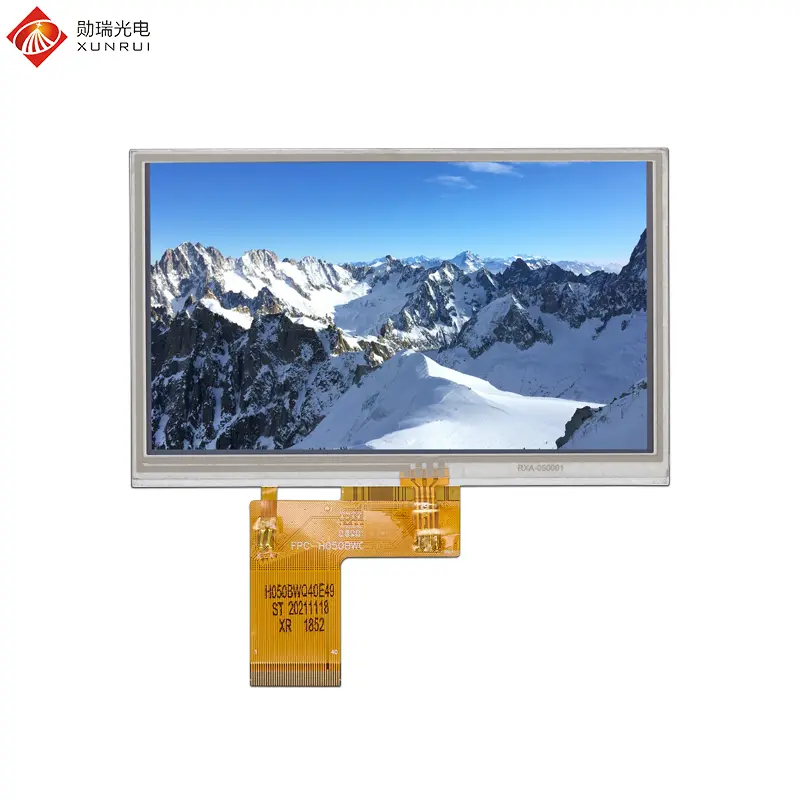

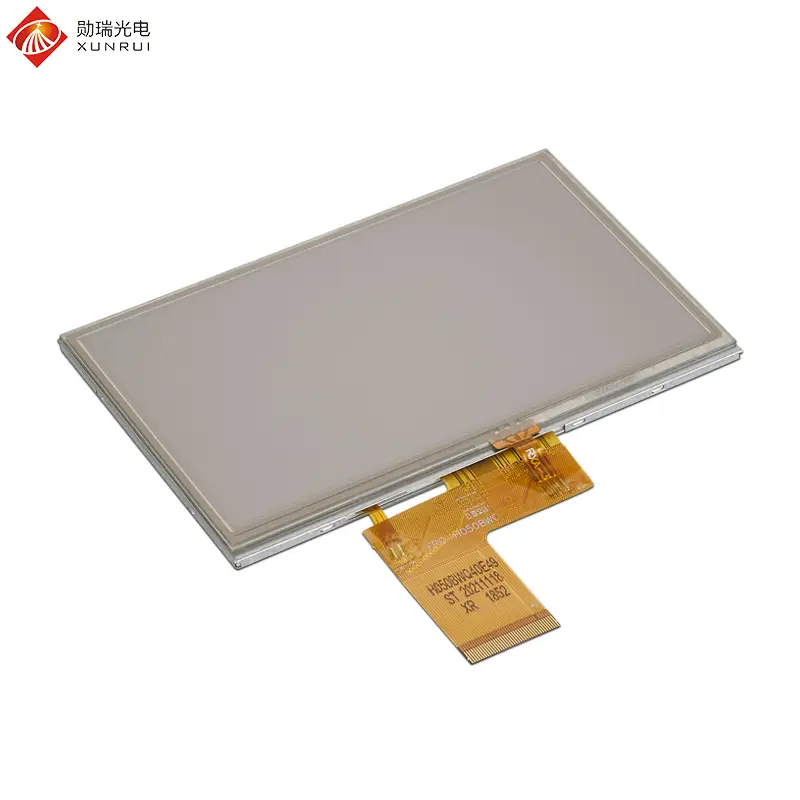

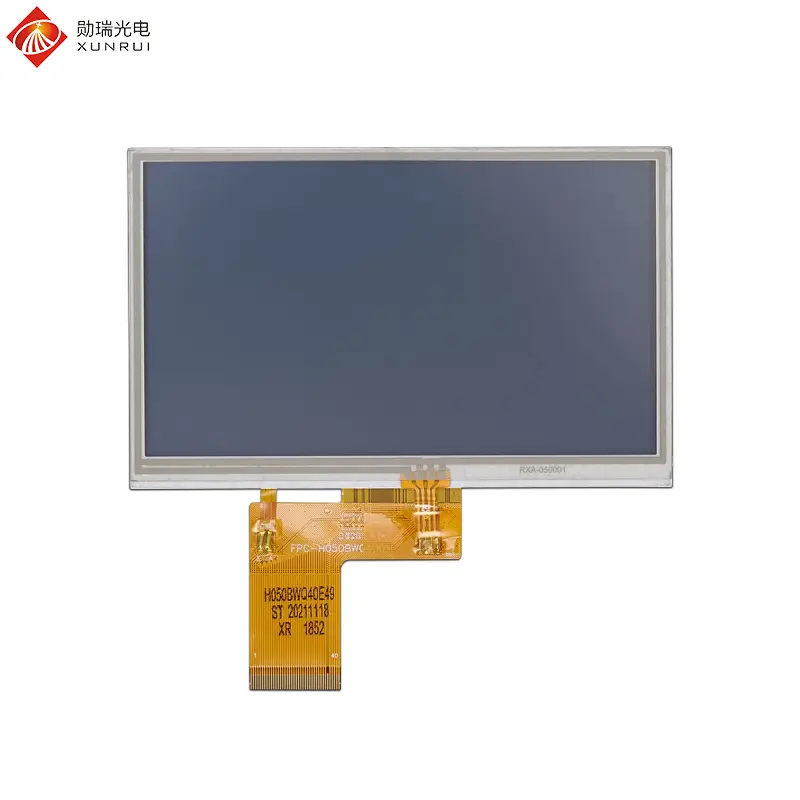

H050BWQ40E3513-T is a 5 inch TFT LCD module with resistive touch function. The resistive touch screen adopts a four-wire or five-wire structure and realizes touch control through pressure sensing, and has strong tolerance to external environments (such as dust, moisture, and oil stains). This LCD panel uses a TN panel, with a resolution of 480×272, ST7257 Driver IC, 24-bit RGB 40-pin interface, which is convenient for direct connection with STM32 and other MCUs. It has a brightness of 260 nit and can work within a temperature range of -20℃ to +70℃.
This 5 inch TFT LCD display is mainly used in industrial control equipment: widely used in PLC operation panels, industrial computers, and instruments and meters, supporting touch control by any object (such as wearing gloves or using a touch pen), suitable for factories and workshops environments.
Medical equipment: applied to portable medical instruments such as blood glucose meters, blood pressure monitors, and endoscopes, meeting the requirements of cleanliness and stable operation. Its resistive screen structure can prevent accidental touches and is easy to disinfect and maintain.
Intelligent terminals and embedded systems: commonly found in smart home appliances, POS machines, smart card readers, etc., especially suitable for scenarios requiring low cost and high reliability. The 5 inch resistive touch LCD panel, due to its strong stability, moderate cost, and good compatibility, is widely used in industrial control, medical equipment, and intelligent terminal fields, especially suitable for use in complex environments or scenarios requiring gloves operation.

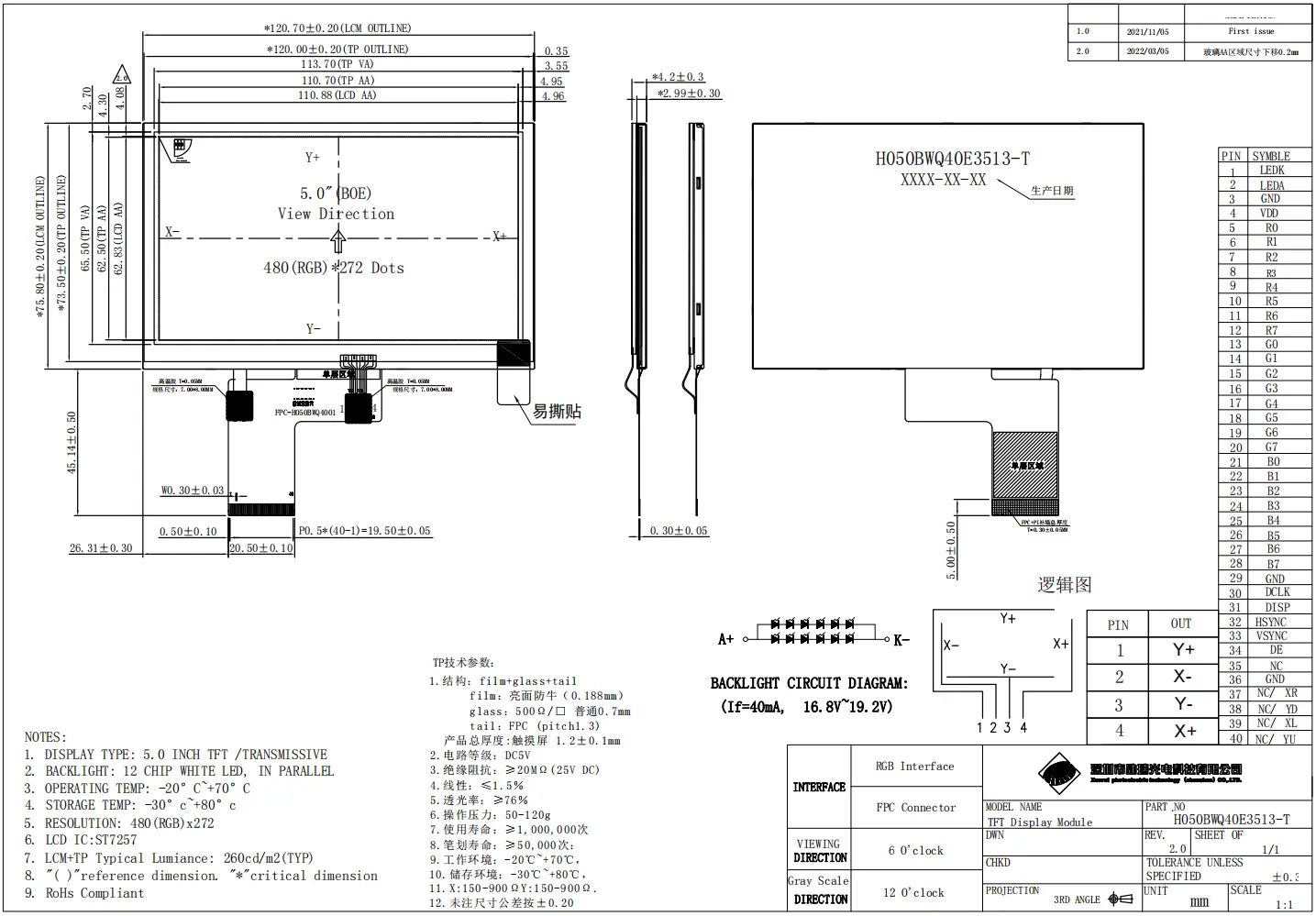

| Feature | Spec |
|---|---|
| Model Name | H050BWQ40E3513-T |
| LCD Size | 5 inch |
| Display Format | 480×272 |
| Interface | 24-bit RGB 40pin |
| Luminance | 260 cd/m2 |
| Touch Screen | Resistive touch |
| Viewing Direction | 6 O’clock |
| Color Depth | 16.7M |
| Driver IC | ST7257 |
| LCM (W x H x D) (mm) | 120.7 * 75.8 * 4.2 |
| Active Area (mm) | 110.88 x 62.83 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 18V |
| No. | Symbol | Description |
|---|---|---|
| 1 | LEDK | Backlight LED Cathode |
| 2 | LEDA | Backlight LED Anode |
| 3 | GND | Ground |
| 4 | VDD | Power supply |
| 5~12 | R0~R7 | Data bus |
| 13~20 | G0~G7 | Data bus |
| 21~28 | B0~B7 | Data bus |
| 29 | GND | Ground |
| 30 | DCLK | Dot clock signal input. Latching input data at its rising edge. |
| 31 | DISP | Standby mode. Normally pulled high. DISP=“1”: Normally operation (Default) DISP=“0”: Timing controller, source driver will turn off, all output are High-Z. |
| 32 | HSYNC | Horizontal sync input. Negative polarity. |
| 33 | VSYNC | Vertical sync input. Negative polarity. |
| 34 | DE | Data enable input. Active high to enable the input data bus under “DE Mode.” |
| 35 | NC | No connected |
| 36 | GND | Ground |
| 37 | XR | The right side signal of TP |
| 38 | YD | The down side signal of TP |
| 39 | XL | The left side signal of TP |
| 40 | YU | The up side signal of TP |
