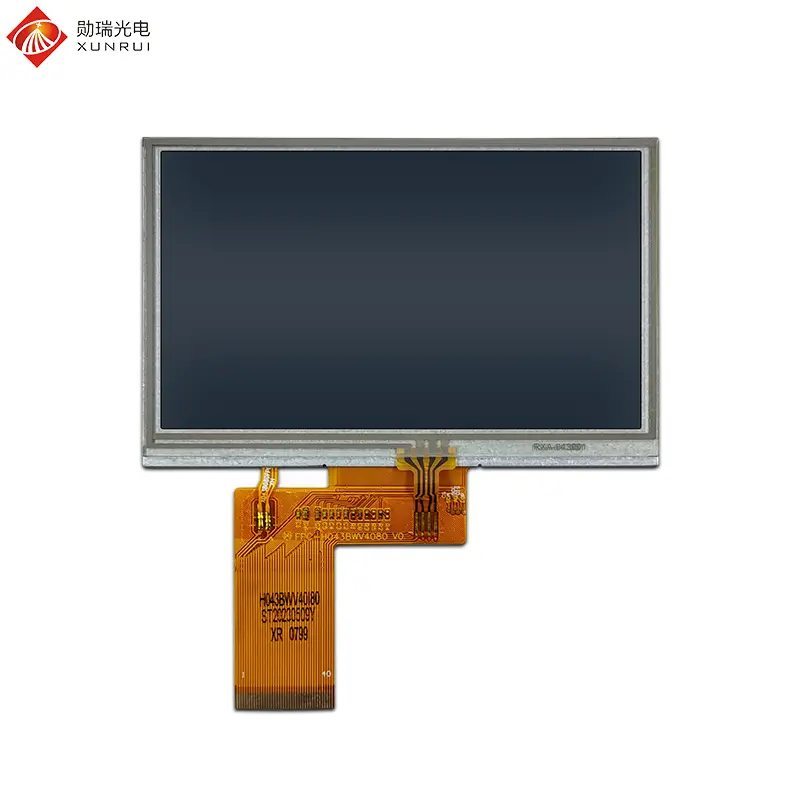

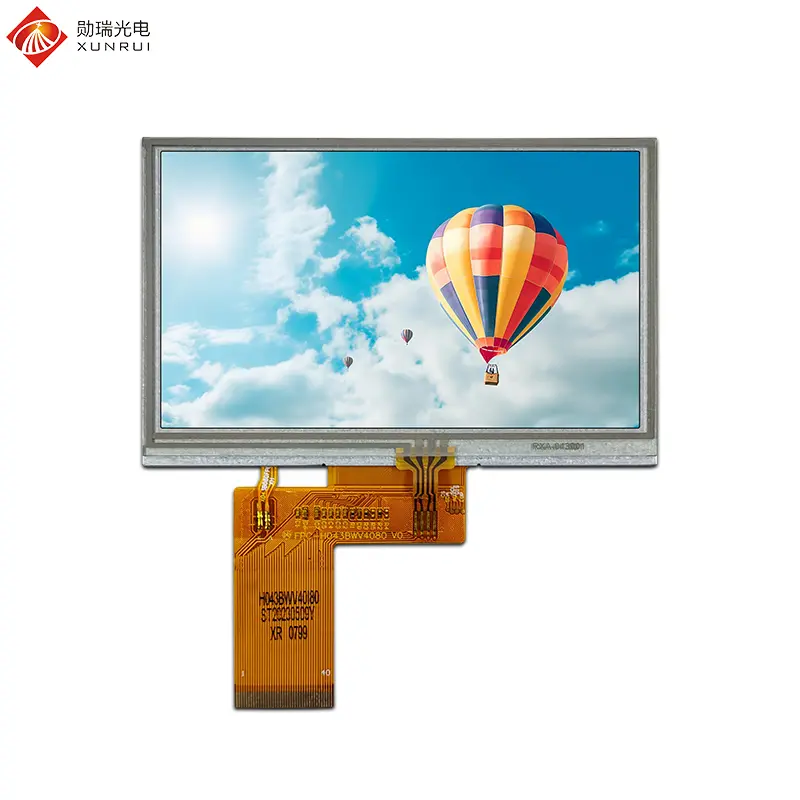

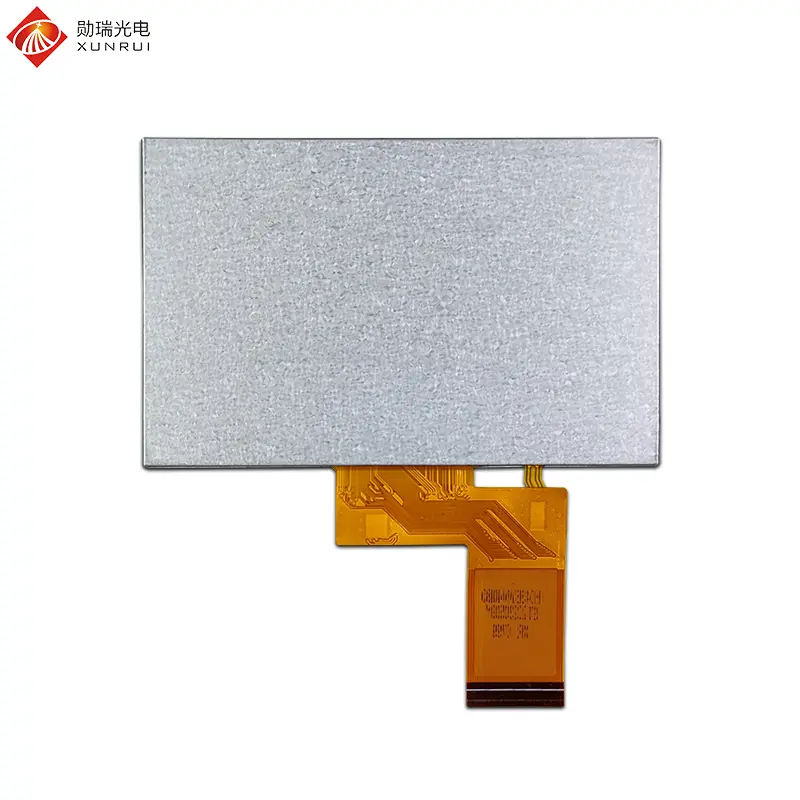

H043BWV40I3580-T is a 4.3 inch TFT LCD module with resistive touch function. It is a resistive touch screen that detects the position through pressure and supports operation with gloves or a pen. It is highly durable but usually does not support multi-touch. This LCD screen adopts IPS full-view technology, with a resolution of 800×480, a 24-bit RGB 40-pin interface, ST7262 Driver IC, a brightness of 300 nit, and can withstand a working temperature range of -20℃ to +70℃, making it suitable for industrial environments. This 4.3 inch TFT LCD display is mainly applied in industrial control and automation: as a human-machine interface (HMI) for PLC terminals, embedded hosts, for displaying device status, setting parameters, or as a graphical menu operation interface. In smart home and small appliances: used in smart doorbells, temperature controllers, vacuum cleaners, video intercoms, etc., providing touch operation panels. In automotive and outdoor systems: used in vehicle information terminals, electric vehicle dashboards, etc., supporting graphic navigation. This screen is a mature solution in the fields of industrial control and smart home, balancing size, resolution, and cost. If you are developing industrial control or medical equipment, it is worth considering.

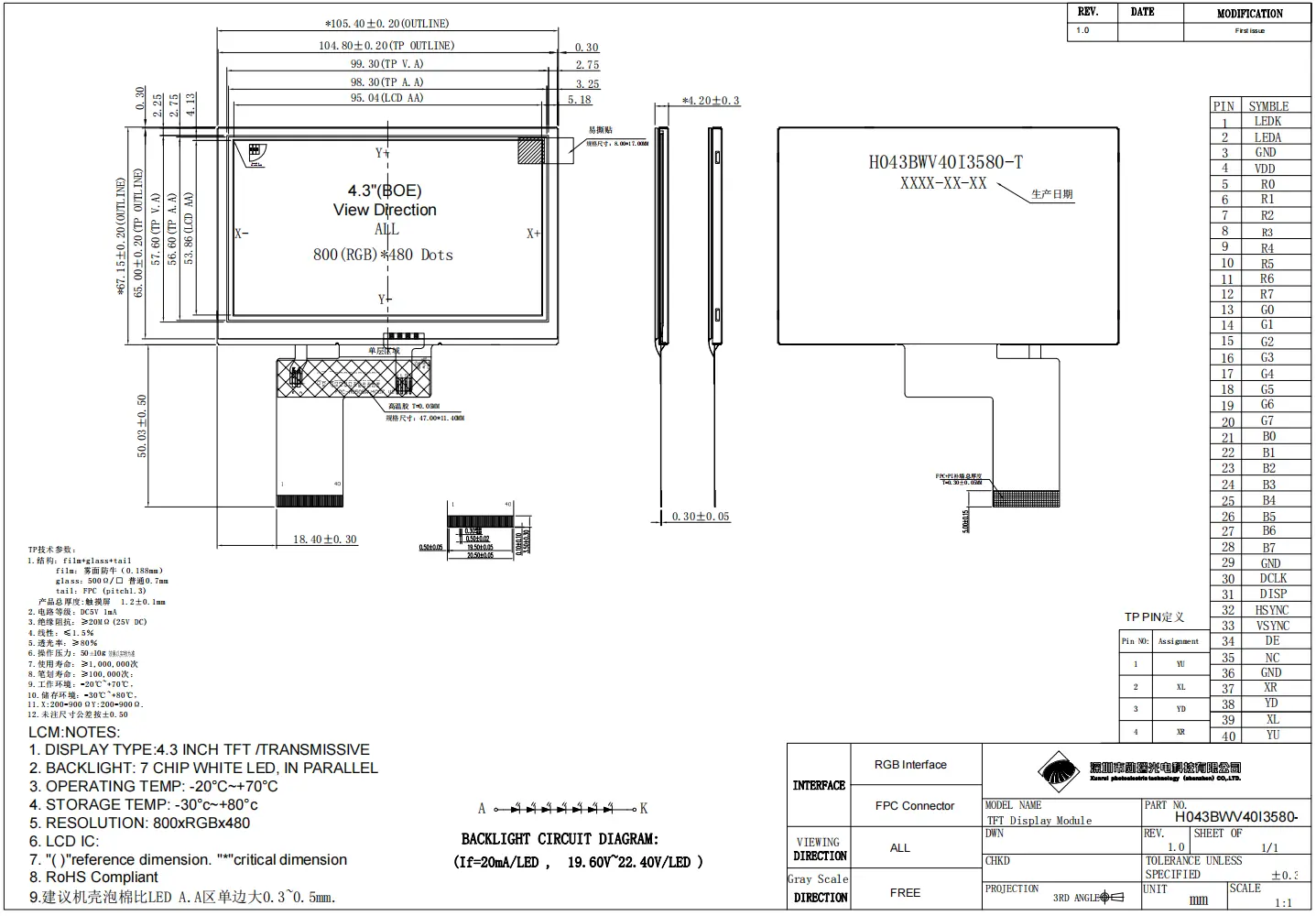

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H043BWV40I3580-T |
| LCD Size | 4.3 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 40pin |
| Luminance | 300 cd/m² |
| Touch Screen | Resistive touch |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | ST7262 |
| LCM+TP Dimension (W x H x D) | 105.40 × 67.15 × 4.2 mm |
| Active Area | 95.04 × 53.86 mm |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 21V |
Interface Definition
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VBL- | Backlight LED Cathode |
| 2 | VBL+ | Backlight LED Anode. |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | R0~R7 | Data bus |
| 13~20 | G0~G7 | Data bus |
| 21~28 | B0~B7 | Data bus |
| 29 | GND | System Ground |
| 30 | CLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vertical Sync signal |
| 34 | DEN | Data Enable |
| 35 | NC | No connect |
| 36 | GND | System Ground |
| 37 | NC/XR | TP pin XR |
| 38 | NC/YD | TP pin YD |
| 39 | NC/XL | TP pin XL |
| 40 | NC/YU | TP pin YU |
