Custom 2.8 inch 240×320 TN TFT LCD Module with resistive touch panel Manufacturers, Supplier
Product Description
Product Description

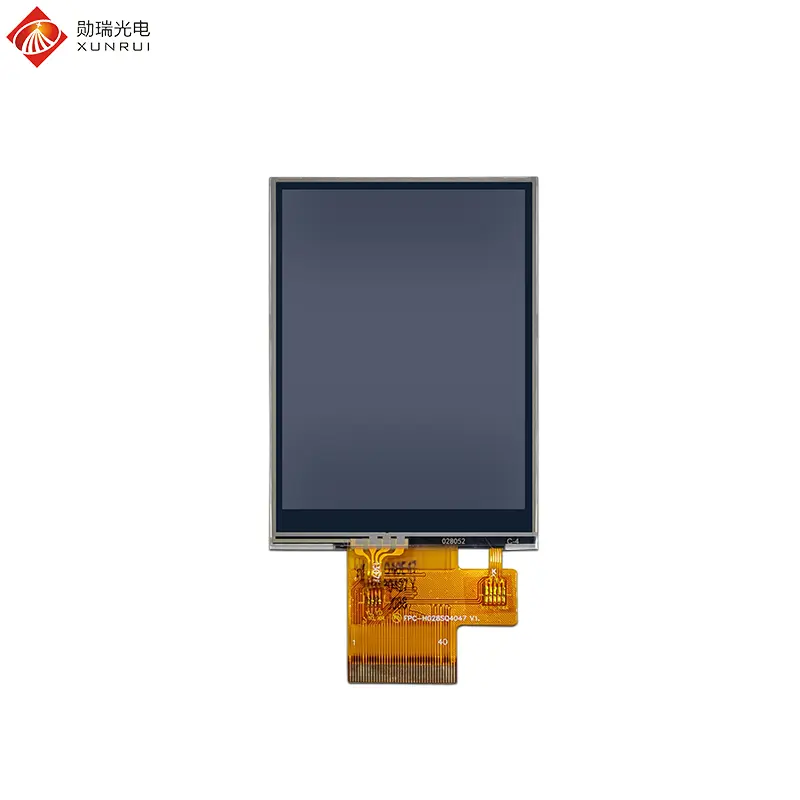

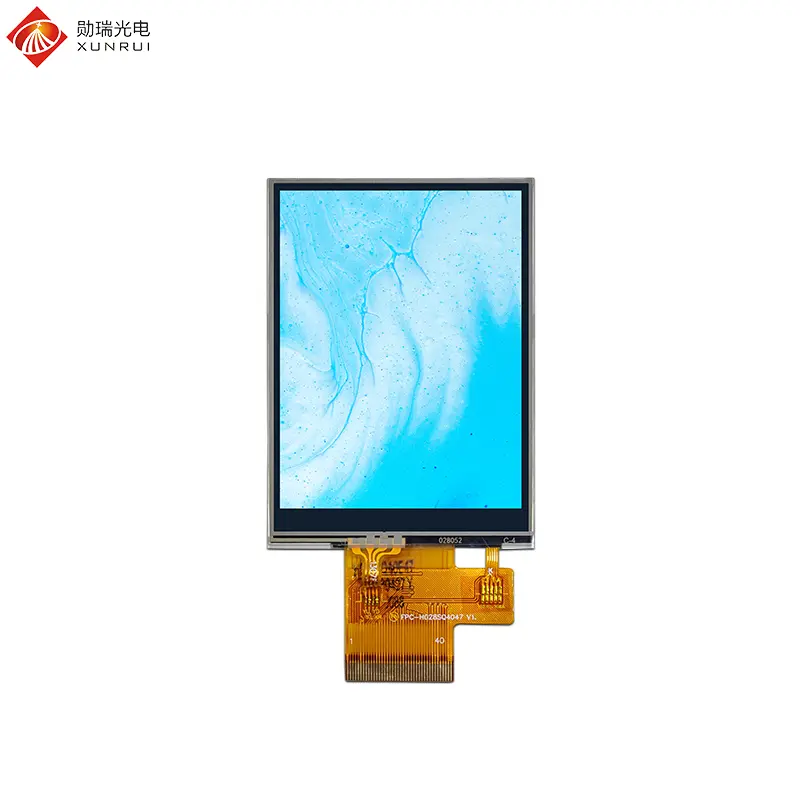

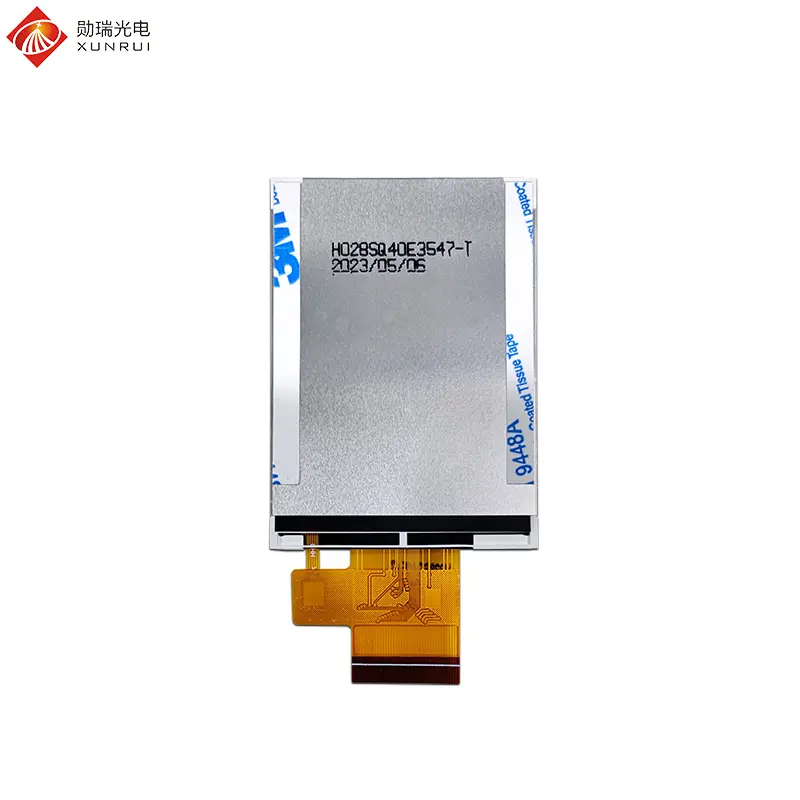

H028SQ40E3547-T is a 2.8-inch TFT LCD module with resistive touch functionality. The resistive screen is triggered by pressure sensing and not only supports finger operation but also can perfectly accommodate glove operation or precise clicking using a stylus. This is crucial in cleanroom environments, outdoor operations, and medical surgery scenarios. The structure is relatively simple, and the module cost is significantly lower than that of capacitive screens. The driving circuit is mature and easy to integrate into cost-sensitive batch industrial equipment. The MCU interface has a higher refresh rate, suitable for displaying dynamic waveforms or rapidly changing parameters. This 2.8-inch resistive touch TFT LCD Display is an extremely cost-effective interaction solution in industrial control and embedded development, with advantages such as low cost, support for glove operation, and strong anti-interference capabilities, making it the preferred display component for medical equipment, industrial control panels, and handheld terminals.
Industrial Control & HMI
Ideal for PLC control panels, frequency converter operators, and automation equipment. Resists electromagnetic interference and allows operation with thick protective gloves.
Medical Testing Instruments
Used in portable blood pressure meters, glucose meters, and ECG machines. The flexible resistive screen is smooth, durable, and easy to sanitize thoroughly.
Handheld Testing Devices
Multimeters, distance meters, and detectors operate smoothly outdoors. Functions reliably from -20°C to 70°C, impervious to rain, grease, and dust.
Smart Home & Security
Applied in smart door lock panels, video intercoms, and thermostats. Ultra-low power consumption extends equipment battery longevity effectively.

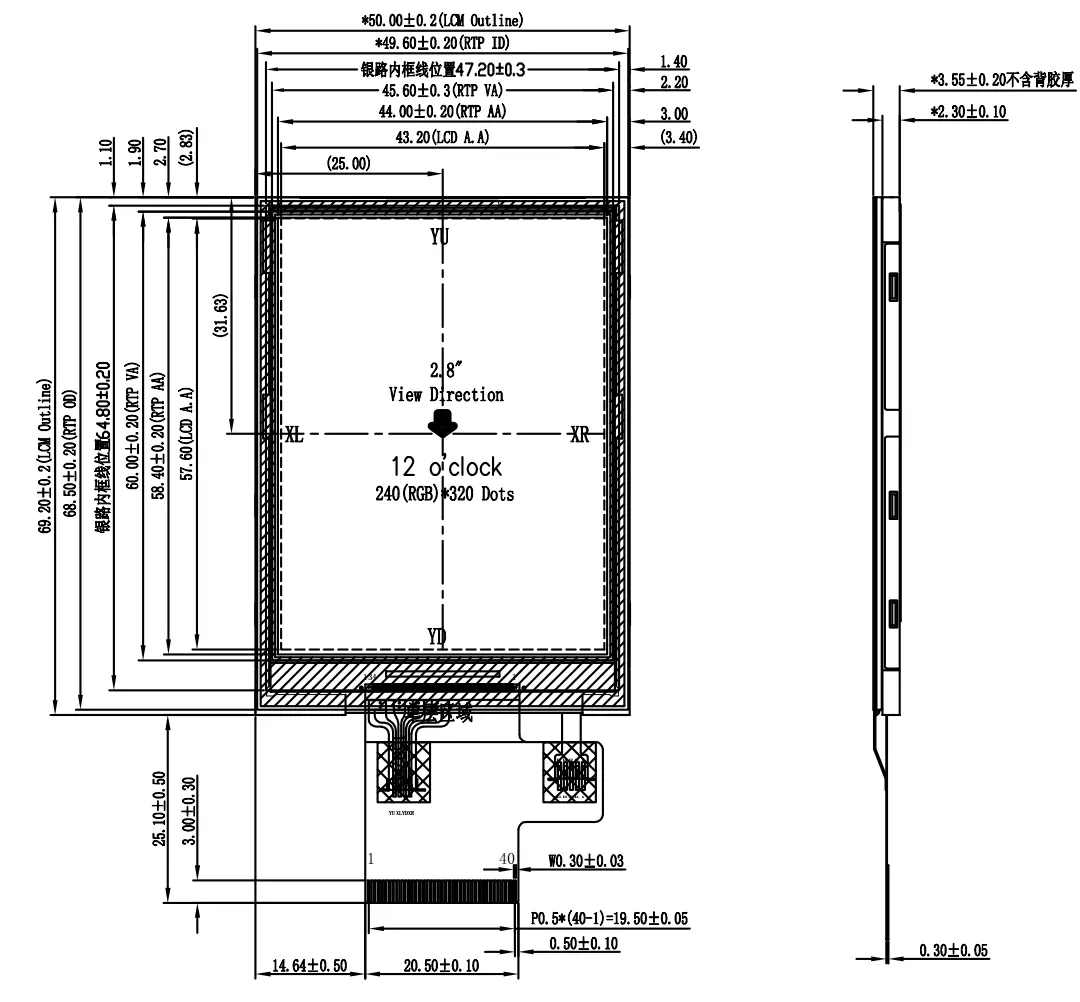

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H028SQ40E3547-T |
| LCD Size | 2.8 inch |
| Display Format | 240 × 320 |
| Interface | MCU 16bit 40pin |
| Luminance | 250 cd/m² |
| Touch Screen | Resistive touch |
| Viewing Direction | 12 o’clock |
| Color Depth | 262K |
| Driver IC | ST7789V |
| LCM (W × H × D) (mm) | 50 × 69.2 × 3.55 |
| Active Area (mm) | 43.2 × 57.6 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.0V |
Interface Definition (40-Pin MCU)
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | GND | Power supply Ground. |
| 2 | DB0 | Data bus. |
| 3 | DB1 | Data bus. |
| 4 | DB2 | Data bus. |
| 5 | DB3 | Data bus. |
| 6 | GND | Power supply Ground. |
| 7 | VCC | Analog power supply. |
| 8 | CS | Chip enable, Low-active. |
| 9 | RS | Data/Command register address. |
| 10 | WR | Write signal, rising-edge-trigger. |
| 11 | RD | Read signal, rising-edge-active. |
| 12 | NC | No Connection. |
| 13 | YU | Resistive touch YU PIN. |
| 14 | XL | Resistive touch XL PIN. |
| 15 | YD | Resistive touch YD PIN. |
| 16 | XR | Resistive touch XR PIN. |
| 17 | LEDA | Backlight anode. |
| 18~21 | LEDK | Backlight cathode. |
| 22 | NC | No Connection. |
| 23 | DB4 | Data bus. |
| 24~31 | DB8~DB15 | Data bus. |
| 32 | RESET | Reset signal, keep Low for more than 10ms after power. |
| 33~34 | VCC | Analog power supply. |
| 35 | GND | Power supply Ground. |
| 36~38 | DB5-DB7 | Data bus. |
| 39~40 | GND | Power supply Ground. |
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions (FAQ)
This module utilizes a 4-wire resistive touch screen triggered by pressure sensing. It supports bare finger input, thick glove operation, and stylus navigation, while offering superior electromagnetic interference resistance at a significantly lower cost compared to capacitive screens.
The display is powered by the ST7789V driver IC and features a 16-bit MCU 40-pin interface. This setup delivers higher refresh speeds, making it ideal for rendering dynamic waveforms and high-speed data refreshes in embedded systems.
Yes. The H028SQ40E3547-T has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, ensuring reliable and stable performance in harsh outdoor environments and extreme cold or heat.
The module provides a 240 × 320 resolution with 262K color depth, a luminance of 250 cd/m², an active display area of 43.2 × 57.6 mm, and an outer module dimension (LCM) of 50 × 69.2 × 3.55 mm.
The surface consists of a resilient flexible layer that can easily be sanitized, disinfected, and wiped clean. It functions seamlessly even when wet or when the user is wearing sterile medical or cleanroom gloves.
The module operates on a standard 3.0V supply voltage (VCC), making it highly compatible with battery-powered portable meters, handheld test equipment, and low-power IoT controllers.
