Product Description

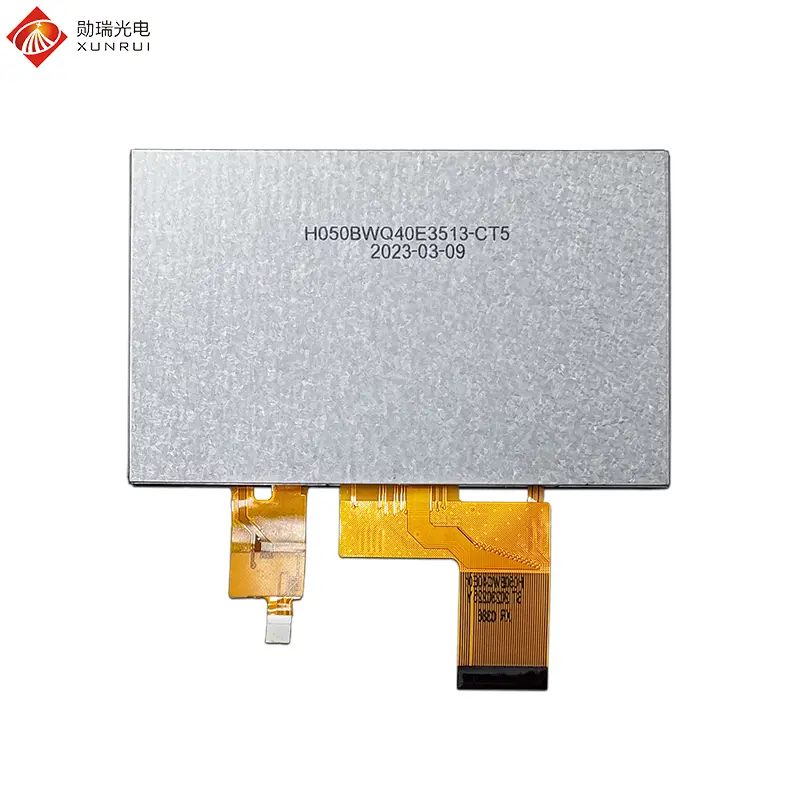

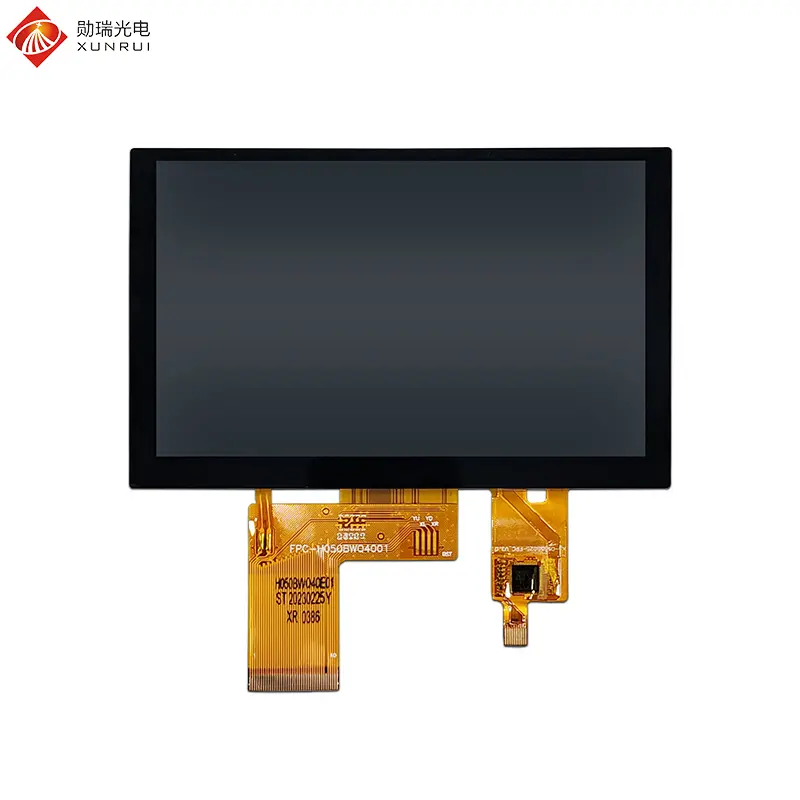

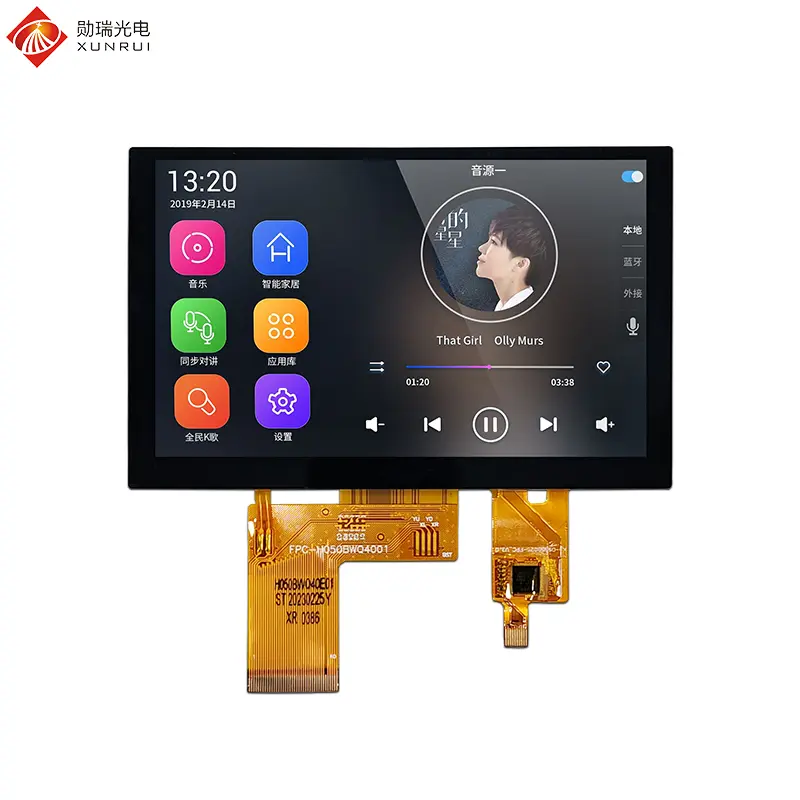

H050BWQ40E3513-CT5 is a 5 inch TFT LCD module with capacitive touch function. This LCD screen uses a TN panel and has a resolution of 480×272. It can clearly display text, icons, and simple graphics within a viewing distance of 1 meter. It has a 24-bit RGB 40-pin interface that is compatible with embedded controllers such as STM32, facilitating integration into various industrial control systems. The ST7257 Driver IC, with a brightness of 350 nit, can operate within a temperature range of -20°C to +70°C. It features a projected capacitive touch screen, supporting multi-touch (typically 5 points), with a response time of approximately 8 ms and high positioning accuracy. The operation is smooth. Compared to resistive touch screens, capacitive screens have higher light transmittance, greater durability, and support direct finger operation, which aligns with modern interaction habits. This 5 inch TFT LCD display is mainly used in industrial control terminals: applied to PLC control panels, data acquisition instruments, handheld PDAs, etc., as human-machine interfaces (HMI). It is also used in vehicle-mounted and transportation equipment: applied to vehicle navigation systems, reversing image systems, vehicle dashboards, etc., in medical and health equipment: used for portable monitors, blood glucose meters, body temperature detectors, etc., to display vital sign data. It is also integrated into smart home control panels, e-book readers, small tablets, etc. The 5 inch 480×272 capacitive touch LCD screen is a small-sized display module widely used in industrial and consumer electronics. With an appropriate resolution, good touch experience, and stable performance, it has become the "golden supporting role" in human-machine interaction interfaces (HMI).
| Feature | Specification |
|---|---|
| Model Name | H050BWQ40E3513-CT5 |
| LCD Size | 5 inch |
| Display Format | 480×272 |
| Interface | 24-bit RGB 40pin |
| Luminance | 350 cd/m² |
| Touch Screen | Capacitive Touch |
| Viewing Direction | 6 O’clock |
| Color Depth | 16.7M |
| Driver IC | ST7257 |

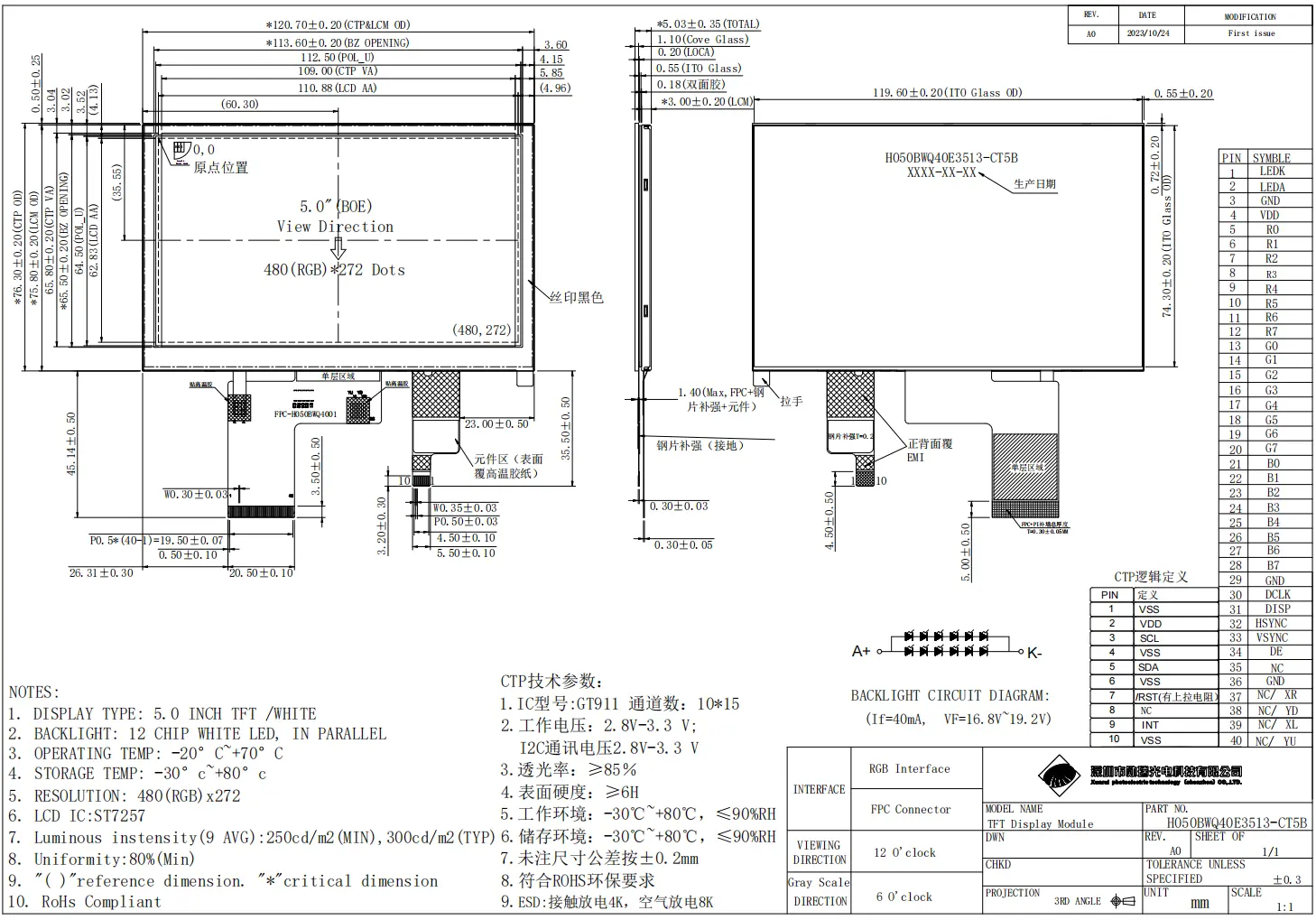

| LCM+CTP (W x H x D) (mm) | 120.7 * 76.3 * 5.03 |
| Active Area (mm) | 110.88 x 62.83 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 18V |
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDK | Backlight LED Cathode |
| 2 | LEDA | Backlight LED Anode |
| 3 | GND | Ground |
| 4 | VDD | Power Supply |
| 5~12 | R0~R7 | Data Bus (Red) |
| 13~20 | G0~G7 | Data Bus (Green) |
| 21~28 | B0~B7 | Data Bus (Blue) |
| 29 | GND | Ground |
| 30 | DCLK | Dot clock signal input. Latching input data at its rising edge. |
| 31 | DISP | Standby mode. Normally pulled high. DISP=“1”: Normal operation (Default) DISP=“0”: Timing controller, source driver will turn off, all outputs are High-Z. |
| 32 | HSYNC | Horizontal sync input. Negative polarity. |
| 33 | VSYNC | Vertical sync input. Negative polarity. |
| 34 | DE | Data enable input. Active high to enable the input data bus under “DE Mode.” |
| 35 | NC | No connection |
| 36 | GND | Ground |
| 37 | XR | The right side signal of TP |
| 38 | YD | The down side signal of TP |
| 39 | XL | The left side signal of TP |
| 40 | YU | The up side signal of TP |
