Custom 7 inch 800×480 TN TFT LCD display with resistive touch panel Supplier, Factory
Product Description

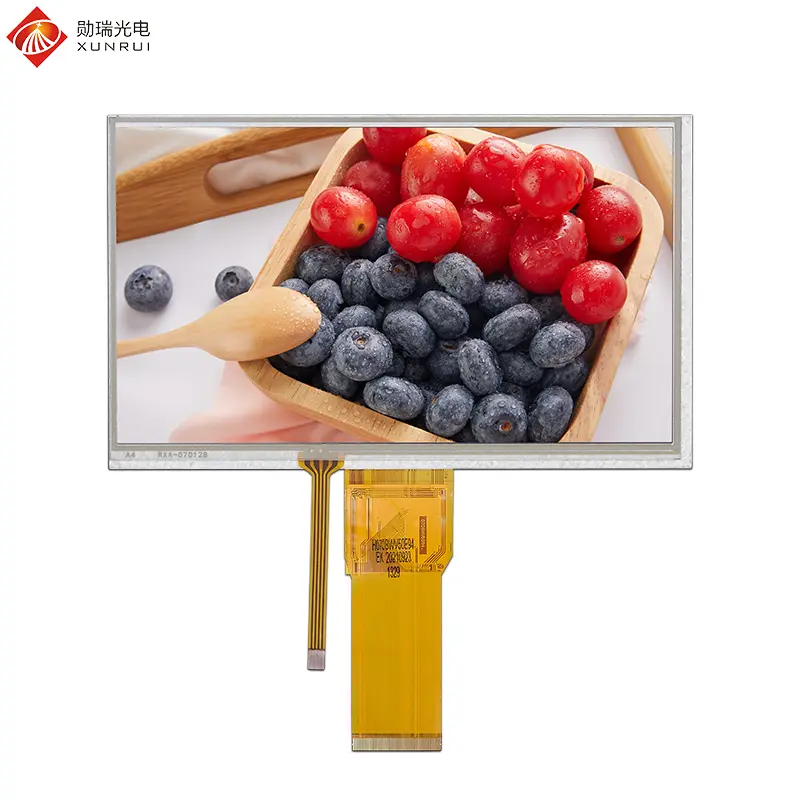

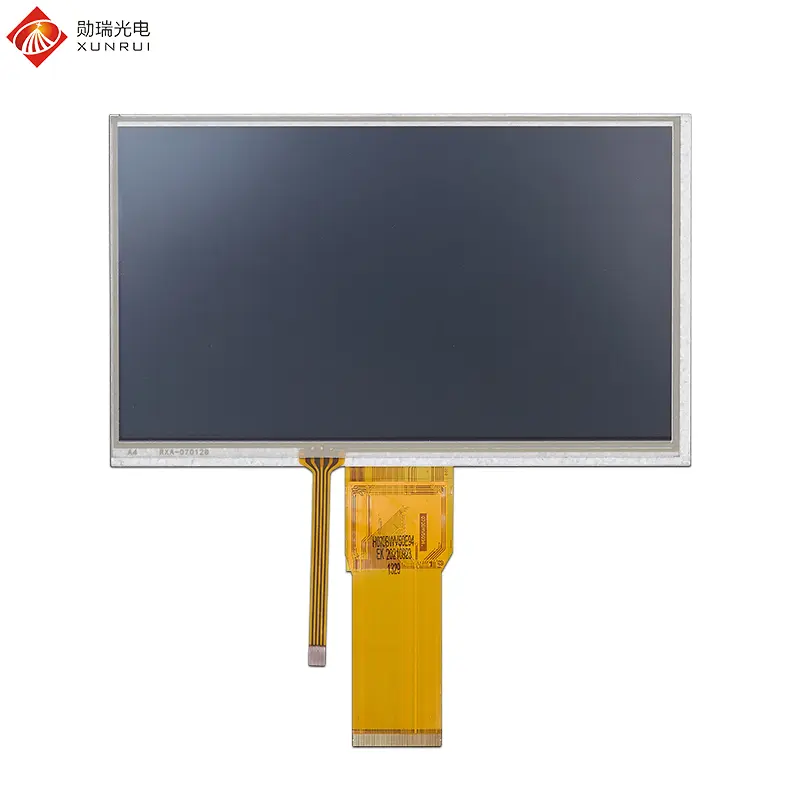

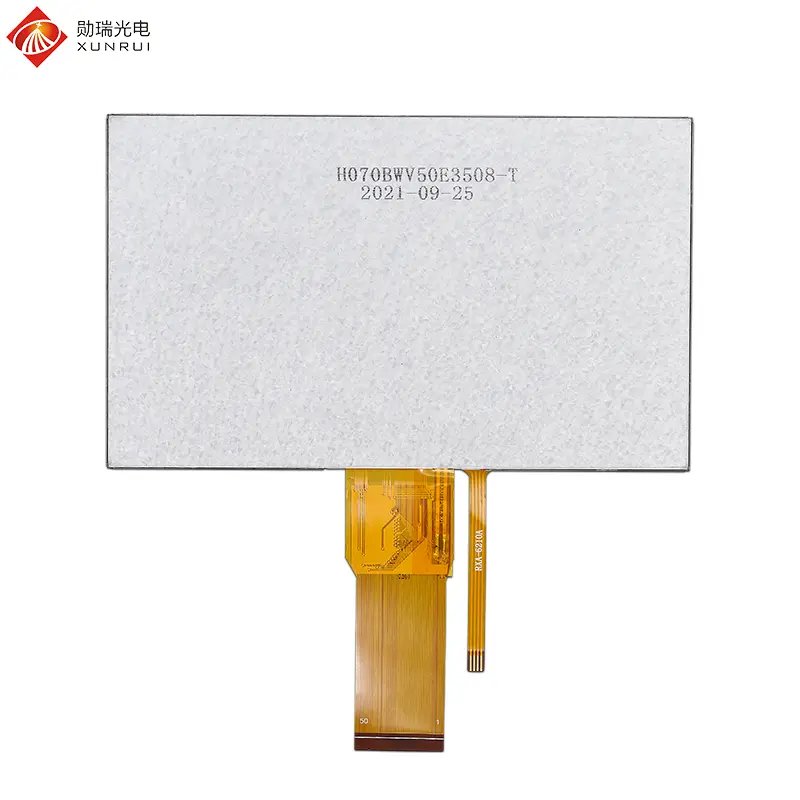

Product Overview: H070BWV50E3508-T
H070BWV50E3508-T is a 7-inch TFT LCD module with resistive touch function. This LCD screen adopts TN panel, with a resolution of 800×480, 24-bit RGB 50-pin interface, and multiple driver ics are available for selection. It has a brightness of 450 nits The working temperature can withstand -20℃ to +70℃. The 7-inch resistive touch screen has multiple technical advantages and high durability: it adopts four-wire resistive touch technology and operates through pressure sensing. It can be used smoothly even when wearing gloves and is suitable for harsh environments such as dust-free workshops and hospital operating rooms. Precise touch control: Supports 4096-level pressure sensitivity, with a false touch rate of less than 0.1%, suitable for scenarios requiring high-precision operation such as medical equipment and industrial control. Environmental adaptability: It has a wide operating temperature range (-20℃ to 70℃), a brightness of up to 1000 nits, and a contrast ratio exceeding 800:1, making it suitable for outdoor environments with strong light and high temperatures. The 7-inch resistive touch LCD screen is widely used in industrial control, medical equipment, self-service terminals, commercial terminals and intelligent instruments, etc., meeting the interaction needs of various scenarios.
800×480 Resolution
7-inch TN panel with 24-bit RGB 50-pin interface
4-Wire Resistive Touch
Glove-touch support with 4096 pressure levels
Industrial Reliability
Wide temperature operation from -20℃ to +70℃

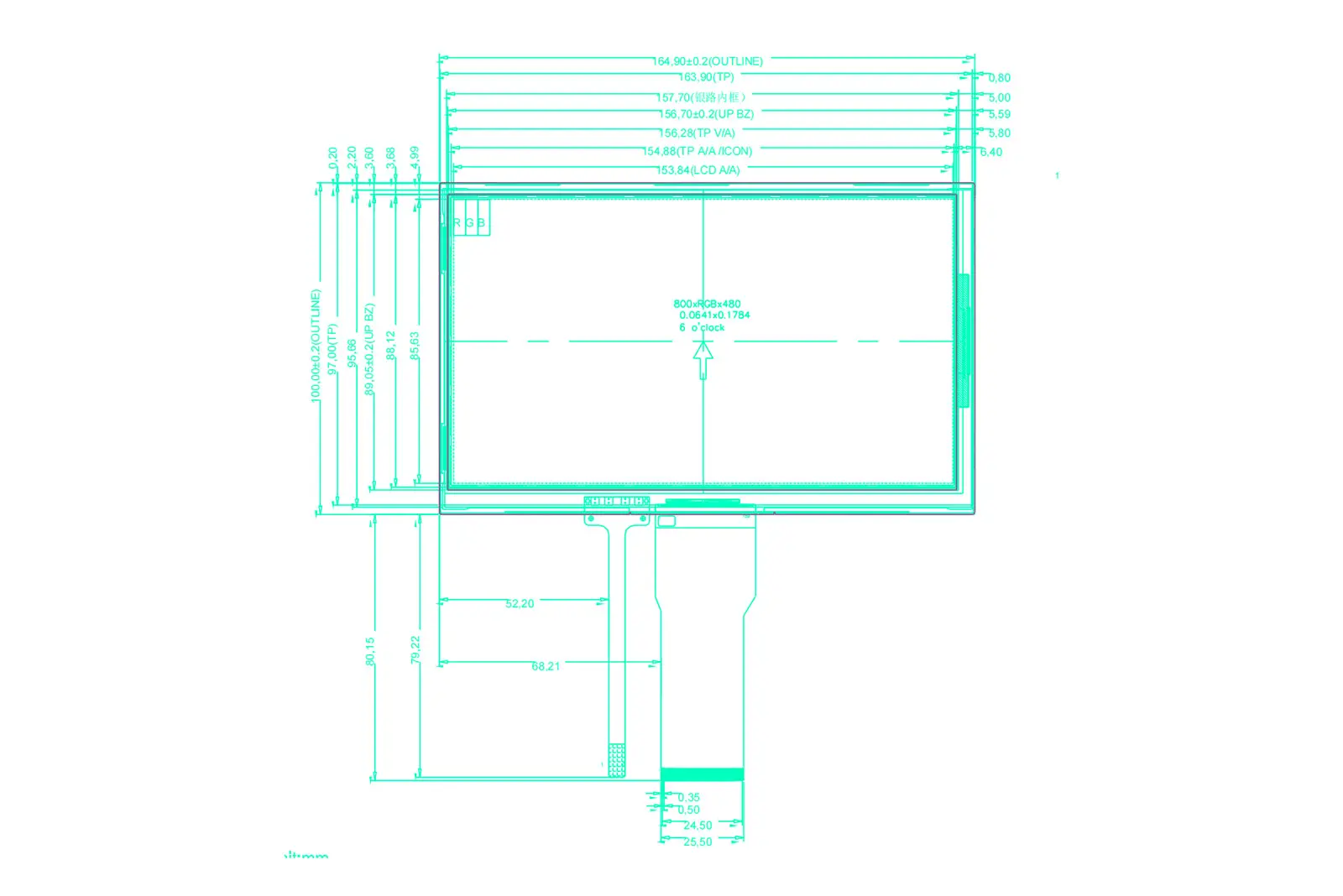

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H070BWV50E3508-T |
| LCD Size | 7 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 50pin |
| Luminance | 450 cd/m² |
| Touch screen | resistive touch |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 164.9*100.0*5.0 |
| Active Area(mm) | 154.08 x 85.92 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.6V |
Interface Definition (50-Pin)
| No. | Symbol | Description |
|---|---|---|
| 1, 2 | VLED+ | Power for LED backlight (Anode) |
| 3, 4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select (Note1) |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12 | B7 | Blue data (MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data (Note2) |
| 19 | B0 | Blue data (LSB) (Note2) |
| 20 | G7 | Green data (MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data (Note2) |
| 27 | G0 | Green data (LSB) (Note2) |
| 28 | R7 | Red Data (MSB) (Note2) |
| 29 | R6 | Red Data |
| 30 | R5 | Red Data |
| 31 | R4 | Red Data |
| 32 | R3 | Red Data |
| 33 | R2 | Red Data |
| 34 | R1 | Red Data (Note2) |
| 35 | R0 | Red Data (LSB) (Note2) |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock (Note3) |
| 38 | GND | Power Ground |
| 39 | L/R | Left/right selection (Note4/5) |
| 40 | U/D | Up/down selection (Note4/5) |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin (Note6) |
| 45 | NC | NO connection |
| 46 | Vcom | Common Voltage |
| 47 | DITHB | Dithering function (Note7) |
| 48 | GND | Power Ground |
| 49 | NC | NO connection |
| 50 | NC | NO connection |
Products Categories
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions (FAQ)
What are the core technical specifications of the H070BWV50E3508-T LCD module?
The H070BWV50E3508-T is a 7-inch TN TFT LCD panel featuring an 800×480 WVGA resolution, 24-bit RGB 50-pin interface, 16.7M colors, and a standard luminance of 450 cd/m² (capable of up to 1000 nits high brightness).
Can this 7-inch resistive touch screen be operated while wearing gloves?
Yes. Built with a 4-wire resistive touch panel that activates via pressure sensing, the screen responds accurately even when operated with heavy gloves, styluses, or other non-conductive tools.
What is the operating temperature range for this display module?
This display module supports an industrial operating temperature range from -20℃ to +70℃, with storage endurance rated from -30℃ to +80℃, making it suitable for tough indoor and outdoor environments.
How accurate is the resistive touch detection on this display?
The touch sensor supports 4096 levels of pressure sensitivity with a false touch rate lower than 0.1%, ensuring precise interaction for high-precision operations in industrial terminals and clinical equipment.
Which applications are best suited for the H070BWV50E3508-T TFT LCD?
It is engineered for industrial control panels, medical devices, dust-free manufacturing rooms, commercial payment/self-service kiosks, and rugged outdoor smart instrumentation.
