Product Description
1000 Nits Brightness
Sunlight readable outdoor performance
-30℃ ~ +80℃
Wide industrial temperature range
800×480 WVGA
24-bit RGB 50-pin interface

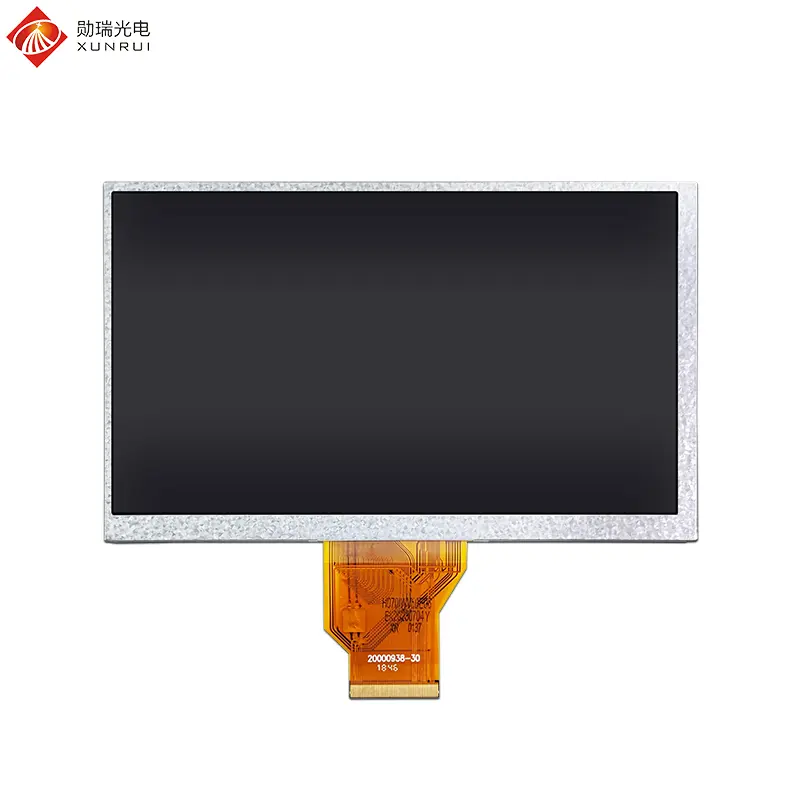

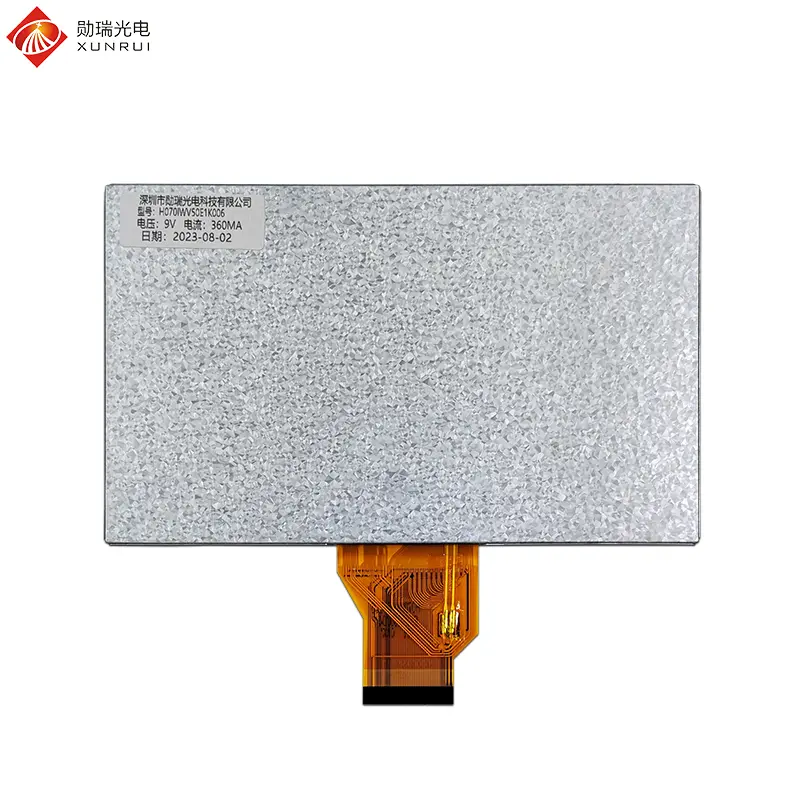

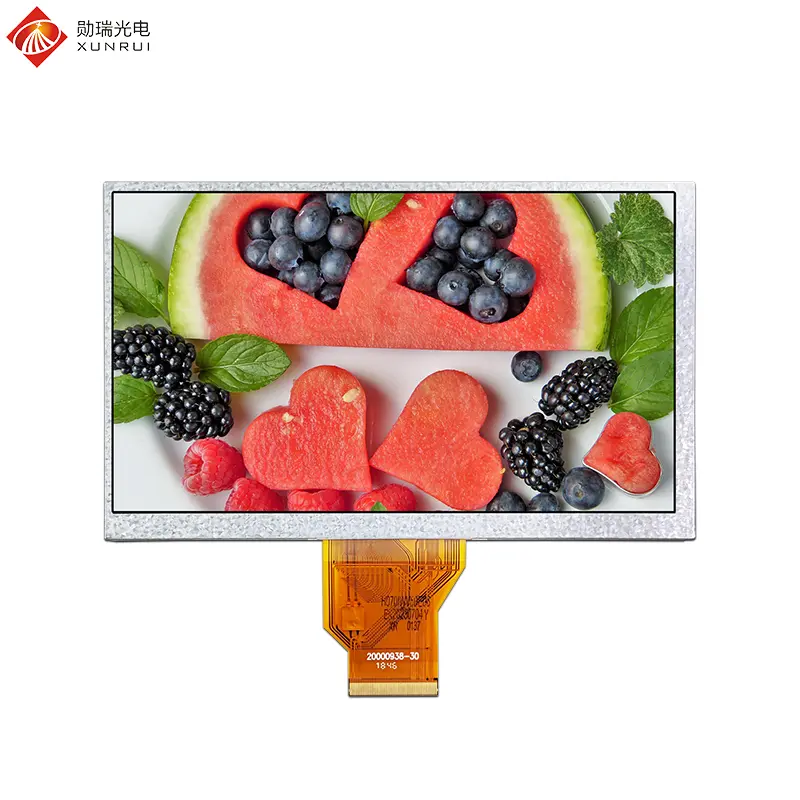

H070IWV50E1K006 is a 7-inch TFT LCD module engineered with high brightness and wide operating temperature advantages. This LCD panel utilizes a TN panel configuration with a resolution of 800×480 and an RGB 50-pin interface, powered by the EK9713CA + EK73002AB2 Driver IC. It can be optionally integrated with a resistive touch screen or a capacitive touch screen. Selected variants implement full-coating technology to significantly improve touch precision and visual interaction.
With a luminance of 1000 cd/m², the screen maintains crisp clarity and high readability under direct outdoor sunlight—making it ideal for EV charging stations and vehicle navigation systems. Standard displays under 700 cd/m² often suffer from reflection and blurriness in bright daylight, an issue completely mitigated by this high-brightness panel. Furthermore, its robust thermal tolerance (-30℃ to +80℃) ensures reliable boot-up and non-stop operational performance in severe freezing or high-heat field conditions. These performance attributes make it an optimal choice for industrial control, HMI terminals, rail transit systems, outdoor self-service kiosks, medical devices, and smart security panels.

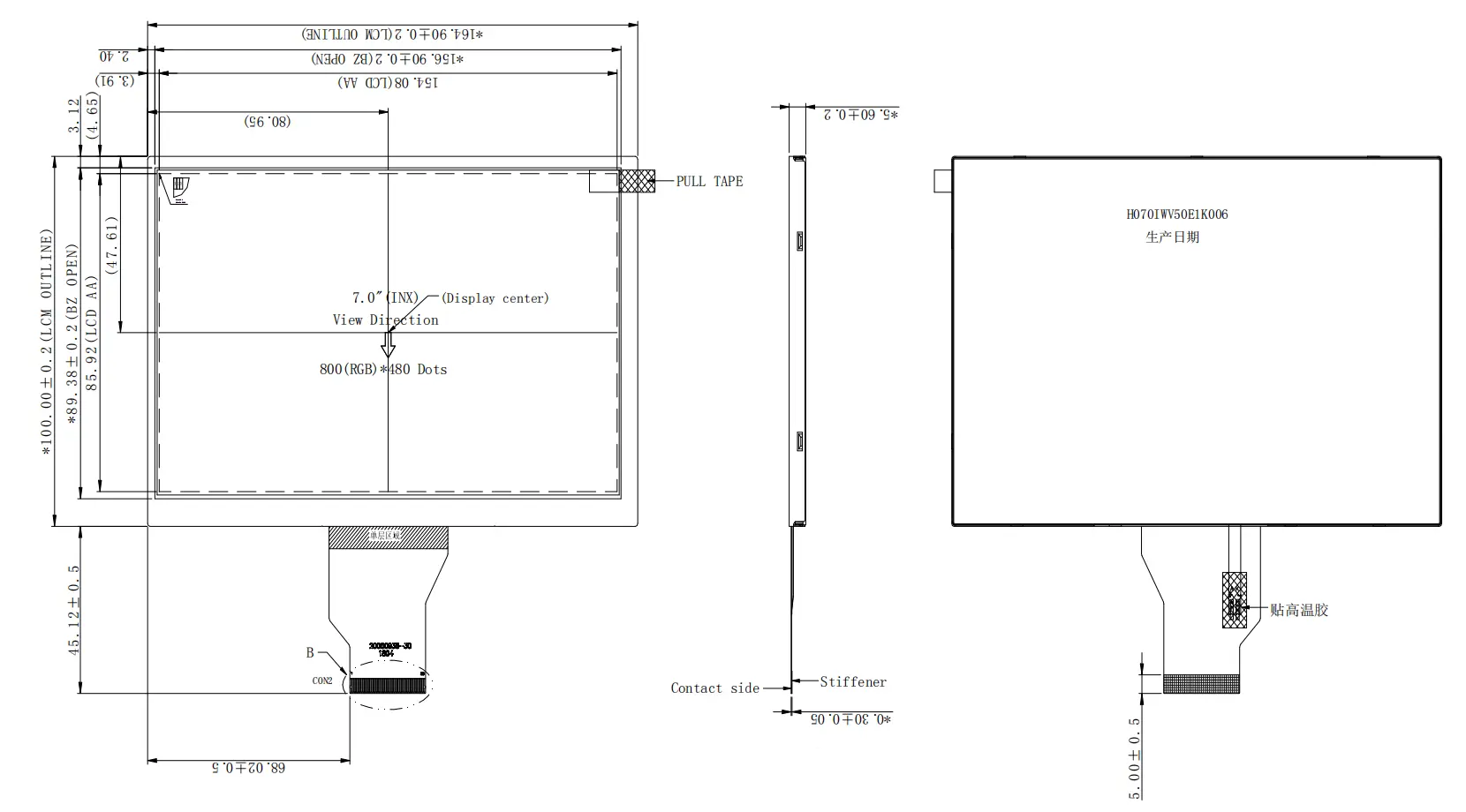

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H070IWV50E1K006 |
| LCD Size | 7 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 50pin |
| Luminance | 1000 cd/m² |
| Touch Screen | None, optional (Resistive / Capacitive) |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | EK9713CA + EK73002AB2 |
| LCM Dimension (W × H × D) | 164.9(W) × 100(H) × 5.6(D) mm |
| Active Area (W × H) | 154.08 × 85.92 mm |
| Operating Temperature | -30℃ ~ +80℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.3V |
Interface Pin Definition
| No. | Symbol | Description |
|---|---|---|
| 1, 2 | VLED+ | Power for LED backlight (Anode) |
| 3, 4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select (Note 1) |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync signal |
| 12 | B7 | Blue data (MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data (Note 2) |
| 19 | B0 | Blue data (LSB) (Note 2) |
| 20 | G7 | Green data (MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data (Note 2) |
| 27 | G0 | Green data (LSB) (Note 2) |
| 28 | R7 | Red data (MSB) (Note 2) |
| 29 | R6 | Red data |
| 30 | R5 | Red data |
| 31 | R4 | Red data |
| 32 | R3 | Red data |
| 33 | R2 | Red data |
| 34 | R1 | Red data (Note 2) |
| 35 | R0 | Red data (LSB) (Note 2) |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock (Note 3) |
| 38 | GND | Power Ground |
| 39 | L/R | Left/Right selection (Note 4/5) |
| 40 | U/D | Up/Down selection (Note 4/5) |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin (Note 6) |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function (Note 7) |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Frequently Asked Questions
This display delivers an ultra-high luminance of 1000 cd/m² (nits). Standard displays with brightness under 700 cd/m² often wash out in direct sunlight; the 1000 nit output prevents reflections and ensures crystal-clear readability for outdoor applications such as EV chargers and navigation systems.
Both the operating temperature and storage temperature ranges are rated from -30℃ to +80℃. This allows the module to withstand severe cold winters and hot summer climates without display failure or startup lag.
Yes, while the standard configuration comes without touch, it can optionally be customized with either a capacitive touch screen (CTP) or resistive touch screen (RTP), including full-bonding coating technology options for improved interactive performance.
The module features the EK9713CA + EK73002AB2 driver IC solution and connects via a 24-bit RGB 50-pin interface supporting up to 16.7 million display colors.
Key applications include industrial control and HMI terminals, vehicle electronic equipment, outdoor EV charging stations, rail transit systems, self-service ticketing kiosks, portable medical devices, and smart security panels.
The outer LCM module dimensions are 164.9 mm (W) × 100.0 mm (H) × 5.6 mm (D), with an active display area of 154.08 mm × 85.92 mm.
