Product Description

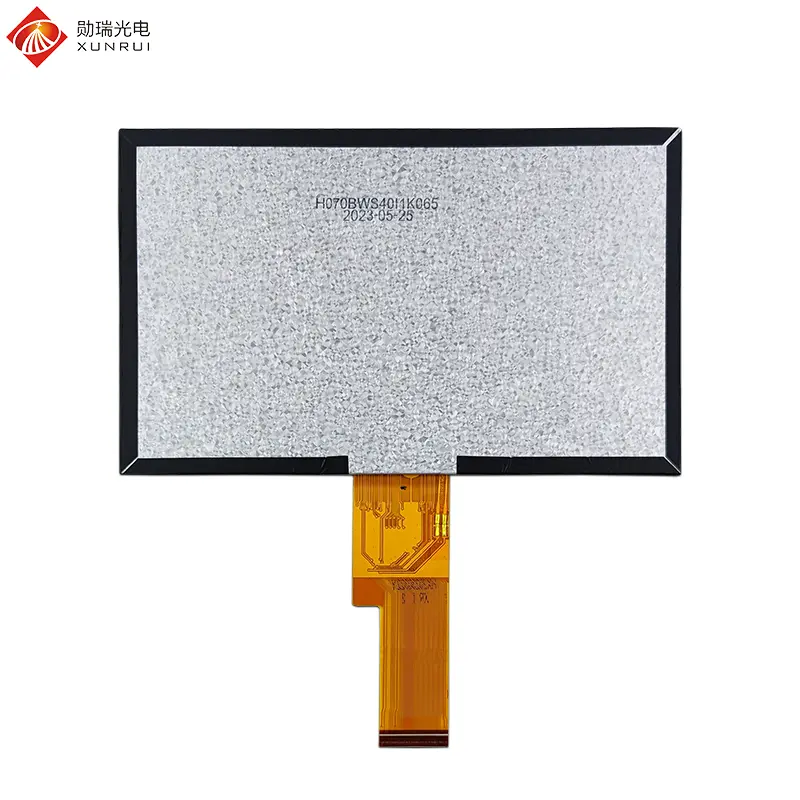

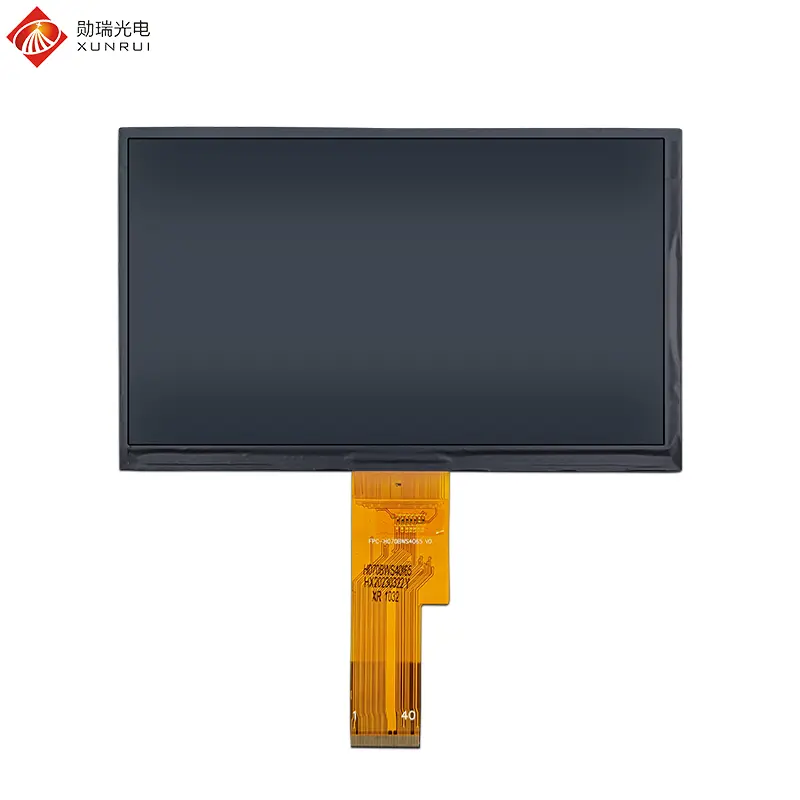

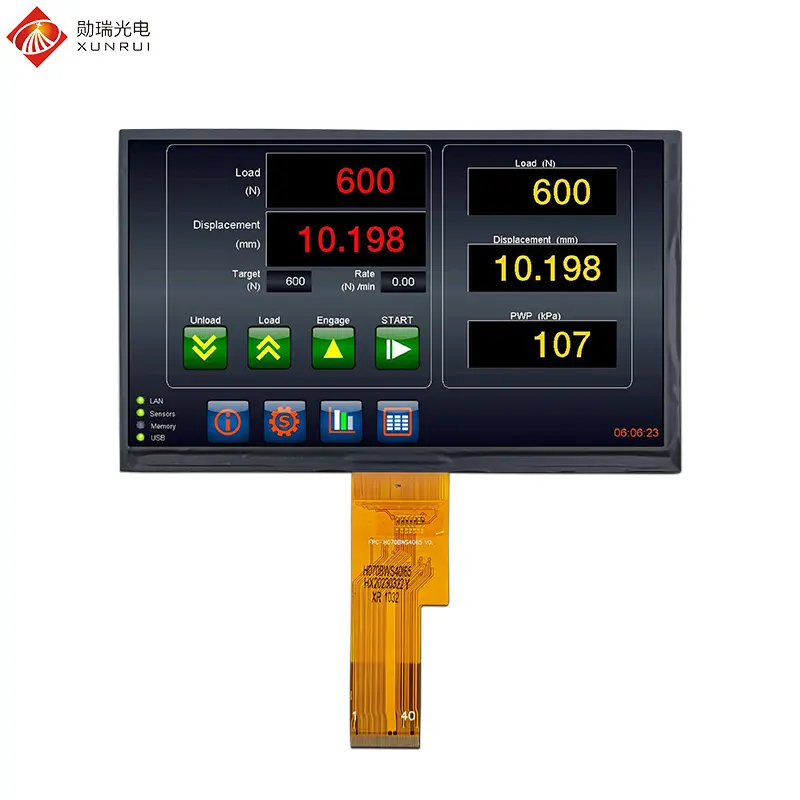

H070BWS40I1K065 is a high-brightness 7-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 1024×600, full viewing Angle, LVDS 40-pin interface, and a brightness of 1000 nits that is visible in sunlight. The operating temperature can withstand -20℃ to +70℃, and resistive touch screens or capacitive touch screens can be optionally equipped. This 7-inch high-brightness LCD screen is mainly applied in industrial control and automation: it is often used in PLC control panels and HMI (human-machine interface) touch screens, facilitating real-time monitoring of equipment parameters and production line data, and maintaining visibility even in strong light environments. In-vehicle electronic system: integrated into the car center console, streaming rearview mirror or navigation device, it supports functions such as reversing camera and ADAS warning. The high-brightness design ensures clear display in sunlight. Smart home and security: As an intelligent central control screen, access control system or intercom terminal for buildings, it realizes the control of home devices and security monitoring. IPS technology provides a wide-angle experience. In addition, it is also applied in medical equipment, commercial display and self-service terminals, education and training equipment, etc.

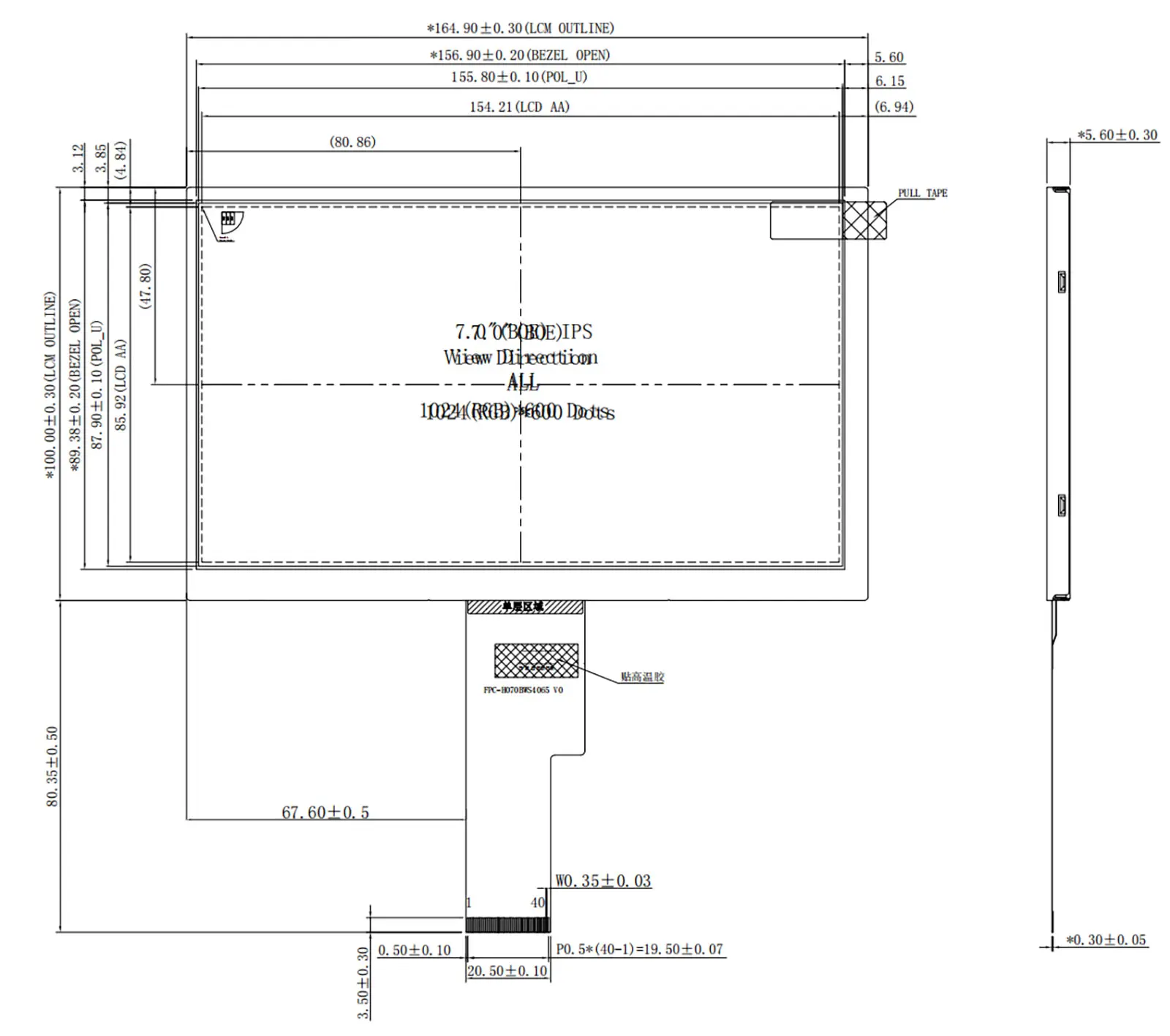

Mechanical Drawing
Specification Parameters
| Feature | Spec |
| Model Name | H070BWS40I1K065 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | LVDS 40pin |
| Luminance | 1000 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 164.9(W)×100(H)×5.6(D) |
| Active Area(mm) | 154.21(H)x85.92(V) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 24V |
Interface Definition
| Pin No. | Symbol | Type | Function |
|---|---|---|---|
| 1 | VCOM | P | Common voltage |
| 2 | VDD | P | Digital power |
| 3 | VDD | P | Digital power |
| 4 | NC | - | Not connect |
| 5 | REST | I | Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ, C=0.1μF) |
| 6 | STBYB | I | Standby mode, normally pull high; STBYB="1", normal operation; STBYB="0", timing control, source driver will turn off, all output are high-Z |
| 7 | GND | P | Ground |
| 8 | RXIN0- | I | Negative LVDS differential data inputs |
| 9 | RXIN0+ | I | Positive LVDS differential data inputs |
| 10 | GND | P | Ground |
| 11 | RXIN1- | I | Negative LVDS differential data inputs |
| 12 | RXIN1+ | I | Positive LVDS differential data inputs |
| 13 | GND | P | Ground |
| 14 | RXIN2- | I | Negative LVDS differential data inputs |
| 15 | RXIN2+ | I | Positive LVDS differential data inputs |
| 16 | GND | P | Ground |
| 17 | RXCLKIN- | I | Negative LVDS differential clock inputs |
| 18 | RXCLKIN+ | I | Positive LVDS differential clock inputs |
| 19 | GND | P | Ground |
| 20 | RXIN3- | I | Negative LVDS differential data inputs |
| 21 | RXIN3+ | I | Positive LVDS differential data inputs |
| 22 | GND | P | Ground |
| 23 | NC | - | Not connect |
| 24 | NC | - | Not connect |
| 25 | GND | P | Ground |
| 26 | NC | - | Not connect |
| 27 | DIMO/NC | O | Backlight CABC controller signal output |
| 28 | SELB | I | 6bit/8bit mode select: H: 6bit / L: 8bit |
| 29 | AVDD | P | Power for Analog Circuit |
| 30 | GND | P | Ground |
| 31 | LED- | P | LED Cathode |
| 32 | LED- | P | LED Cathode |
| 33 | L/R | I | Horizontal inversion |
| 34 | U/D | I | Vertical inversion |
| 35 | VGL | P | Negative power for TFT |
| 36 | CABCEN1/NC | P | Backlight control signal Note 2 |
| 37 | CABCEN0/NC | P | Backlight control signal Note 2 |
| 38 | VGH | P | Positive power for TFT |
| 39 | LED+ | P | LED Anode |
| 40 | LED+ | P | LED Anode |
Frequently Asked Questions (FAQ)
The H070BWS40I1K065 features a 7-inch IPS display panel, 1024×600 resolution, LVDS 40-pin interface, full viewing angles, and a high brightness output of 1000 nits.
Yes, with a high luminance rating of 1000 cd/m², this screen provides crisp visibility and readability even under strong ambient light and direct sunlight conditions.
The standard configuration comes without touch, but it can be optionally integrated with either a capacitive touch screen or a resistive touch screen based on project needs.
The module is engineered for industrial-grade environments, functioning reliably within an operating temperature range of -20°C to +70°C and a storage temperature of -30°C to +80°C.
Key applications include industrial control and automation (PLC panels, HMI), automotive electronic systems (consoles, navigation, ADAS), smart home security terminals, medical devices, and self-service kiosks.
This display runs on an operating voltage of 24V and interfaces through a standard LVDS 40-pin connector with 6-bit and 8-bit mode selection capabilities.
