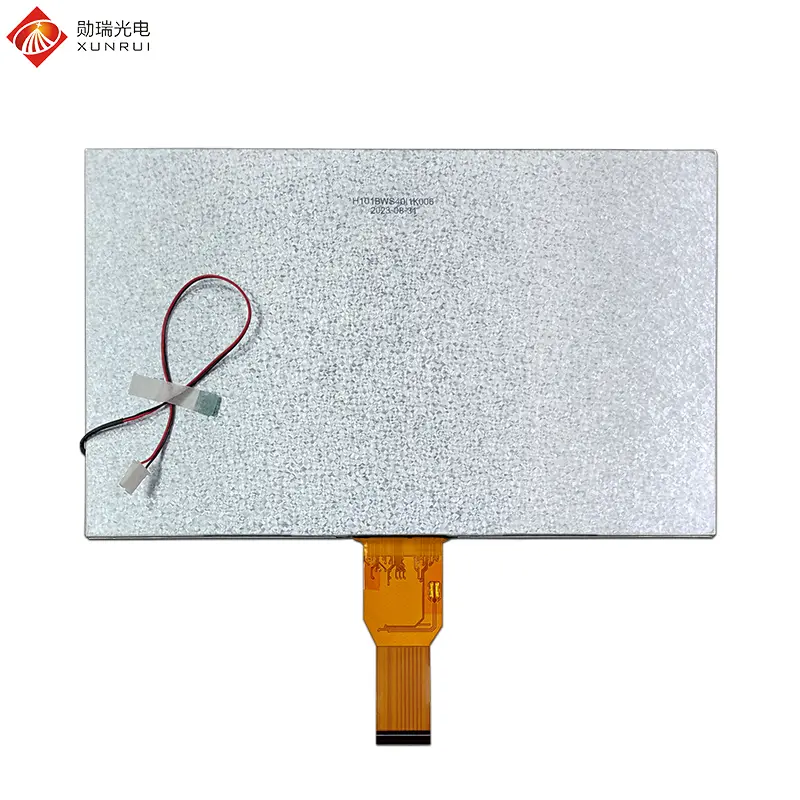

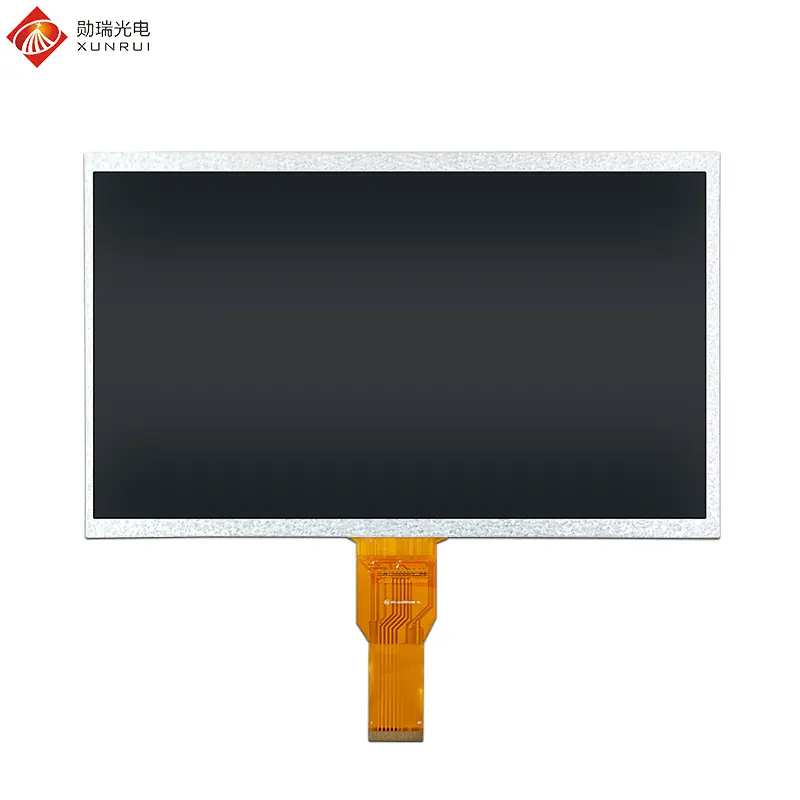

H101BWS40I1K006 is a high-brightness 10.1-inch TFT LCD module. This LCD screen uses an IPS panel and supports full-view display of over 85 degrees. When viewed from left, right, top, or bottom, the colors remain stable without obvious color deviation, enhancing the experience for collaborative work or operation from different angles. The resolution is 1024×600 (WSVGA), with a width-to-height ratio of 16:9. It has a LVDS 40-pin interface, featuring strong anti-interference capabilities, suitable for long-distance transmission. The brightness is 1000 nit, ensuring clear readability even in direct sunlight or strong light conditions. It supports a wide temperature range of -20°C to 70°C, passing reliability tests such as high temperature, high humidity, vibration, and static electricity, and is suitable for harsh environments. This 10.1-inch TFT LCD Display is mainly used in industrial control and HMI human-machine interfaces: for PLC control panels, automated production line monitoring, AGV scheduling systems, etc., providing real-time data display and operation feedback. The high brightness and wide temperature characteristics ensure stable operation in strong light, high temperature, or low temperature environments in factories. For vehicle-mounted and transportation equipment display: as a vehicle navigation system, central control screen of construction machinery, or bus information terminal, the IPS wide viewing angle and high brightness design ensure that drivers can clearly read information under different lighting conditions. For medical and portable detection equipment: used in portable monitors, small analyzers, etc., the appropriate screen size is convenient for integration and meets the basic requirements of doctors for image clarity and color accuracy. For commercial intelligent terminals: self-service ordering machines, POS cash register systems, intelligent courier cabinets, etc., this size screen is commonly used, balancing information display space and device compactness. The touch model also supports efficient interaction.
| Feature | Spec |
|---|---|
| Model Name | H101BWS40I1K006 |
| LCD Size | 10.1 inch |
| Display Format | 1024×600 |
| Interface | LVDS 40pin |
| Luminance | 1000 cd/m² |
| Touch Screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | TBD |

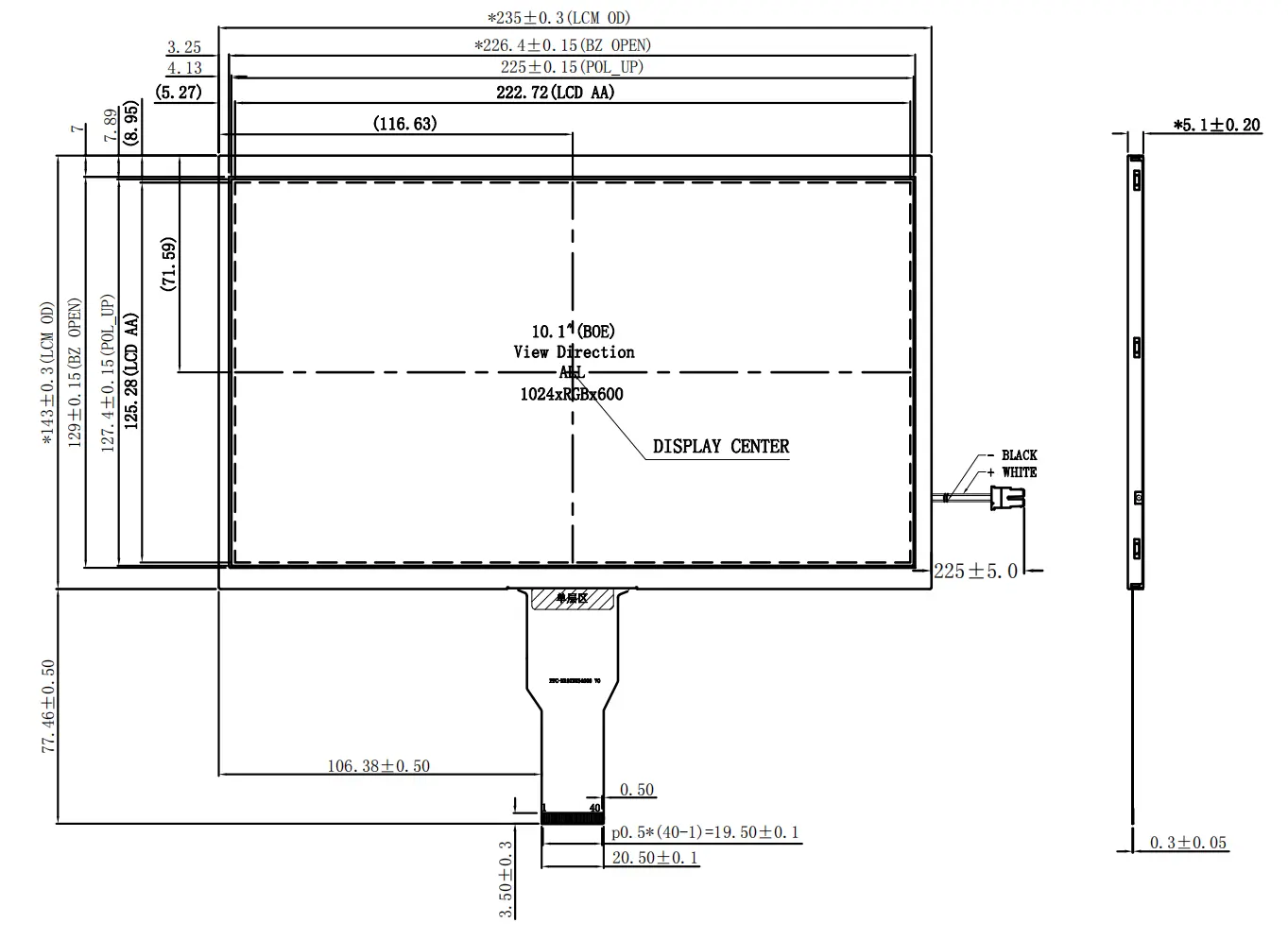

| LCM (W x H x D) (mm) | 235(W)×143(H)×5.1(T) |
| Active Area(mm) | 222.72(W)×125.28(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 18V |
| No. | Symbol | Description |
|---|---|---|
| 1 | VCOM | Common Voltage |
| 2 | VDD | Power Voltage for digital circuit |
| 3 | VDD | Power Voltage for digital circuit |
| 4 | NC | No connection |
| 5 | RESET | Global reset pin |
| 6 | STBYB | Standby mode/Normal mode: Pull high/Pull Low |
| 7 | GND | Ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXIN0+ | +LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | +LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | +LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | -LVDS differential clock input |
| 18 | RXCLKIN+ | +LVDS differential clock input |
| 19 | GND | Ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | -LVDS differential data input |
| 22 | GND | Ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | NC | No connection |
| 28 | SELB | 6bit/8bit mode select H : 6bit / L : 8bit |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31 | LED- | LED Cathode |
| 32 | LED- | LED Cathode |
| 33 | SHLR | Horizontal inversion |
| 34 | UPDN | Vertical inversion |
| 35 | VGL | Gate OFF Voltage |
| 36 | NC | No connection |
| 37 | NC | No connection |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
Yes, with a high luminance rating of 1000 cd/m², the display ensures sharp and clear visibility even in intense outdoor sunlight or brightly lit industrial environments.
The IPS technology provides full-viewing angles exceeding 85 degrees from top, bottom, left, and right directions without color inversion or shift.
It uses a 40-pin LVDS interface, delivering strong anti-interference performance ideal for stable long-distance data transmission.
Yes, while standard modules come without touch functionality, touch screen integration (capacitive or resistive) is available as an option.
The module supports an operating temperature range of -20℃ to +70℃ and a storage temperature range of -30℃ to +80℃, suitable for challenging environments.
It is widely used across industrial HMI control panels, vehicle instrumentation, portable medical instruments, and commercial self-service terminals.
