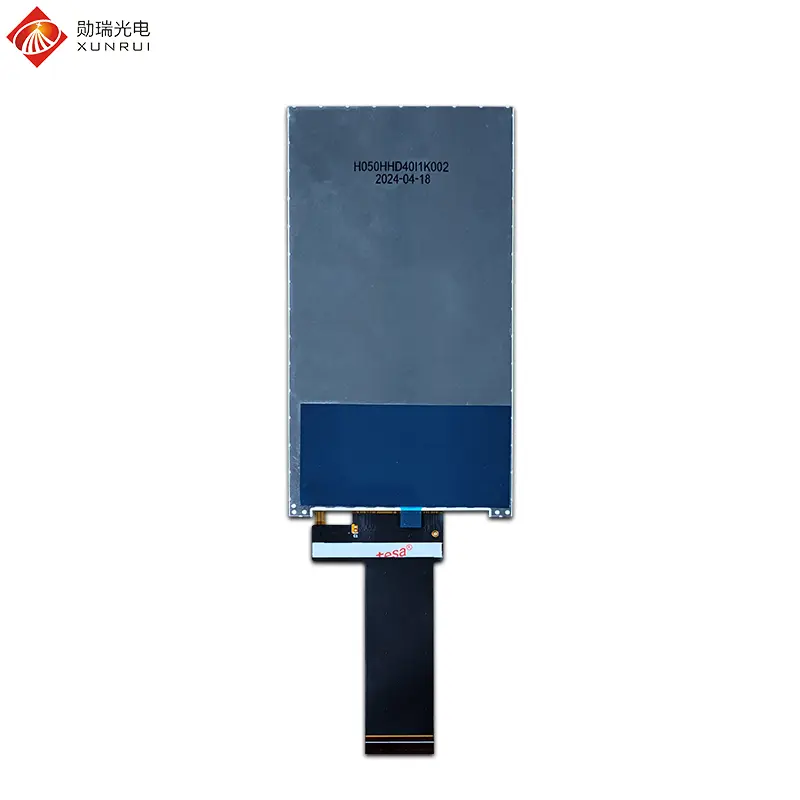

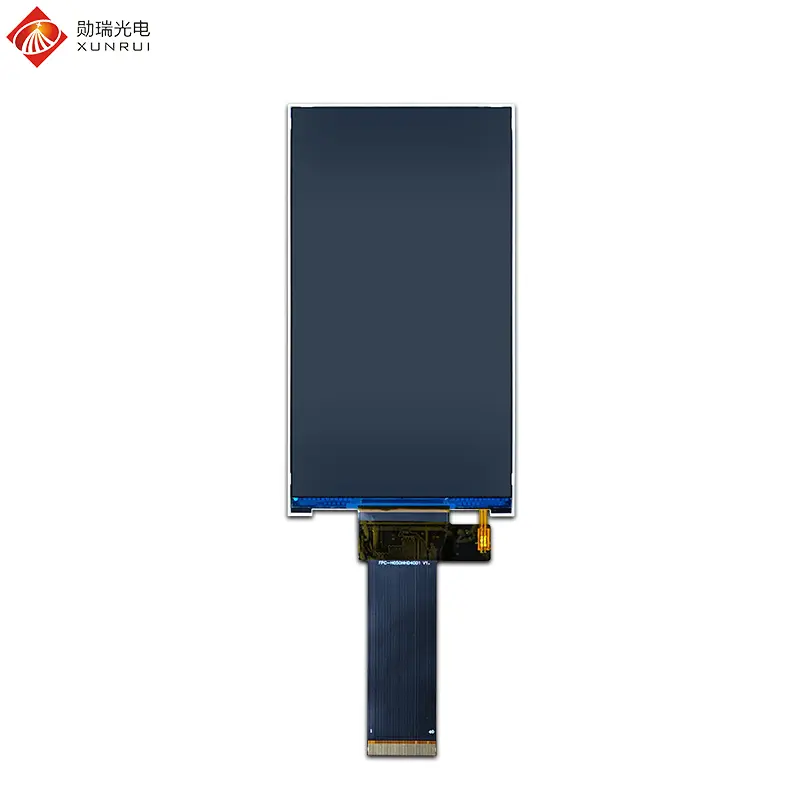

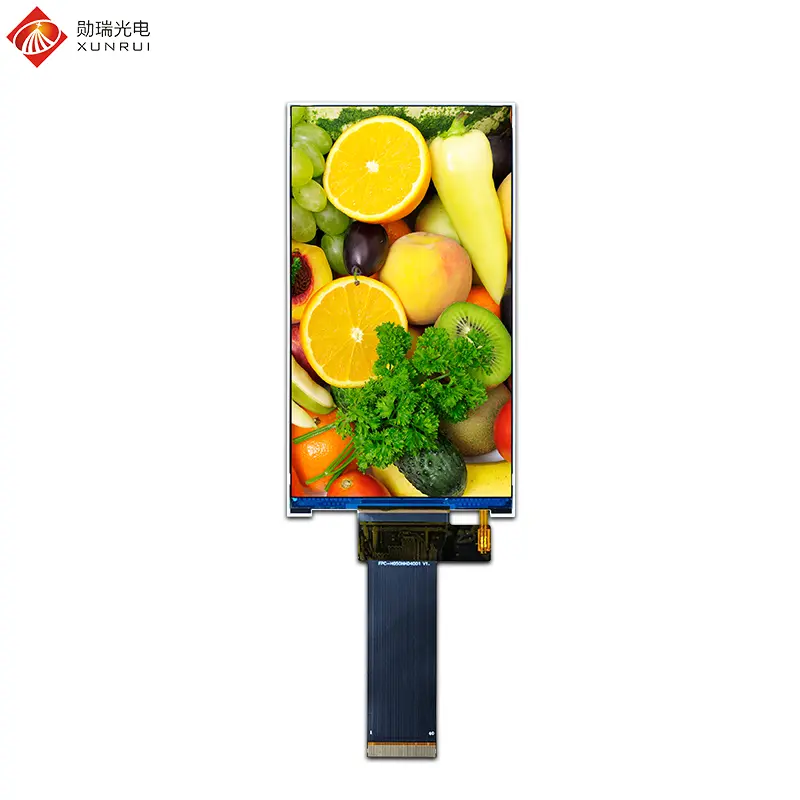

H050HHD40I1K002 is a high-brightness 5-inch TFT LCD module. This LCD screen is of vertical structure and adopts IPS full-view technology, supporting a 178° wide viewing angle, ensuring stable color and no obvious color deviation under different angles. The resolution is 480×854, with an RGB 40-pin interface, using the ST7701S driver IC. It has a brightness of 1000 nit and can be viewed in sunlight. The operating temperature range can withstand -20°C to +70°C. An optional capacitive touch screen (TP) is available, supporting multi-touch, enhancing the human-computer interaction experience. This 5-inch TFT LCD Display is mainly applied in industrial equipment: used for HMI human-machine interface, handheld detectors, industrial control panels, etc. It has high requirements for stability and durability. Medical electronics: suitable for portable medical devices, such as monitors, ultrasound probe terminals, etc. Some products meet medical-grade standards. Smart home: integrated into smart locks, thermostats, home appliance control screens, etc. It supports customized UI and animation effects. Consumer electronics: commonly found in low-end smartphones, outdoor rugged phones, POS machines, vehicle aftermarket equipment, drone remote controllers, etc. Education and IoT terminals: can be used in teaching instruments, IoT gateway displays, supporting access to Raspberry Pi and other development platforms. We provide customized services, including brightness adjustment, FPC soft board length, touch function installation, and expansion of the working temperature range, to meet the needs of special environmental usage.

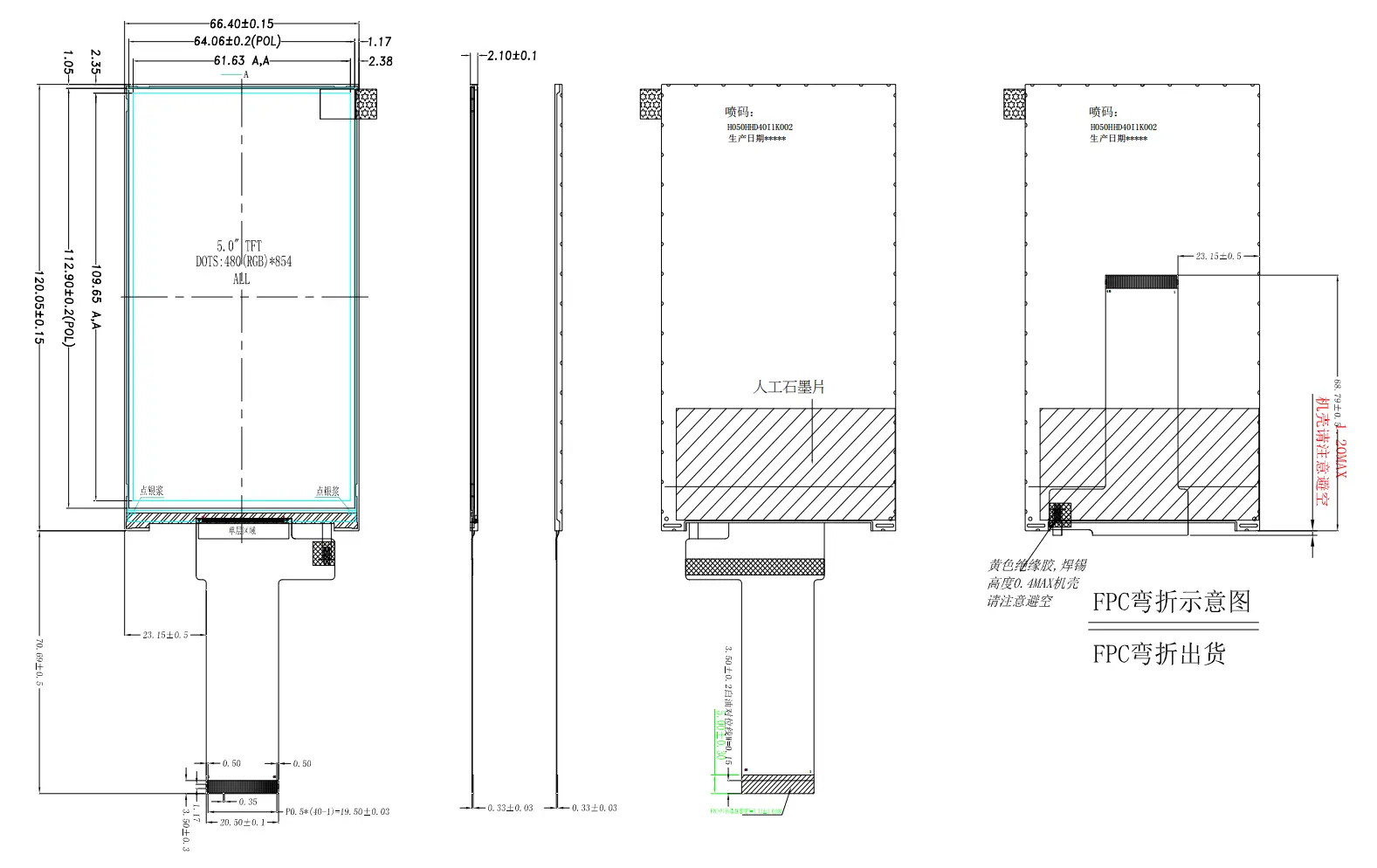

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H050HHD40I1K002
LCD Size
5 inch
Display Format
480×854
Interface
RGB 40pin
Luminance
1000 cd/m2
Touch screen
None, optional
Viewing Direction
ALL
Color Depth
16.7M
Driver IC
ST7701S
LCM (W x H x D) (mm)
66.40* 120.05* 2.1
Active Area(mm)
62.63 x 109.65
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-30℃ ~ +80℃
Operating Voltage
12V
Interface Definition
PIN No.
SYMBOL
Function
1
LEDK
Backlight LED Cathode
2
LEDA
Backlight LED Anode.
3
GND
Ground
4
VCC(2.8V)
Power supply
5-12
R0-R7
Data bus
13-20
G0-G7
Data bus
21-28
B0-B7
Data bus
29
GND
Ground
30
PCLK
Pixel clock signal in RGB I/F
31
DISP(NC)
No connection
32
HSYNC
Horizontal sync. Signal in RGB I/F.
33
VSYNC
Vertical sync. Signal in RGB I/F.
34
DEN
Data enable signal in RGB I/F DE mode.
35
NC
No connection
36
GND
Ground
37
RESET
Reset Signal pin (“Low” is enable)
38
SDA
Serial input signal in SPI I/F
39
SCL
A synchronous clock signal in SPI I/F
40
CS
Chip Select input pin. (Active Low)
Frequently Asked Questions (FAQ)
Is this 5-inch TFT LCD display sunlight readable?
Yes, with a high luminance rating of 1000 nits (cd/m²), this display is engineered to deliver crisp and clear visibility even in direct outdoor sunlight.
What touch screen solutions are supported?
The standard configuration comes without a touch screen, but an optional capacitive touch screen (CTP) supporting multi-touch gestures is available upon request.
What is the viewing angle performance of this IPS panel?
Equipped with IPS full-view technology, the display delivers an ultra-wide viewing angle of 178 degrees, preventing color distortion and preserving image quality from all perspectives.
Can this display module be customized?
Yes, comprehensive customization options are available including backlight brightness modification, custom FPC cable lengths, integration of touch panels, and extended operating temperature ranges.
Can I connect this LCD panel to development boards like Raspberry Pi?
Yes, this module supports connection to development platforms including Raspberry Pi via suitable RGB interface converter boards or development accessories.
What are the operating and storage temperature limits?
The module operates reliably within a temperature range of -20°C to +70°C and can be stored in temperatures ranging from -30°C to +80°C.
