Product Description
Product Description

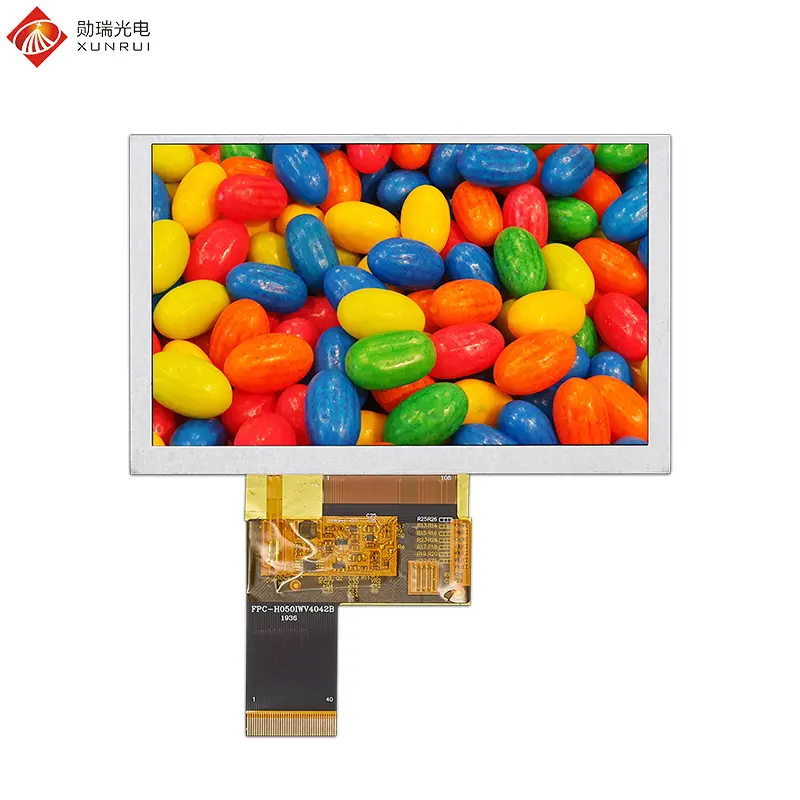

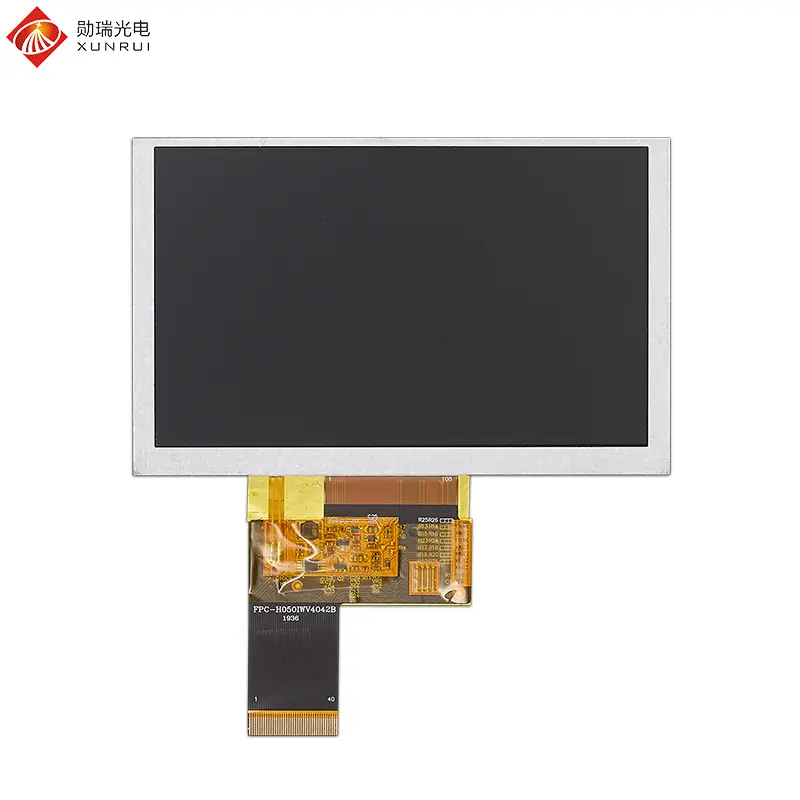

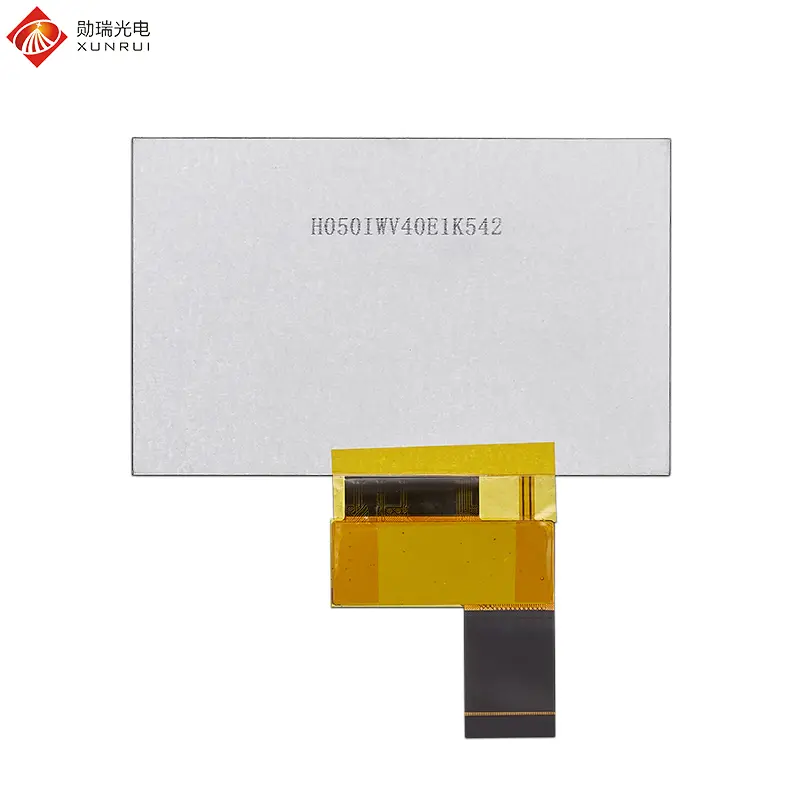

H050IWV40E1K542 is a high-brightness 5-inch TFT LCD module. This LCD screen adopts TN panel, with a resolution of 800×480, 24-bit RGB 40-pin interface, and ILI5960+ILI6122 Driver IC. With a brightness of 1200nit, it is visible in sunlight. The operating temperature range is from -20℃ to +70℃. It can be optionally equipped with a resistive touch screen or a capacitive touch screen. This 5-inch TFT LCD screen is mainly applied in consumer electronic products: such as portable navigation devices, e-book readers, etc. The 5-inch screen provides sufficient display area while maintaining the portability of the device. In-vehicle system: It includes in-vehicle navigation, rearview image system and information display panel. The high-brightness design ensures clear reading even under direct sunlight. Industrial control and medical equipment: used for industrial handheld terminals, human-machine interfaces (HMI), and portable medical instruments (such as ultrasound diagnostic devices), emphasizing durability and high reliability. Digital signage and advertising display: Some outdoor advertising machines or electronic bus stop signs use 5-inch high-brightness LCD screens, which are suitable for close-range information display.

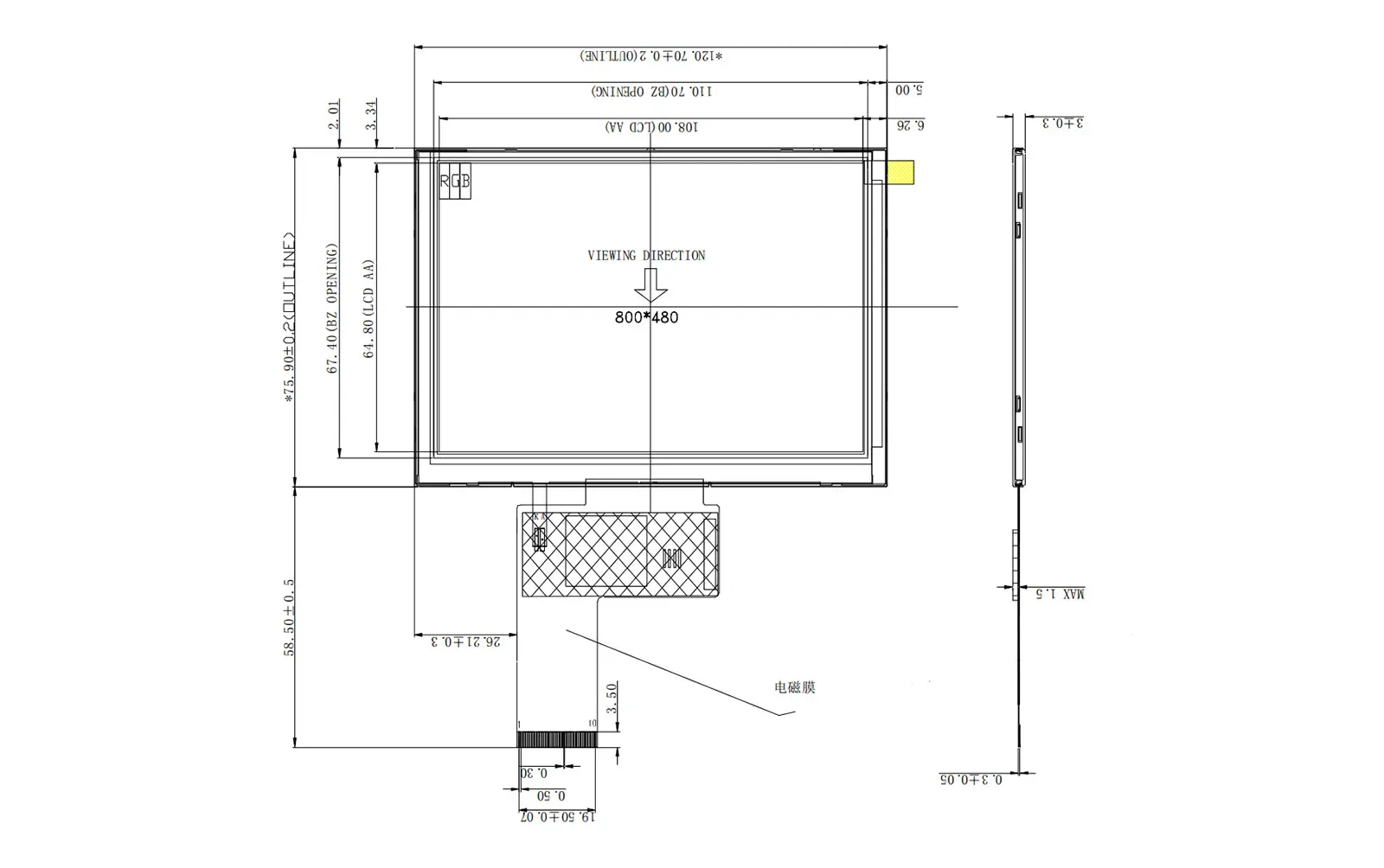

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H050IWV40E1K542 |
| LCD Size | 5 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 40pin |
| Luminance | 1200 cd/m² |
| Touch screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | ILI5960+ILI6122 |
| LCM (W x H x D) (mm) | 120.7*75.9*3 |
| Active Area (mm) | 108 x 64.80 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 18V |
Interface Definition
| No. | Symbol | Description |
|---|---|---|
| 1 | VBL- | Backlight LED Cathode |
| 2 | VBL+ | Backlight LED Anode |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | R0~R7 | Data bus |
| 13~20 | G0~G7 | Data bus |
| 21~28 | B0~B7 | Data bus |
| 29 | GND | System Ground |
| 30 | CLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vertical Sync signal |
| 34 | DEN | Data Enable |
| 35 | NC | No connect |
| 36 | GND | System Ground |
| 37 | XR(NC) | The right side signal of TP |
| 38 | YD(NC) | The down side signal of TP |
| 39 | XL(NC) | The left side signal of TP |
| 40 | YU(NC) | The up side signal of TP |
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions (FAQ)
The H050IWV40E1K542 module features a 5-inch diagonal display area with a resolution of 800×480 pixels.
Yes. With an ultra-high brightness rating of 1200 cd/m² (1200nit), it delivers clear visual performance in outdoor environments and direct sunlight.
It utilizes a 24-bit RGB 40-pin interface and is driven by the ILI5960+ILI6122 Driver IC system.
Yes, the module can be optionally configured with either a resistive touch screen or a capacitive touch screen according to project requirements.
Key applications include portable consumer electronics (navigation units, e-readers), in-vehicle displays, industrial handhelds, medical ultrasound equipment, and outdoor digital signage.
The module supports an operating temperature range of -20℃ to +70℃ and a storage temperature range of -30℃ to +80℃.
