Custom 5 inch 720×1280 MIPI 40pin 1000nit IPS TFT LCD Display Manufacturer, Supplier

Product Description

H050HFH40I1K003 is a high-brightness 5-inch TFT LCD module. This LCD screen is of vertical structure and adopts IPS full-view technology, supporting 1670 million-color display. The color gamut covers over 72% NTSC, meeting the requirements for medical imaging gray-scale transition, multi-color alarm in industrial interfaces, etc. The resolution is 720×1280 (HD standard), and on a 5-inch screen, it can achieve approximately 293 PPI (pixels per inch) of high pixel density. The MIPI 40-pin interface, with a brightness of 1000 nit, ensures visibility in strong light, and the working temperature can withstand -20℃ to +70℃. It can be optionally equipped with a touch screen. This 5-inch TFT LCD Display is mainly applied in industrial control and embedded systems: for PLC operation panels, data acquisition terminals, handheld detectors, etc. The high-definition resolution can clearly display complex parameters, trend graphs, and alarm information, improving the efficiency of human-computer interaction. It supports wide temperature, shock resistance, and anti-interference, meeting the stability requirements of industrial sites. Medical and health equipment: applied to portable ultrasound machines, infusion pumps, ventilators, blood glucose monitors, etc. High contrast (up to 1000:1 or above) and precise color reproduction. Smart home and commercial terminals: used for smart speaker with screen, intelligent access control, building intercom, POS cash registers, etc. The 5-inch size balances information display and space occupation, suitable for embedded installation. The 5-inch 720×1280 LCD module, with its high pixel density, clear display effect, and moderate physical size, has become a favored display solution in multiple fields such as industrial control, medical equipment, and smart terminals. These screens maintain portability while achieving a visual experience close to HD (High Definition), especially suitable for scenarios with high requirements for graphic interface clarity and operation accuracy.

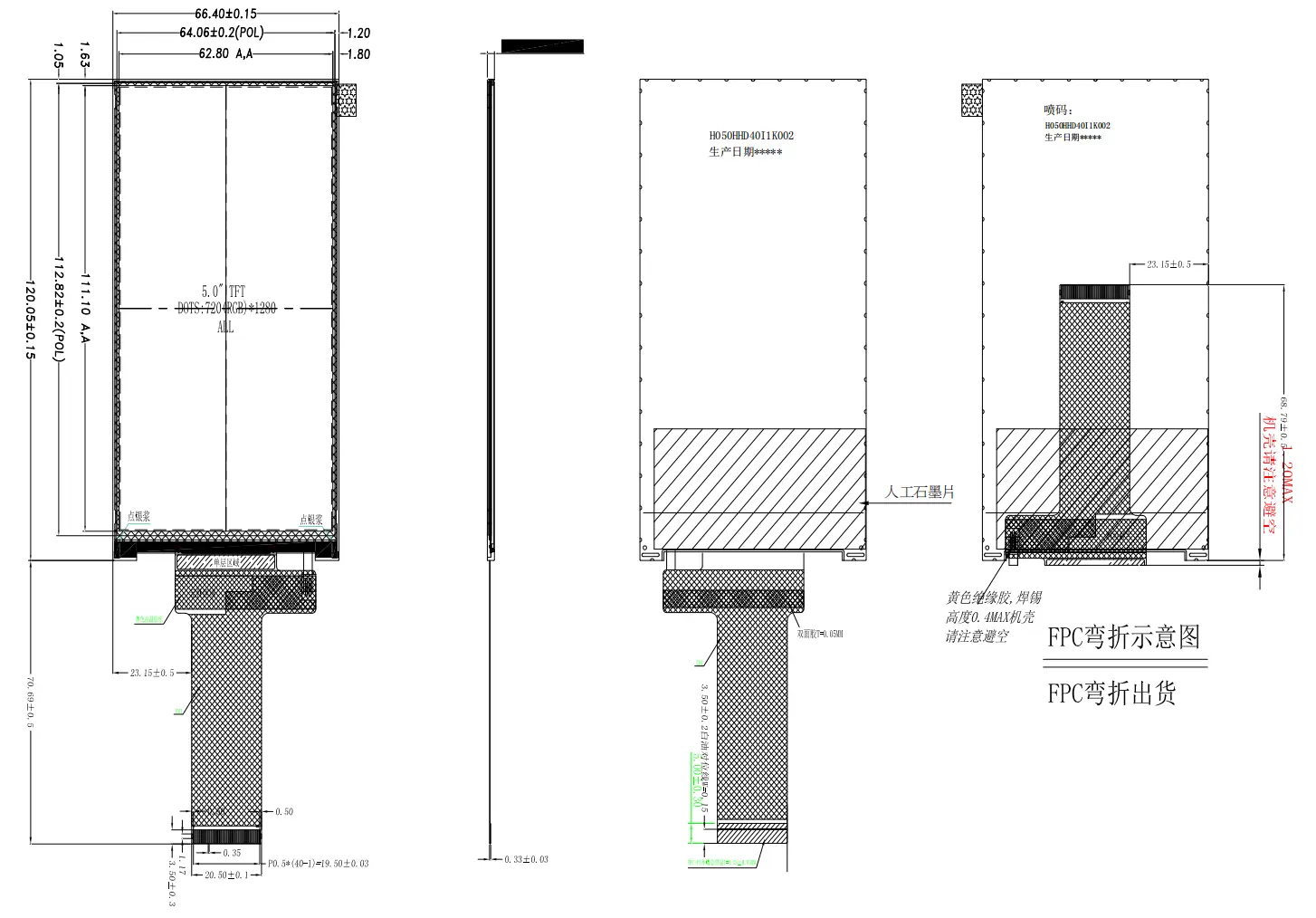

Mechanical Drawing

Specification Parameters

Interface Definition
