China 7 Inch 1024x600 IPS TFT LCD Display Screen Module HDMI Driver Board Capacitive Touch Panel CTP Wholesale OEM Manufacturer Supplier Factory

Product Description

IPS Full-View Panel

1024×600 resolution, nearly 180° wide viewing angle, and accurate color reproduction.

Capacitive Multi-Touch

G+G tempered glass construction with anti-scratch and wear-resistant properties.

HDMI 50-Pin Interface

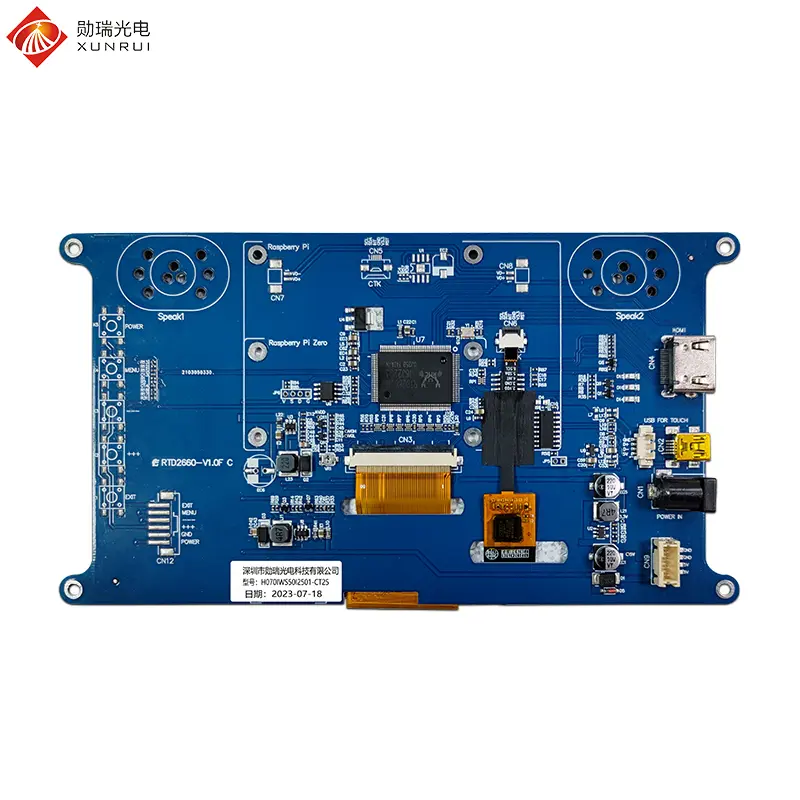

Driven by HX8282/HX8696 with RTD2660 board. Compatible with PC, Raspberry Pi, consoles.

Industrial Reliability

Engineered for automation terminals, PLC panels, automotive, and IoT applications.

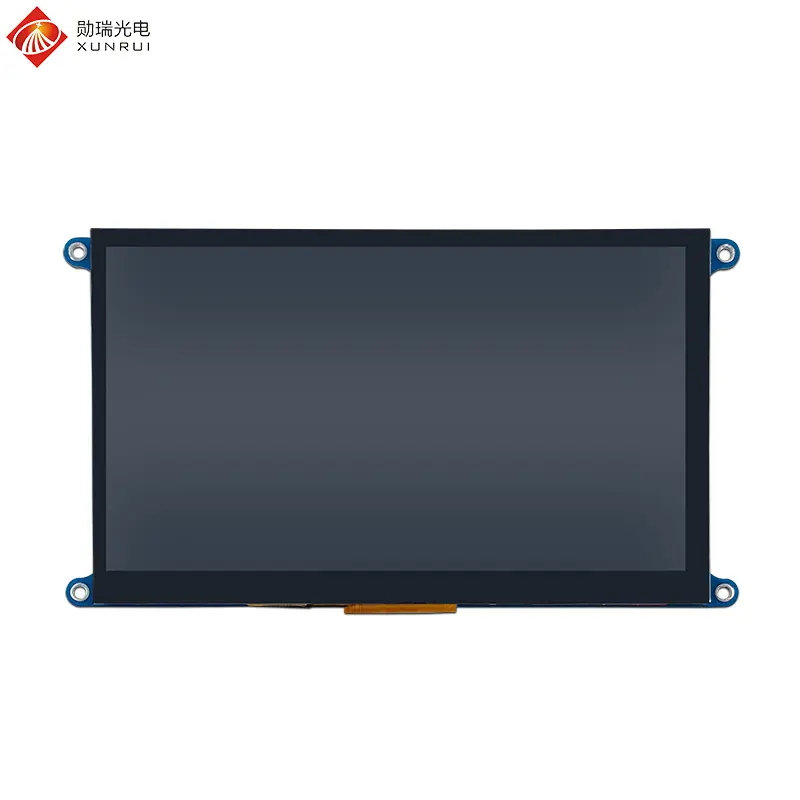

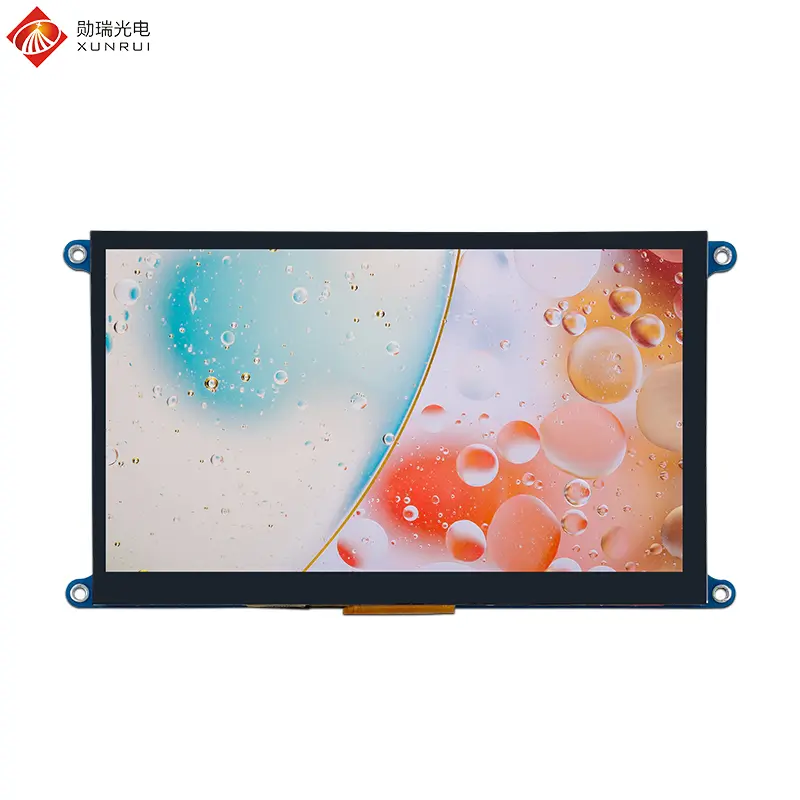

H070IWS50I2501-CT25-RTD2660-1.0F is a 7-inch TFT LCD module equipped with a driver board and a capacitive touch panel. This LCD screen adopts IPS full-view technology, with a nearly 180° wide viewing angle, accurate color reproduction, and is suitable for multi-angle viewing. It has a resolution of 1024×600 full HD input, ensuring clear and detailed images. The HX8282/HX8696 Driver IC, HDMI 50-pin interface, and HDMI is the mainstream digital video input interface, supporting plug-and-play and compatible with various devices such as computers, Raspberry Pi, and game consoles. Some products also integrate a VGA interface to enhance the flexibility of device connection. It is equipped with a capacitive touch screen, supporting multi-touch, using G+G tempered glass, with anti-scratch and wear-resistant properties, suitable for industrial control environments.

This 7-inch TFT LCD display is mainly applied in industrial control and automation: as the human-machine interaction interface for industrial control equipment, used in PLC control panels, machine status monitoring, production line operation terminals, etc. In the automotive and transportation field: used as reverse camera display, in-vehicle entertainment system or monitoring terminal, with a metal casing design to enhance durability and technological sense. In smart home and the Internet of Things: used as smart doorbell display, home control panel or digital photo frame, enhancing the intelligent experience of the home. For portable devices and mobile terminals: applied in handheld terminals, navigation devices, portable game consoles, etc., balancing display area and device portability.

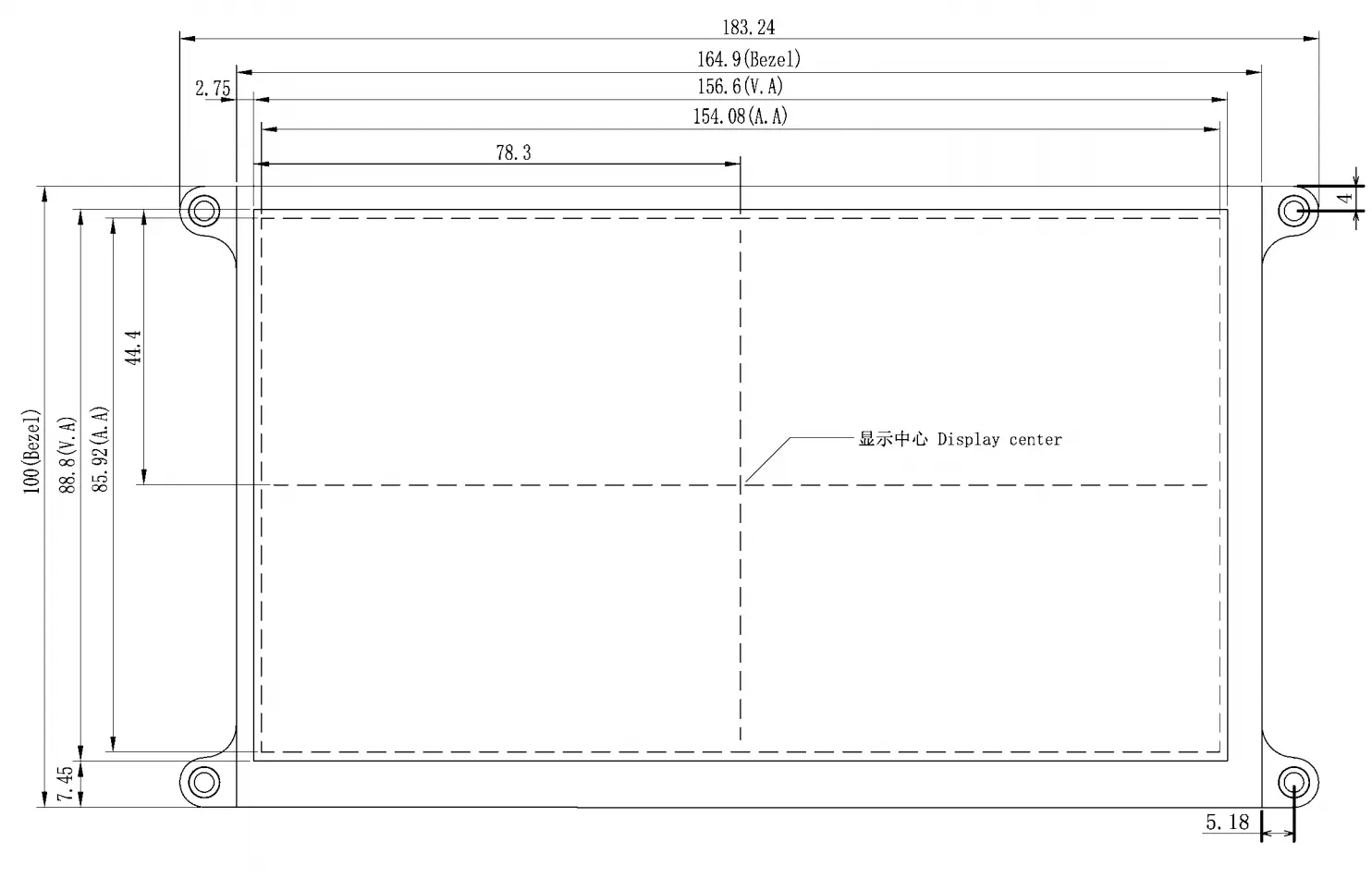

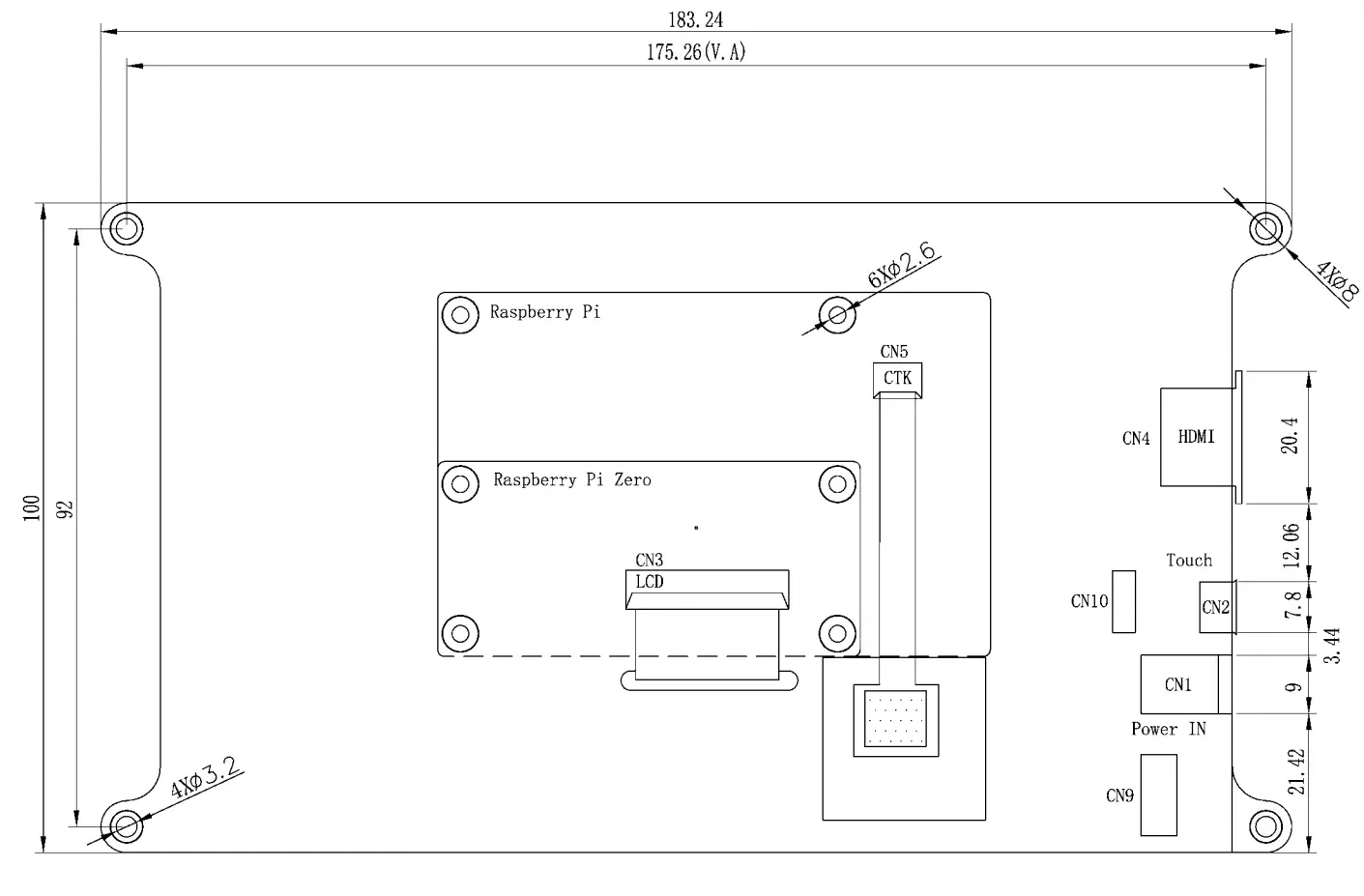

Mechanical Drawing

Specification Parameters

Feature	Specification
Model Name	H070IWS50I2501-CT25-RTD2660-1.0F
LCD Size	7 inch
Display Format	1024×600
Interface	HDMI 50pin
Luminance	210 cd/m²
Touch Screen	Capacitive Touch
Viewing Direction	ALL (IPS)
Color Depth	16.7M
Driver IC	HX8282 / HX8696
LCM + CTP (W × H × D) (mm)	164.9(W) × 100(H) × 13.6(D)
Active Area (mm)	154.21 × 85.92
Operating Temperature	-10℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Operating Voltage	9V

Interface Definition (50 Pin)

Pin No.	Symbol	I/O	Function	Remark
1	VLED+	P	Power for LED backlight (Anode)
2	VLED+	P	Power for LED backlight (Anode)
3	VLED-	P	Power for LED backlight (Cathode)
4	VLED-	P	Power for LED backlight (Cathode)
5	GND	P	Power ground
6	VCOM	I	Common voltage
7	DVDD	P	Power for Panel
8	MODE	I	DE/SYNC mode select	Note 1
9	DE	I	Data Input Enable
10	VS	I	Vertical Sync Input
11	HS	I	Horizontal Sync Input
12	B7	I	Blue data (MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data	Note 2
19	B0	I	Blue data (LSB)	Note 2
20	G7	I	Green data (MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data	Note 2
27	G0	I	Green data (LSB)	Note 2
28	R7	I	Red data (MSB)
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data	Note 2
35	R0	I	Red data (LSB)	Note 2
36	GND	P	Power Ground
37	DCLK	I	Sample clock	Note 3
38	GND	P	Power Ground
39	L/R	I	Left / right selection	Note 4, 5
40	U/D	I	Up / down selection	Note 4, 5
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog circuit
44	RESET	I	Global reset pin	Note 6
45	NC	-	No connection
46	VCOM	I	Common Voltage
47	DITHB	I	Dithering function	Note 7
48	GND	P	Power Ground
49	NC	-	No connection
50	NC	-	No connection

Frequently Asked Questions

What are the primary optical and display features of this 7-inch LCD?

The module features an IPS full-view panel delivering a wide viewing angle near 180°, a resolution of 1024×600 with full HD input compatibility, a luminance rating of 210 cd/m², and support for 16.7 million colors to ensure vivid and accurate image output from all directions.

Which devices are compatible with the HDMI 50-pin interface?

Equipped with an RTD2660 driver board and HX8282/HX8696 driver IC, the module offers plug-and-play digital video support compatible with standard computers, Raspberry Pi microcontrollers, and gaming consoles. Select setups can also integrate a secondary VGA interface.

What type of touch sensor is integrated into the display module?

It includes a capacitive multi-touch screen engineered with G+G (Glass-on-Glass) tempered glass. This construction ensures high touch precision along with anti-scratch and wear-resistant protection suitable for rigorous industrial control environments.

What are the operating temperature and power voltage ratings?

The unit operates under a standard voltage of 9V. It is built to function reliably in operating temperatures ranging from -10℃ to +50℃, and can withstand storage conditions from -20℃ to +60℃.

What are the key application areas for this TFT display module?

Typical applications include industrial control and automation (PLC panels, monitoring consoles, assembly line terminals), automotive systems (rear-view cameras and in-vehicle displays), smart home IoT devices (video doorbells and central control pads), and handheld portable terminals.

What are the physical dimensions and active display area of the screen?

The complete LCM + CTP outer module dimensions are 164.9 mm (W) × 100.0 mm (H) × 13.6 mm (D), with an active display surface area measuring 154.21 mm × 85.92 mm.
