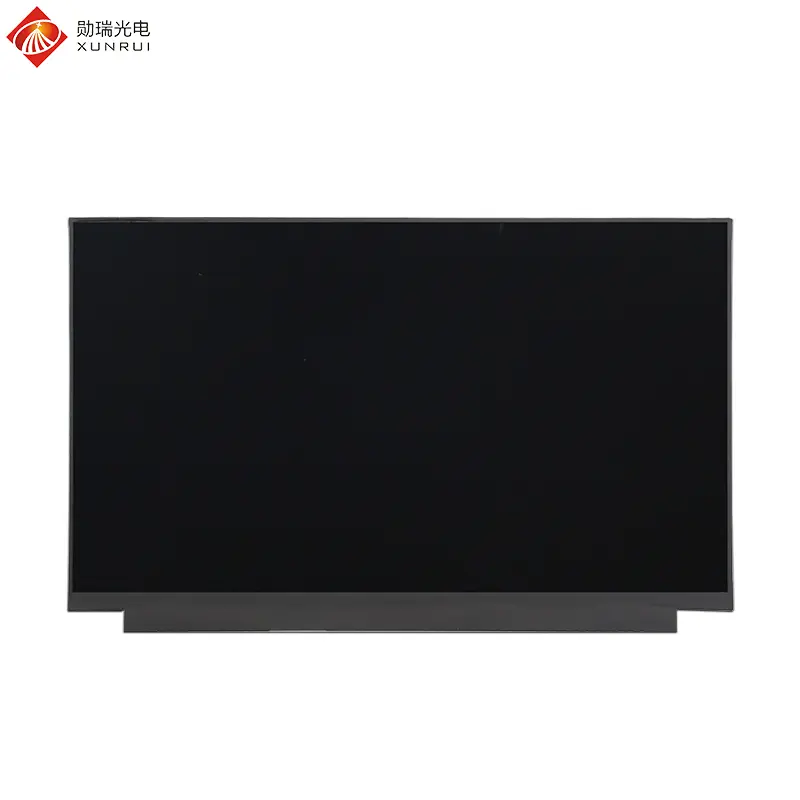

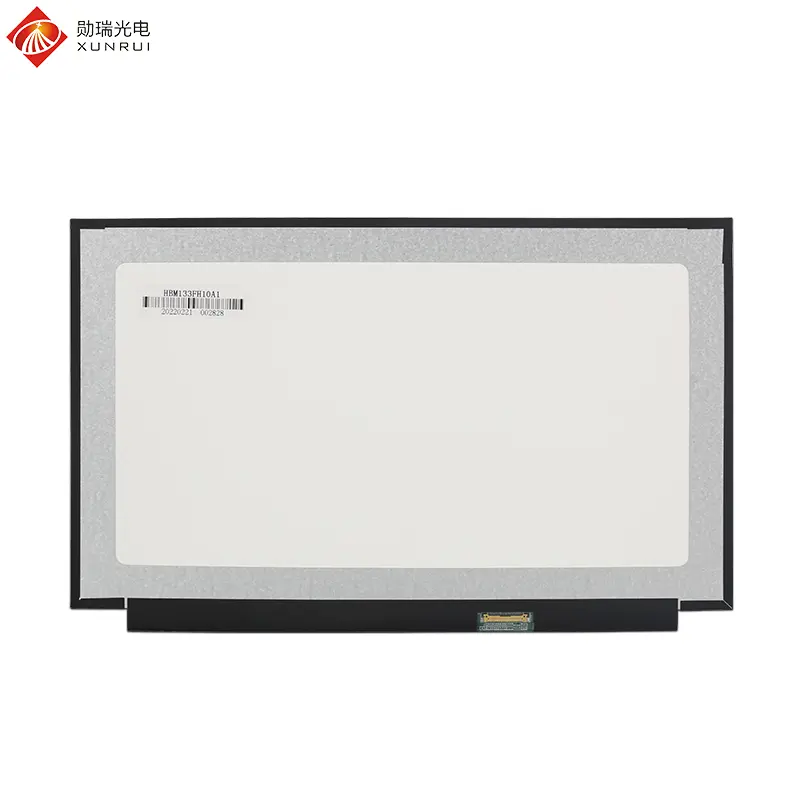

HBM133FH10A1 is a full-view 13.3 inch TFT LCD module that uses an IPS panel. The IPS technology offers an ultra-wide viewing angle of 178°, consistent color; contrast ratio ranging from 800:1 to 1500:1, with clear picture layers. The resolution is 1920×1080 (some models support: 2560×1440 (QHD) or 3840×2160 (4K)), EDP 30-pin interface, 280 nit brightness, capable of withstanding a working temperature range of 0°C to +50°C, and can be optionally equipped with a touchscreen. This LCD screen features ultra-narrow bezels, ultra-thin thickness, a hollow design on the back, and a straight row style overall. This 13.3 inch TFT LCD screen is mainly applied in high-end laptops and mobile office: mainstream size, balancing portability and visual comfort, suitable for documents, web pages, and light design. Education and training: used for teaching display and remote learning, supporting interaction. Automotive electronics: used for central control navigation, rear entertainment, and information display. High brightness and wide temperature characteristics ensure clear display in the vehicle. It can also be applied in industrial control, medical equipment, consumer electronics and other fields.
FHD Resolution
1920×1080 (Supports up to 4K)
IPS Wide View
178° Ultra-Wide Angle
280 cd/m² Luminance
Crisp & Clear Visibility
Touchscreen Support
Optional Touch Integration

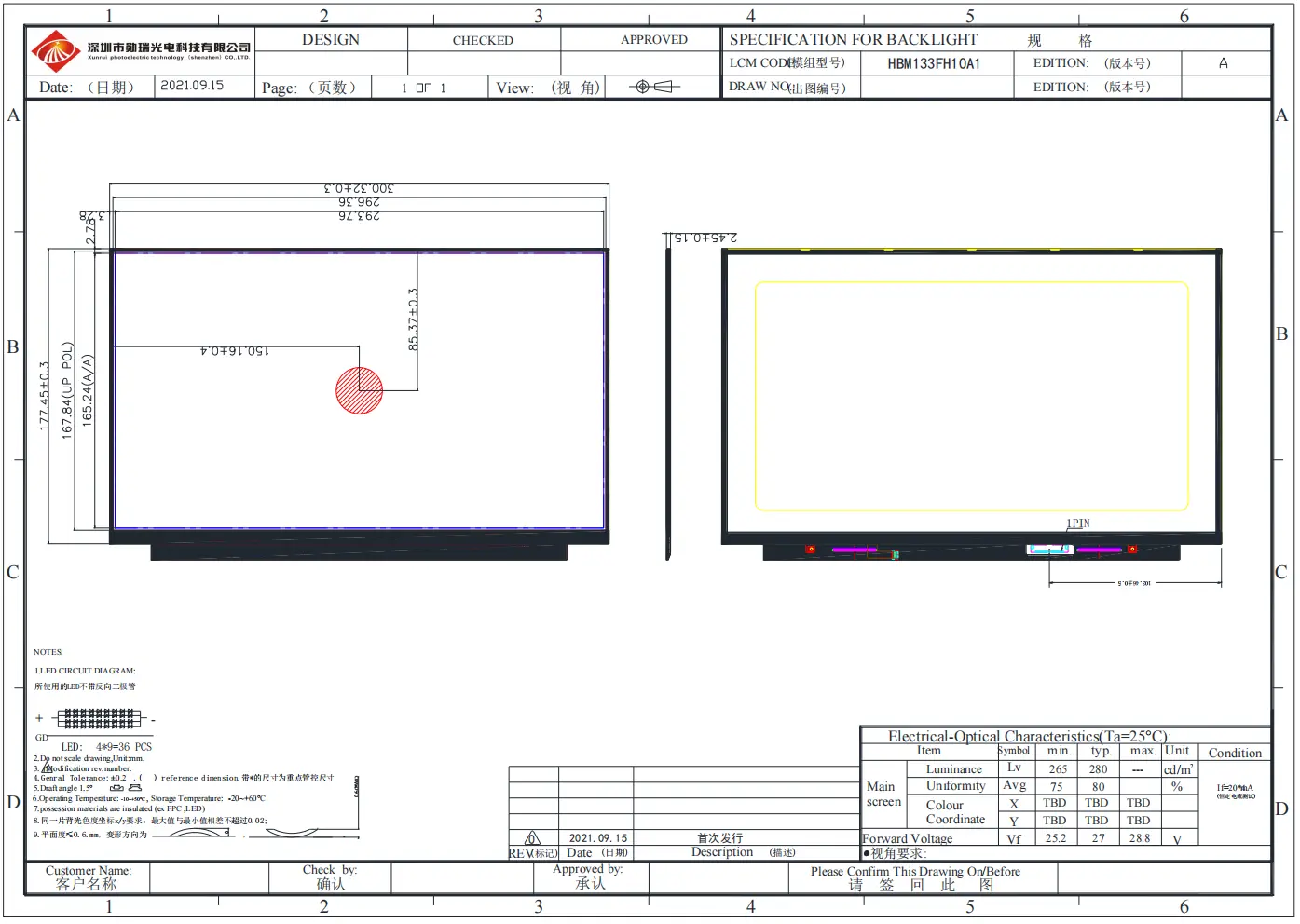

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | HBM133FH10A1 |
| LCD Size | 13.3 inch |
| Display Format | 1920×1080 |
| Interface | EDP 30PIN |
| Luminance | 280 cd/m² |
| Touch Screen | None, optional |
| Viewing Direction | ALL (Full View) |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W × H × D) (mm) | 300.32 × 177.45 × 2.45 |
| Active Area (mm) | 293.76(H) × 165.24(V) |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Voltage | 27V |
Interface Definition
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | NC | - | No connection |
| 2 | H_GND | P | High Speed ground |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed Ground |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed Ground |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed Ground |
| 12 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | NC | - | No connection |
| 25 | NC | - | No connection |
| 26 | BL_PWR | P | Backlight power |
| 27 | BL_PWR | P | Backlight power |
| 28 | BL_PWR | P | Backlight power |
| 29 | BL_PWR | P | Backlight power |
| 30 | NC | - | No connection |
Frequently Asked Questions (FAQ)
The HBM133FH10A1 features a Full HD resolution of 1920×1080 (with options supporting QHD 2560×1440 or 4K 3840×2160) and incorporates an IPS panel providing an ultra-wide viewing angle of 178° with stable color accuracy.
It utilizes an Embedded DisplayPort (EDP) 30-pin interface supporting high-speed differential signal lanes, auxiliary channels, and integrated backlight control signals.
Yes, while the standard display comes without a touch layer, custom touch screen integration (such as capacitive touch panels) can be optionally configured according to application requirements.
Key applications include high-end ultra-thin laptops, mobile office equipment, educational tablets, automotive center consoles and infotainment displays, industrial control panels, and medical visualization instruments.
The module operates reliably within a temperature range of 0℃ to +50℃ and can be safely stored in temperatures between -20℃ and +60℃.
The outer dimensions are 300.32 × 177.45 × 2.45 mm with an active display area of 293.76 × 165.24 mm. It features ultra-narrow bezels, an ultra-slim thickness profile, and a lightweight hollow-back structural design.
