Product Description

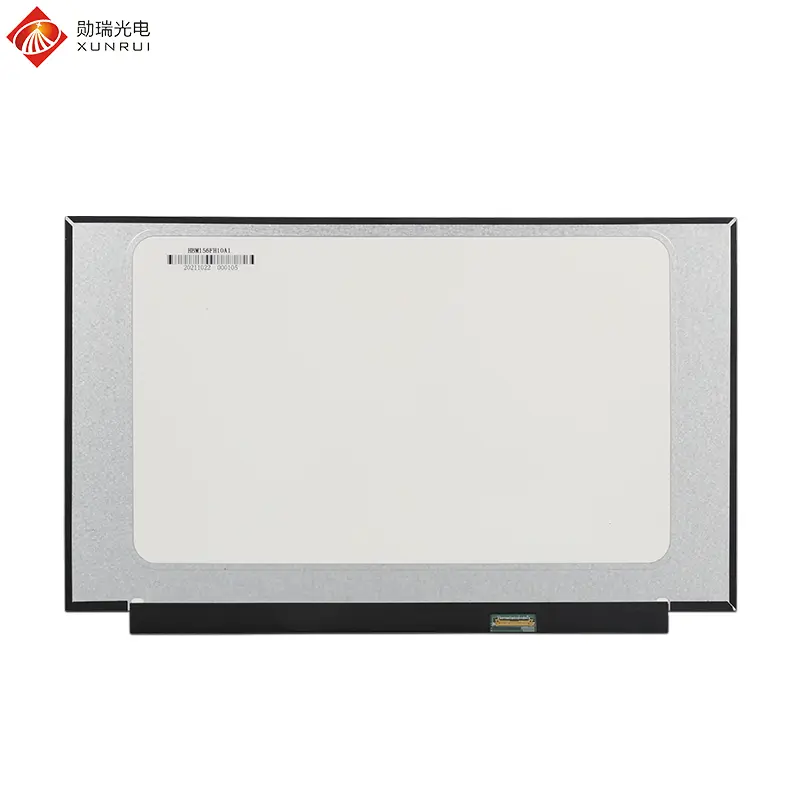

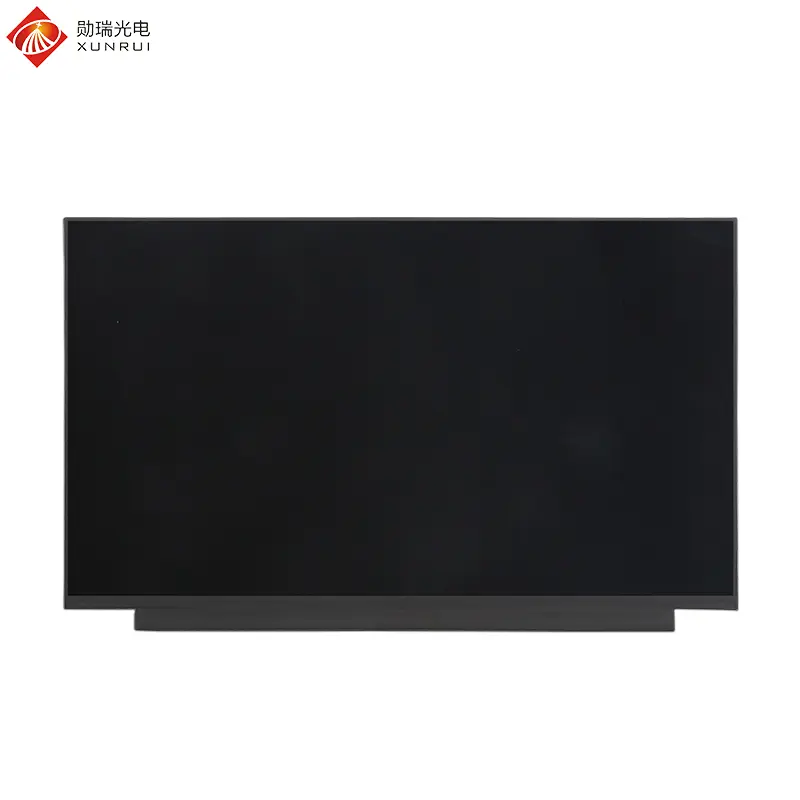

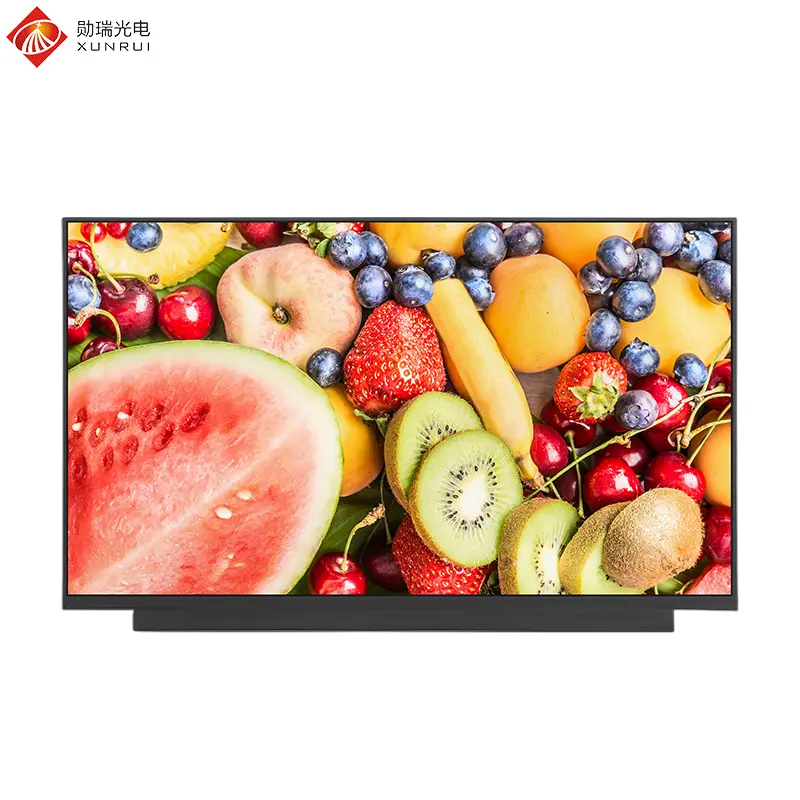

HBM156FH10A1 is a 15.6 inch TFT LCD module. The 15.6 inch screen provides ample space, facilitating multitasking operations (such as splitting the screen to handle documents), and the device is portable. This LCD screen adopts IPS wide-angle technology, presenting consistent colors from different angles, supporting the sRGB color gamut, and achieving accurate color reproduction. With a resolution of 1920×1080, it can clearly display text and image details, suitable for office, design, and audio-visual entertainment. The EDP 30-pin interface, 400 nit brightness (some models can reach 1000 nit), can withstand a working temperature range of 0°C to +50°C. The back is of a hollow design, and the overall style is a straight row. A touchscreen can be optionally selected. This 15.6 inch TFT LCD screen is mainly applied in office and study: laptops, portable displays, suitable for document processing, programming and online courses. Entertainment and media: televisions, game displays, providing immersive viewing and gaming experiences. Digital signage: information release and advertisement display in shopping malls and stations. It can also be applied in industrial and medical fields.

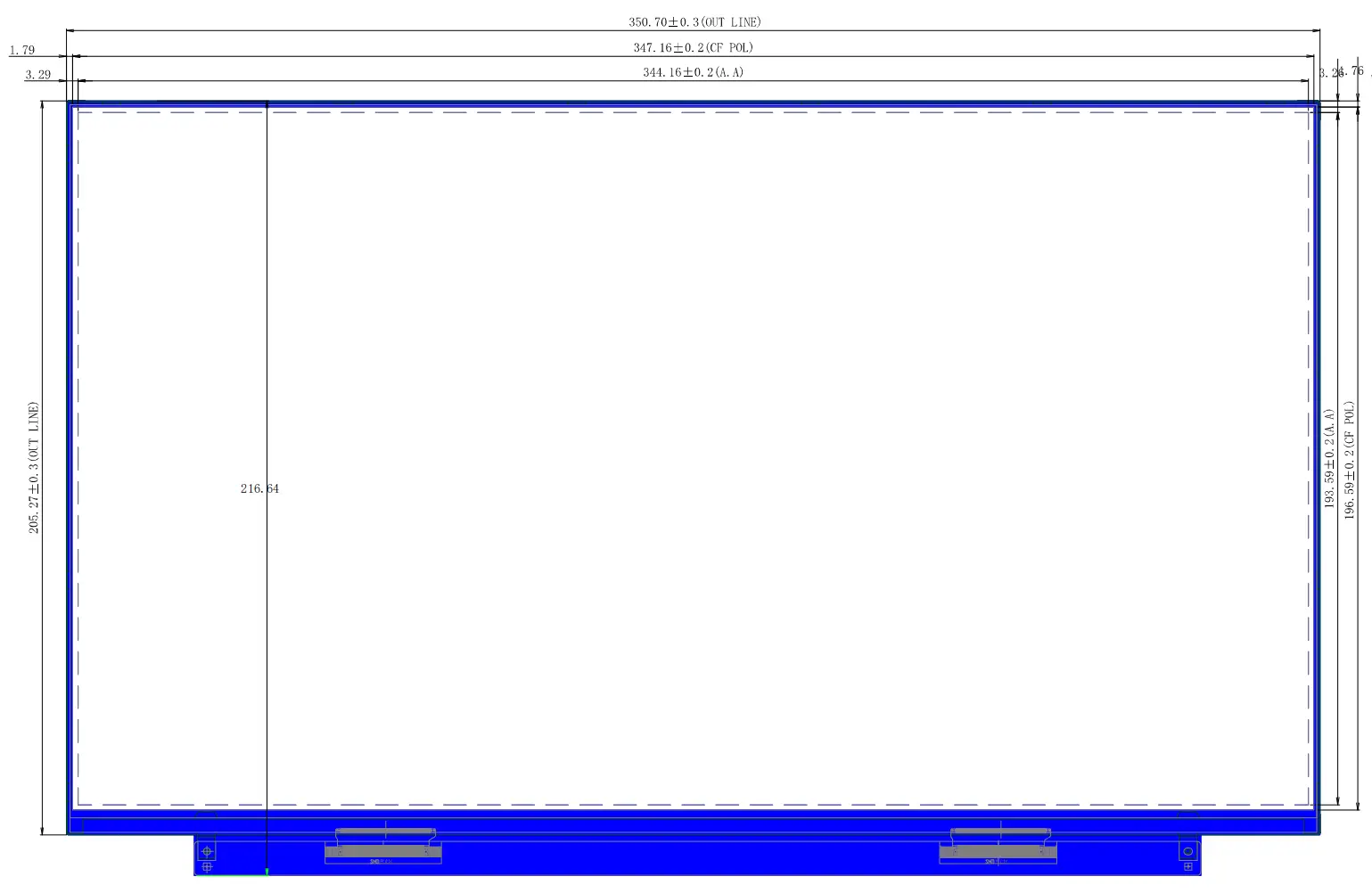

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | HBM156FH10A1 |
| LCD Size | 15.6 inch |
| Display Format | 1920×1080 |
| Interface | EDP 30PIN |
| Luminance | 400 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 350.7(H) x 205.27(V) x 2.65(D) |
| Active Area(mm) | 344.16(H) × 193.59(V) |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -10℃ ~ +60℃ |
| Operating Voltage | 12V |
Interface Definition
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | NC | I | NC |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True SignalAuxiliary Channel |
| 10 | AUX_CH_N | I | Complement SignalAuxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | NC |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | NC | - | Reserved for LCD manufacturer’s use |
| 25 | NC | - | Reserved for LCD manufacturer’s use |
| 26 | BL_PWR | P | LED Power Supply 5V-21V; If not use, NC |
| 27 | BL_PWR | P | LED Power Supply 5V-21V; If not use, NC |
| 28 | BL_PWR | P | LED Power Supply 5V-21V; If not use, NC |
| 29 | BL_PWR | P | LED Power Supply 5V-21V; If not use, NC |
| 30 | NC | - | Color Engin Function Reserved |
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions (FAQ)
What is the resolution and display size of the HBM156FH10A1 module?
The HBM156FH10A1 features a 15.6-inch active screen area with a Full HD display resolution of 1920×1080 pixels, delivering crisp details for high-definition visuals.
What interface is utilized by this 15.6 inch TFT LCD module?
This module utilizes a standard EDP 30-pin interface designed for high-speed digital video signal transmission with stable and clear image output.
What are the brightness levels and viewing angles for this screen?
It comes standard with 400 cd/m² luminance (with optional high-brightness models reaching up to 1000 nits). It employs IPS wide-angle technology, offering full-angle visibility and sRGB color accuracy.
Is touch panel integration available for this model?
Yes, while the standard configuration comes without touch, custom touchscreen integration (capacitive or resistive) can be optionally selected based on application needs.
What are the operating temperature conditions?
The module operates reliably within a working temperature range of 0°C to +50°C and can be safely stored within a temperature range of -10°C to +60°C.
What are the primary applications of this display?
It is widely applied in laptops, portable monitors, gaming and multimedia displays, digital advertising kiosks in malls/stations, as well as industrial and medical equipment terminals.
