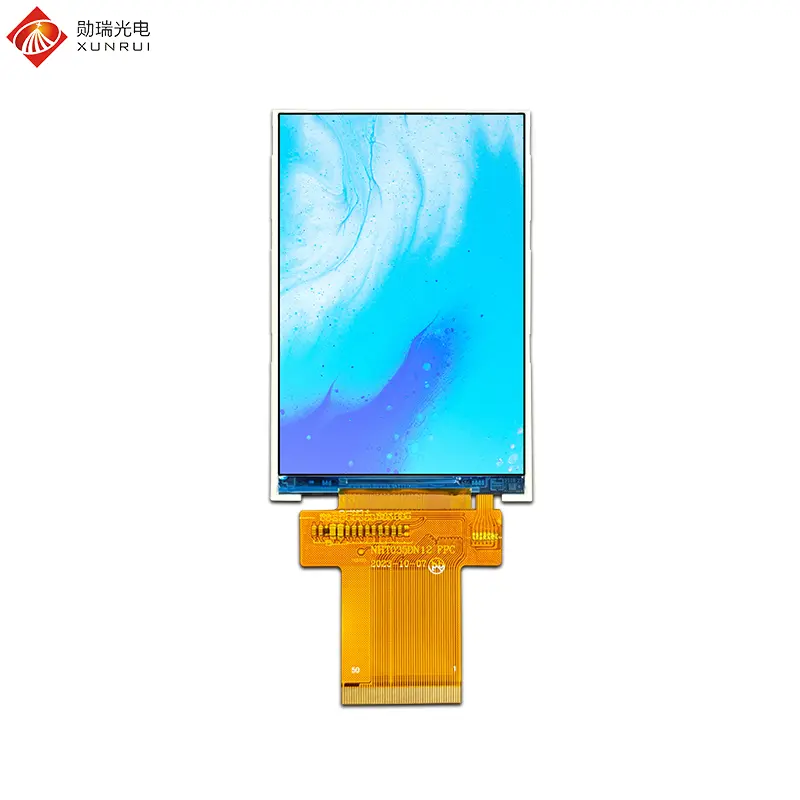

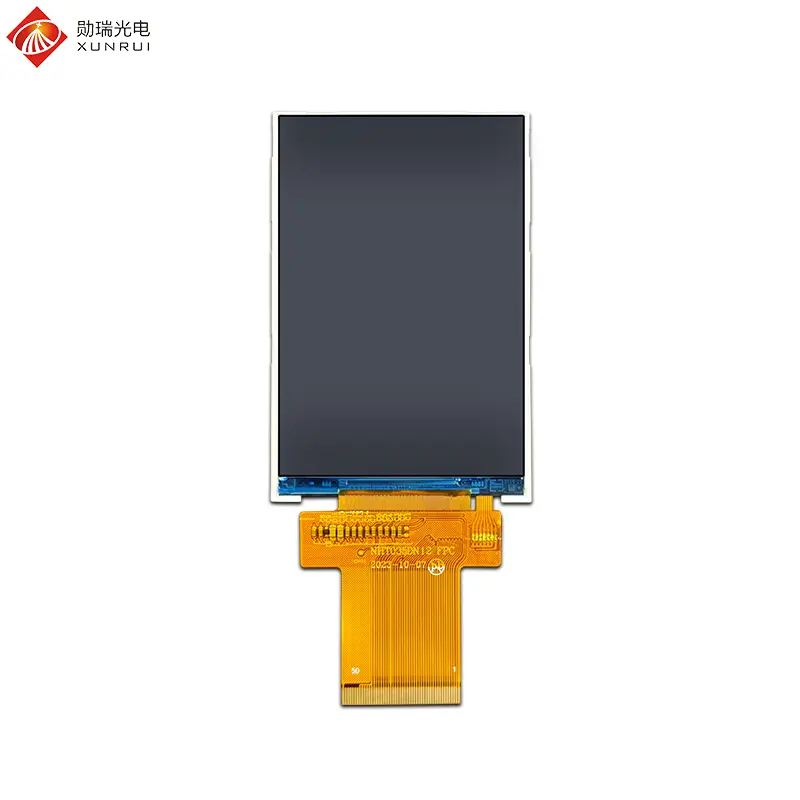

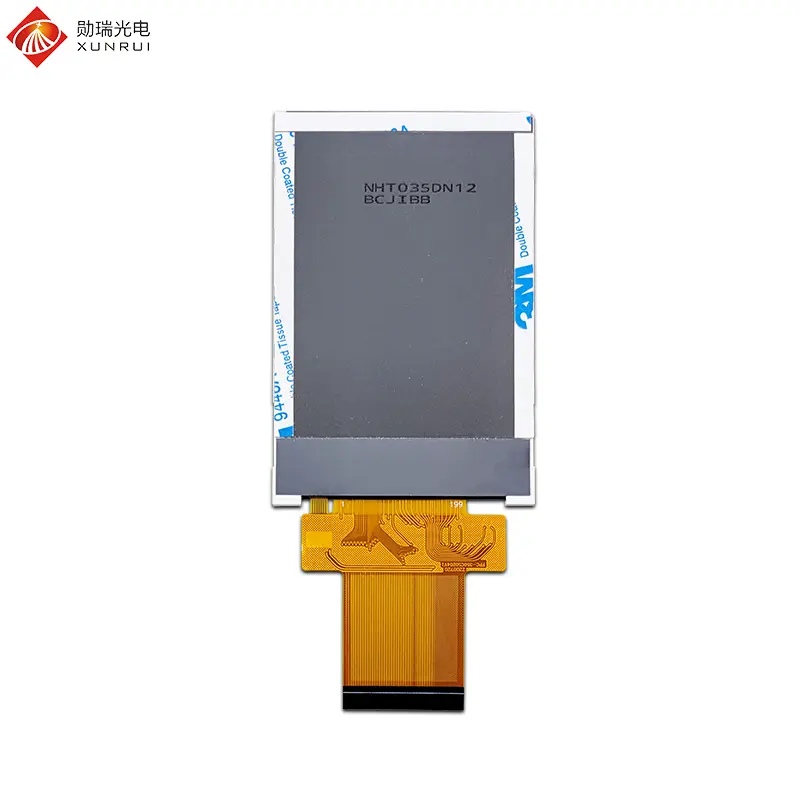

Product Description
H035SHV50I3030 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit a backlight unit, The panel size is 3.5inch and the resolution is 320x480,SPI/MCU/RGB 50-pin interface, 300 nit, ILI9488 driver IC,Optional touchscreen. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.This 3.5-inch TFT LCD module is mainly used in consumer electronic products: such as MP4 players, electronic dictionaries, portable game consoles, etc., providing clear images and convenient operation interfaces. Portable electronic devices: such as handheld detection instruments, medical equipment, etc., due to their small size and excellent display effect, are suitable for embedded applications. Additionally, it can also be applied in industrial equipment, automotive electronics, smart home appliances and other fields.

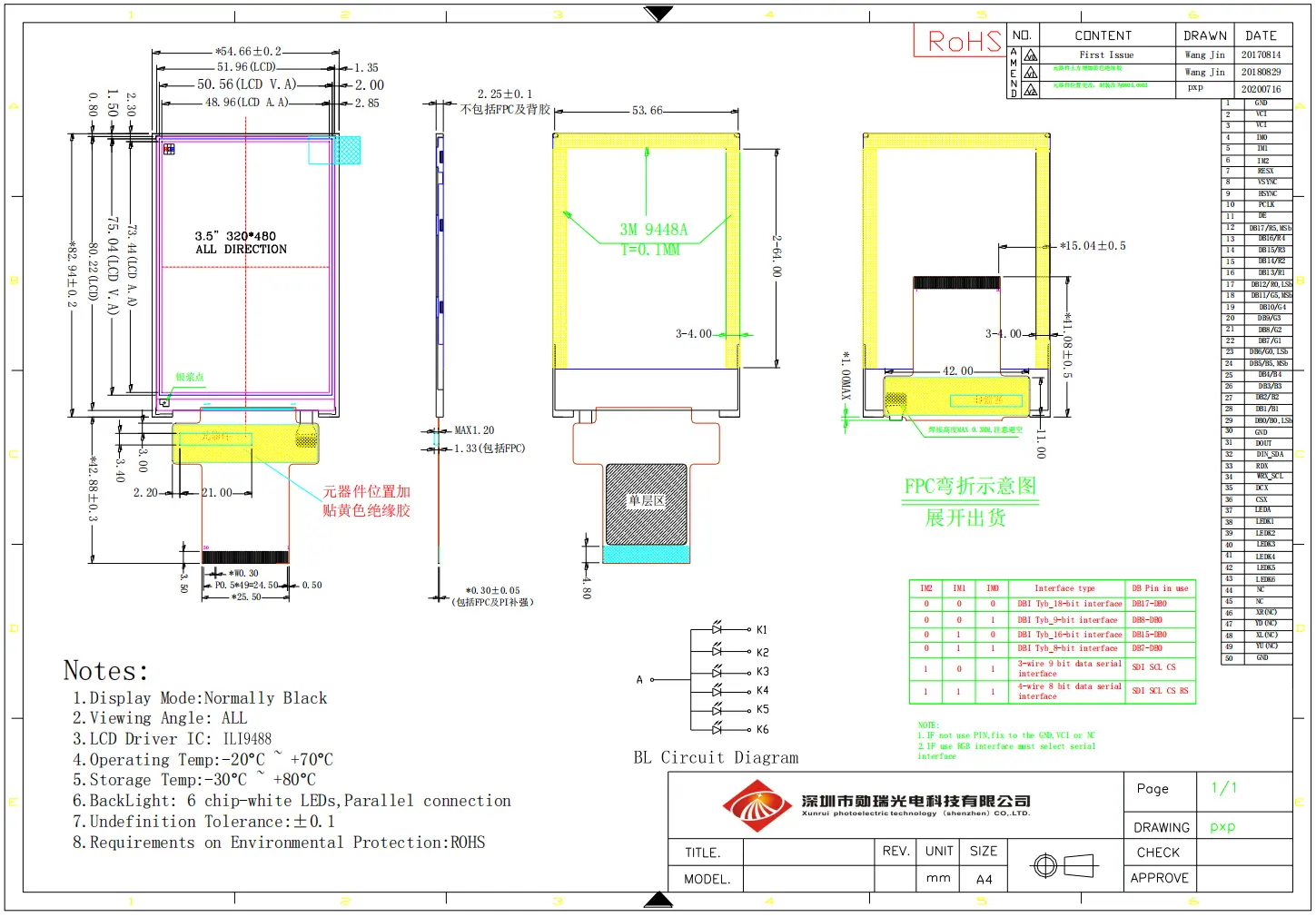

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H035SHV50I3030 |
| LCD Size | 3.5 inch |
| Display Format | 320×480 |
| Interface | SPI/MCU/RGB 50pin |
| Luminance | 300 cd/m² |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 262K |
| Driver IC | ILI9488 |
| LCM (W x H x D) (mm) | 54.66(W) × 82.94(H) × 2.25(D) (LCM, not include FPC) |
| Active Area (mm) | 48.96(W) × 73.44(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.2V |
Interface Definition
| Pin No | Symbol | Description | Note |
|---|---|---|---|
| 1 | GND | System Ground | |
| 2 | VCI | Power supply input for LCM: 2.8V | |
| 3 | VCI | Power supply input for LCM: 1.8V/2.8V | |
| 4 | IM0 | Interface Mode Select | |
| 5 | IM1 | Interface Mode Select | |
| 6 | IM2 | Interface Mode Select | |
| 7 | RESX | Reset signal input PIN | |
| 8 | VSYNC | Frame Synchronizing Signal For RGB Interface Operation | |
| 9 | HSYNC | Line Synchronizing Signal For RGB Interface Operation | |
| 10 | PCLK | Pixel clock signal | |
| 11 | DE | Data input enable | |
| 12-29 | DB17-DB0 | Data Bus | |
| 30 | GND | System Ground | |
| 31 | DOUT | Serial data output | |
| 32 | DIN_SDA | SPI input and output pin | |
| 33 | RDX | Read Signal And Read Data | |
| 34 | WRX_SCL | Write signal/ serial clock input signal | |
| 35 | DCX | Register Select Signal | |
| 36 | CSX | Chip Select PIN | |
| 37 | LEDA | Power supply Anode input for backlight | |
| 38 | LEDK1 | Power supply Cathode input for backlight | |
| 39 | LEDK2 | Power supply Cathode input for backlight | |
| 40 | LEDK3 | Power supply Cathode input for backlight | |
| 41 | LEDK4 | Power supply Cathode input for backlight | |
| 42 | LEDK5 | Power supply Cathode input for backlight | |
| 43 | LEDK6 | Power supply Cathode input for backlight | |
| 44 | NC | Not Connect | |
| 45 | NC | Not Connect | |
| 46 | XR/NC | Not Connect | |
| 47 | YD/NC | Not Connect | |
| 48 | XL/NC | Not Connect | |
| 49 | YU/NC | Not Connect | |
| 50 | GND | System Ground |
Frequently Asked Questions
1. What is the display resolution and driver IC of model H035SHV50I3030?
This 3.5-inch TFT LCD module features a resolution of 320x480 pixels and uses the ILI9488 driver IC.
2. Which interface options are supported by this 3.5-inch TFT LCD module?
The module supports SPI, MCU, and RGB interface connections via a standard 50-pin layout.
3. Does this display support touch functionality?
Touch screen integration is optional depending on application requirements, offering flexibility between non-touch and touch-enabled setups.
4. What are the operating and storage temperature limits?
The module is built for durable performance with an operating temperature range of -20℃ to +70℃ and a storage range of -30℃ to +80℃.
5. What applications is this module primarily used for?
It is widely used in handheld testing devices, medical equipment, consumer electronics (like game consoles and players), industrial equipment, automotive electronics, and smart home appliances.
6. Does the module support power-saving modes?
Yes, it features partial-screen display functions as well as Sleep and Stand-by modes specifically designed for efficient power saving.
