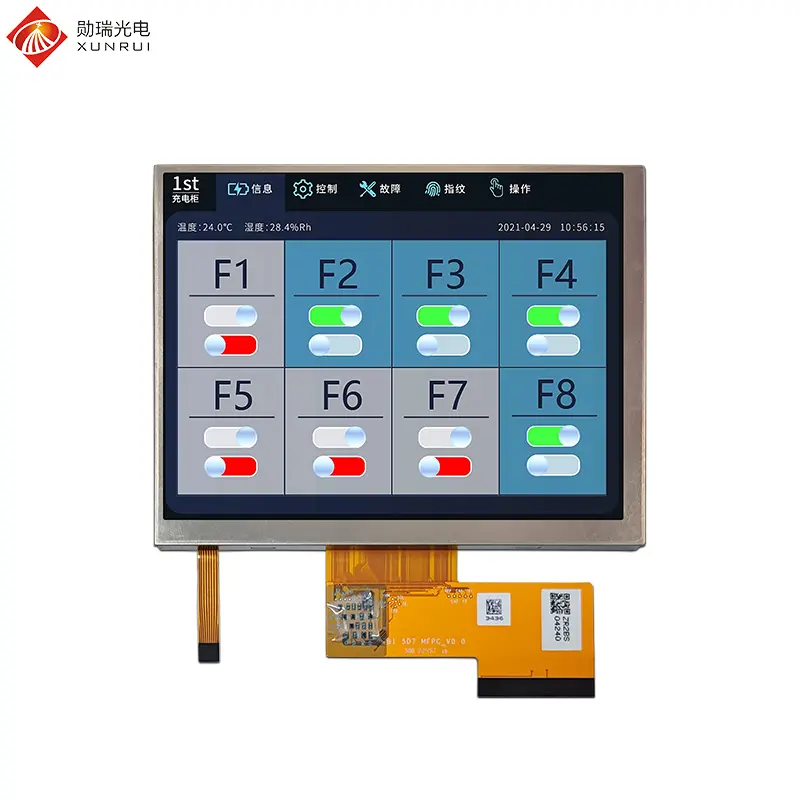

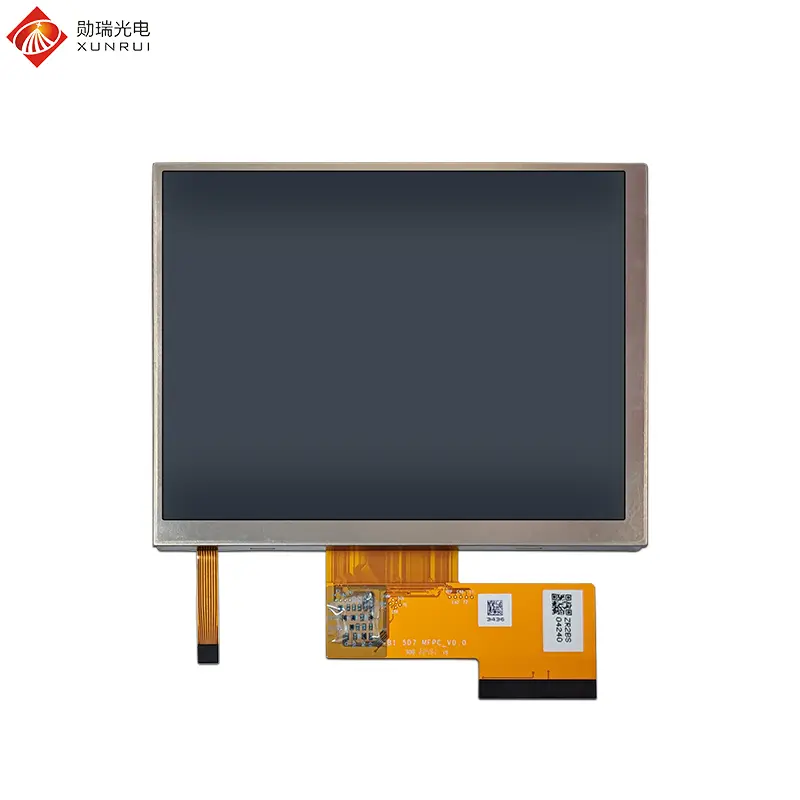

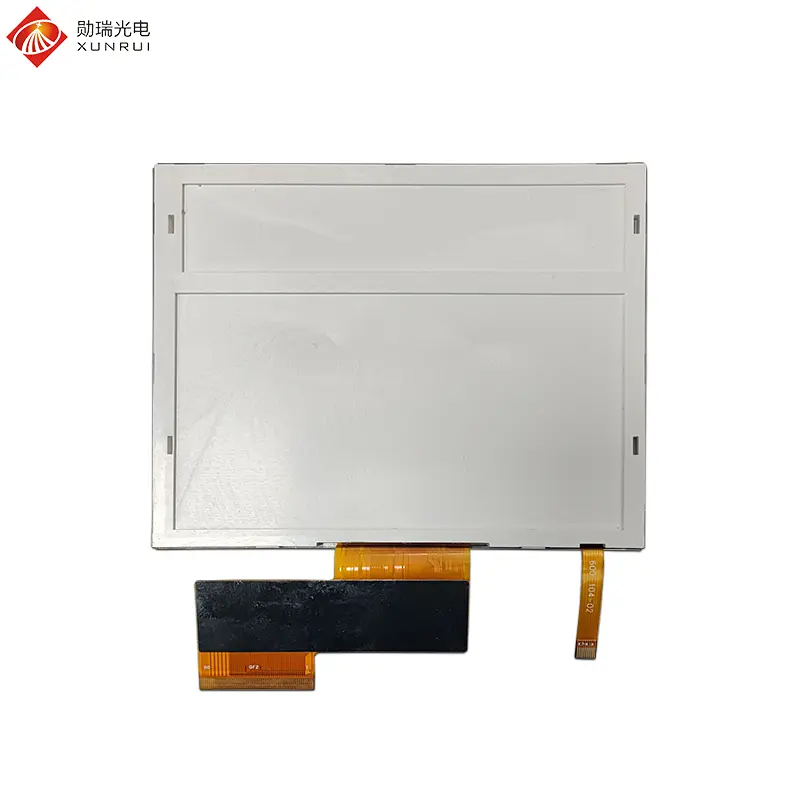

Product Description

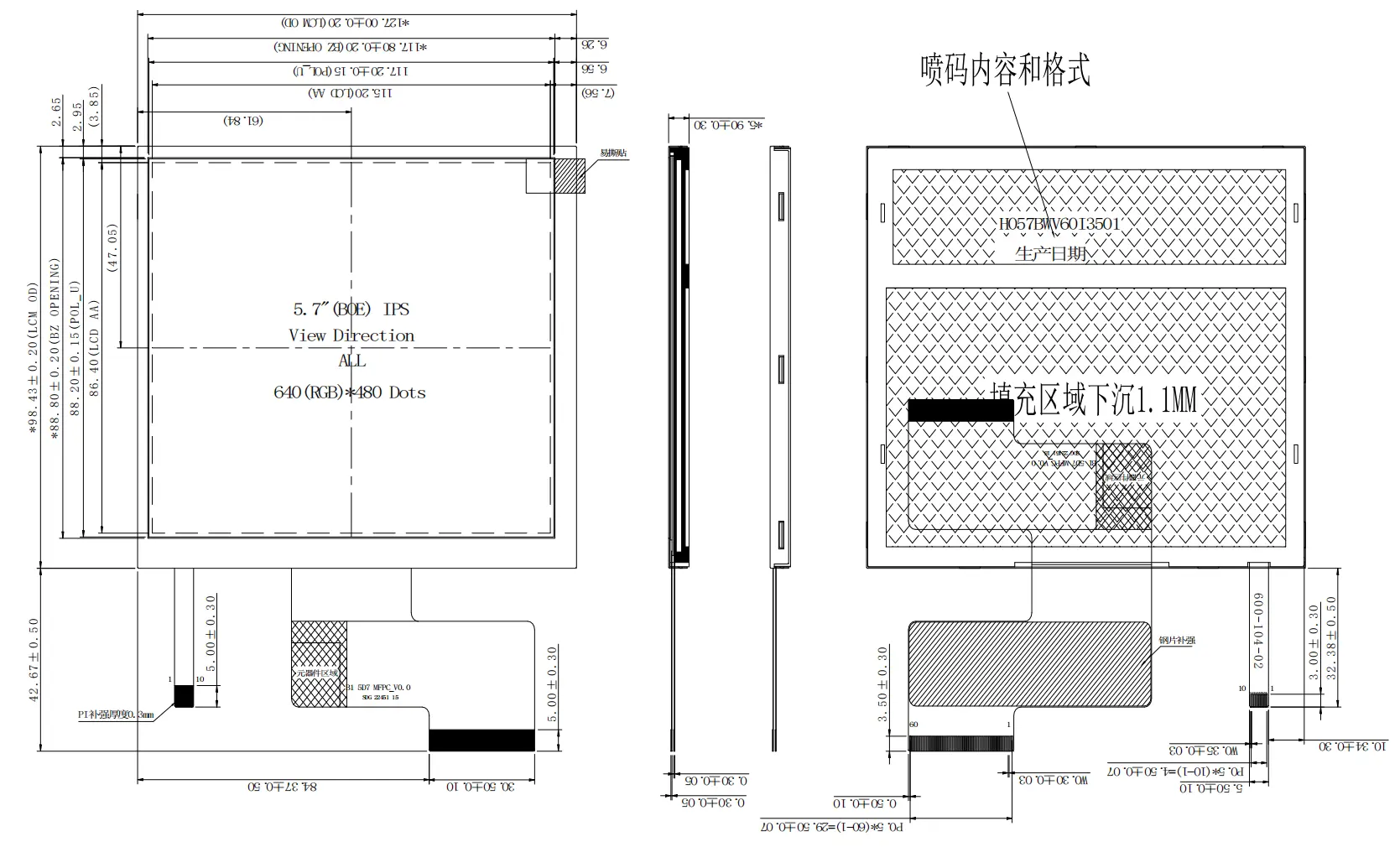

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H057BWV60I3501 |
| LCD Size | 5.7 inch |
| Display Format | 640×480 |
| Interface | RGB & LVDS & MIPI 60pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | JD9168S |
| LCM (W x H x D) (mm) | 127*98.43*5.9 |
| Active Area(mm) | 115.2(H)x 86.4(V) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.0V |
Interface Definition
| Pin NO | Pin name | Description | Pin NO | Pin name | Description | Pin NO | Pin name | Description | Pin NO | Pin name | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SDA | SPI data | 16 | G3 | RGB data | 31 | LANO | lane mode | 46 | DON | LVDS DON |
| 2 | CSX | Chip select | 17 | G4 | RGB data | 32 | LANI | lane mode | 47 | DOP | LVDS DOP |
| 3 | SCL | SPIclock | 18 | G5 | RGB data | 33 | LVFMT | LVDS data format | 48 | D1N | LVDS DIN |
| 4 | RESX | Reset | 19 | G6 | RGB data | 34 | STBYB | standy mode | 49 | D1P | LVDS DIP |
| 5 | B0 | RGB data | 20 | G7 | RGB data | 35 | IM1 | IF mode slect | 50 | CKN | LVDS CKN |
| 6 | B1 | RGB data | 21 | RO | RGB data | 36 | IMO | IF mode slect | 51 | CKP | LVDS CKP |
| 7 | B2 | RGB data | 22 | R1 | RGB data | 37 | DCLK | RGB dock | 52 | D2N | LVDS D2N |
| 8 | B3 | RGB data | 23 | R2 | RGB data | 38 | DE | RGB data enable | 53 | D2P | LVDS D2P |
| 9 | B4 | RGB data | 24 | R3 | RGB data | 39 | VS | RGB V-sync | 54 | D3N | LVDS D3N |
| 10 | B5 | RGB data | 25 | R4 | RGB data | 40 | HS | RGB H-sync | 55 | D3P | LVDS D3P |
| 11 | B6 | RGB data | 26 | RS | RGB data | 41 | DS2 | data lane seq | 56 | 1OVCC | Power |
| 12 | B7 | RGB data | 27 | R6 | RGB data | 42 | DS1 | data lane seq | 57 | AVDD | Power |
| 13 | G0 | RGB data | 28 | R7 | RGB data | 43 | DS0 | data lane seq | 58 | AVEE | Power |
| 14 | G1 | RGB data | 29 | GS | gate scan | 44 | PS | data lane seq | 59 | VPP | OTP power |
| 15 | G2 | RGB data | 30 | SS | source scan | 45 | GND | Ground | 60 | GND | Ground |
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions (FAQ)
The H057BWV60I3501 is a 5.7-inch TFT LCD panel offering a standard VGA resolution of 640×480 pixels, 350 cd/m² luminance, full viewing angles (ALL), and support for 16.7 million colors driven by the JD9168S driver IC.
This display features a versatile 60-pin connection supporting RGB, LVDS, and MIPI interfaces, allowing direct compatibility with main control processors like ARM, STM32, and industrial PLCs.
Yes, while the standard module comes without a touch screen, capacitive or resistive touch screen integration is optional depending on custom project specifications.
The panel supports an industrial wide-temperature range with an operating temperature between -20℃ and +70℃, and storage durability between -30℃ and +80℃.
It is widely applied in industrial Human-Machine Interfaces (HMI), robotics control, medical vital-sign monitors, portable ultrasound devices, smart locks, environmental terminals, and POS barcode scanners.
Equipped with dynamic LED backlight adjustment technology, power consumption is reduced by over 20% while providing an extended operating lifespan exceeding 50,000 hours.
