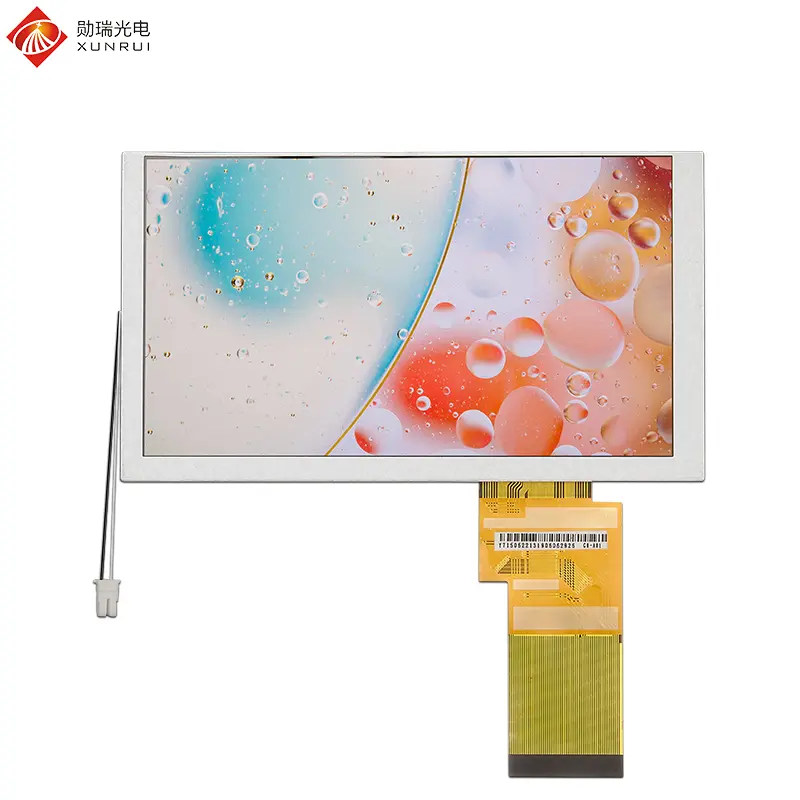

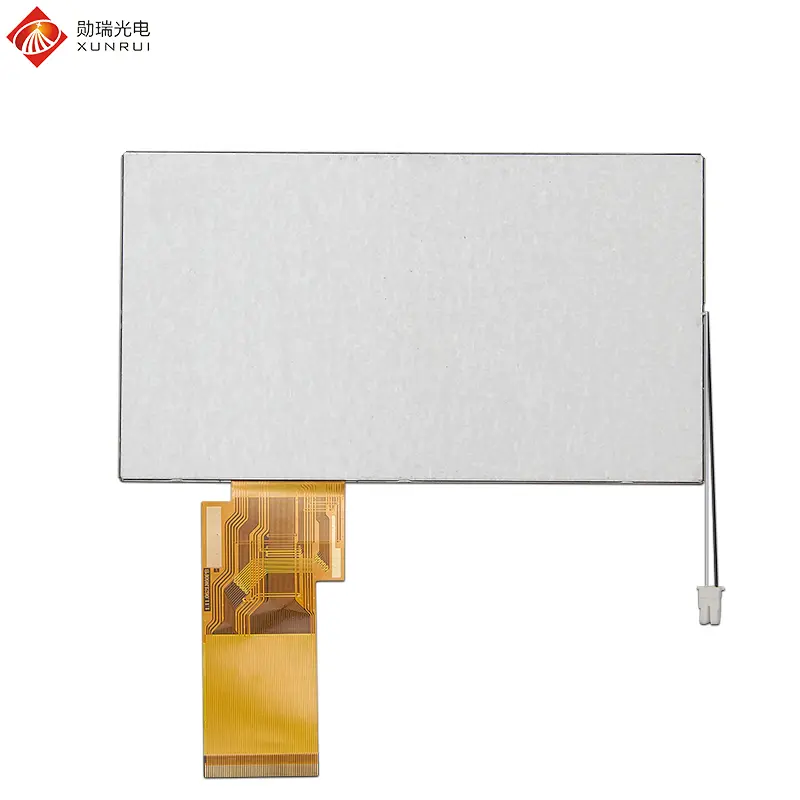

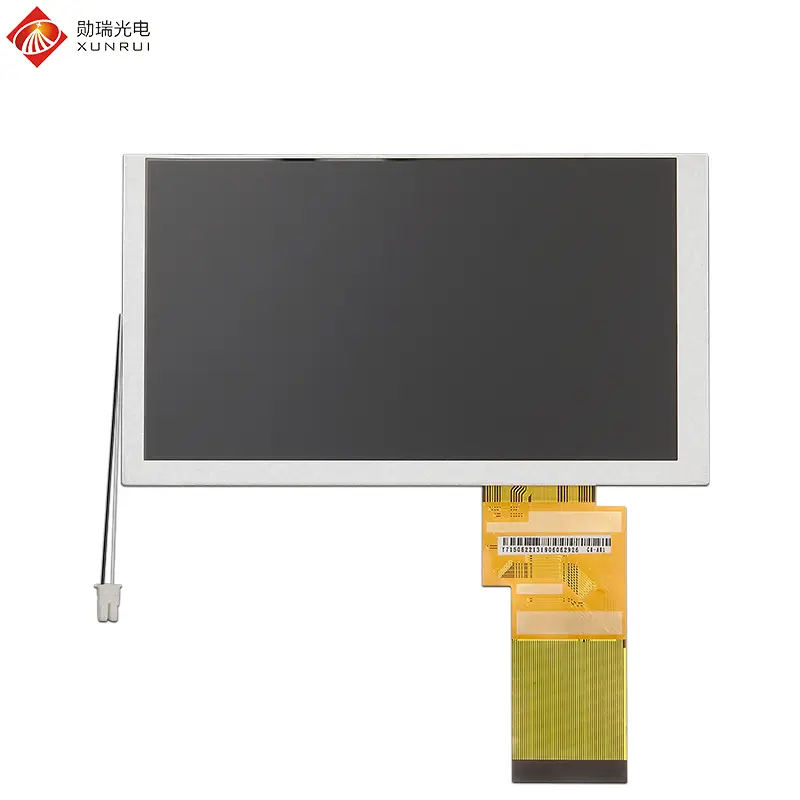

H062HWV60E5001 is a 6.2-inch TFT LCD module. This LCD screen adopts TN panel technology, with a resolution of 800×480 (WVGA), supporting 16.7M true color (24-bit), meeting the color requirements of most professional scenarios. It has an RGB 60-pin interface. It can be optionally equipped with capacitive (multi-touch) or resistive touch screens, supporting operation with gloves or wet hands, and can be customized for touch screen type, backlight brightness, interface definition, and firmware functions, to meet special needs. This 6.2-inch TFT LCD Display is mainly used in vehicle systems: taxi vehicle terminals, rearview cameras, dashboard displays. Industrial control (HMI): PLC control panels, robot operation interfaces, production line monitoring. Medical equipment: portable monitors, ultrasound equipment, infusion pump interfaces. Smart home and terminals: all-home intelligent central control, video doorbells, building intercom systems. Financial technology equipment: ATM machines, POS terminals, encrypted transaction screens. The 6.2-inch 800×480 LCD screen is currently the mainstream medium-sized TFT-LCD module in industrial and professional equipment. With its high resolution, good environmental adaptability, and wide interface compatibility, it has become the core display solution in fields such as vehicle, medical, and industrial control.
| Feature | Spec |
|---|---|
| Model Name | H062HWV60E5001 |
| LCD Size | 6.2 inch |
| Display Format | 800×480 |
| Interface | RGB 60pin |
| Luminance | 500 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | TBD |

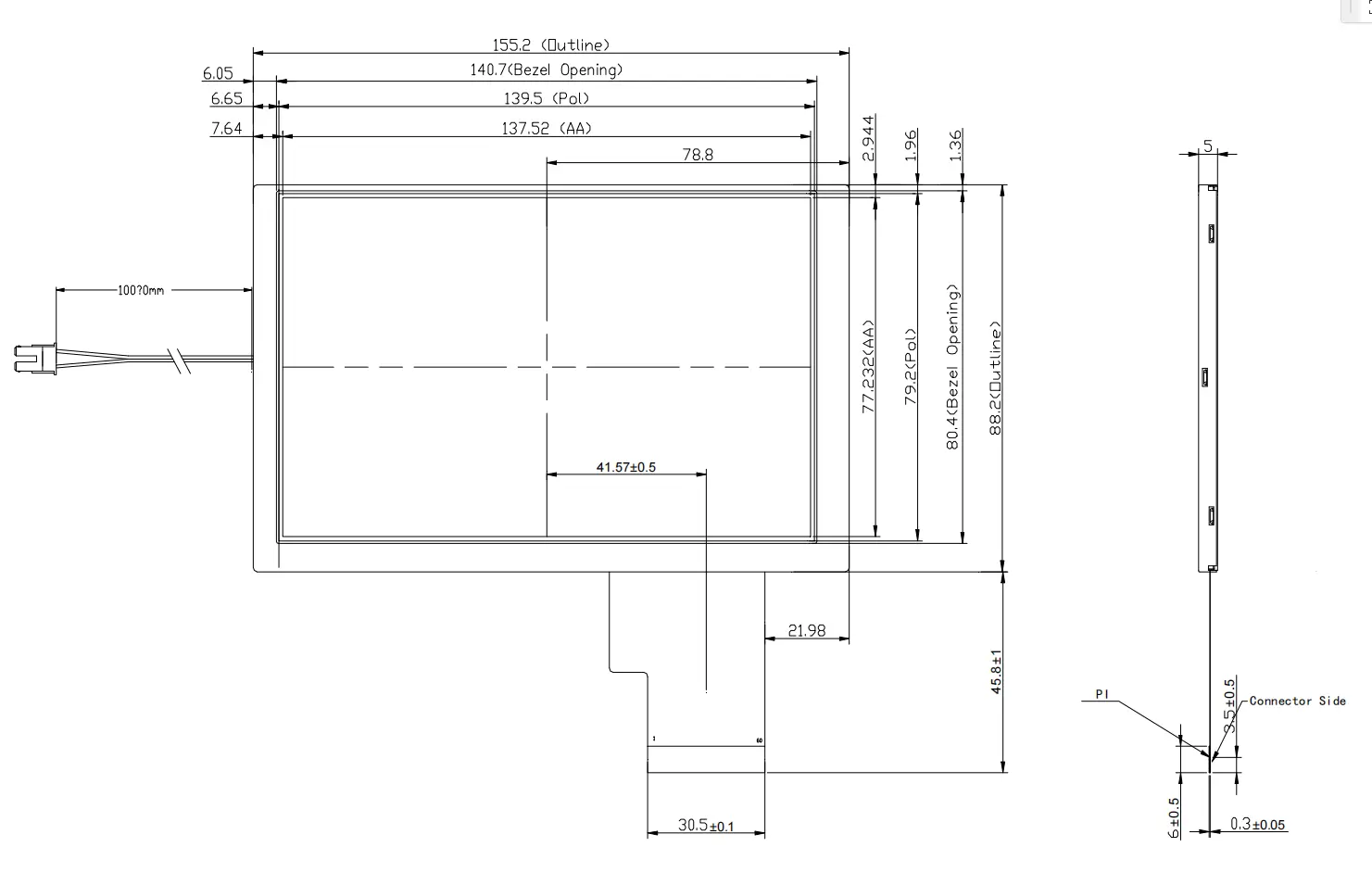

| LCM (W x H x D) (mm) | 155.2X88.2X5 |
| Active Area(mm) | 137.52x 77.232 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.0V |
| No. | Symbol | Description |
|---|---|---|
| 1 | AGND | Analog Ground |
| 2 | AVDD | Analog Power |
| 3 | VCC | Digital Power |
| 4 | R0~R7 | Data Input |
| 12~19 | G0~G7 | Data Input |
| 20~27 | B0~B7 | Data Input |
| 28 | DCLK | Clock input |
| 29 | DE | Data Enable signal |
| 30 | HSD | Horizontal sync input. Negative polarity |
| 31 | VSD | Vertical sync input. Negative polarity |
| 32 | MODE3 | DE/SYNC mode select .normally pull high H:DE Mode L:HSD/VSD mode |
| 33 | RSTB | Global reset pin. Active low to enter reset state. suggest to Connecting with an RC reset circuit for stability .normally pull High. |
| 34 | STBYB | standby mode, normally pull high STBYB="1",normal operation STBYB="0",timming control ,source driver will turn off, all output are high-Z |
| 35 | SHLR | Source right or left sequence control. SHLR="L", shift left: last data=S1<-S2…S1200=first data SHLR="H", shift right: first data=S1->SS2…S1200=last data |
| 36 | VCC | Digital Power |
| 37 | UPDN | Gate up or down scan control. UPDN="L" , DOWN shift : G1->G2…->G480 ; UPDN="H", up shift: G1<-G2…<-G480 |
| 38 | GND | Digital Ground |
| 39 | AGND | Analog Ground |
| 40 | AVDD | Analog Power |
| 41 | VCOM | For external VCOM DC input (Adjustable) |
| 42 | DITH | Dithering setting: DITH="H" 6bit resolution (last 2 bits of input data truncated) (default setting) DITH="L" 8bit resolution |
| 43~44 | NC | Not connect |
| 45 | V10 | Gamma correction voltage reference |
| 46 | V9 | Gamma correction voltage reference |
| 47 | V8 | Gamma correction voltage reference |
| 48 | V7 | Gamma correction voltage reference |
| 49 | V6 | Gamma correction voltage reference |
| 50 | V5 | Gamma correction voltage reference |
| 51 | V4 | Gamma correction voltage reference |
| 52 | V3 | Gamma correction voltage reference |
| 53 | V2 | Gamma correction voltage reference |
| 54 | V1 | Gamma correction voltage reference |
| 55 | NC | Not connect |
| 56 | VGH | Positive Power for TFT |
| 57 | VCC | Digital Power |
| 58 | VGL | Negative Power for TFT |
| 59 | GND | Digital Ground |
| 60 | NC | Not connect |
The H062HWV60E5001 is a 6.2-inch TN panel module featuring an 800×480 (WVGA) resolution, 16.7M colors (24-bit), and a brightness level of 500 cd/m².
It utilizes a standard 60-pin RGB interface that provides comprehensive connections for digital data inputs, clock signals, power rails, and gamma references.
Yes, the display can be optionally configured with either capacitive (multi-touch) or resistive touch screens, supporting both gloved-hand and wet-finger input.
The module features an operating temperature range of -20℃ to +70℃ and can withstand storage conditions from -30℃ to +80℃, suitable for demanding environments.
It is widely implemented in vehicle systems (dashboards, rearview monitors), industrial HMI control panels, portable medical instruments, smart home intercoms, and financial terminals (ATMs, POS devices).
Customization options include tailored touch screen types, customized backlight luminance, specific interface pin configurations, and firmware modifications.
