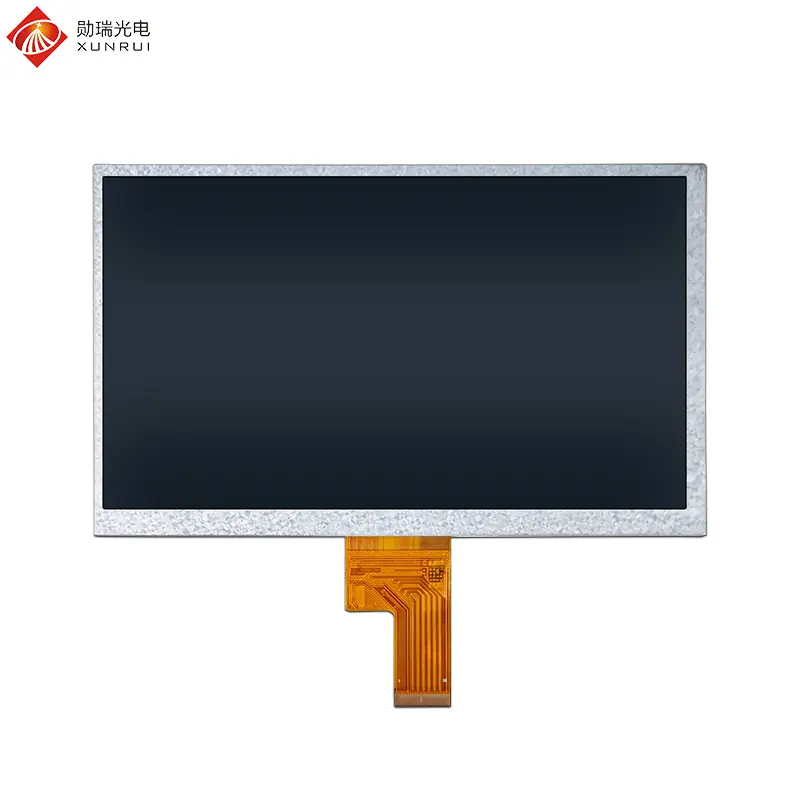

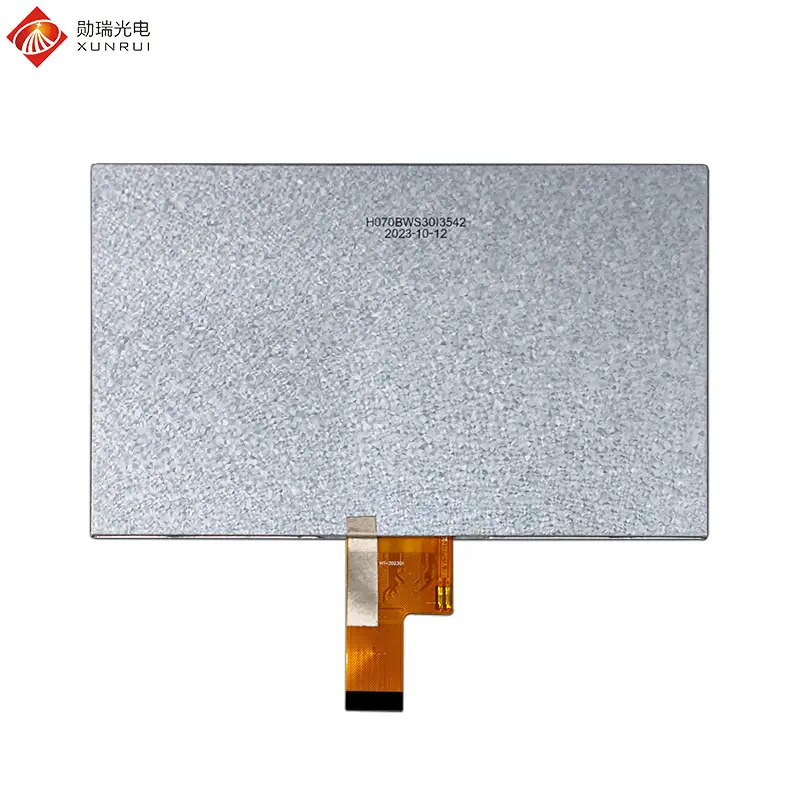

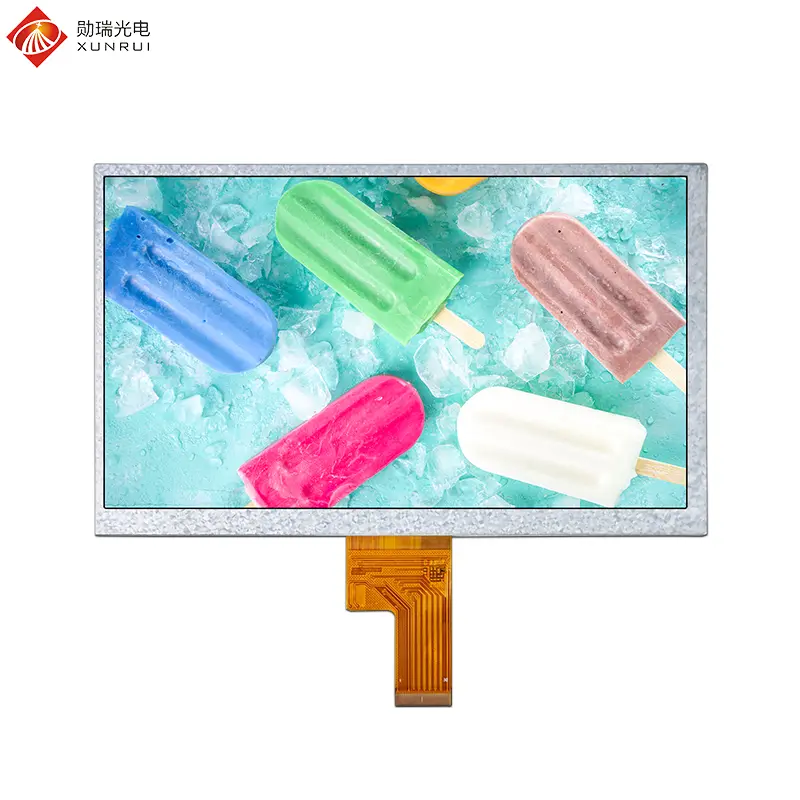

H070BWS30I3542 is a 7-inch TFT LCD Display. This LCD screen adopts IPS full-view technology, presenting no color deviation when viewed from multiple angles, and ensuring stable color reproduction. The resolution is 1024×600 (WSVGA level), with a width-to-height ratio of 16:9, a pixel density of approximately 170 PPI, and detailed text and image display. It supports 16.7M colors (8-bit color depth), with a color gamut coverage of up to 72% NTSC. The picture is vivid and realistic, suitable for graphical UI and video playback. The MIPI 30PIN interface is high-speed, with simple wiring, suitable for high-speed image transmission scenarios, reducing system latency. The brightness is 350 nit, with a working temperature range of -10°C to +60°C. It has shock resistance and dust-proof features, meeting the strict requirements of industrial sites and outdoor equipment. It can be optionally equipped with a touch screen. This 7-inch TFT LCD module is mainly used in industrial HMI equipment: for PLC operation screens, industrial control computers, and monitoring terminals for automated production lines. It supports complex graphical interfaces and real-time data feedback. It is a smart home control panel: integrated into central control systems, intelligent thermostats, or security hosts, providing intuitive touch control experience. It is a portable medical device: applied to handheld ultrasound devices, vital sign monitors, etc. Some products support medical-grade certification to ensure display accuracy. It is in the aftermarket automotive market: as rearview camera, navigation, or multimedia host displays, the MIPI interface is easy to connect with Android motherboards. It is an IoT terminal: used for smart gateways, POS machines, self-service terminals, etc., supporting Android, Linux, and RTOS system drivers. The 7-inch 1024×600 MIPI interface LCD is one of the mainstream choices in the embedded display field, with high resolution, compact size, and efficient interface, widely used in industries, healthcare, automotive, and IoT devices.
| Feature | Spec |
|---|---|
| Model Name | H070BWS30I3542 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | MIPI 30pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | TBD |

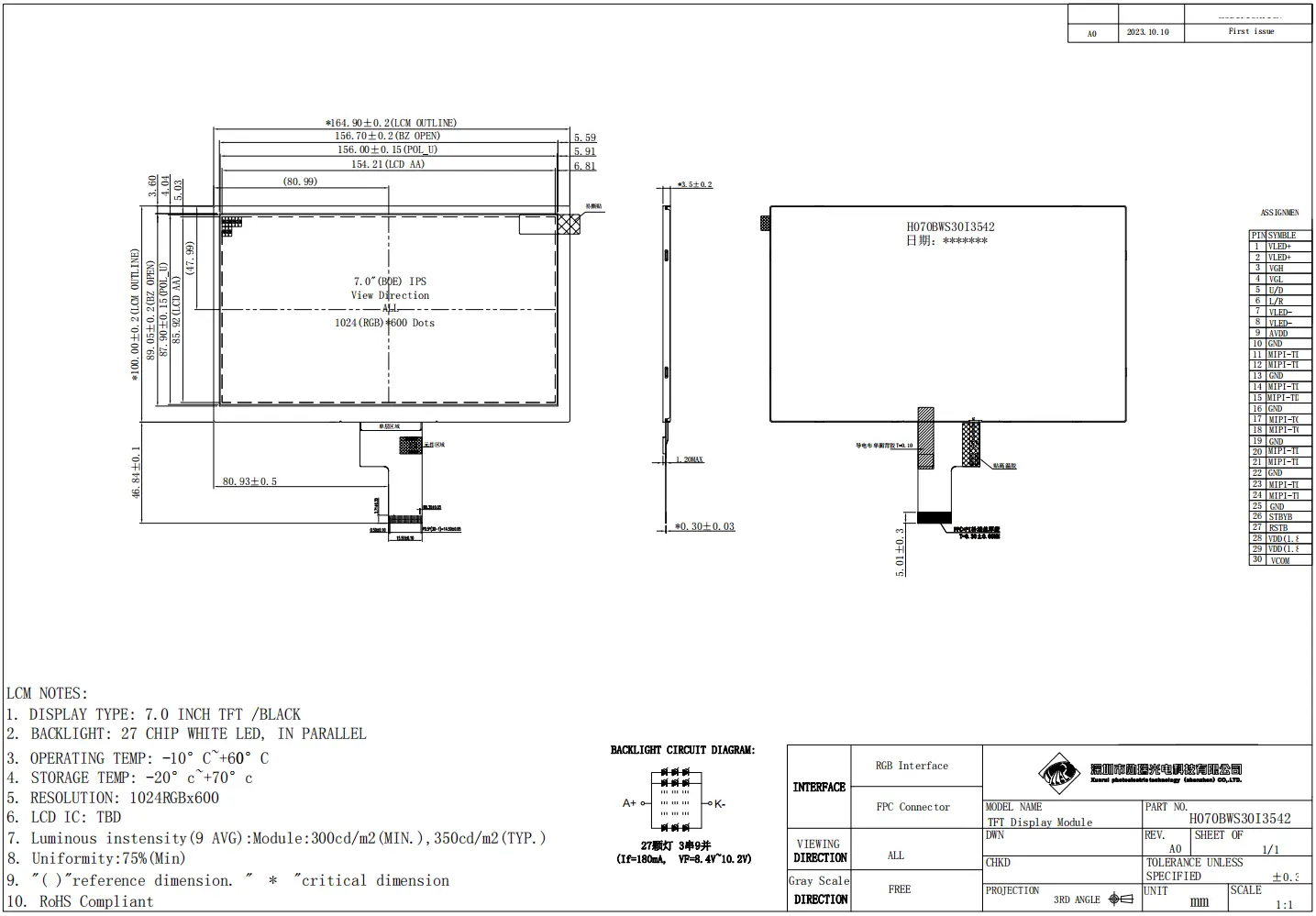

| LCM (W x H x D) (mm) | 164.9(H) x 100(V) x 3.5(T) |
| Active Area (mm) | 154.2144(H) × 85.92(V) |
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Operating Voltage | 9.0V |
| PIN NO | Symbol | Description |
|---|---|---|
| 1 | VLED+ | LED backlight (Anode) |
| 2 | VLED+ | LED backlight (Anode) |
| 3 | VGH | Gate ON Voltage |
| 4 | VGL | Gate OFF Voltage |
| 5 | U/D | UP / down select |
| 6 | L/R | Left / right select |
| 7 | VLED- | LED backlight (Cathode) |
| 8 | VLED- | LED backlight (Cathode) |
| 9 | AVDD | A power supply for the analog power. |
| 10 | GND | Ground |
| 11 | MIPI_TDP3 | MIPI-DSI Data differential signal input pins. (Data lane 3+) |
| 12 | MIPI_TDN3 | MIPI-DSI Data differential signal input pins. (Data lane 3-) |
| 13 | GND | Ground |
| 14 | MIPI_TDP2 | MIPI-DSI Data differential signal input pins. (Data lane 2+) |
| 15 | MIPI_TDN2 | MIPI-DSI Data differential signal input pins. (Data lane 2-) |
| 16 | GND | Ground |
| 17 | MIPI_TCP | MIPI-DSI CLOCK differential signal input pins. |
| 18 | MIPI_TCN | MIPI-DSI CLOCK differential signal input pins. |
| 19 | GND | Ground |
| 20 | MIPI_TDP1 | MIPI-DSI Data differential signal input pins. (Data lane 1+) |
| 21 | MIPI_TDN1 | MIPI-DSI Data differential signal input pins. (Data lane 1-) |
| 22 | GND | Ground |
| 23 | MIPI_TDP0 | MIPI-DSI Data differential signal input pins. (Data lane 0+) |
| 24 | MIPI_TDN0 | MIPI-DSI Data differential signal input |
| 25 | GND | Ground |
| 26 | STBYB | Standby mode pin. |
| 27 | LRSTB | Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ, C=1μF) |
| 28 | VDD | A power supply for the analog power. VDD=1.8V |
| 29 | VDD | A power supply for the analog power. VDD3=1.8V |
| 30 | VCOM | The power supply of common voltage in DC com driving. |
This model features a 1024×600 (WSVGA) resolution with an IPS full-viewing angle display, ensuring clear visibility and consistent color accuracy from all directions without distortion.
It integrates a high-speed MIPI 30-pin interface with 4 data lanes, offering streamlined wiring, low EMI, and low latency for real-time video and graphical UI data transmission.
Yes, the base display comes without touch by default, but capacitive touch screen (CTP) and resistive touch screen (RTP) solutions are available as optional configurations.
The module easily connects with mainstream embedded platforms and application processors, fully supporting Android, Linux, and RTOS operating system drivers.
The panel supports an operating temperature range from -10°C to +60°C and a storage temperature range from -20°C to +70°C, providing industrial-grade shock and dust resistance.
It is widely deployed in industrial HMI panels, PLC operation terminals, smart home central consoles, portable medical devices, automotive aftermarket displays, and smart IoT/POS equipment.
