China 7 inch 800×480 RGB 40pin 450nit TN TFT LCD Display Manufacturers, Suppliers

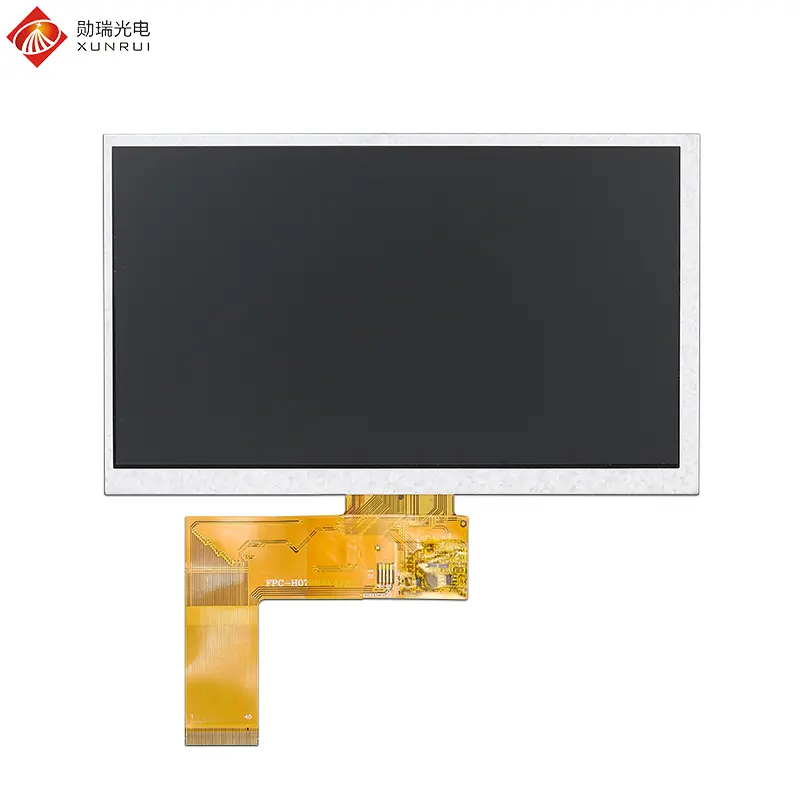

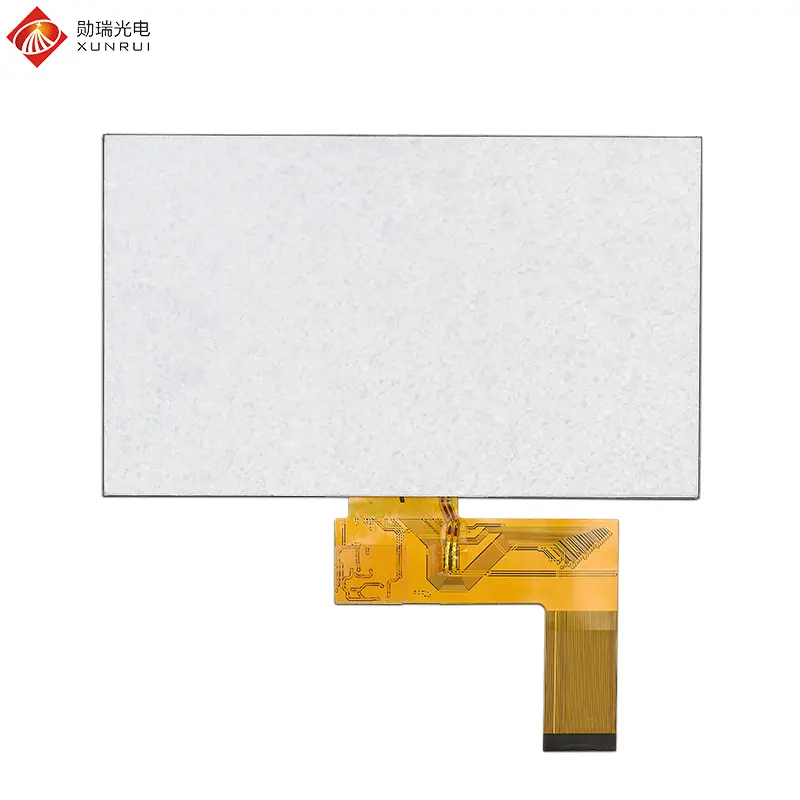

H070BWV40E5007 is a 7-inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×480 and a display ratio of 16:9. It has a compact design, making it easy to be embedded in various devices. The Driver IC, EK9716BD4 + EK73002AB2, has a RGB 40-pin interface and transmits signals using TTL levels, offering strong compatibility. It can be directly connected to various MCUs or embedded processors (such as STM32, NXP i.MX series). It supports optional capacitive/resistive touch screens (CTP/RTP) and can be customized for high brightness (up to 700~1000 cd/m²), full lamination, and waterproof features to meet visual requirements in outdoor or strong light environments. The backlight lifespan is generally over 30,000 hours and supports continuous operation, suitable for scenarios requiring long-term use.

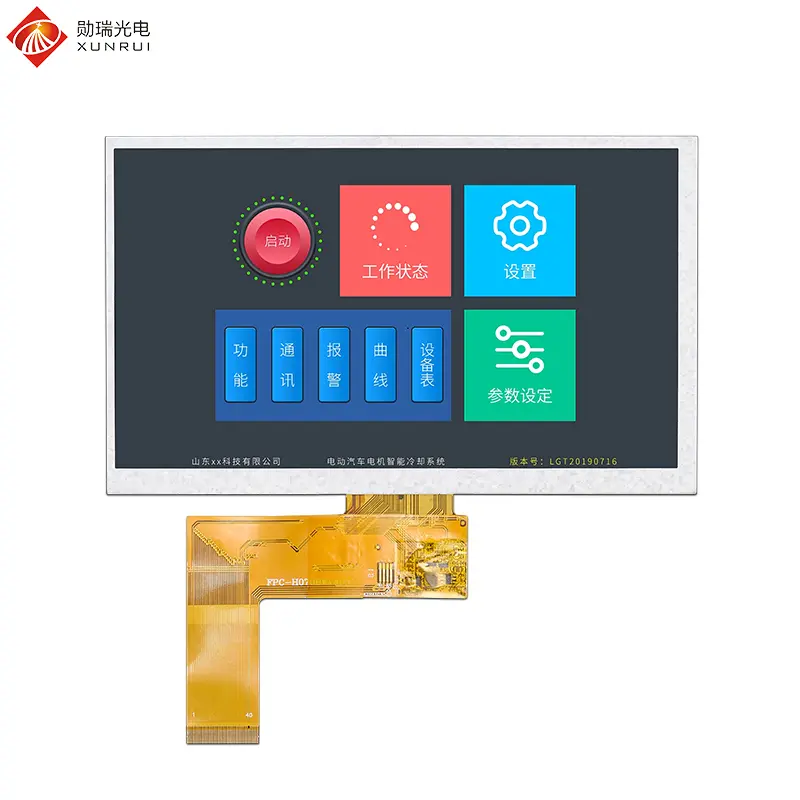

This 7-inch TFT LCD Display is mainly used in industrial automation control terminals (HMI): for PLC operation panels and production line monitoring systems, operators can clearly read the equipment status from different angles, improving human-computer interaction efficiency. For example, it can display real-time parameters such as temperature, pressure, and speed on food packaging machinery. Medical equipment display module: used in portable ultrasound machines, monitors, etc., some high-end models achieve precise gray-scale restoration through 10-bit color depth and high contrast, helping to reduce the risk of misdiagnosis. Vehicle and intelligent transportation systems: as display units for vehicle navigation, reversing images, bus information screens, etc., it has good shock resistance and temperature adaptability. Smart home and security monitoring: used in home control panels, video access control systems, supporting touch operation, enhancing user experience.
