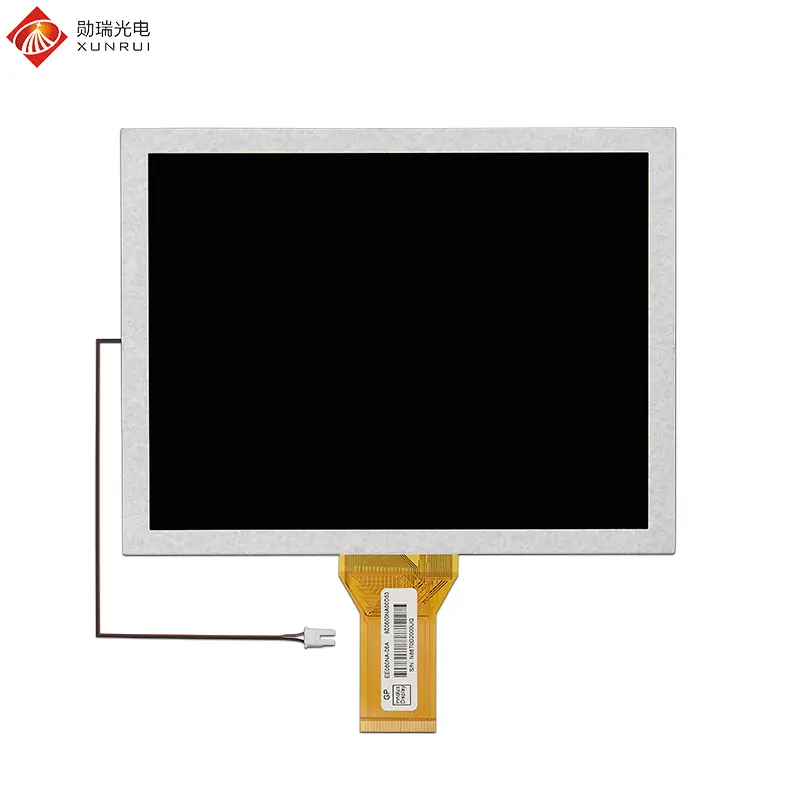

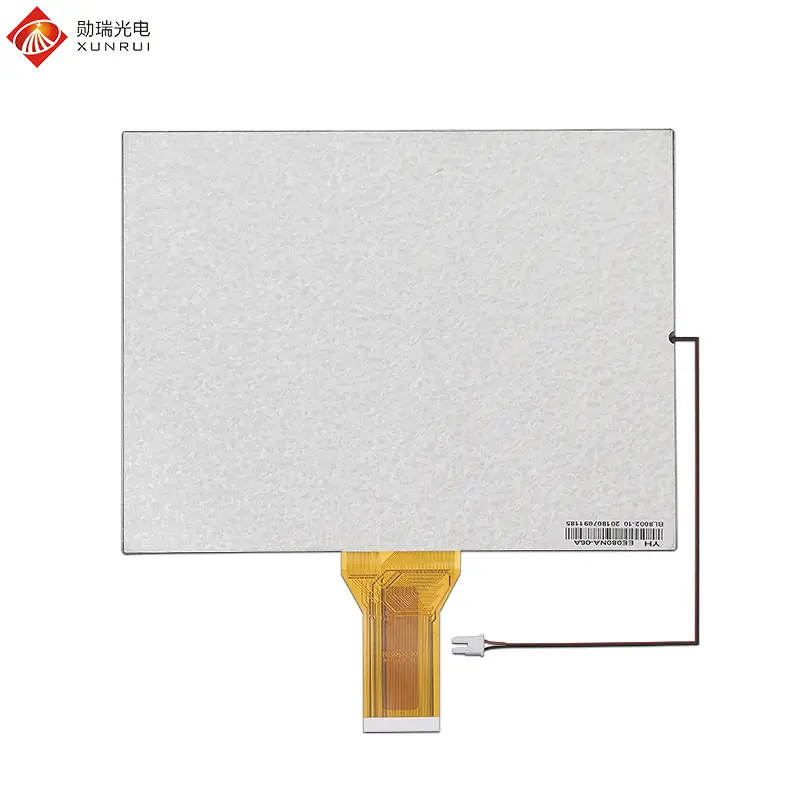

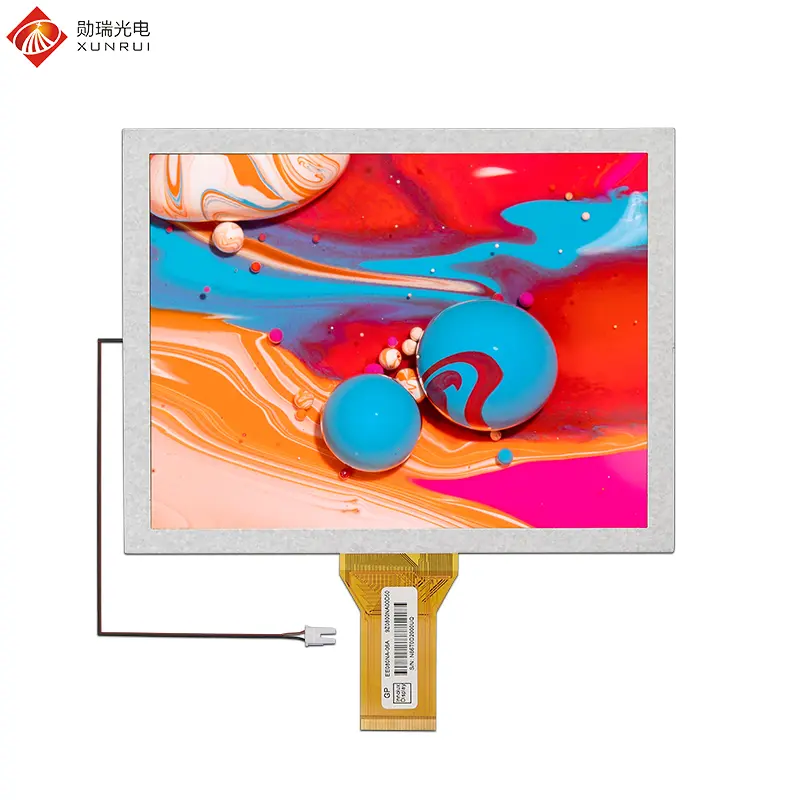

H080IWS50E3501 is an 8-inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×600 (SVGA) and a screen ratio of 4:3. It conforms to standard industrial display specifications and is suitable for embedded systems and control interface design. The RGB 50-pin interface, with a brightness of 350 nit, has a contrast ratio generally ranging from 800:1 to 1000:1, ensuring clear image details and sharp text edges. It supports optional capacitive/resistive touch screens (CTP/RTP). This 8-inch TFT LCD Display is mainly applied in industrial automation control: used in machine tools, CNC equipment, PLC human-machine interface (HMI), production line monitoring systems, etc., to achieve parameter setting, status monitoring, and fault alarm. In medical equipment: used in portable monitors, drug distribution machines, surgical assistance equipment, etc., requiring stable display of vital sign data or operation procedures. In smart home: as a home control panel, used to control lights, air conditioners, security systems, etc., supporting touch interaction and graphical interface. In commercial and public service terminals: used in self-service terminals, information inquiry machines, etc., supporting 7×24-hour operation, with oil-resistant and anti-scratch coatings. In vehicle-mounted and mobile devices: used as monitoring or navigation screens in special vehicles (such as forklifts, engineering vehicles), some models support shock resistance and anti-glare processing.

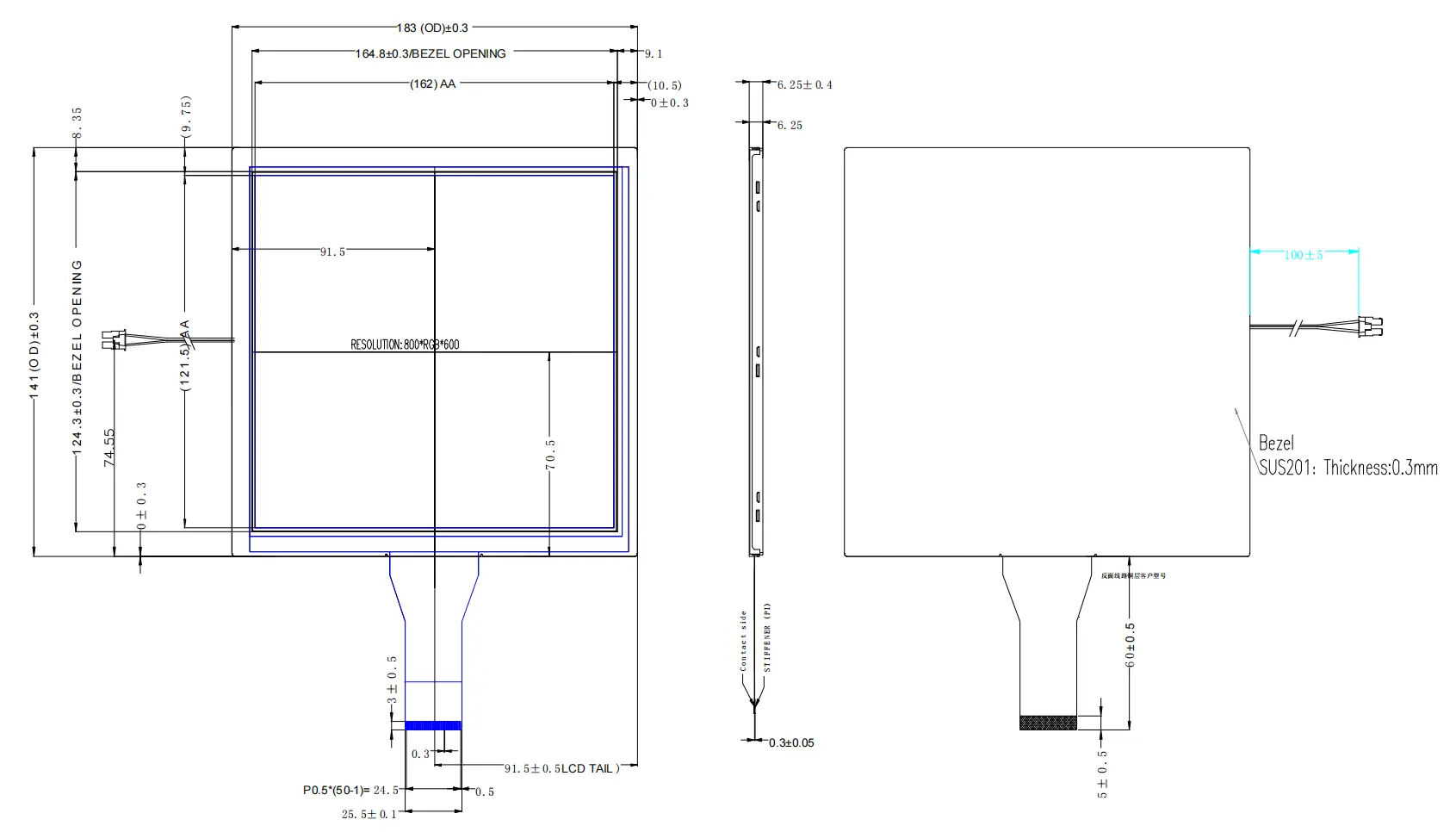

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H080IWS50E3501
LCD Size
8 inch
Display Format
800×600
Interface
RGB 50pin
Luminance
350 cd/m²
Touch screen
None, optional
Viewing Direction
12 O'CLOCK
Color Depth
262K
Driver IC
TBD
LCM (W x H x D) (mm)
183*141*6.25
Active Area(mm)
162*121.5
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-30℃ ~ +80℃
Operating Voltage
9.6V
Interface Definition
No.
Symbol
Description
1~4
NC
No connection
5
GND
Power ground
6
VCOM
Common voltage
7
VCC
Power for Digital circuit
8
MODE
DE/SYNC mode select (Note3)
9
DE
Data Input Enable
10
VS
Vertical Sync Input
11
HS
Horizontal Sync Input
12
B7
Blue data (MSB)
13
B6
Blue data
14
B5
Blue data
15
B4
Blue data
16
B3
Blue data
17
B2
Blue data
18
B1
Blue data
19
B0
Blue data (LSB)
20
G7
Green data (MSB)
21
G6
Green data
22
G5
Green data
23
G4
Green data
24
G3
Green data
25
G2
Green data
26
G1
Green data
27
G0
Green data (LSB)
28
R7
Red data (MSB)
29
R6
Red data
30
R5
Red data
31
R4
Red data
32
R3
Red data
33
R2
Red data
34
R1
Red data
35
R0
Red data (LSB)
36
GND
Power ground
37
DOCLK
Sample clock
38
GND
Power ground
39
L/R
Right/ left selection (Note2,5)
40
U/D
Up/down selection (Note2,5)
41
VGH
Gate ON voltage
42
VGL
Gate OFF voltage
43
AVDD
Power for Analog circuit
44
RESET
Global reset pin. (Note1)
45
NC
No connection
46
VCOM
Common voltage
47
DITHB
Dithering function (Note 4)
48
GND
Power ground
49
NC
No connection
50
NC
No connection
Frequently Asked Questions (FAQ)
What interface does the H080IWS50E3501 TFT LCD display use?
This display utilizes a standard industrial RGB 50-pin interface, providing high-speed digital transmission suitable for MCU and embedded controllers.
Can this 8-inch LCD module be customized with a touch panel?
Yes, touch panels are optional. You can configure this module with either a Capacitive Touch Panel (CTP) or a Resistive Touch Panel (RTP) based on application requirements.
What is the optimal operating temperature for this display?
The module features a wide operating temperature range from -20℃ to +70℃, with storage tolerance between -30℃ and +80℃, making it ideal for harsh industrial environments.
What are the primary applications for this screen?
It is widely used in industrial automation (HMI, CNC, PLC monitors), medical monitoring equipment, smart home control panels, and mobile vehicle terminals like forklifts and engineering machinery.
What is the display resolution and aspect ratio?
The display features an 800×600 (SVGA) resolution with a classic 4:3 aspect ratio, optimal for structured industrial data, telemetry, and control systems.
