Product Description

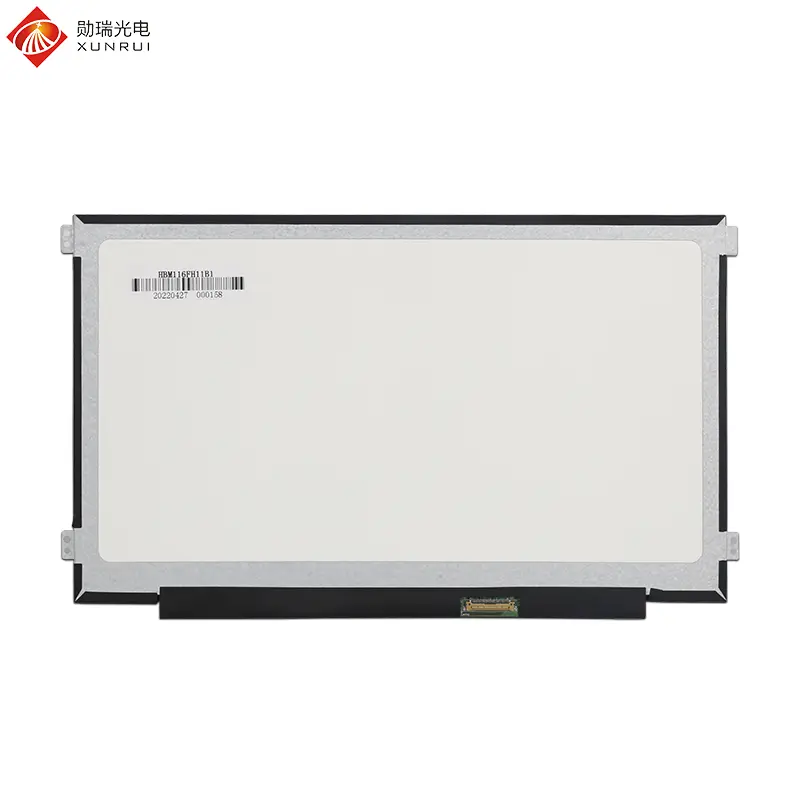

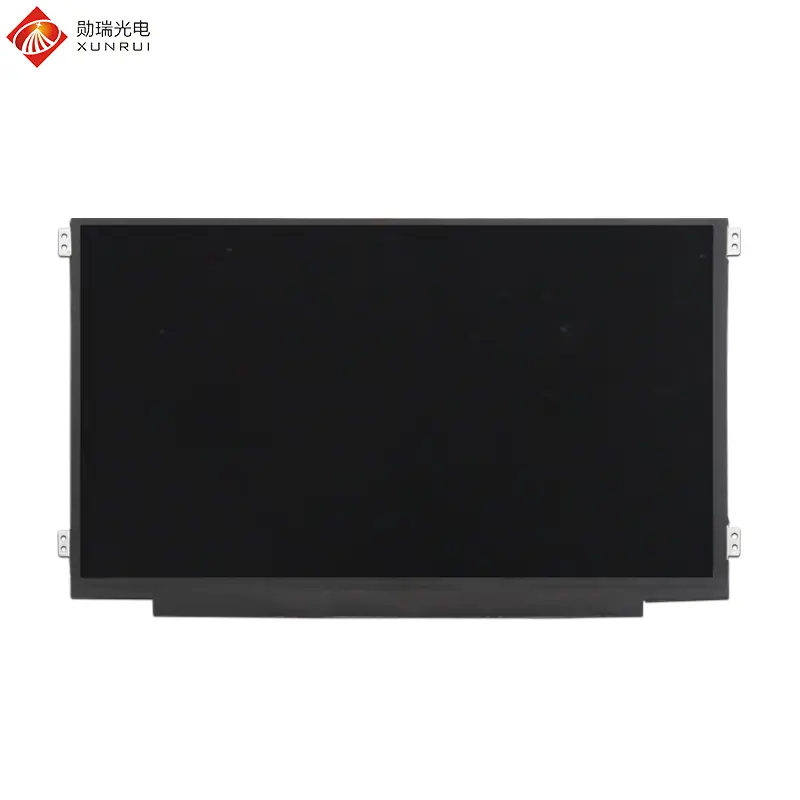

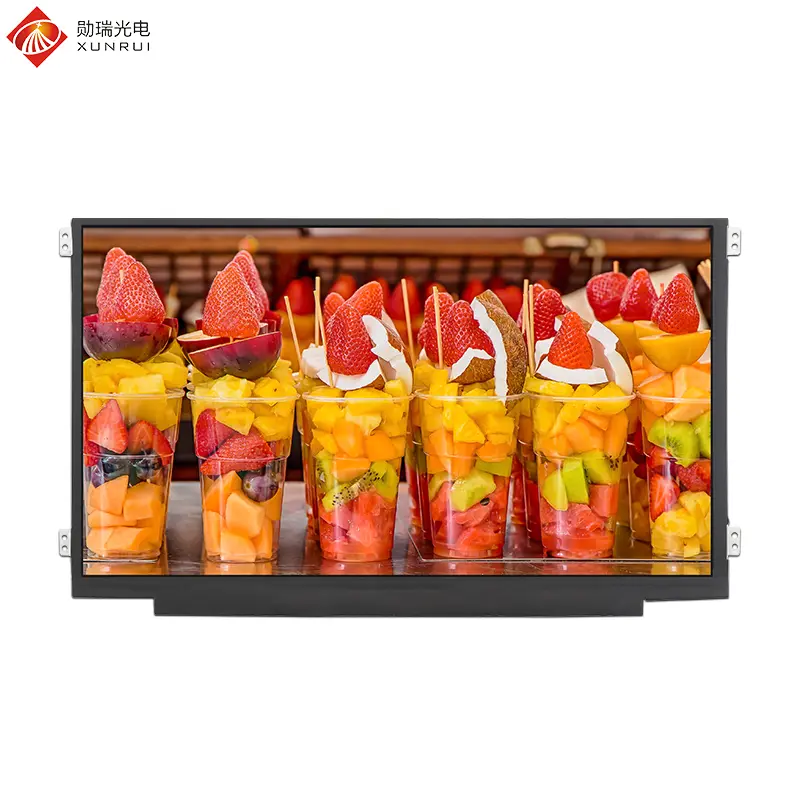

HBM116FH11B1 is an 11.6-inch TFT LCD module. This LCD screen uses an IPS panel, featuring a resolution of 1920×1080 and a full viewing angle. It comes with an EDP 30-pin interface, delivers a brightness of 220 nit, and withstands an operating temperature range of 0°C to +50°C. It can also be equipped with an optional touch screen.
Product Advantages:
• High-Definition Display: Native 1920×1080 (Full HD) resolution with high pixel density delivers clear and sharp text, images, and videos.
• Color Reproduction: Incorporating advanced IPS/TFT technology, it supports 16.7M true color rendering with rich gradations.
• Wide Viewing Angle: The IPS panel guarantees an ultra-wide viewing angle, ensuring clear, consistent color without degradation from acute angles.
• Environmental Adaptability: Engineered for industrial and professional reliability, suitable for diverse indoor, standard, and dim ambient lighting conditions.
Applications: Widely applied across industrial equipment, vehicle-mounted dashboards, medical diagnostic displays, and smart control terminals.
| Feature | Specification |
|---|---|
| Model Name | HBM116FH11B1 |
| LCD Size | 11.6 inch |
| Display Format | 1920×1080 |
| Interface | EDP 30PIN |
| Luminance | 220 cd/m² |
| Touch Screen | None, optional |
| Viewing Direction | ALL (Full Viewing Angle) |
| Color Depth | 16.7M |
| Driver IC | TBD |

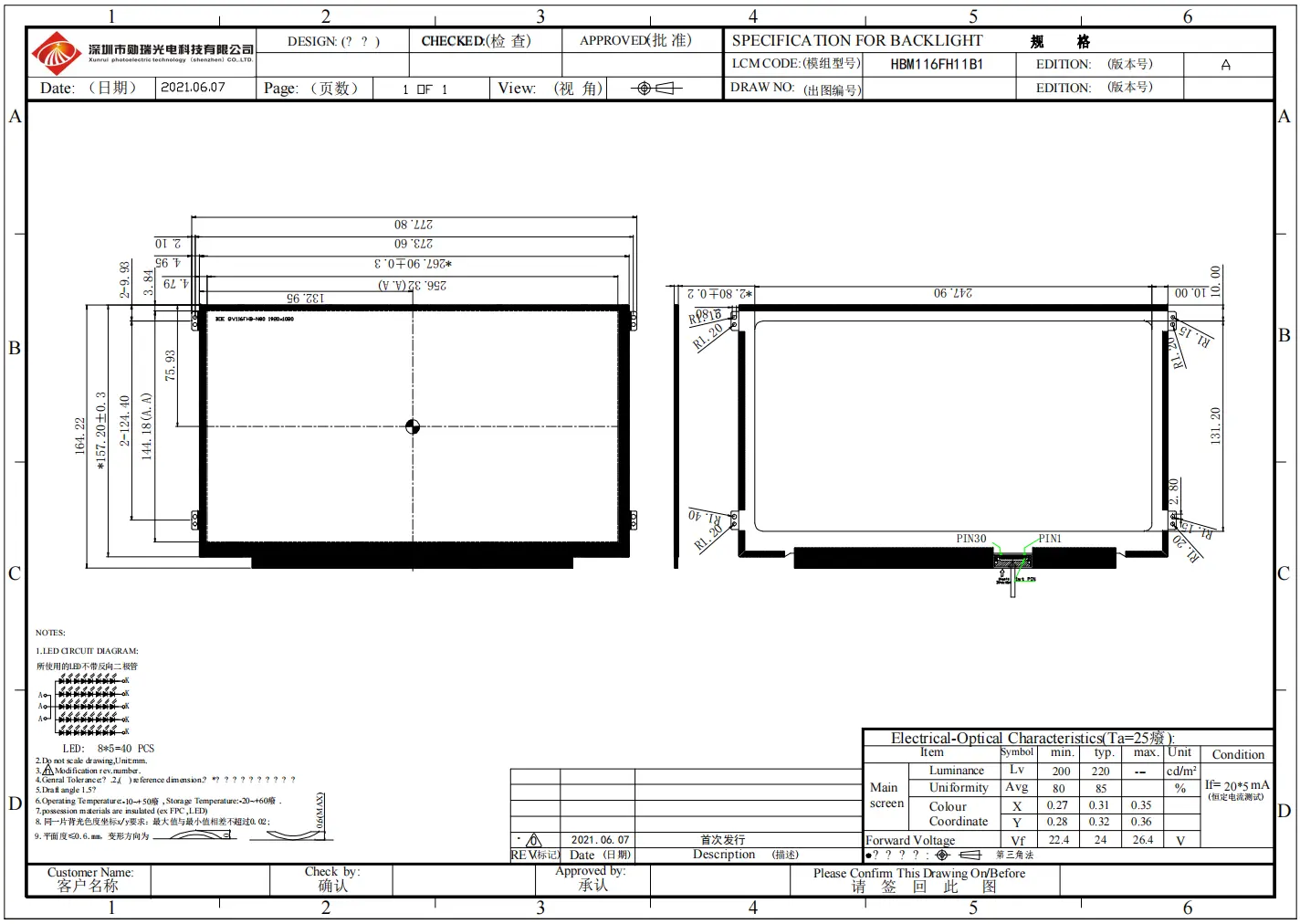

| LCM (W × H × D) (mm) | 267.9 × 164.22 × 2.8 |
| Active Area (mm) | 256.32(H) × 144.18(V) |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -10℃ ~ +60℃ |
| Operating Voltage | 24V |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | NC | - | Reserved for CD |
| 2 | H_GND | P | High Speed Ground |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed Ground |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed Ground |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed Ground |
| 12 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-GND | P | Backlight ground |
| 19 | LED-GND | P | Backlight ground |
| 20 | LED-GND | P | Backlight ground |
| 21 | LED-GND | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | NC | - | Reserved for LCD manufacturer’s use |
| 25 | NC | - | Reserved for LCD manufacturer’s use |
| 26 | Vled | P | Backlight power |
| 27 | Vled | P | Backlight power |
| 28 | Vled | P | Vled Backlight power |
| 29 | Vled | P | Backlight power |
| 30 | NC | - | Reserved for LCD manufacturer’s use |
2 inch 480×240 RGB 40pin 150nit TN TFT
2.4 inch 240×320 MCU 40pin interface 250nit
2.8 inch 240×320 MCU 30pin interface 250nit
3.5 inch 320×240 RGB 54pin interface 350nit
4.3 inch TFT LCD 800×480 RGB 40pin 300nit
5 inch 800×480 1200nit High brightness
7 inch 1024×600 1000nit High brightness
8 inch TFT LCD module 800×1280 MIPI 31pin
10.1 inch TFT LCD module 1280×800 LVDS
13.3 inch 1920×1080 EDP 30PIN 280nit IPS
The HBM116FH11B1 module features a Full HD resolution of 1920×1080 with an IPS panel, providing full viewing angles (ALL direction) and consistent color accuracy.
This display uses an Embedded DisplayPort (EDP) 30-pin interface supporting high-speed differential signal lanes.
Yes, while the standard module comes without touch, a capacitive or resistive touch screen is optionally supported based on project requirements.
The module operates stably in temperatures ranging from 0°C to +50°C and can be stored in temperatures from -10°C to +60°C.
It is specifically designed for industrial control devices, vehicle-mounted display panels, medical diagnostic tools, and various interactive terminal systems.
