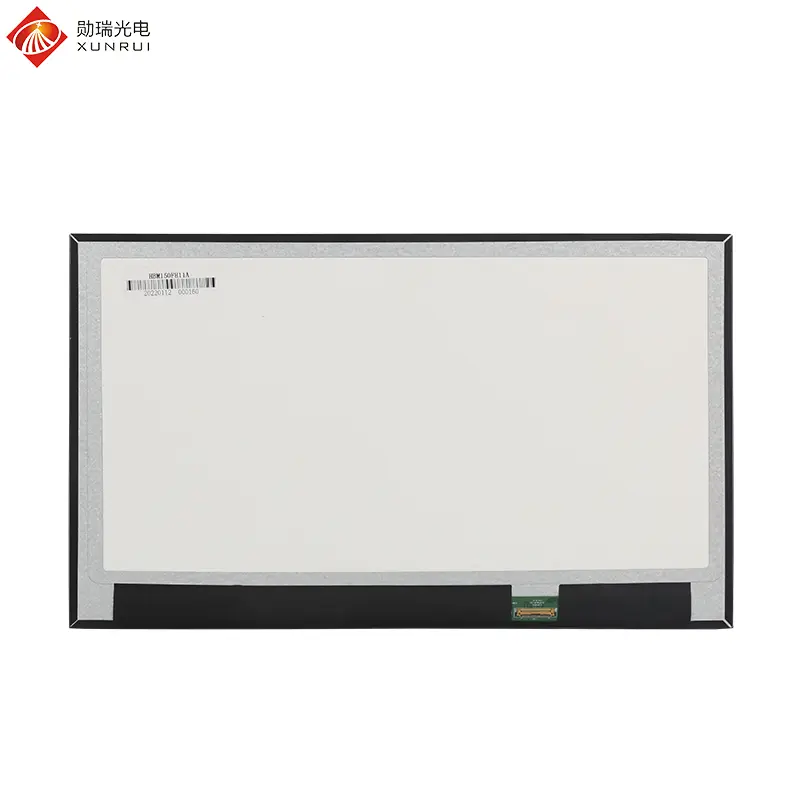

📄 Product Description
HBM150FH11A is a 15-inch TFT LCD module with a resolution of 1920×1080 (FHD), a 16:9 widescreen ratio, and is compatible with the majority of video content and office software interfaces. Some models support capacitive multi-touch, suitable for interactive scenarios such as self-service terminals and cashier systems. This 15-inch TFT LCD Display, with its 16:9 golden ratio, high pixel density, and wide compatibility, is widely used in various fields including office, industrial control, consumer electronics, and outdoor display. Office scenarios: The 15-inch FHD screen is the mainstream configuration for laptops and portable displays, balancing portability and visual experience. Cashier system: In retail scenarios, the 15-inch IPS screen integrates monitoring, cashier system, and customer flow statistics, simplifying the desktop layout. Consumer electronics and entertainment applications: From home TVs to gaming peripherals, the 15-inch FHD screen is also active in personal life scenarios.

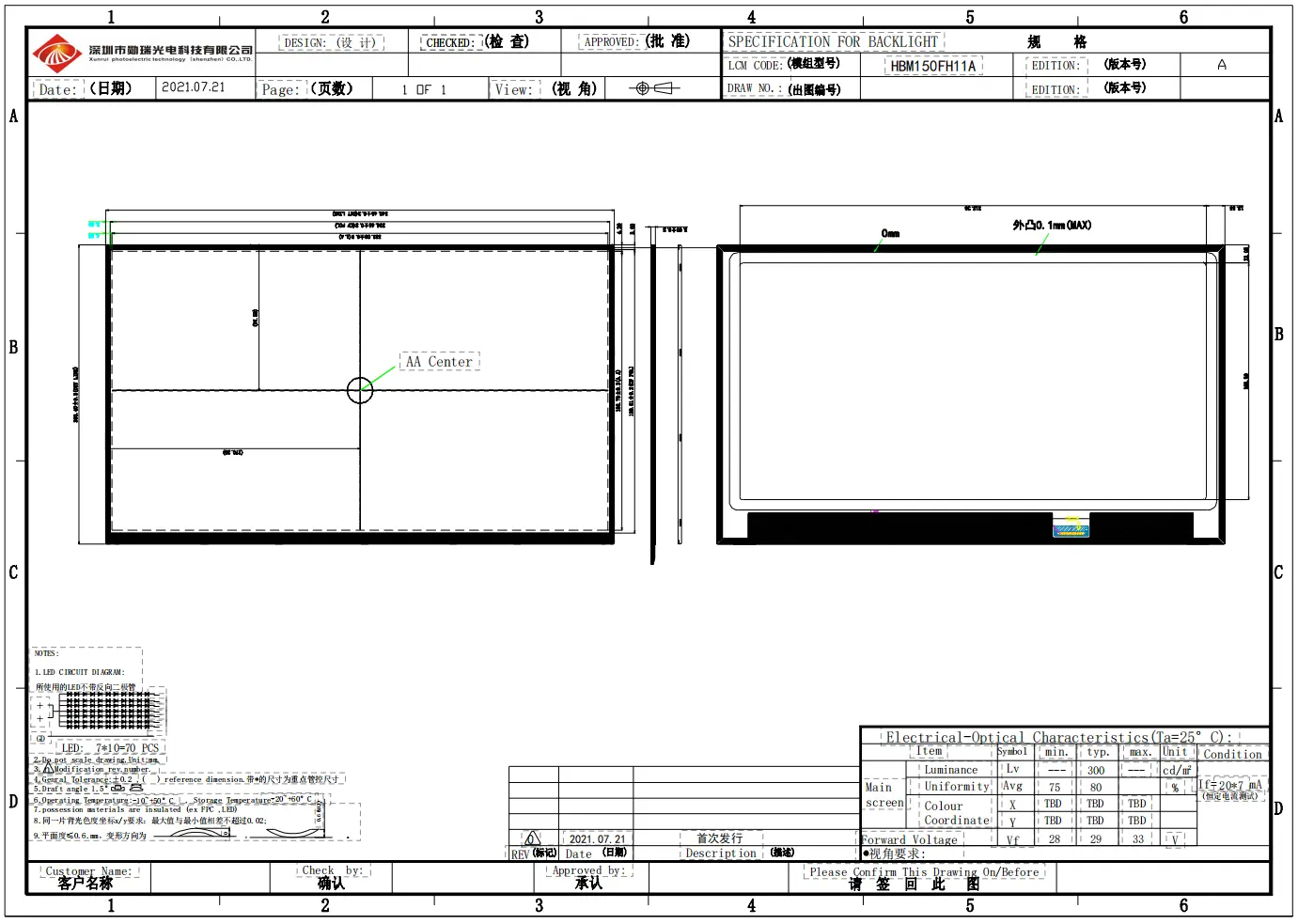

⚙ Mechanical Drawing
📊 Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | HBM150FH11A |
| LCD Size | 15 inch |
| Display Format | 1920×1080 |
| Interface | EDP 30pin |
| Luminance | 300 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7 M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 340.46*200.4*3.0 |
| Active Area(mm) | 322.064 (H) × 186.786 (V) |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Voltage | 12V |
🔌 Interface Definition
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | CABC_EN | I | CABC-EN |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True SignalAuxiliary Channel |
| 10 | AUX_CH_N | I | Complement SignalAuxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | LCD-TEST | I | Panel self test enable |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | Hot plug detect output |
| 18 | BL-GND | P | Backlight ground |
| 19 | BL-GND | P | Backlight ground |
| 20 | BL-GND | P | Backlight ground |
| 21 | BL-GND | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM Reset low active |
| 24 | MSCL | I | FOR DEBUGe |
| 25 | MSDA | - | FOR DEBUG |
| 26 | BL_PWR | P | LED Power Supply 5V-21V；If not use，NC |
| 27 | BL_PWR | P | LED Power Supply 5V-21V；If not use，NC |
| 28 | BL_PWR | P | LED Power Supply 5V-21V；If not use，NC |
| 29 | BL_PWR | P | LED Power Supply 5V-21V；If not use，NC |
| 30 | NC | - | NC |
❓ Frequently Asked Questions
Q: What is the native resolution of the HBM150FH11A LCD module?
The HBM150FH11A TFT LCD module features a Full HD resolution of 1920×1080 with a 16:9 aspect ratio, offering high pixel density and clear display output.
Q: Does this 15-inch display module support touch functionality?
The standard display comes without touch, but capacitive touch screen functionality is optional and can be integrated based on interactive project needs.
Q: What interface type does the HBM150FH11A LCD screen use?
This module is equipped with a standard EDP 30pin interface for reliable, high-speed visual data transmission.
Q: What are the recommended operating and storage temperature ranges?
The module operates within a temperature range of -10°C to +50°C and can be safely stored in temperatures ranging from -20°C to +60°C.
Q: What typical applications is this 15-inch TFT LCD panel designed for?
It is widely suitable for laptop replacements, portable monitors, cashier retail systems, self-service interactive terminals, industrial control dashboards, and entertainment devices.
Q: What is the backlight power voltage requirement for this display?
The backlight driver accepts an LED power supply input between 5V and 21V, while the logic circuit operates on a typical 3.3V power supply.
