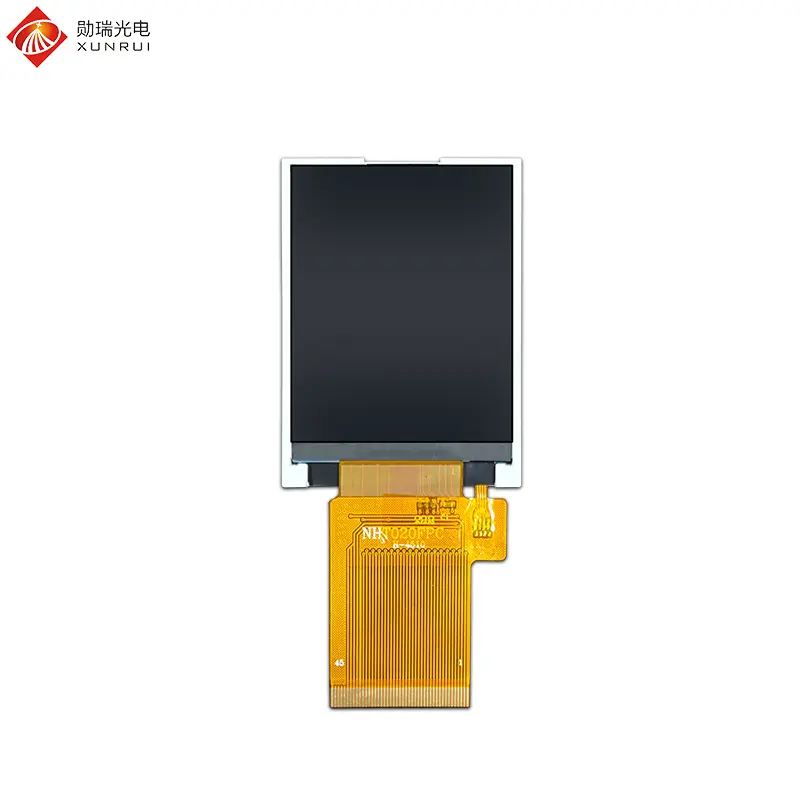

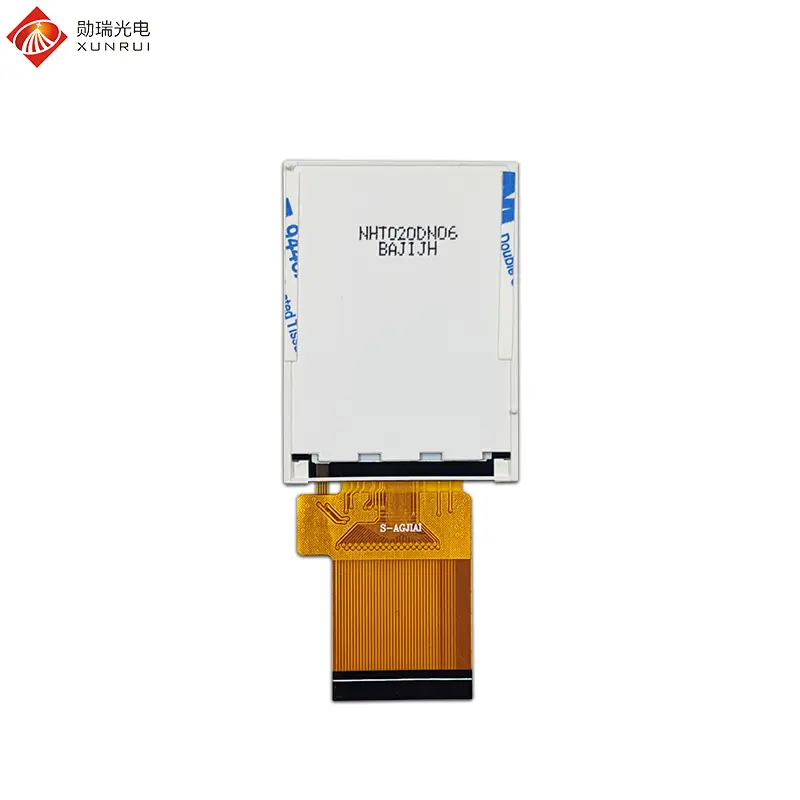

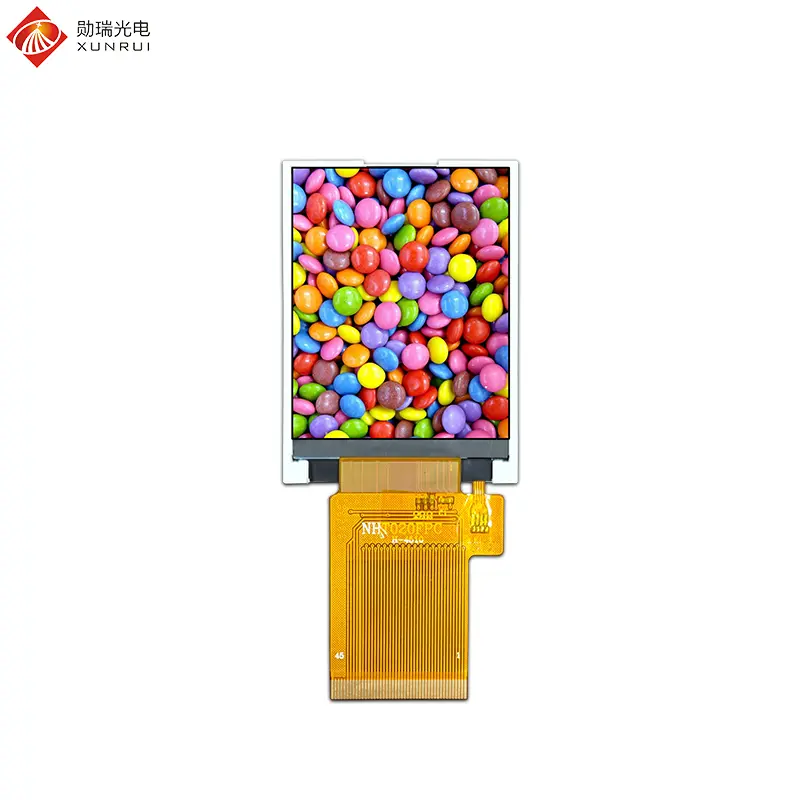

Custom 2 inch 176×220 MCU 45pin interface 220nit TN TFT LCD Module Supplier, Suppliers
Product Description
Industrial Control & Instrumentation
Used in PLCs, data collectors, and temperature controllers to display real-time data, status indicators, and menus with strong anti-interference stability.
Portable Medical Devices
Ideal for blood glucose meters, blood pressure monitors, and mobile monitors. Clear measurement graphs paired with a low power consumption profile.
Consumer Electronics & Smart Home
Applied in audio players, digital displays, electronic dictionaries, and smart home compact control panels for temperature, humidity, and air quality.
| Feature | Spec |
|---|---|
| Model Name | H020SQC45T2520 |
| LCD Size | 2.0 inch |
| Display Format | 176×220 |
| Interface | 8/9/16/18Bit MCU; 3/4SPI 45pin |
| Luminance | 220 cd/m² |
| Touch Screen | None, optional |
| Viewing Direction | 12 o’clock |
| Color Depth | 65K/262K |
| Driver IC | ILI9225G |

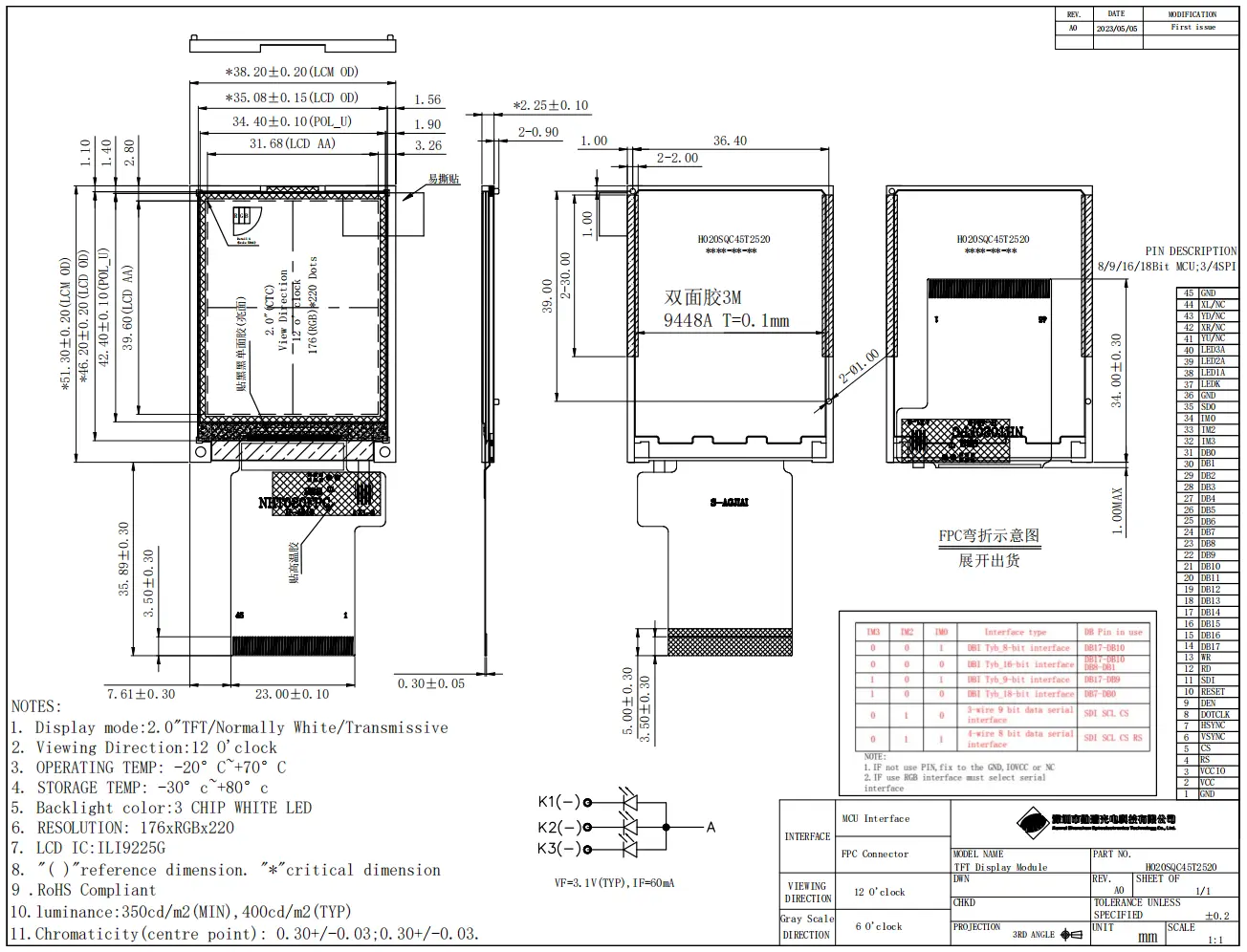

| LCM (W x H x D) (mm) | 38.20(W) × 51.30(H) × 2.25(D) |
| Active Area (mm) | 31.68(W) × 39.60(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.2V |
| Pin No | Symbol | Description | Note |
|---|---|---|---|
| 1 | GND | System Ground | - |
| 2 | VCC | Power supply for LCD | - |
| 3 | VCCIO | Power supply for LCD | - |
| 4 | RS | Data / Command select signal | - |
| 5 | CS | Chip Select PIN | - |
| 6 | VSYNC | Frame Synchronizing Signal For RGB Interface Operation | - |
| 7 | HSYNC | Line Synchronizing Signal For RGB Interface Operation | - |
| 8 | DOTCLK | Dot clock signal for RGB interface operation | - |
| 9 | DEN | Data input enable | - |
| 10 | RESET | Reset Signal | - |
| 11 | SDI | Serial communication data input | - |
| 12 | RD | Read Signal And Read Data | - |
| 13 | WR | Write signal | - |
| 14-31 | DB17-DB0 | Data Bus | - |
| 32 | IM3 | Interface Mode Select | - |
| 33 | IM2 | Interface Mode Select | - |
| 34 | IM0 | Interface Mode Select | - |
| 35 | SD0 | Register Select Signal | - |
| 36 | GND | Chip Select PIN | - |
| 37 | LEDK | Power Supply For LED Backlight Cathode Input | - |
| 38 | LED1A | Power Supply For LED Backlight Anode Input | - |
| 39 | LED2A | Power Supply For LED Backlight Anode Input | - |
| 40 | LED3A | Power Supply For LED Backlight Anode Input | - |
| 41 | YU/NC | Not Connected | - |
| 42 | XR/NC | Not Connected | - |
| 43 | YD/NC | Not Connected | - |
| 44 | XL/NC | Not Connected | - |
| 45 | GND | System Ground | - |
2 inch 480×240 RGB 40pin 150nit TN TFT LCD
2.4 inch 240×320 MCU 40pin 250nit TN TFT Module
2.8 inch 240×320 MCU 30pin 250nit TN TFT Display
3.5 inch 320×240 RGB 54pin 350nit TN TFT Module
4.3 inch TFT LCD 800×480 RGB 40pin 300nit IPS Module
5 inch 800×480 1200nit High Brightness TN TFT Module
7 inch 1024×600 1000nit High Brightness IPS TFT Module
8 inch TFT LCD 800×1280 MIPI 31pin 480nit IPS Screen
10.1 inch TFT LCD 1280×800 LVDS 40pin 350nit IPS Screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT Module
What is the resolution and display ratio of the H020SQC45T2520 module?
The module features a QCIF+ resolution of 176×220 pixels with an approximate 4:5 display aspect ratio, making it well-suited for portrait and vertical interfaces.
What driver IC and interfaces are supported by this 2-inch display?
It is powered by the ILI9225G driver IC and offers flexible connectivity via an 8/9/16/18-Bit MCU interface as well as 3/4-line SPI across 45 pins.
Can touch functionality be added to this screen?
Yes, while the standard configuration comes without touch, custom capacitive touch panels (CTP) or resistive touch panels (RTP) can be integrated upon request.
What is the operating temperature range for industrial deployment?
The display is engineered for stable operation within a temperature range of -20℃ to +70℃, with storage tolerance spanning from -30℃ to +80℃.
What are the primary applications for this display module?
This compact display is extensively deployed in industrial human-machine interfaces (PLCs, temperature controllers), portable medical equipment (blood pressure and glucose meters), consumer gadgets, and smart home IoT control panels.
