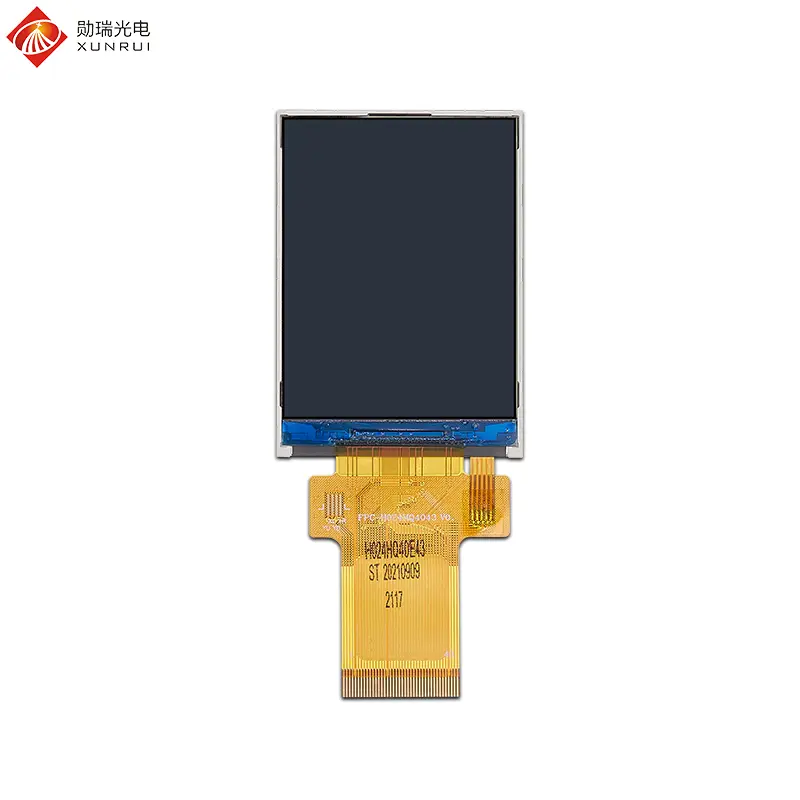

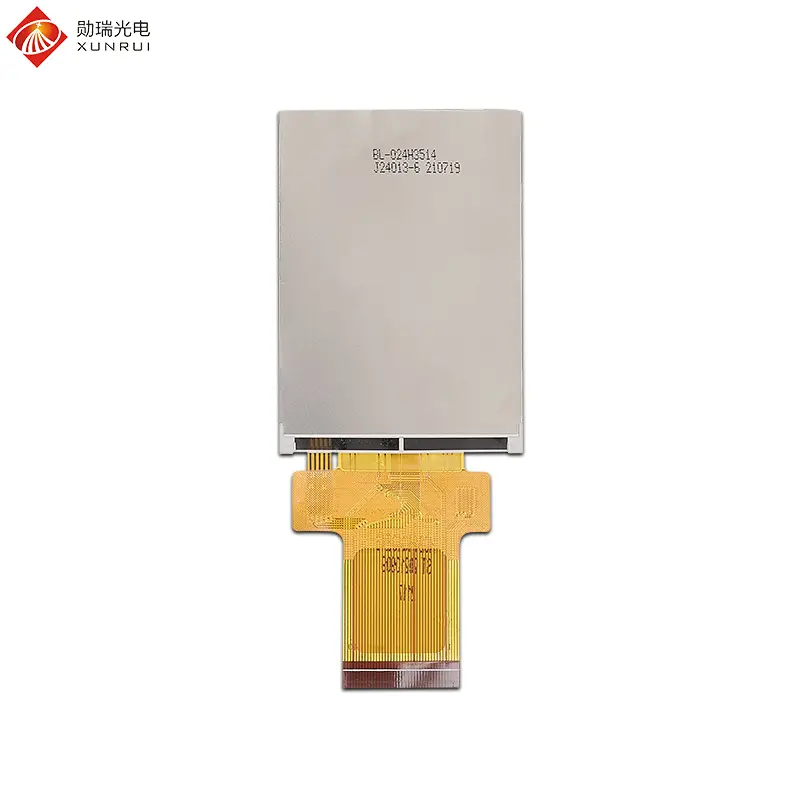

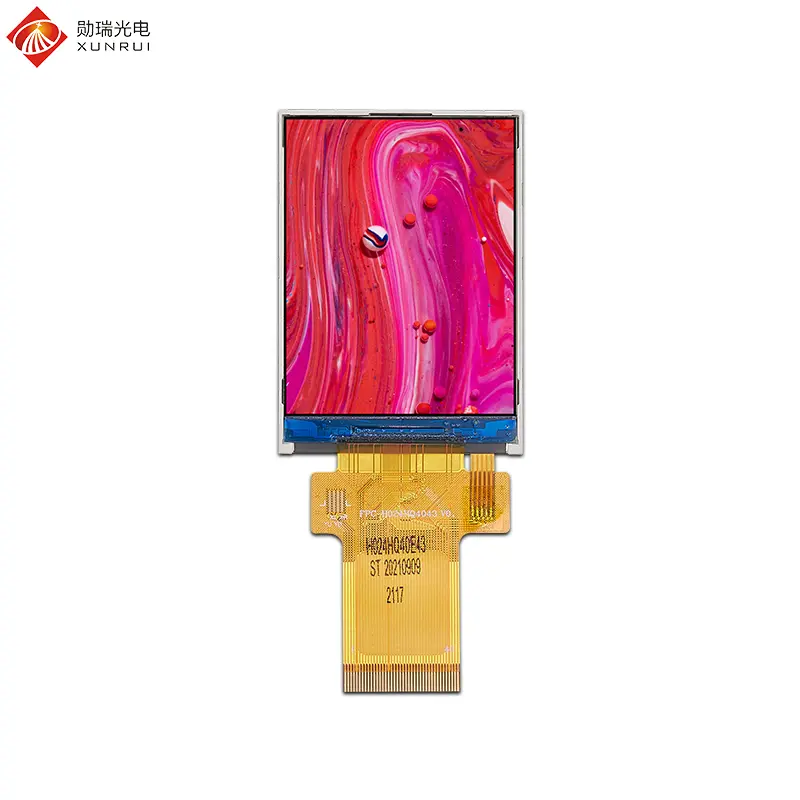

H024HQ40E2543 is a 2.4-inch TFT LCD module. This LCD screen adopts a TN panel with a resolution of 240×320, an 8-bit / 16-bit 40-pin interface of the MCU, an ST7789V Driver IC, and a brightness of 250 nits. The 2.4-inch TFT LCD module is mainly applied in industrial control equipment: such as data acquisition terminals and portable detectors; medical electronic instruments: such as blood glucose meters and blood pressure monitors; smart home and household appliances: integrated into other fields such as smart door locks and temperature control panels.
| Feature | Spec |
|---|---|
| Model Name | H024HQ40E2543 |
| LCD Size | 2.4 inch |
| Display Format | 240*320 |
| Interface | 8-bit / 16-bit 40pin MCU |
| Luminance | 250 cd/m2 |
| Touch Screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 262K |
| Driver IC | ST7789V |

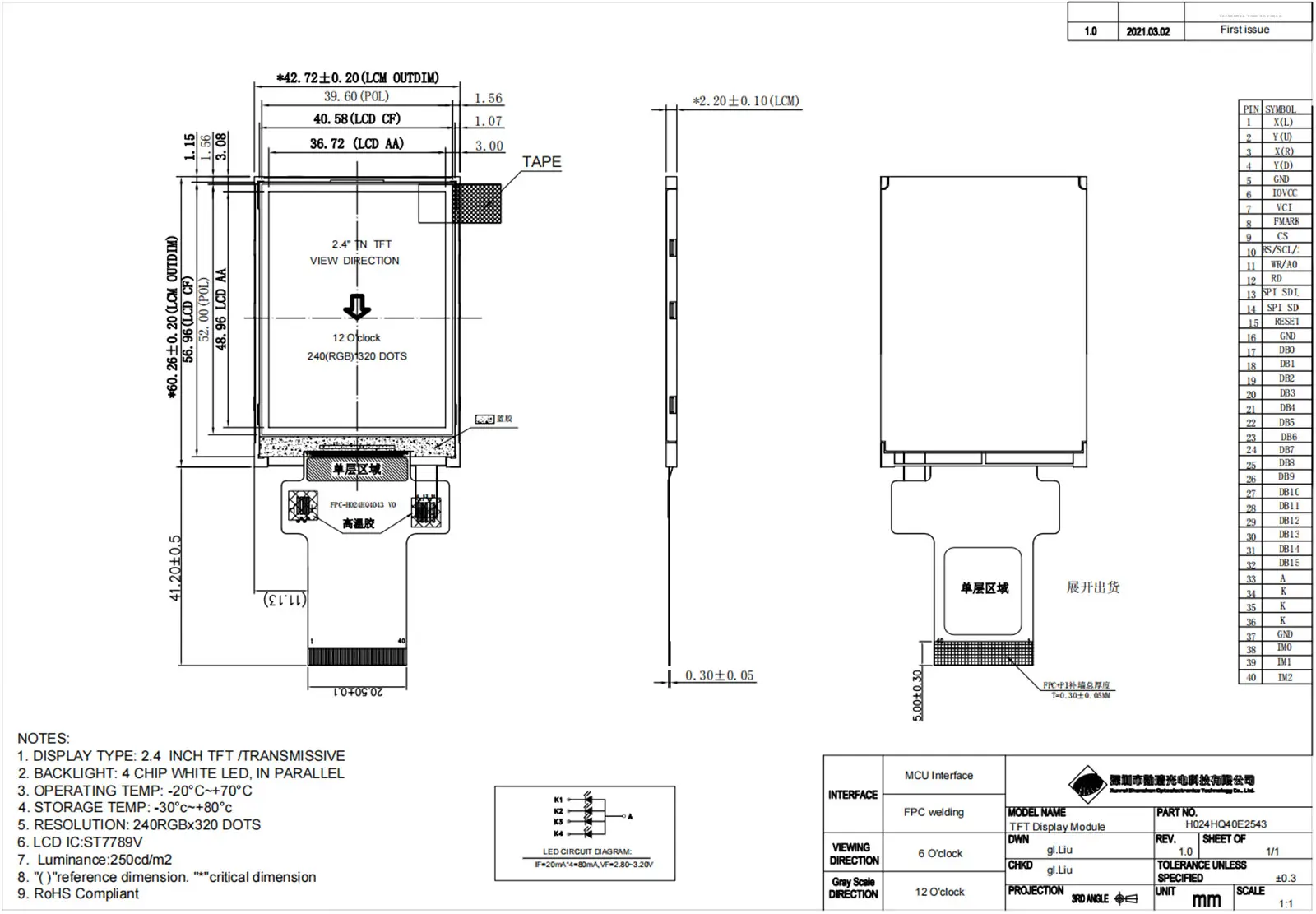

| LCM (W x H x D) (mm) | 42.72(W) * 60.26(H) * 2.20+/-0.1 (T) |
| Active Area (mm) | 36.72(W) * 48.96(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.2V |

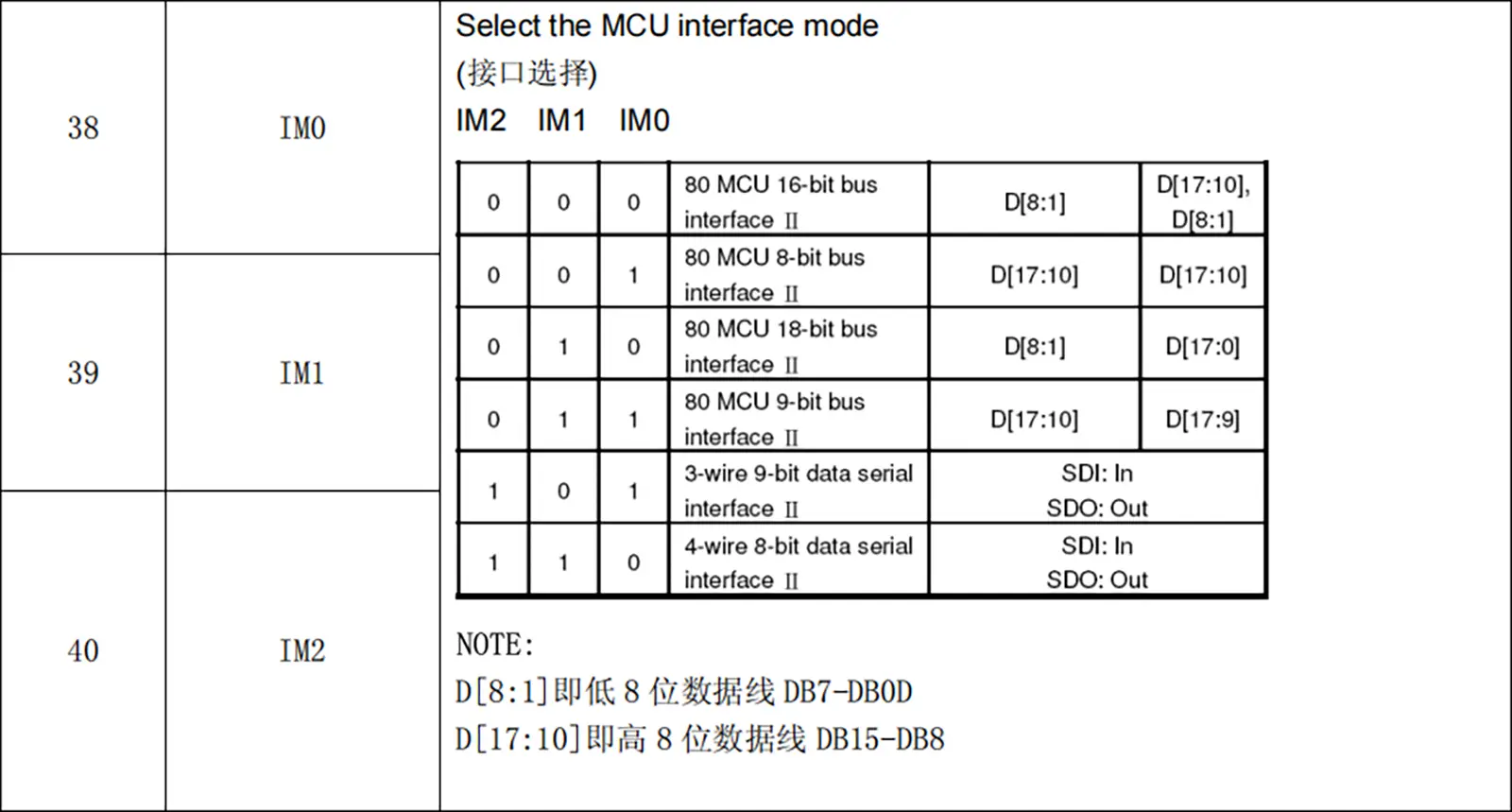

| PIN No. | Symbol | Description |
|---|---|---|
| 1 | X(L) | Touch panel control pin |
| 2 | Y(U) | Touch panel control pin |
| 3 | X(R) | Touch panel control pin |
| 4 | Y(D) | Touch panel control pin |
| 5 | GND | Ground |
| 6 | IOVCC | Power supply for LCM (2.8V-3.3V) |
| 7 | VCI | Power supply for LCM (2.8V-3.3V) |
| 8 | FMARK | Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. If not used, open this pin. |
| 9 | CS/SPI CS | Chip select pin (“Low” enable) |
| 10 | RS/SPI SCL/SCK | This pin is used to select “Data or Command” in the parallel interface or serial data interface. Parallel: When RS='1', data is selected; When RS='0', command is selected. Serial: Used as serial interface clock in 3-wire 9-bit / 4-wire 8-bit serial data interface. If not used, connect to IOVCC or GND. |
| 11 | WR/A0 | Serves as a write signal and writes data at the rising edge. - 4-line system (D/CX): Serves as command or parameter select. Fix to IOVCC level when not in use. |
| 12 | RD | Serves as a read signal and MCU read data at the rising edge. Fix to IOVCC level when not in use. |
| 13 | SPI_SDI/SDA | Serial input signal. The data is applied on the rising edge of the SCL signal. If not used, fix this pin at IOVCC or GND. |
| 14 | SPI_SD0 | Serial output signal. The data is outputted on the falling edge of the SCL signal. If not used, open this pin. |
| 15 | RESET | LCM Reset pin. Signal is active low. |
| 16 | GND | Ground |
| 17–24 | DB0–DB7 | Data bus. Fix to GND level when not in use. |
| 25–32 | DB8–DB15 | Data bus. Fix to GND level when not in use. |
| 33 | A | Anode of Backlight (3.0V–3.4V Typical: 3.2V) |
| 34–36 | K | Cathode of Backlight |
| 37 | GND | Ground |
QWhat is the driver IC and interface mode of the H024HQ40E2543 LCD module?
The module utilizes the ST7789V controller IC and supports an 8-bit/16-bit 40-pin MCU parallel interface as well as serial SPI control modes for high-speed graphics transmission.
QCan this 2.4-inch display be customized with a touch panel?
Yes. Although the standard model comes without a touch screen, capacitive touch screen (CTP) and resistive touch screen (RTP) solutions can be custom integrated upon request.
QWhat are the supported operating and storage temperatures?
The operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C, allowing dependable performance in industrial and commercial environments.
QWhat is the optimal viewing direction for this TN TFT LCD?
The display is designed with a 12 o’clock viewing angle, making it ideal for handheld devices, portable testing terminals, and upright equipment panels.
QWhat are the typical operating voltages for logic and backlighting?
The logic power supply (IOVCC/VCI) operates between 2.8V and 3.3V (typically 3.2V), while the LED backlight operates between 3.0V and 3.4V (typical 3.2V).
QIn which applications is this 2.4-inch module commonly utilized?
Common applications include industrial portable detectors, data acquisition terminals, medical instruments (such as blood glucose monitors), and smart home devices like digital thermostats and smart locks.
