Product Description

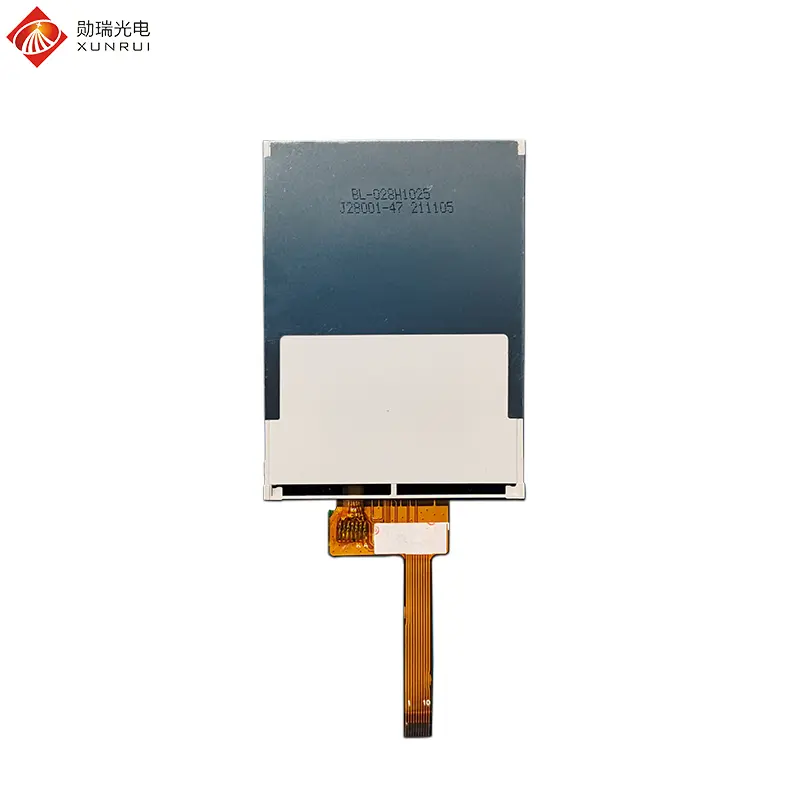

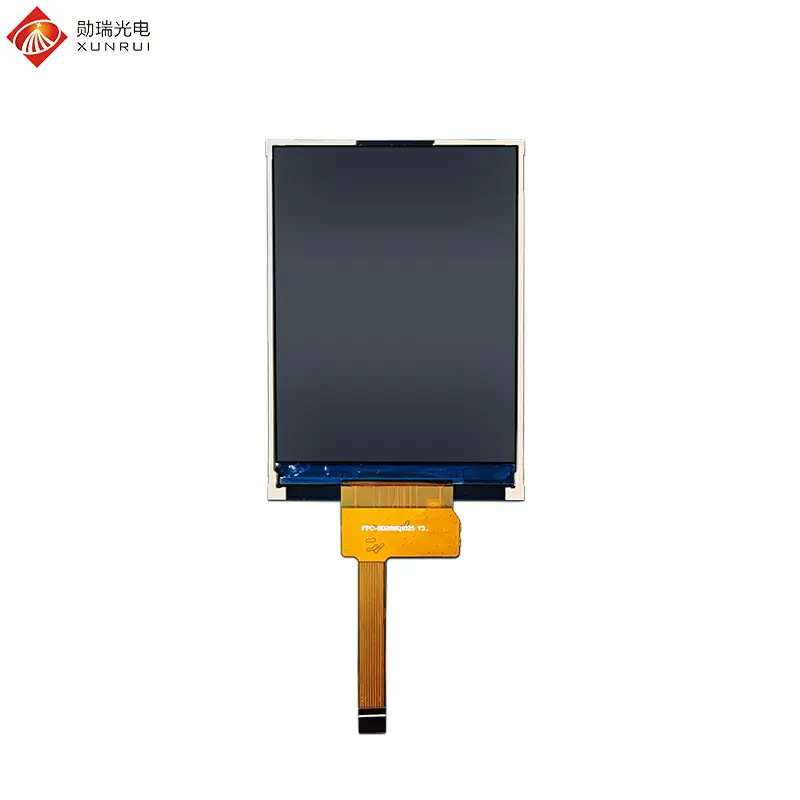

►Product Description
H028HQ10E2525 is a 2.8-inch TFT LCD module with a resolution of 240×320. It has an appropriate pixel density and can clearly display text, icons, and simple graphics. It supports 65K color display. The SPI 10-pin interface is an extremely cost-effective display solution in embedded development and portable devices. It supports touch (optional resistance or capacitance touch) to enhance user experience. This 2.8-inch TFT LCD Display, with its compact size and clear resolution, has become the preferred choice in industrial control, medical, and smart hardware fields. It is mainly applied in industrial control and instrument panels, embedded monitoring modules: in handheld detectors, industrial panels, and embedded monitoring modules, the 2.8-inch screen, with its wide temperature range (-20℃~70℃) and anti-interference ability, is often used to display real-time data, parameter settings, and equipment status. Some high-brightness versions even support visibility in strong outdoor light. Medical and health equipment: Portable blood glucose meters, heart rate monitors, blood oxygen meters, etc., small medical devices widely adopt this specification screen for clear display of numerical results and simple operation menus. Its stable display effect helps improve reading accuracy. Smart home and IoT terminals: As the interactive interface for smart switch panels, smart locks, pet feeders, or temperature and humidity controllers, it provides more information display than indicator lights.

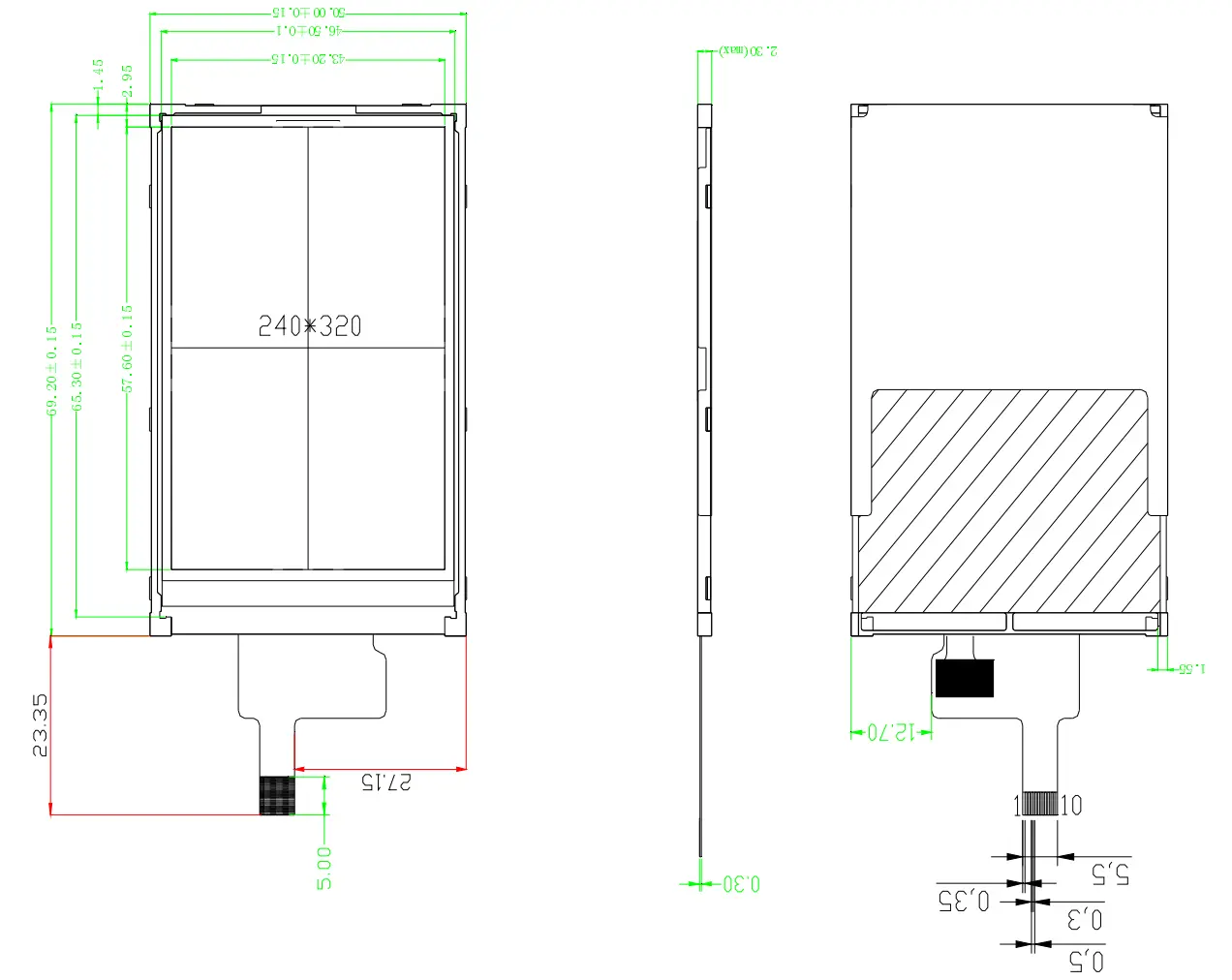

►Mechanical Drawing
►Specification parameters
| Feature | Spec |
|---|---|
| Model Name | H028HQ10E2525 |
| LCD Size | 2.8 inch |
| Display Format | 240×320 |
| Interface | SPI 10pin |
| Luminance | 250 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 6 o’clock |
| Color Depth | 65K |
| Driver IC | ST7789V |
| LCM (W x H x D) (mm) | 50*69.2*2.3 |
| Active Area(mm) | 43.2*57.6 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.2V |
►Interface definition
| PIN NO | PIN NAME | DESCRIPTION |
|---|---|---|
| 1 | LEDA | Backlight LED Anode. |
| 2 | LEDK | LED backlight cathode |
| 3 | CS | Chip select |
| 4 | RESET | Reset signal input terminal, active at ‘L’ |
| 5 | LSA0 | Display data/command selection pin in parallel interface. |
| 6 | SDO | SDO |
| 7 | SCK | Serial Clock. |
| 8 | SDA | Serial Data |
| 9 | VCC | Power supply 2.8V |
| 10 | GND | System Ground |
►Frequently Asked Questions (FAQ)
Q: What is the resolution and display interface of model H028HQ10E2525?
Model H028HQ10E2525 features a 240×320 resolution with a compact 10-pin SPI interface, making it easy to integrate into microcontrollers and embedded devices.
Q: Does this 2.8-inch TFT LCD module support touch screen functionality?
Yes, standard versions come without touch, but both capacitive and resistive touch panels are available as optional configurations based on your project requirements.
Q: Which driver IC is embedded in this display?
The module is powered by the widely supported ST7789V driver IC, allowing fast graphics rendering and extensive library compatibility for various platforms.
Q: What is the operating temperature range for industrial applications?
This display supports an industrial operating temperature range from -20℃ to +70℃ and a storage temperature range from -30℃ to +80℃, suitable for demanding environments.
Q: What typical applications is this 2.8-inch TFT module designed for?
It is widely used in industrial control panels, handheld testing equipment, portable medical monitors, and smart home IoT terminals requiring crisp visuals and compact installation.
