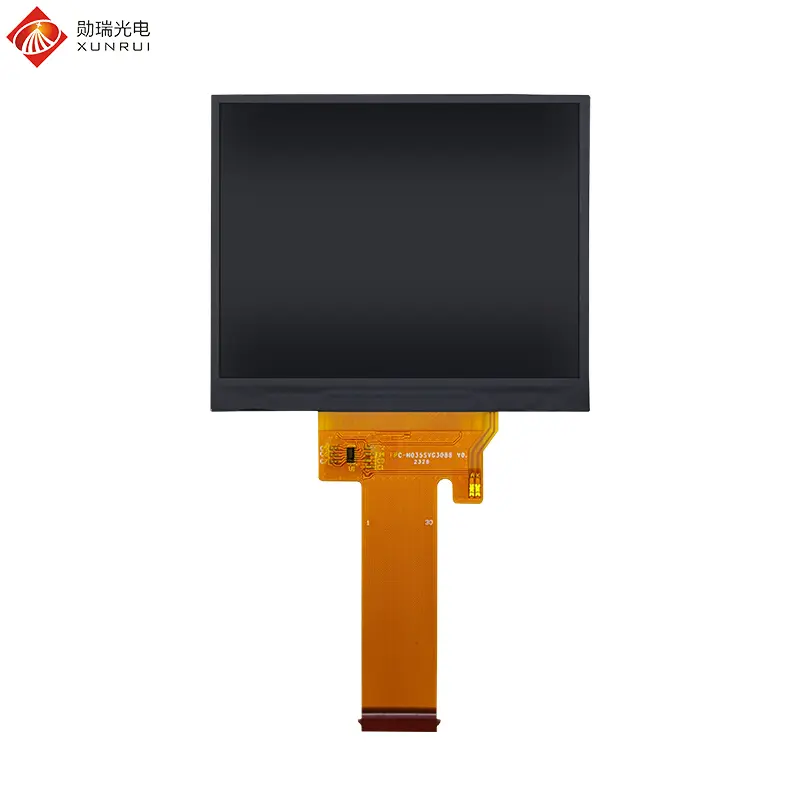

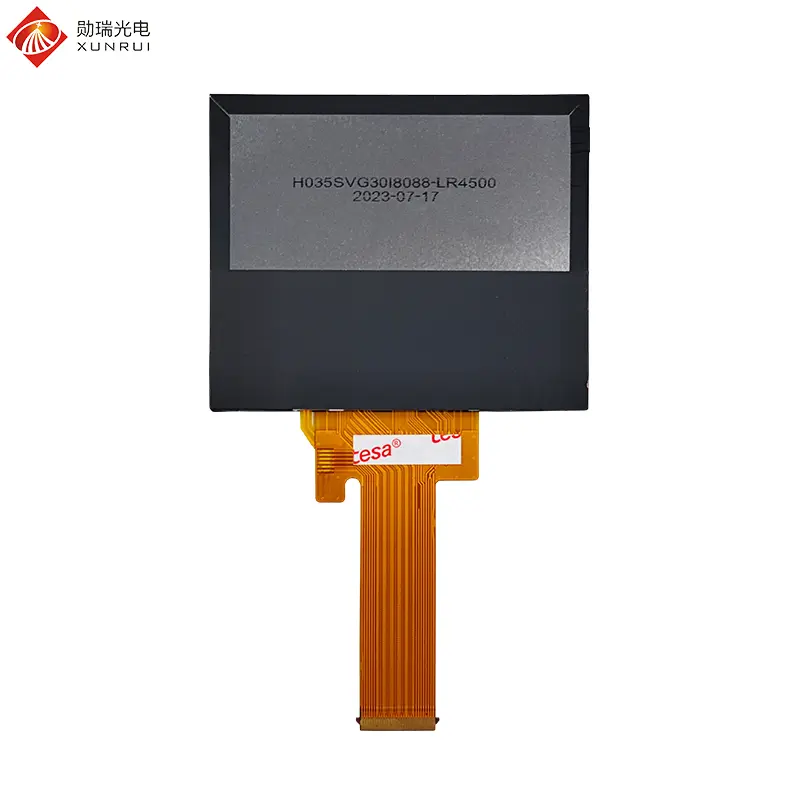

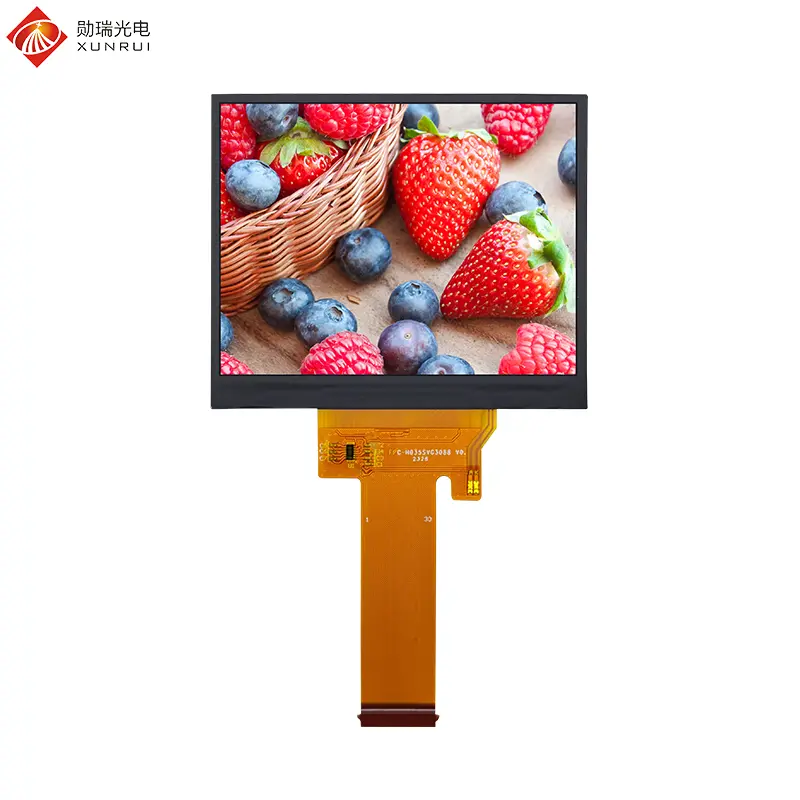

H035SVG30I8088 is a high-definition full-view 3.5-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 640×480, a 4-lane MIPI 30-pin interface, an ST7703 Driver IC, and a brightness of 800 nits. The working temperature can withstand -20℃ to +70℃, and a touch screen can be optionally equipped. This 3.5-inch TFT LCD screen is mainly applied in automotive and avionics: as a display for automotive instrument panels, navigation systems or avionics devices, it can withstand vibration and temperature changes and provide critical data visualization in a limited space. Smart home and instrumentation: It is used for smart home appliance control panels, small sensor devices, remote controls, etc., to achieve a simple and intuitive operation interface. And other fields

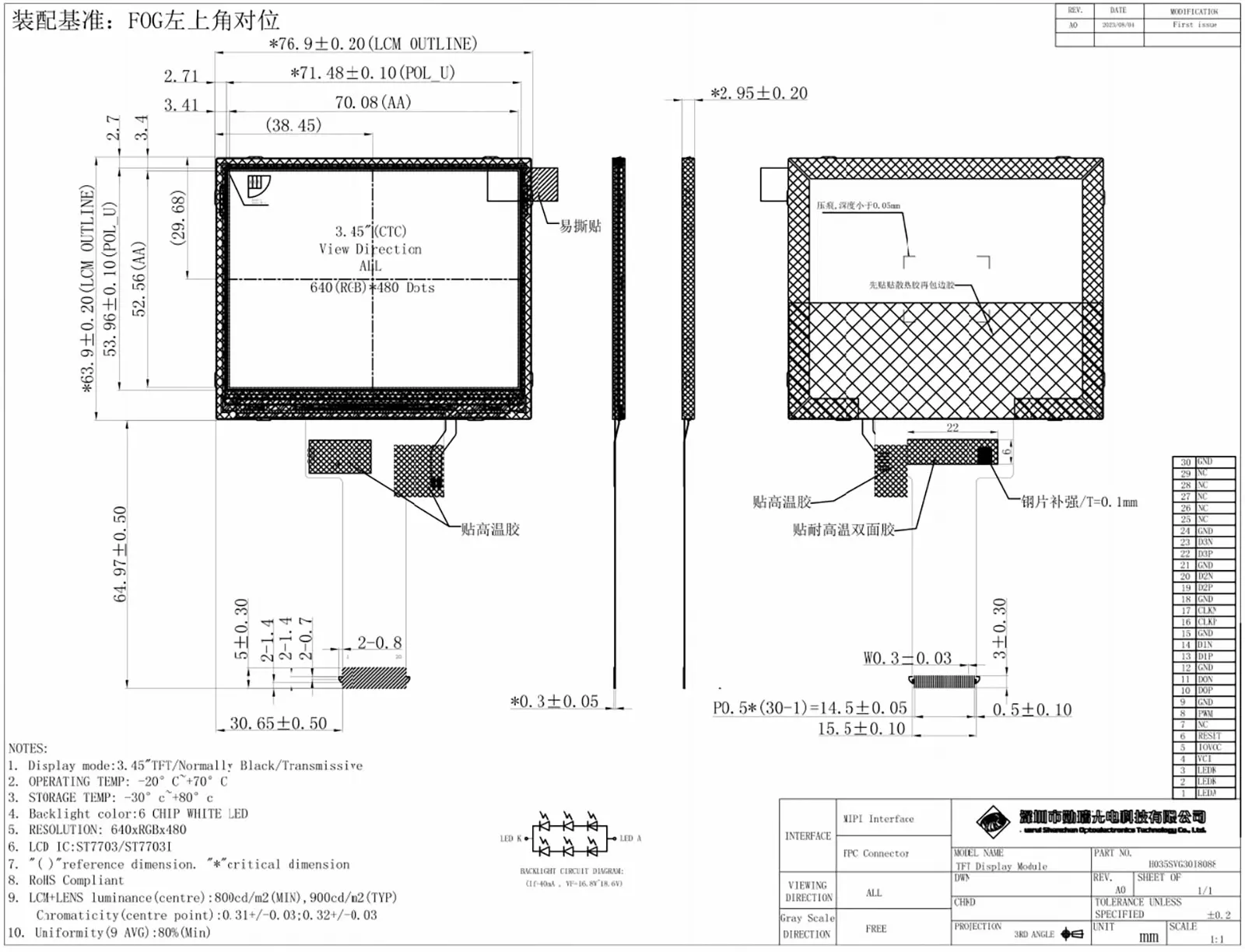

| Feature | Spec |
|---|---|
| Model Name | H035SVG30I8088 |
| LCD Size | 3.5 inch |
| Display Format | 640×480 |
| Interface | 4 Lane MIPI 30pin |
| Luminance | 800 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | ST7703/ST7703I |
| LCM (W x H x D) (mm) | 74.80(H)*94.08(W)*2.95(T)(Exclude FPC) |
| Active Area(mm) | 52.56(H)*70.08(W) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 17.7V |
| Pin No. | Symbol | I/O | Functional |
|---|---|---|---|
| 1 | LEDA | P | LED Power supply + |
| 2~3 | LEDK | P | LED Power supply - |
| 4 | VCI | P | Power supply for analog circuit |
| 5 | IOVCC | P | Power supply for logic circuit. |
| 6 | RESET | I | Reset pin |
| 7 | NC | - | No Connection. |
| 8 | PWM | O | LED driver |
| 9 | GND | P | System ground. |
| 10~11 | D0P / D0N | I/O | Data differential signal input / output pins. |
| 12 | GND | P | System ground. |
| 13~14 | D1P / D1N | I/O | Data differential signal input pins |
| 15 | GND | I | System ground. |
| 16~17 | CLKP / CLKN | I | Clock differential signal input pins. |
| 18 | GND | P | System ground. |
| 19~20 | D2P / D2N | I | Data differential signal input pins. |
| 21 | GND | P | System ground. |
| 22~23 | D3P / D3N | I | Data differential signal input pins |
| 24 | GND | I | System ground. |
| 25~29 | NC | - | No Connection. |
| 30 | GND | PI | System ground. |
