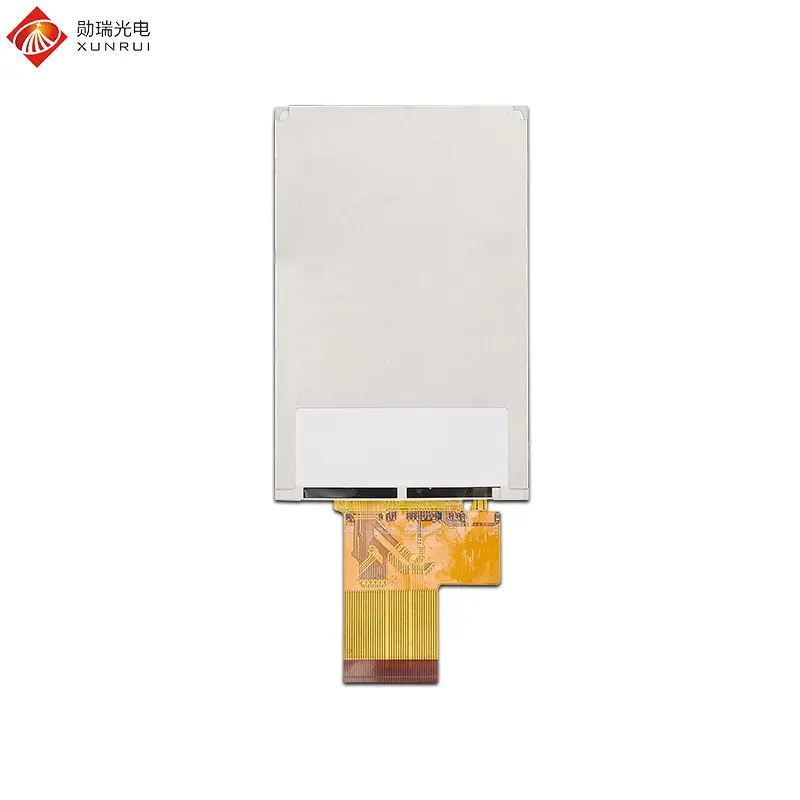

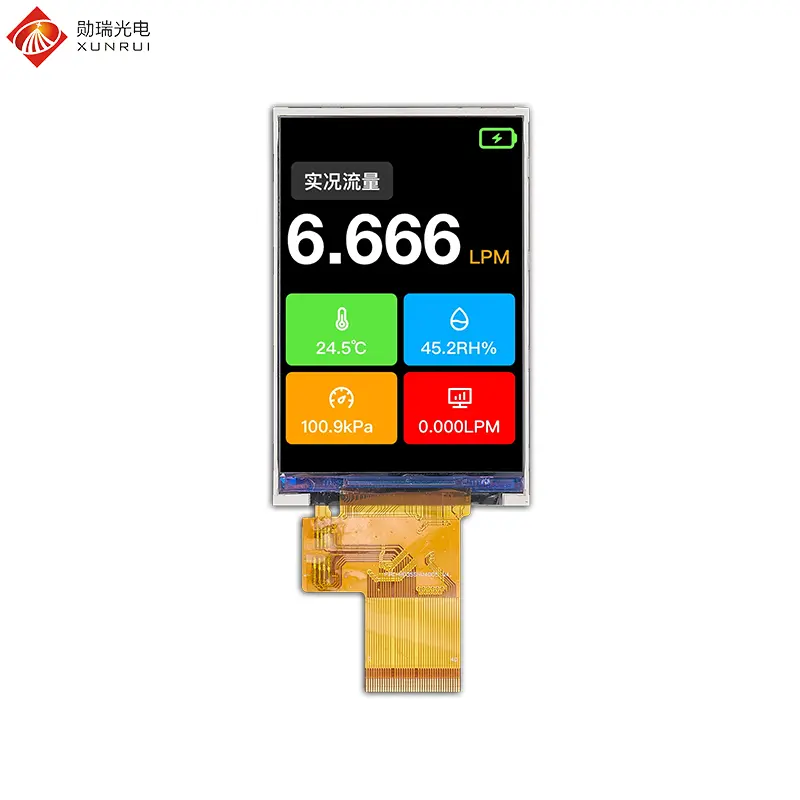

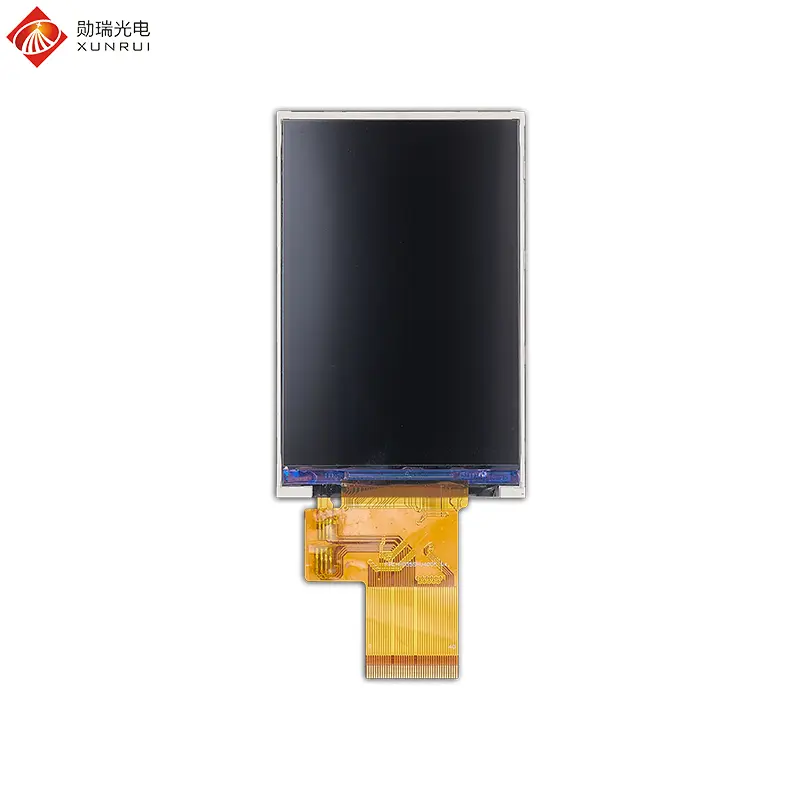

H035SHV40I3505 is a vertical 3.5-inch TFT LCD module. This LCD screen adopts an IPS panel, featuring a full-view display direction. It can operate within a temperature range of -20℃ to +70℃, with a resolution of 320×480. The MCU has a 40-pin interface. ILI9488 Driver IC, 300nit brightness, optional touch screen. This 3.5-inch TFT LCD screen is mainly applied in handheld devices: such as handheld test instruments (digital multimeters, oscilloscopes, etc.), portable data loggers, handheld scanners, etc. These devices require lightweight and low-power screens to display data and operation interfaces. Consumer electronics and entertainment: applicable to mini game consoles, educational electronic devices (such as children's learning machines), video intercom doorbells, smart wearable devices, etc., meeting basic graphic display and interaction requirements. And other fields.
| Feature | Spec |
| Model Name | H035SHV40I3505 |
| LCD Size | 3.5 inch |
| Display Format | 320×480 |
| Interface | MCU 40pin |
| Luminance | 300 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 262K |
| Driver IC | ILI9488 |

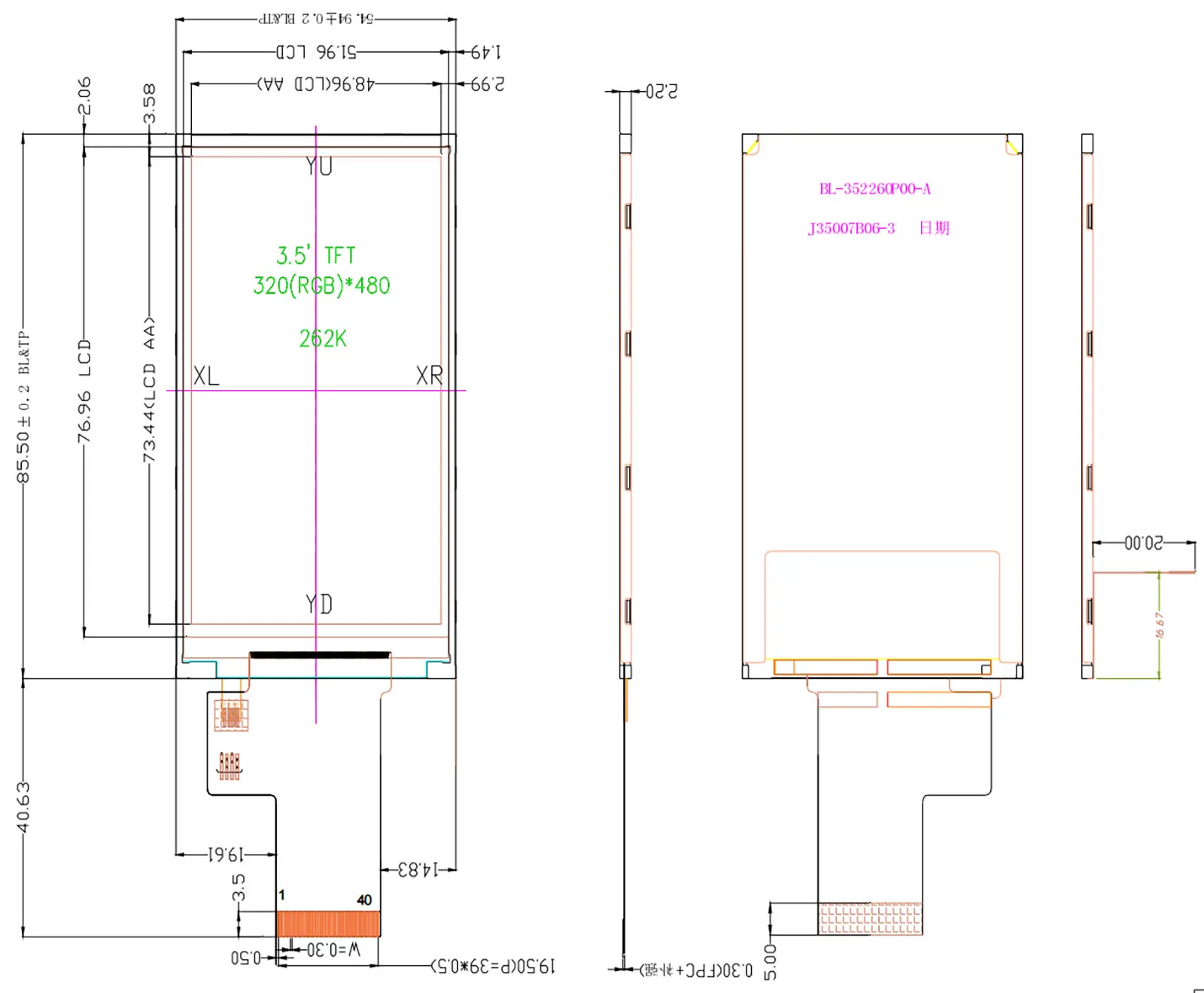

| LCM (W x H x D) (mm) | 54.94*85.5*2.2 |
| Active Area(mm) | 48.96 x 73.44 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.2V |
| No. | Symbol | Description |
| 1 | GND | System Ground |
| 2 | DB0 | Data bus |
| 3 | DB1 | Data bus |
| 4 | DB2 | Data bus |
| 5 | DB3 | Data bus |
| 6 | GND | System Ground |
| 7 | VDD | Digital power supply. 2.8V |
| 8 | CS | Chip select pin |
| 9 | RS | A register select signal. |
| 10 | WR | Write signal pin |
| 11 | RD | Read signal pin |
| 12 | NC | |
| 13 | YU | Touch panel signal |
| 14 | XL | Touch panel signal |
| 15 | YD | Touch panel signal |
| 16 | XR | Touch panel signal |
| 17 | LEDA | Backlight LED Anode. |
| 18 | LEDK | Backlight LED Cathode |
| 19 | LEDK | Backlight LED Cathode |
| 20 | LEDK | Backlight LED Cathode |
| 21 | LEDK | Backlight LED Cathode |
| 22 | NC | / |
| 23 | DB4 | Data bus |
| 24 | DB8 | Data bus |
| 25 | DB9 | Data bus |
| 26 | DB10 | Data bus |
| 27 | DB11 | Data bus |
| 28 | DB12 | Data bus |
| 29 | DB13 | Data bus |
| 30 | DB14 | Data bus |
| 31 | DB15 | Data bus |
| 32 | RESET | Reset signal pin |
| 33 | VDD | Digital power supply. 2.8V |
| 34 | VDD | Digital power supply. 2.8V |
| 35 | GND | System Ground |
| 36 | DB5 | Data bus |
| 37 | DB6 | Data bus |
| 38 | DB7 | Data bus |
| 39 | GND | System Ground |
| 40 | GND | System Ground |
What is the resolution and viewing angle of the H035SHV40I3505 module?
The module features a 320x480 resolution and utilizes an IPS panel, providing an ALL (full-view) display direction with consistent color and contrast from various viewing angles.
Does this 3.5-inch TFT LCD display support touch screen functionality?
The standard configuration comes without a touch screen, but an optional touch screen customization is available upon request.
What interface and driver IC are utilized in this display module?
This display utilizes an MCU 40-pin interface and is driven by the ILI9488 Driver IC.
What are the operating and storage temperature limits?
The screen is engineered to operate stably in temperatures ranging from -20℃ to +70℃ and can be safely stored within -30℃ to +80℃.
What are the typical applications for this LCD panel?
It is primarily applied in handheld devices such as multimeters, oscilloscopes, portable data loggers, handheld scanners, as well as consumer devices including mini consoles, educational devices, video doorbells, and wearables.
