Product Description
Product Description

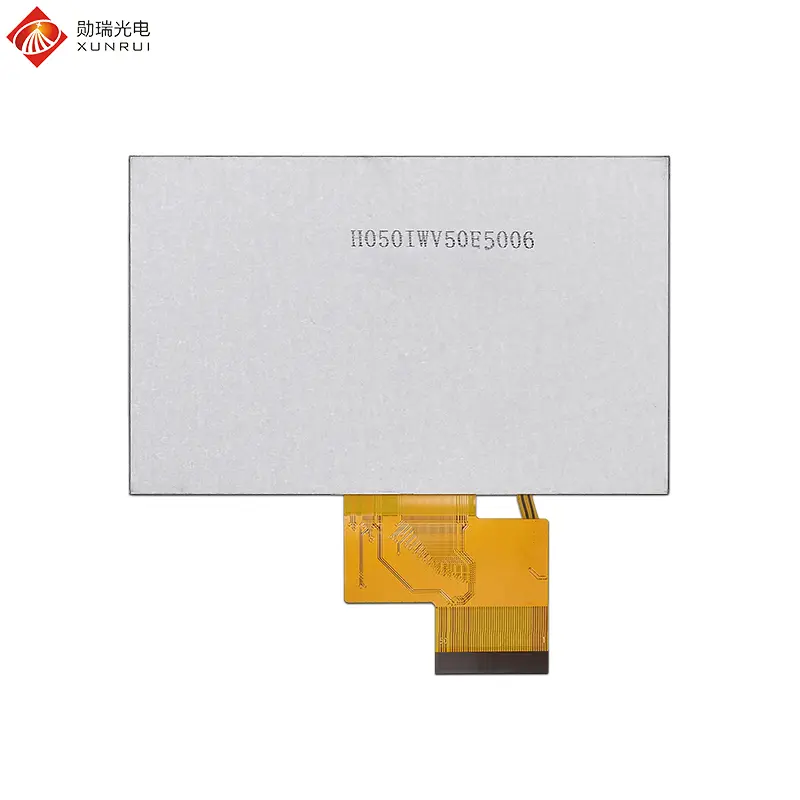

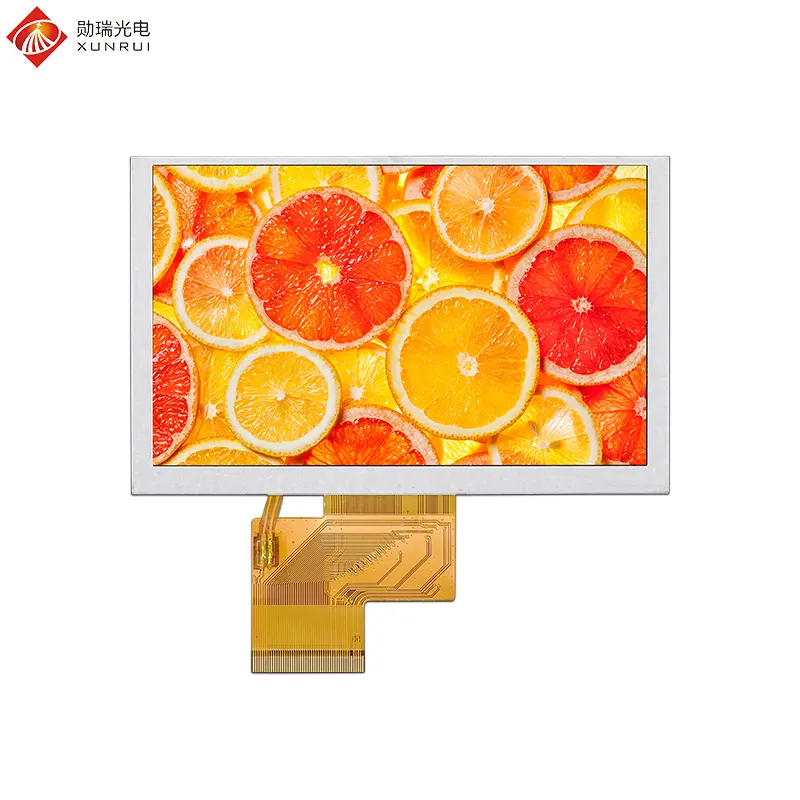

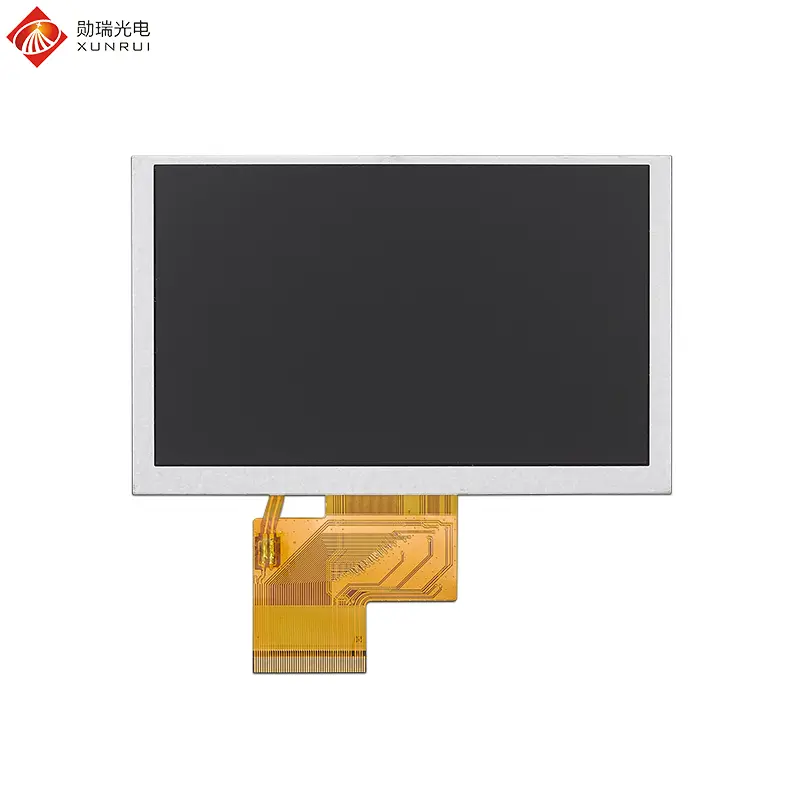

H050IWV50E5006 is a 5 inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×480 (approximately 187 PPI), and offers true color reproduction, wide viewing angles, making it suitable for text and image as well as video display. It features a 24-bit RGB 50-pin interface, a brightness of 500 nit, and can withstand a working temperature range of -20°C to +70°C. It can be optionally equipped with a resistive touch screen or a capacitive touch screen. This 5 inch TFT LCD Display is mainly applied in industrial control and automation: as the HMI panel for PLC or equipment, it displays parameters and curves, and is suitable for harsh environments. It is also applicable in home and IoT: used in smart speakers, surveillance cameras, etc., providing a touch operation interface. It is used in vehicle and navigation systems: displaying maps and real-time images, with a size suitable for vehicle space. It is used in medical and portable devices: for monitoring equipment, clearly displaying waveforms, meeting medical standards. It is also used in smart agriculture and drones: displaying real-time data and flight trajectories to improve operational efficiency. This 5 inch screen is a mature solution in the industrial and consumer electronics fields, balancing size, resolution, and cost. If you are developing industrial control or vehicle equipment, it is worth giving special consideration.
Mechanical Drawing
Specification parameters
| Feature | Spec |
|---|---|
| Model Name | H050IWV50E5006 |
| LCD Size | 5 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 50pin |
| Luminance | 500 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 120.2*75.9*3 |
| Active Area(mm) | 108 x 64.80 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 19.2V |
Interface definition
| No. | Symbol | Description |
|---|---|---|
| 1, 2 | VLED+ | Power for LED backlight (Anode) |
| 3, 4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select (Note1) |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12 | B7 | Blue data(MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data (Note2) |
| 19 | B0 | Blue data(LSB) (Note2) |
| 20 | G7 | Green data(MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data (Note2) |
| 27 | G0 | Green data (LSB) (Note2) |
| 28 | R7 | Red Data(MSB) (Note2) |
| 29 | R6 | Red Data |
| 30 | R5 | Red Data |
| 31 | R4 | Red Data |
| 32 | R3 | Red Data |
| 33 | R2 | Red Data |
| 34 | R1 | Red Data (Note2) |
| 35 | R0 | Red Data(LSB) (Note2) |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock (Note3) |
| 38 | GND | Power Ground |
| 39 | L/R | Left/right selection (Note4/5) |
| 40 | U/D | up/down selection (Note4/5) |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin (Note6) |
| 45 | NC | NO connection |
| 46 | Vcom | Common Voltage |
| 47 | DITHB | Dithering function (Note7) |
| 48 | GND | Power Ground |
| 49 | NC | NO connection |
| 50 | NC | NO connection |
Featured Products
Frequently Asked Questions
The H050IWV50E5006 is a 5.0-inch TN TFT LCD panel offering an 800×480 WVGA resolution (~187 PPI), 16.7M display colors, a 12 o'clock viewing direction, 500 cd/m² luminance, and an active display area measuring 108.0 × 64.80 mm.
It features a standard 24-bit RGB 50-pin interface that supports both Data Enable (DE) mode and Sync (HS/VS) modes, allowing high-speed parallel digital transmission for crisp graphics and video playback.
Yes. While the base version comes without a touch sensor, it is fully compatible with optional resistive touch panels (RTP) or projected capacitive touch panels (CTP/PCAP) for interactive HMI configurations.
The module is engineered for industrial environments, operating reliably from -20°C to +70°C and supporting a non-operating storage temperature range between -30°C and +80°C.
It is widely applied in industrial automation and PLC control panels, vehicle navigation and monitoring, smart IoT hardware, medical diagnostic instruments, smart agricultural terminals, and drone remote telemetry screens.
Yes. Pins 39 (L/R) and 40 (U/D) on the 50-pin interface provide hardware left/right and up/down scanning direction selections, enabling straightforward horizontal or vertical installation.
