Custom 7 inch 1024×600 RGB 50pin 350nit TN TFT LCD Display Manufacturer, Supplier
Product Description
Product Description

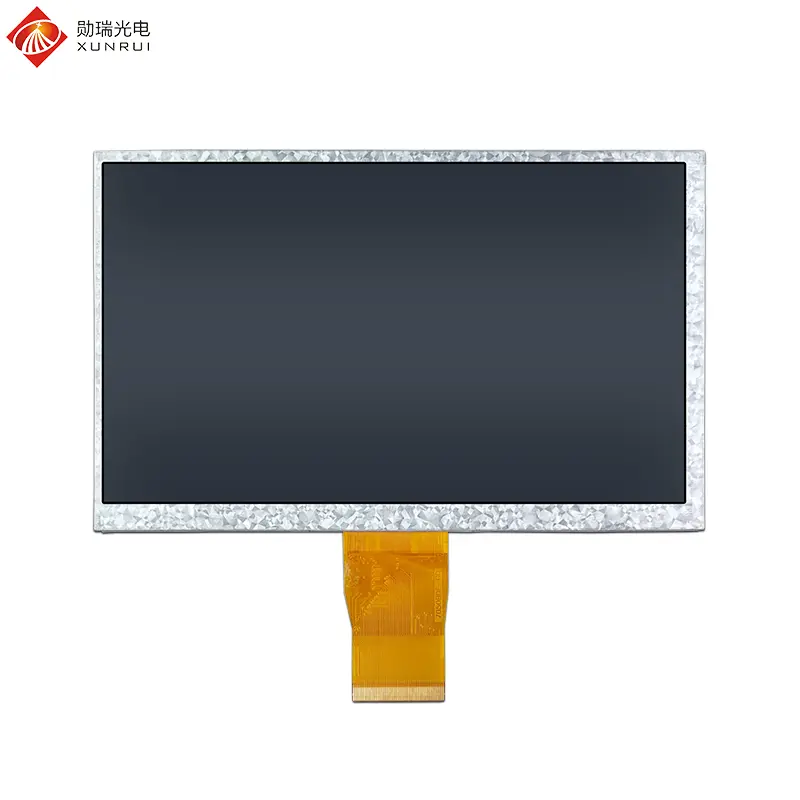

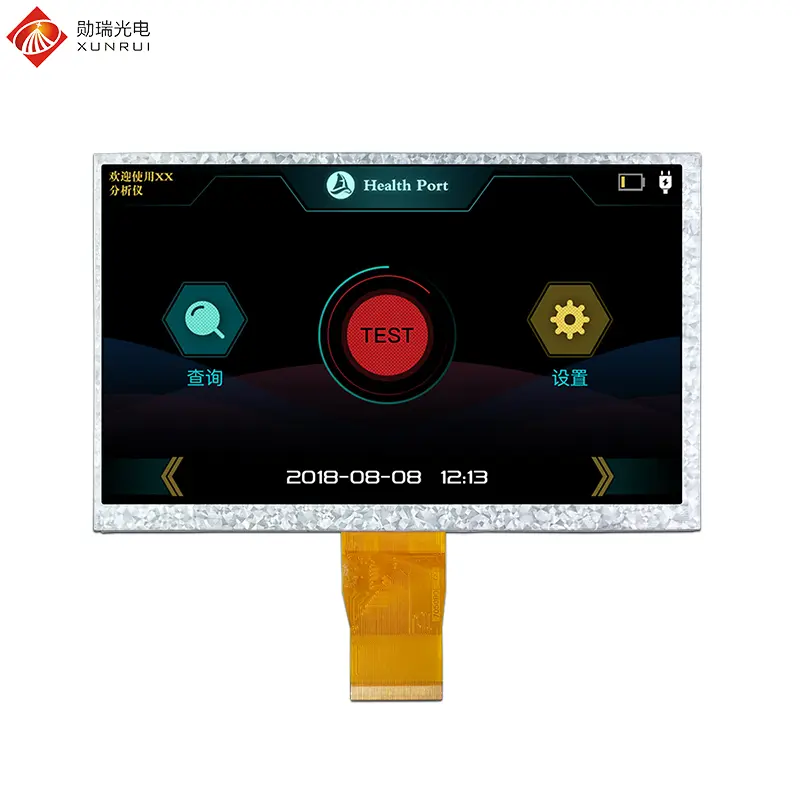

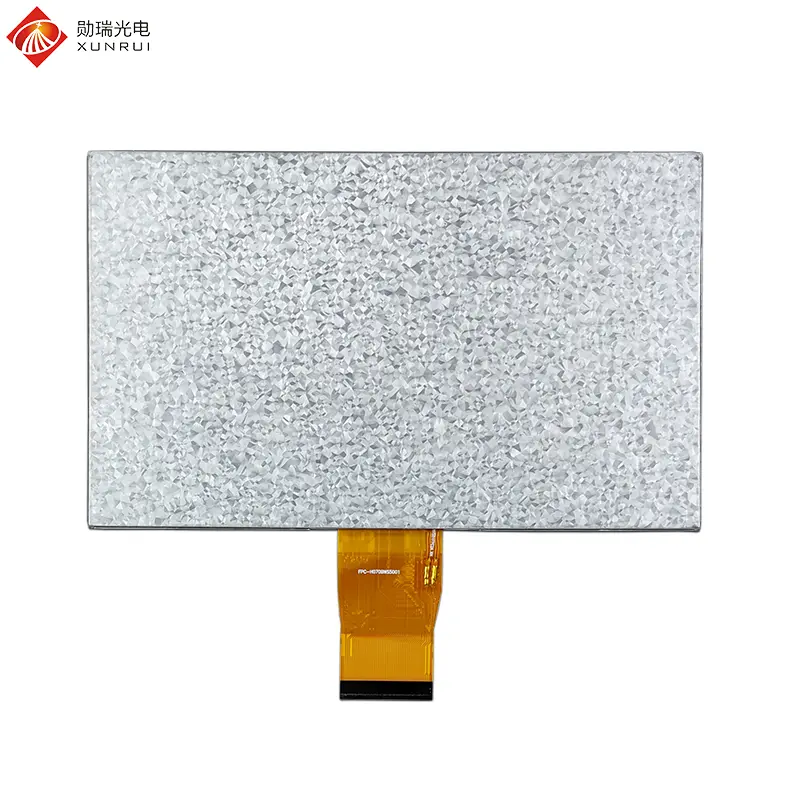

H070BWS50E3511 is a 7-inch TFT LCD display. This LCD panel uses a TN panel, with a resolution of 1024×600, RGB 50-pin interface, supports parallel data transmission, is compatible with traditional MCUs or embedded motherboards, and has a lower cost. The brightness of the 350 nit part is an industrial-grade product and can reach a higher level. It can be optionally equipped with a resistive touch screen or a capacitive touch screen. This 7-inch TFT LCD module is mainly applied in industrial automation control: used for PLC operation panels, human-machine interfaces (HMI), CNC machines and other equipment, to achieve parameter setting and status monitoring. Industrial monitoring system: integrated into robots, vehicle-mounted equipment, and automated detection systems, providing real-time operation data display. Medical equipment: applied in fully automatic nucleic acid extraction instruments, portable monitors, etc., requiring clear display and stable operation. Smart home and Internet of Things: as the display unit for intelligent access control, home central control, environmental monitoring terminals. Commercial equipment: including advertising machines, charging piles, self-service vending machines, and other human-computer interaction scenarios.

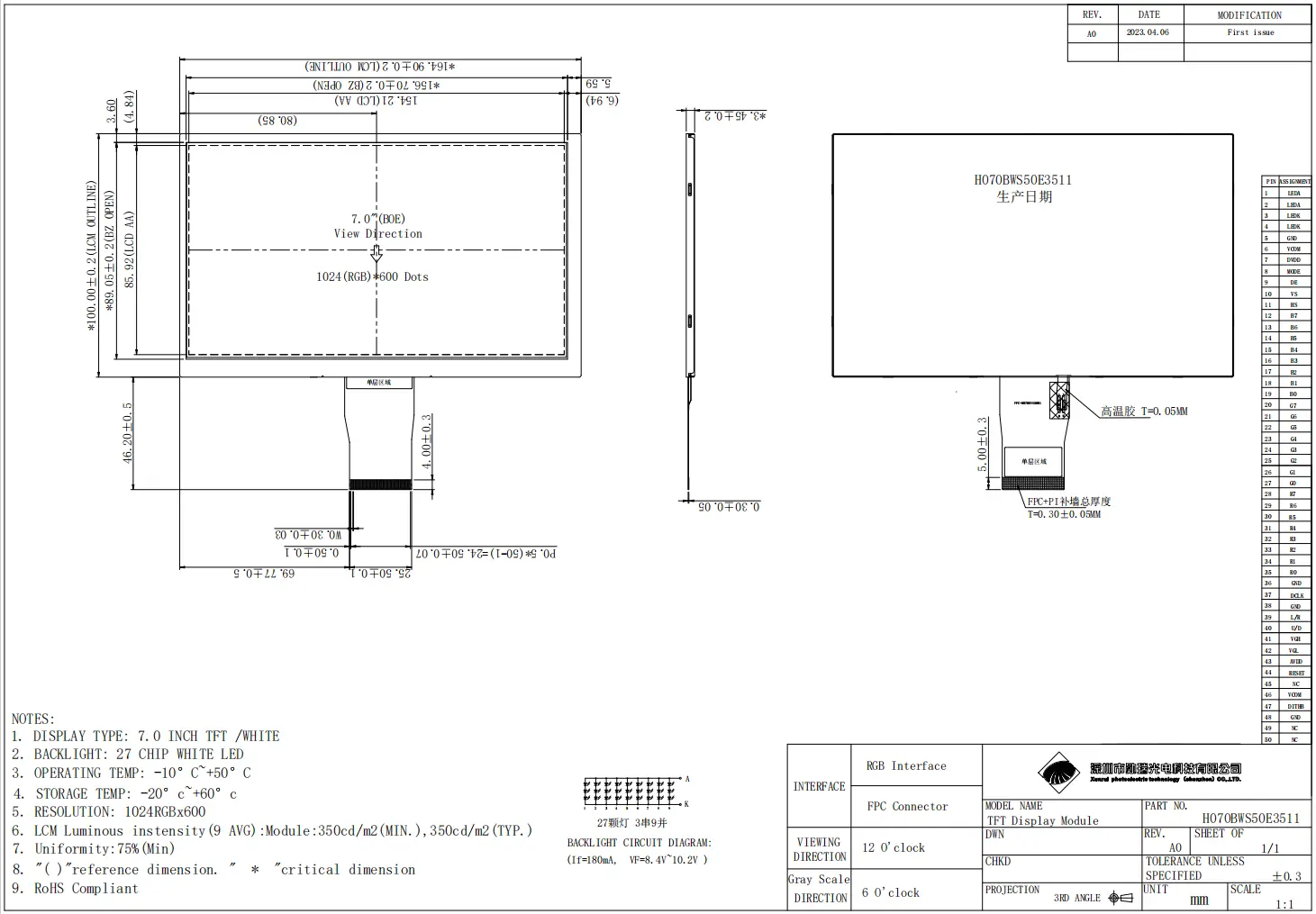

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H070BWS50E3511 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | RGB 50pin |
| Luminance | 350 cd/m² |
| Touch screen | None, optional (Resistive / Capacitive) |
| Viewing Direction | 12 O'clock |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 164.9 * 100 * 3.45 |
| Active Area (mm) | 154.21 * 85.92 |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Voltage | 9.3V |
Interface Definition (50-Pin)
| No. | Symbol | Description |
|---|---|---|
| 1, 2 | LEDA | LED Anode |
| 3, 4 | LEDK | LED Cathode |
| 5 | GND | Power Ground |
| 6 | NC | No connection |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12 | B7 | Blue data (MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data |
| 19 | B0 | Blue data (LSB) |
| 20 | G7 | Green data (MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data |
| 27 | G0 | Green data (LSB) |
| 28 | R7 | Red Data (MSB) |
| 29 | R6 | Red Data |
| 30 | R5 | Red Data |
| 31 | R4 | Red Data |
| 32 | R3 | Red Data |
| 33 | R2 | Red Data |
| 34 | R1 | Red Data |
| 35 | R0 | Red Data (LSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left/right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | NC | No connection |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
