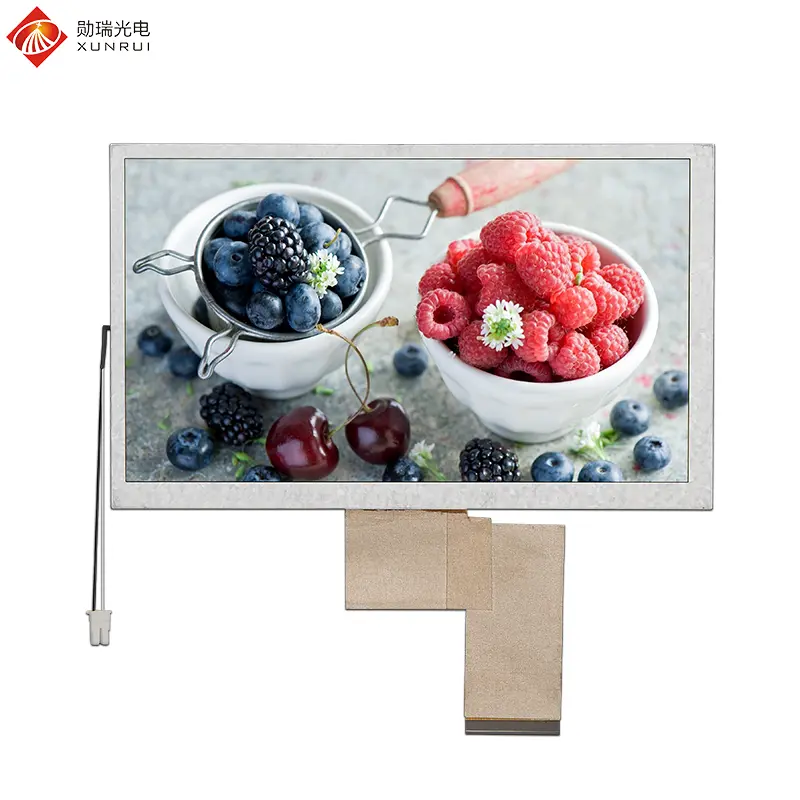

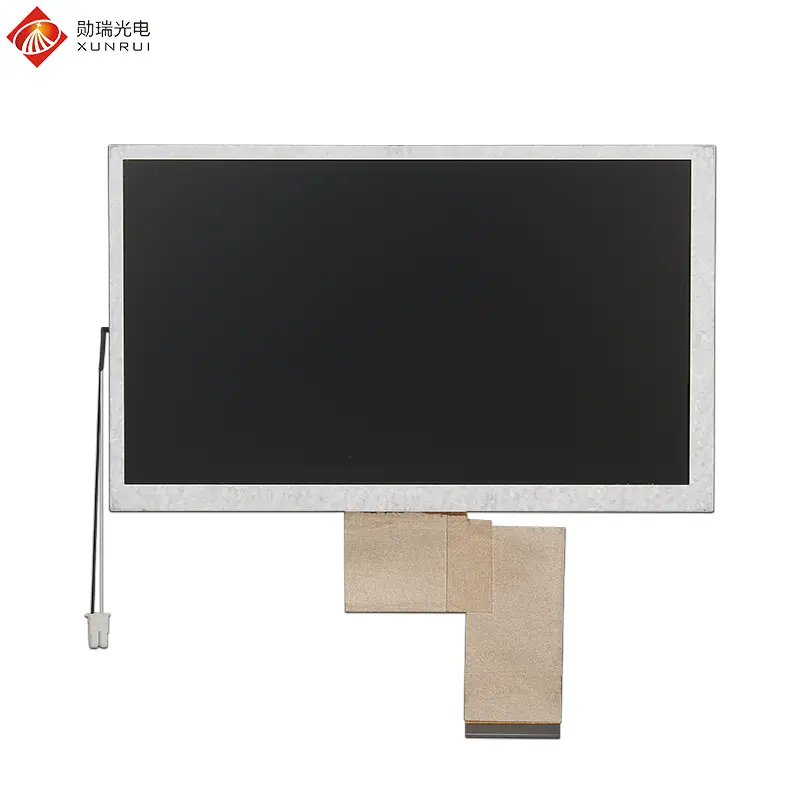

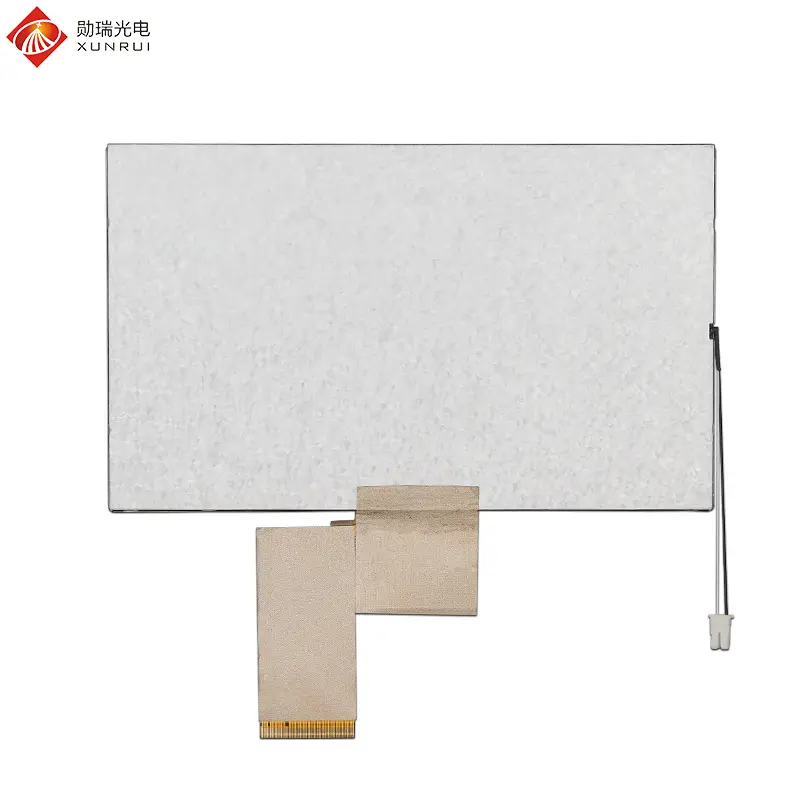

H080SWV60E3501 is an 8-inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×480 (WVGA), a width-to-height ratio of 15:9, and can achieve approximately 113 PPI (pixels per inch), which is sufficient to display clear text and basic graphical interfaces, meeting the UI requirements of most embedded systems. The RGB 60-pin interface, 350 nit brightness, supports AG (anti-glare) or AR (anti-reflection) surface treatment, enhancing readability in outdoor or high-lighting environments. It supports optional capacitive/resistive touch screens (CTP/RTP). This 8-inch TFT LCD Display is mainly used in industrial control and automation: widely applied in PLC control panels, data acquisition terminals, instrument display, etc. The large size facilitates operation with gloves, making interface elements easier to identify, reducing the rate of accidental touches, and improving on-site operation efficiency. Automotive electronics: used for vehicle navigation, central control screens, rearview cameras, etc. 8 inches is the "golden size" for vehicle displays, balancing information display and driving visibility. With a resolution of 800×480, it can smoothly display maps, multimedia, and vehicle status information. Medical and health equipment: used in medical monitors, portable ultrasound equipment, blood glucose meters, etc. Low power consumption design extends device battery life, and high reliability ensures accurate display of critical information. Power and traffic monitoring: as a human-computer interaction terminal in power meters, traffic signal control, intelligent parking systems, etc., supporting remote parameter settings and real-time status monitoring.

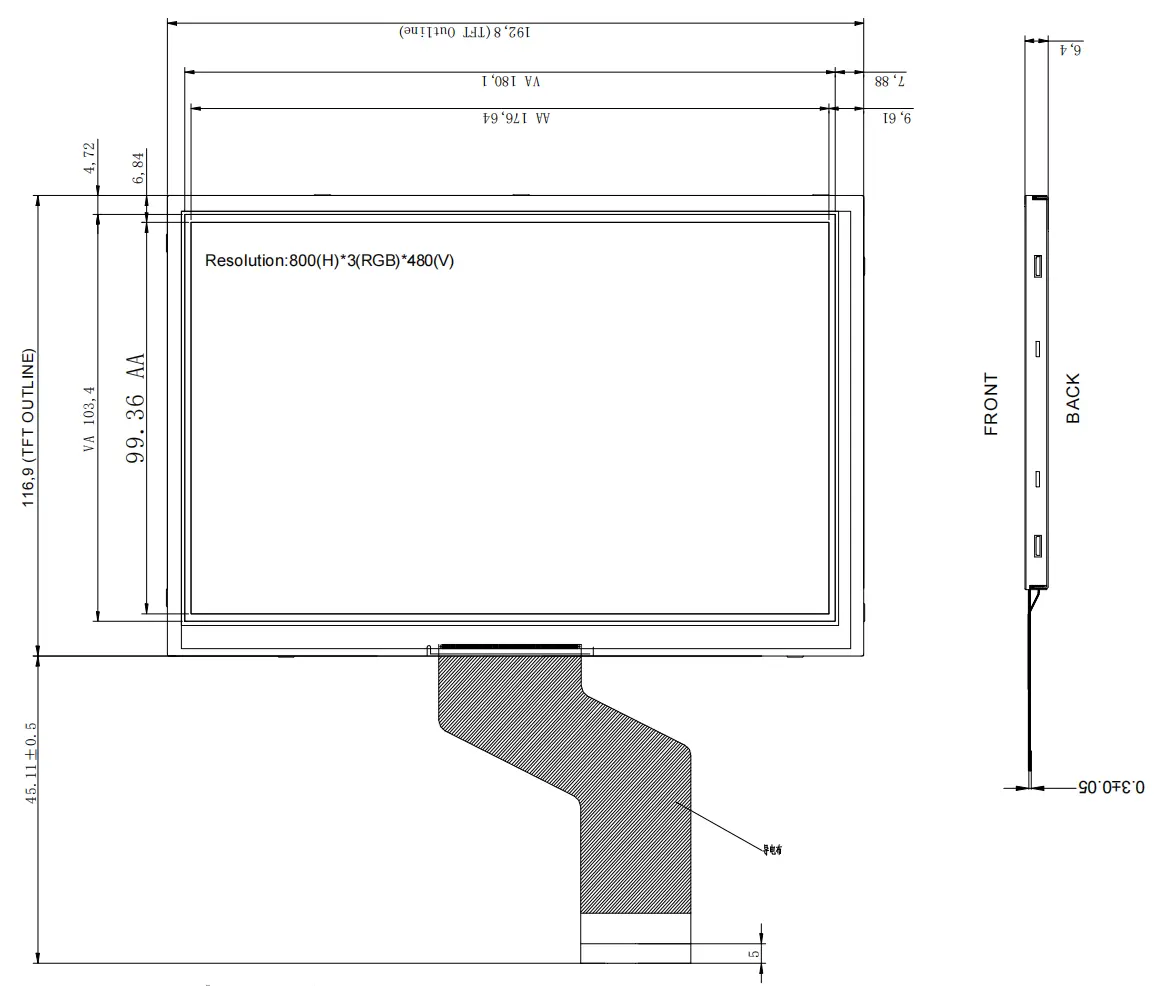

Mechanical Drawing
Specification Parameters
| Feature | Spec |
|---|---|
| Model Name | H080SWV60E3501 |
| LCD Size | 8 inch |
| Display Format | 800×480 |
| Interface | RGB 60pin |
| Luminance | 350 cd/m² |
| Touch screen | None, optional |
| Viewing Direction | 12 O'CLOCK |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM (W x H x D) (mm) | 192.8 * 116.9 * 6.4 |
| Active Area (mm) | 176.64 x 99.36 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.8V |
Interface Definition
| No. | Symbol | Description |
|---|---|---|
| 1 | GND | Power ground |
| 2 | AVDD | Power for Analog circuit |
| 3 | VCC | Power for Digital circuit |
| 4 | R0 | Red data |
| 5 | R1 | Red data |
| 6 | R2 | Red data |
| 7 | R3 | Red data |
| 8 | R4 | Red data |
| 9 | R5 | Red data |
| 10 | R6 | Red data |
| 11 | R7 | Red data |
| 12 | G0 | Green data |
| 13 | G1 | Green data |
| 14 | G2 | Green data |
| 15 | G3 | Green data |
| 16 | G4 | Green data |
| 17 | G5 | Green data |
| 18 | G6 | Green data |
| 19 | G7 | Green data |
| 20 | B0 | Blue data |
| 21 | B1 | Blue data |
| 22 | B2 | Blue data |
| 23 | B3 | Blue data |
| 24 | B4 | Blue data |
| 25 | B5 | Blue data |
| 26 | B6 | Blue data |
| 27 | B7 | Blue data |
| 28 | DCLK | Sample clock |
| 29 | DE | Data Input Enable |
| 30 | HS | Horizontal Sync Input |
| 31 | VS | Vertical Sync Input |
| 32 | MODE | DE/SYNC mode select (Note3) |
| 33 | RESET | Global reset pin. (Note1) |
| 34 | STBYB | STBYB=0 timing controlsruce |
| 35 | SHLR | Right/ left selection |
| 36 | VCC | Power ground |
| 37 | UPDN | Up/down selection |
| 38 | GND | Power ground |
| 39 | GND | Power ground |
| 40 | AVDD | Power for Analog circuit |
| 41 | VCOM | Common voltage |
| 42 | DITH | Dithering function |
| 43~55 | NC | No connection |
| 56 | VGH | Gate ON voltage |
| 57 | VCC | Power for Digital circuit |
| 58 | VGL | Gate OFF voltage |
| 59 | GND | Power ground |
| 60 | NC | No connection |
Frequently Asked Questions (FAQ)
The H080SWV60E3501 features a WVGA resolution of 800×480 with a 15:9 aspect ratio, delivering approximately 113 PPI for clear graphical interfaces and readable text.
Yes, touch screen functionality is optional. The display can be customized with either a Capacitive Touch Panel (CTP) or a Resistive Touch Panel (RTP) depending on your application needs.
This module is equipped with a standard RGB 60-pin interface supporting full 24-bit RGB (8-bit per color channel) for up to 16.7 million colors.
The module has a standard brightness of 350 cd/m² and supports optional AG (Anti-Glare) or AR (Anti-Reflection) surface treatments to significantly enhance outdoor visibility and reduce reflections.
It is designed for industrial environments, offering an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.
Typical applications include industrial PLC control panels, automotive dashboard displays, medical diagnostic equipment, and power/traffic monitoring interaction terminals.
