Custom 9 inch 800×480 RGB 50pin interface 500nit TN TFT LCD module Manufacturer, Suppliers
Product Description

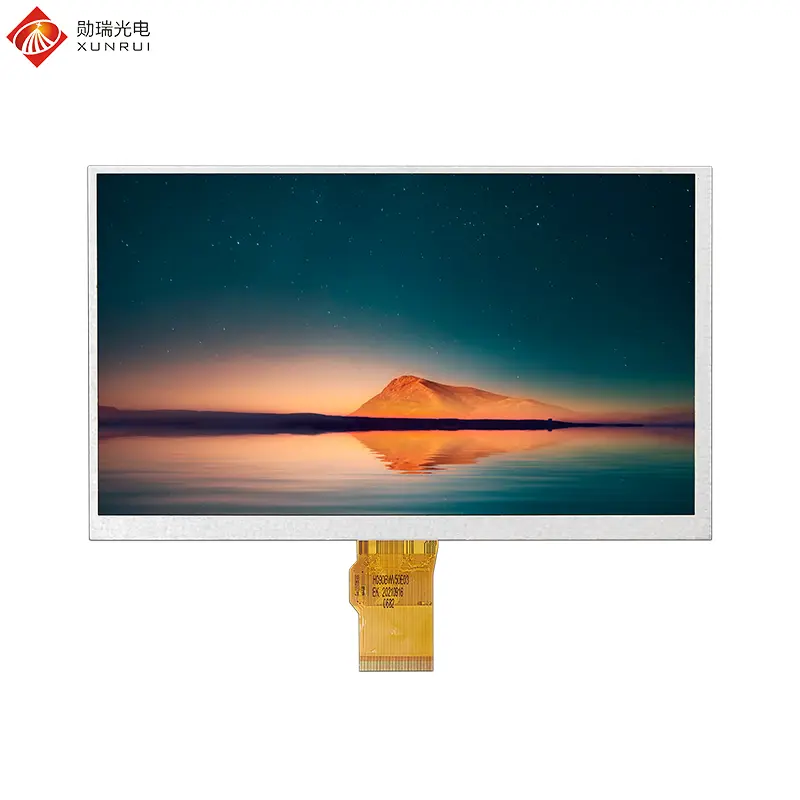

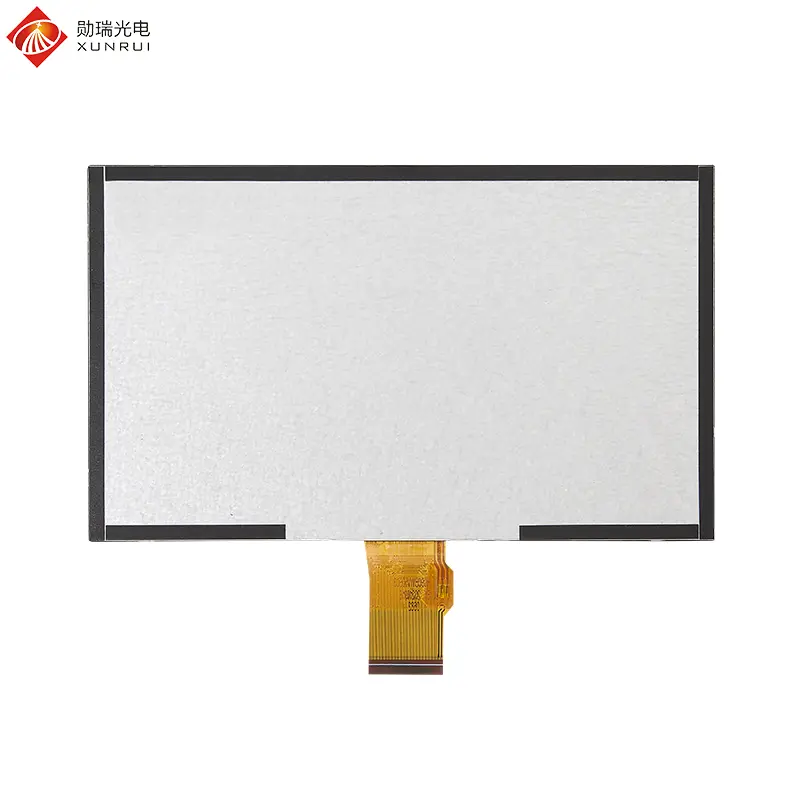

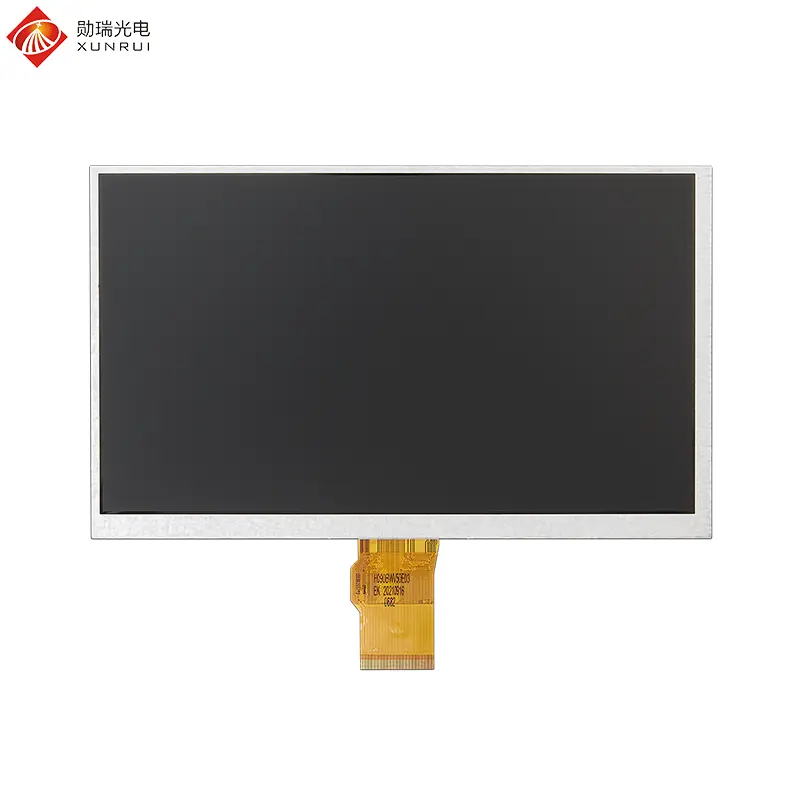

H090BWV50E5004 is a 9 inch TFT LCD module. This LCD screen adopts a TN panel, with a resolution of 800×480, an RGB 50pin interface, and a brightness of 500 nits. It can withstand an operating temperature range of -20℃ to +70℃. It can be equipped with capacitive touch screens, resistive touch screens, adapter boards, driver boards, and customized cover plates.
Industrial Automation Applications:
• CNC machine tools: Used to display process parameters and monitoring data, helping operators read information accurately.
• Automated production lines: Display equipment operating status, production progress, and fault alarms in real time, and support touch control operations.
Medical Devices:
• CT scanners: Present scan results clearly to improve diagnostic accuracy.
• Ultrasonic diagnostic instruments: Display high-resolution images to assist doctors in observing patient conditions accurately.
In addition, it can be used in fields such as transportation vehicles and smart homes.
| Feature | Specification |
|---|---|
| Model Name | H090BWV50E5004 |
| LCD Size | 9 inch |
| Display Format | 800×480 |
| Interface | 24bit-RGB 50pin |
| Luminance | 500 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O'clock |
| Color Depth | 16.7M |
| Driver IC | TBD |

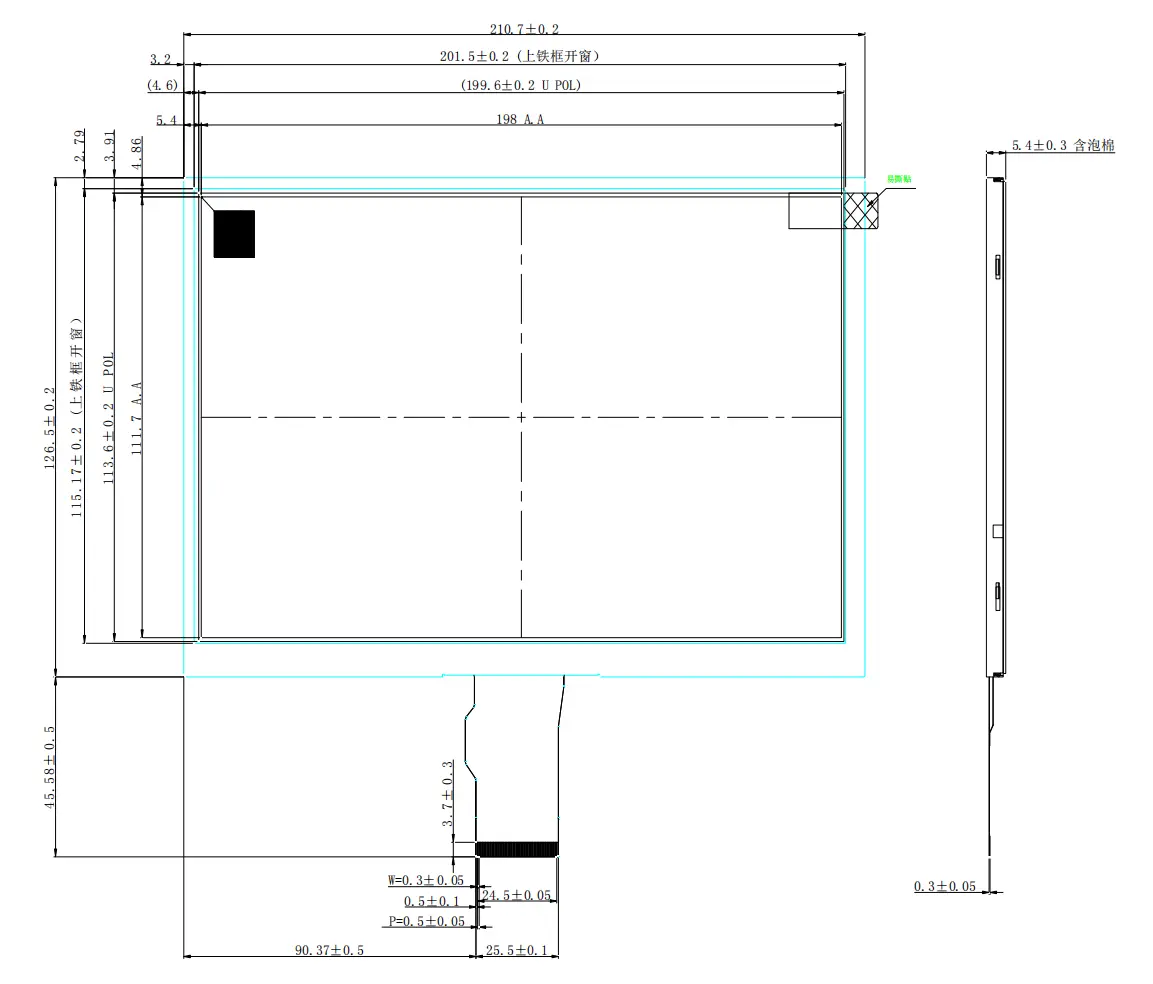

| LCM (W x H x D) (mm) | 210.6*126.5*3.5 |
| Active Area(mm) | 198 x 111.69 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.0V |
| No. | Symbol | Description |
|---|---|---|
| 1, 2 | LEDA | Power for LED backlight (Anode) |
| 3, 4 | LEDK | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common voltage |
| 7 | VCC | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select; Note1 |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12 | B7 | Blue data (MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data; Note2 |
| 19 | B0 | Blue data (LSB); Note2 |
| 20 | G7 | Green data (MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data; Note2 |
| 27 | G0 | Green data (LSB); Note2 |
| 28 | R7 | Red Data (MSB); Note2 |
| 29 | R6 | Red Data |
| 30 | R5 | Red Data |
| 31 | R4 | Red Data |
| 32 | R3 | Red Data |
| 33 | R2 | Red Data |
| 34 | R1 | Red Data; Note2 |
| 35 | R0 | Red Data (LSB); Note2 |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock; Note3 |
| 38 | GND | Power Ground |
| 39 | L/R | Left/right selection Note4/5 |
| 40 | U/D | Up/down selection; Note4/5 |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin; Note6 |
| 45 | NC | NO connection |
| 46 | Vcom | Common Voltage |
| 47 | DITHB | Dithering function; Note7 |
| 48 | GND | Power Ground |
| 49 | NC | NO connection |
| 50 | NC | NO connection |
The H090BWV50E5004 LCD features an 800×480 display format resolution and utilizes a 24-bit RGB 50-pin connection interface.
Yes, while standard modules do not come with touch functionality, capacitive touch screens, resistive touch screens, and custom cover plates are available as optional additions.
This display module operates reliably across an industrial temperature range from -20℃ to +70℃, with a storage temperature range between -30℃ and +80℃.
Customizations include anti-glare, anti-reflection, anti-static, anti-vibration, anti-interference treatments, as well as support for glove-friendly operations.
It is broadly utilized in CNC machine tools, automated assembly lines, CT scanners, ultrasonic diagnostic systems, transportation vehicle displays, and smart home terminals.
The module offers a brightness level of 500 cd/m² (nits), ensuring sharp visual performance in well-lit indoor and industrial environments.
