Product Description

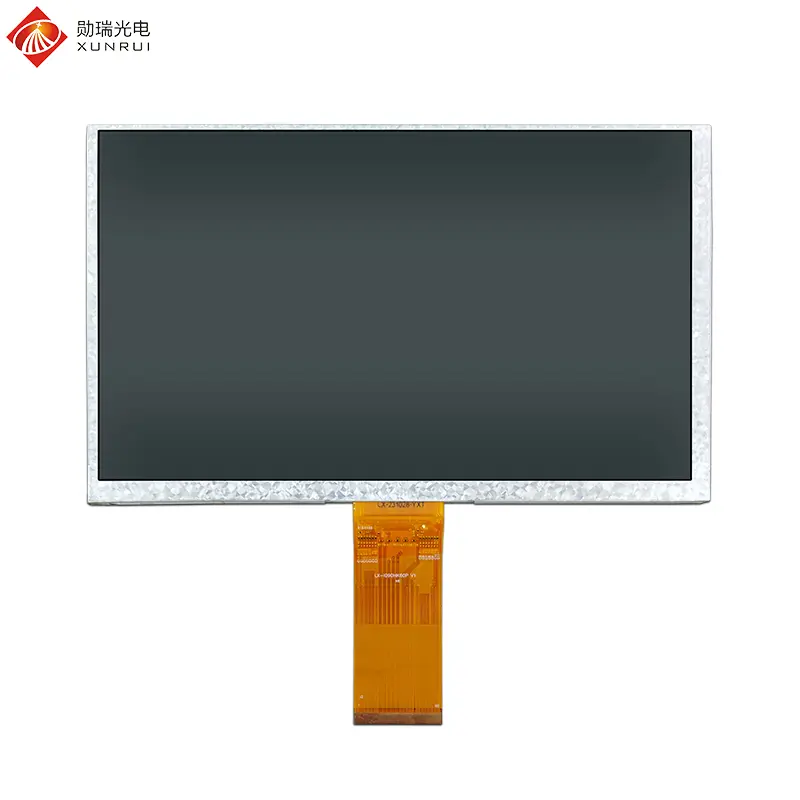

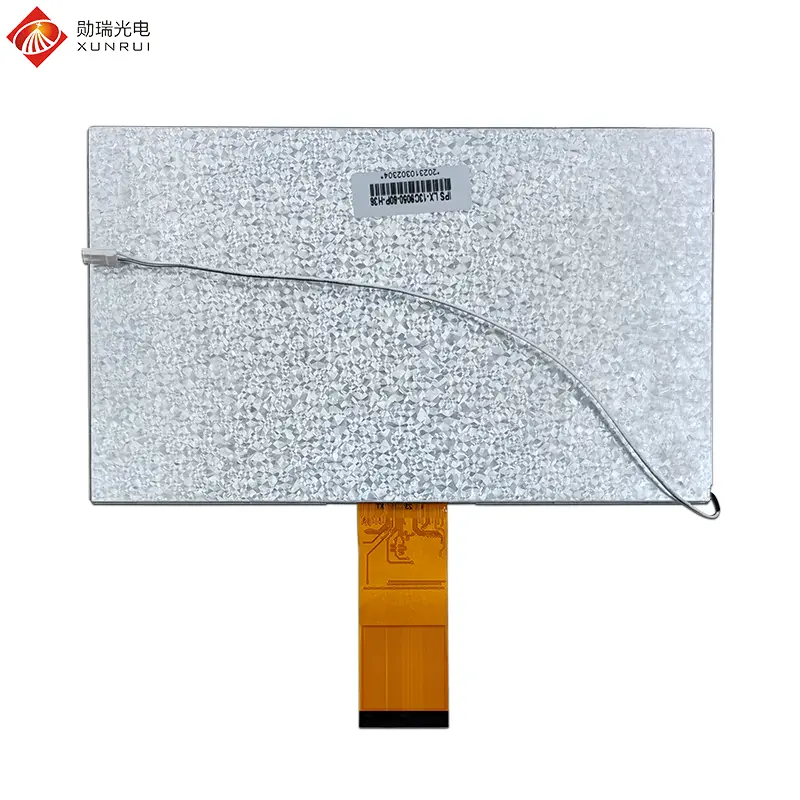

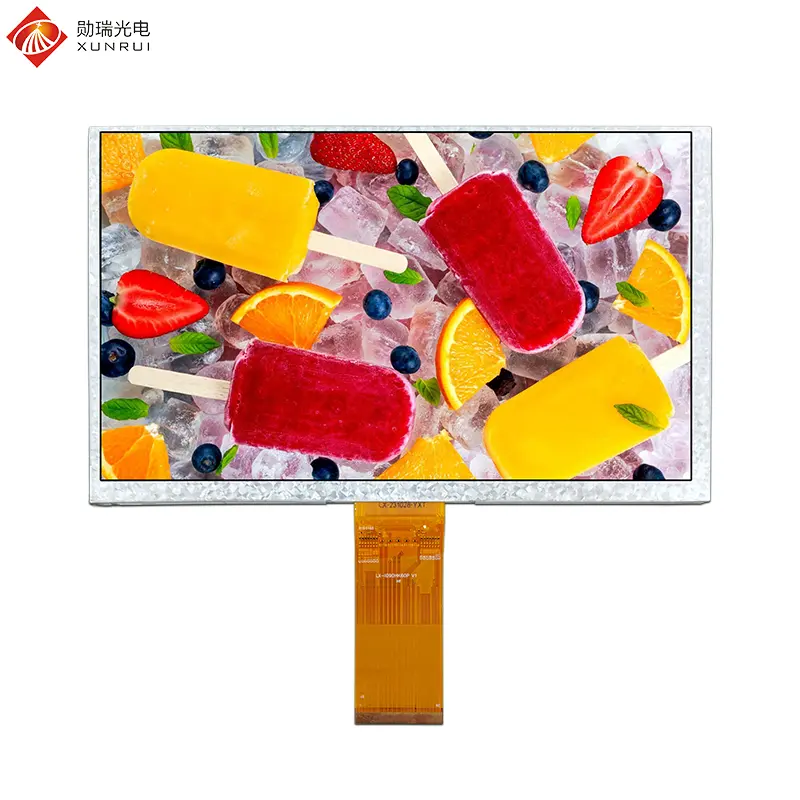

H090KWS60I4010 is a 9 inch TFT LCD module. This LCD screen uses an IPS panel with a full viewing angle. The resolution is 1024×600, and it has a RGB 60-pin interface, a 400 nit brightness, and can withstand a working temperature range of -20°C to +60°C. It can be equipped with capacitive touch screens, resistive touch screens, adapter boards, and driver boards. This 9 inch TFT LCD screen can be applied in smart home and security, automotive electronics, industrial control and automation, medical equipment, and consumer electronics, etc. For selection suggestions, for industrial scenarios: choose the model with high brightness (≥400cd/m²), wide viewing angle (IPS), and industrial-grade temperature range. For automotive scenarios: prioritize the models with wide voltage input (9-36V), high reliability, and support for AHD/CVBS video formats. For consumer electronics: pay attention to touch function, lightweight design, and cost performance.
| Feature | Spec |
|---|---|
| Model Name | H090KWS60I4010 |
| LCD Size | 9 inch |
| Display Format | 1024×600 |
| Interface | LVDS 60pin |
| Luminance | 400 cd/m² |
| Touch Screen | None, optional |
| Viewing Direction | ALL (IPS Full Viewing Angle) |
| Color Depth | 16.7M |
| Driver IC | HX8282+HX8696 |

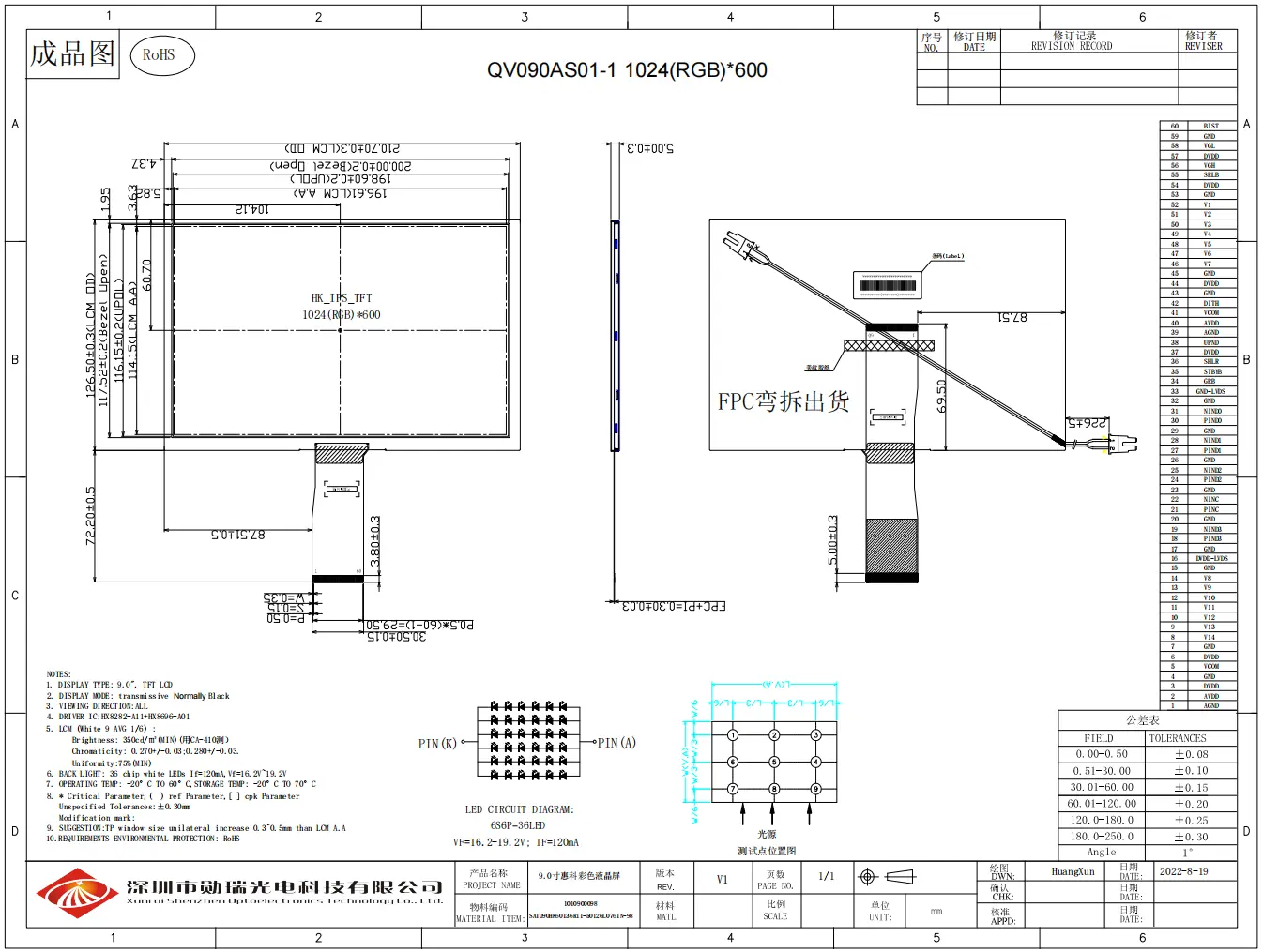

| LCM (W x H x D) (mm) | 210.7(W) x 126.5(H) x 5.0(D) |
| Active Area (mm) | 196.608(H) x 114.15(V) |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Operating Voltage | 18V |
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | GND | Power ground |
| 2 | AVDD | Analog Power |
| 3 | VDD | Power for analog circuit |
| 4 | GND | Power ground |
| 5 | VCOM | Common Voltage |
| 6 | VDD | Power for analog circuit |
| 7 | GND | Power ground |
| 8-14 | NC | No connection |
| 15 | GND | Power ground |
| 16 | VDD | Power for analog circuit |
| 17 | GND | Power ground |
| 18 | PIND3 | Positive LVDS differential Data inputs |
| 19 | NIND3 | Negative LVDS differential Data inputs |
| 20 | GND | Power ground |
| 21 | PINC | Positive LVDS differential clock inputs |
| 22 | NINC | Negative LVDS differential clock inputs |
| 23 | GND | Power ground |
| 24 | PIND2 | Positive LVDS differential Data inputs |
| 25 | NIND2 | Negative LVDS differential Data inputs |
| 26 | GND | Power ground |
| 27 | PIND1 | Positive LVDS differential Data inputs |
| 28 | NIND1 | Negative LVDS differential Data inputs |
| 29 | GND | Power ground |
| 30 | PIND0 | Positive LVDS differential Data inputs |
| 31 | NIND0 | Negative LVDS differential Data inputs |
| 32 | GND | Power ground |
| 33 | GND | Power ground |
| 34 | RESET | Common Voltage / Reset |
| 35 | STBYB | Standby mode, normally pull high |
| 36 | SHLR | Left / right display control |
| 37 | VDD | Power for analog circuit |
| 38 | UPND | Up / Down display control |
| 39 | GND | Power ground |
| 40 | AVDD | Analog Power |
| 41 | VCOM | Common Voltage |
| 42 | DITH | Dithering function enable control |
| 43 | GND | Power ground |
| 44 | VDD | Power for analog circuit |
| 45 | GND | Power ground |
| 46-52 | NC | No connection |
| 53 | GND | Power ground |
| 54 | VDD | Power for analog circuit |
| 55 | SELB | 6 bit / 8 bit mode select (H: 6bit / L: 8bit) |
| 56 | VGH | Gate on Voltage |
| 57 | VDD | Power for analog circuit |
| 58 | VGL | Gate off Voltage |
| 59 | GND | Power ground |
| 60 | BIST | Normal Operation / BIST pattern select (Normally pull low; H: BIST mode, L: Normal Operation) |
