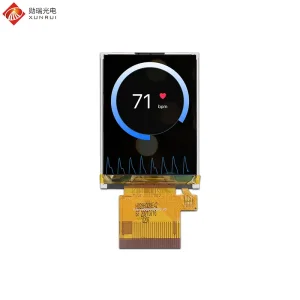

China 2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display Manufacturers, Factories
View Specifications
China 7 inch 1024×600 MIPI 30PIN 350nit IPS TFT LCD Display Manufacturer, Suppliers
View Specifications
Custom 6.9 inch 280×1424 MIPI 30pin interface long strip IPS TFT LCD module Manufacturer, Factories
View Specifications
China 4.3 inch 800×480 IPS TFT LCD Module with capacitive touch panel Manufacturer, Suppliers
View Specifications
Custom 5 inch 720×1280 MIPI 40pin 1000nit IPS TFT LCD Display Manufacturer, Supplier
View Specifications
Custom 5 inch 480×854 RGB 40pin 1000nit IPS TFT LCD Module Manufacturer, Manufacturers
View Specifications
Custom 10.4 inch 1024×768 LVDS 30pin 600nit IPS TFT LCD Module Factories, Factory
View Specifications
China 10.1 inch 800×1280 MIPI 40pin 350nit IPS TFT LCD Display Manufacturers, Suppliers
View SpecificationsEngineering Superiority of the 5.7 Inch Touch Display Standard
In modern embedded interface engineering, the 5.7 inch display form factor occupies a uniquely strategic position. As automation architectures pivot toward high-density data visualizations, legacy instrumentation panels and industrial computing rigs require an optimal visual footprint that fits standard rack-mount chassis and handheld diagnostics without sacrificing screen resolution or tactile response. As a premier China 5.7 inch touch display supplier and factory, we specialize in bridging industrial longevity with advanced optoelectronic capabilities.
Historically dominated by early STN and basic TN matrices, the 5.7 inch standard has been radically elevated through our integrated manufacturing capabilities in Shenzhen. By standardizing high-transmittance In-Plane Switching (IPS) active glass, anti-reflective (AR) surface treatments, and advanced projected capacitive (PCAP) sensing matrices, our production ecosystem delivers superior off-axis viewing clarity, sub-millisecond capacitive response, and unmatched electromagnetic resilience across mission-critical human-machine interfaces (HMI).
Core Structural Architecture & Optoelectronic Anatomy
A rigorous industrial 5.7 inch display assembly demands precision layering to survive harsh physical degradation, extreme solar exposure, and cyclic thermal stress. Our manufacturing process integrates:
| Component Layer | Engineering Specification | Operational Benefit |
|---|---|---|
| Cover Glass (CG) | 1.1mm to 3.0mm Chemically Strengthened Gorilla/Asahi Glass (7H–9H Hardness) | IK08/IK10 impact resistance, vandal-proof deployment, and chemical wipe-down tolerance. |
| Optical Bonding | Direct Liquid Optical Clear Resin (LOCA) / Optical Clear Adhesive (OCA) | Eliminates internal air gap reflections, boosts contrast by 400%, and halts condensation. |
| Touch Sensor (FTS/ITO) | DITO / SITO Double-sided Indium Tin Oxide Sensor with Industrial Ilitek/EETI Controller | Glove operation (latex, leather, work gloves), water-rejection firmware, and thick cover glass penetration. |
| TFT Panel Matrix | Active Matrix IPS Glass, 640×480 (VGA) native or customized higher-density arrays | True 80°/80°/80°/80° symmetrical viewing angles, zero grayscale inversion, and 500–1200 cd/m² luminosity. |
| LED Backlight Rail | High-Efficiency Nichia/Cree Solid-State White LED arrays with constant-current drivers | Low thermal dissipation, 50,000-hour operational life to half-brightness, sunlight readability. |
Why Choose a Direct Shenzhen Factory for 5.7" Modules?
Unlocking deep technical agility, vertically integrated cost advantages, and end-to-end component lifecycle management.
Full Cleanroom Automation (FOG/COG)
Our Shenzhen manufacturing lines operate Class 1,000 and Class 100 cleanrooms utilizing high-precision automatic Chip-on-Glass (COG) and Film-on-Glass (FOG) bonder robots, ensuring sub-micron alignment accuracy and zero particulate defects across every 5.7 inch display batch.
5-Gate Rigorous Quality Checkpoints
Every single unit undergoes rigorous Incoming Quality Control (IQC), active glass microscopic defect screening, automated FOG bonding testing with high-temperature thermal aging, comprehensive finished-assembly validation under vibration, and Outgoing Quality Control (OQC).
Engineering Tailored Customization
Unlike distributors, our in-house engineering team modifies flexible printed circuits (FPC) routing, tailors pinouts (RGB 18/24-bit, MCU 8/16-bit, LVDS, or MIPI), customizes touch firmware for specific electromagnetic interference (EMI) profiles, and integrates custom cover lenses.
7–10 Year Industrial Lifecycle Roadmaps
We guarantee component stability. Industrial programs require consistent longevity; we maintain strict bill-of-materials (BOM) locking mechanisms, active PCN (Product Change Notification) policies, and supply continuity guarantees for multi-year industrial runs.
Macro-Industry Deployment Scenarios
Tailoring active display performance to demanding real-world industrial, medical, and transit applications.
Smart Factory HMIs & PLC Terminals
Factory automation floors are inundated with severe high-voltage AC motors, inductive spikes, and heavy vibration. Our 5.7 inch touch displays incorporate isolated grounding schemes, high-immunity touch controllers (tested up to 10V/m conducted immunity), and ruggedized 4-wire resistive or thick-glass PCAP sensors that operate smoothly while operators wear thick leather safety gloves.
Medical Instrumentation & Diagnostic Carts
In life-support, patient monitoring, and clinical laboratory analyzers, display visual performance and surface sterility are non-negotiable. We integrate anti-bacterial cover glass, chemically hardened surfaces that withstand aggressive quaternary ammonium and isopropyl disinfectant wipe-downs, and IPS wide-viewing technology ensuring nurses and surgeons view vital graphs without chromatic distortion.
Fleet Telematics & Heavy Machinery Dashboards
Cabs in agricultural combines, excavators, and mining trucks endure severe solar exposure and broad operating thermal swings. Our 5.7 inch sunlight-readable modules feature up to 1200 cd/m² backlights, wide-temperature liquid crystal fluid (-30°C to +85°C), optical bonding to eliminate internal solar reflection, and anti-glare etching to prevent blinding operator glare.
Outdoor Energy & EV Charging Infrastructure
Unattended public kiosks, commercial EV DC fast chargers, and smart electrical metering points face constant weathering, UV degradation, and vandalism attempts. Our 5.7 inch touch screen panels incorporate UV-blocking polarizers, IP65-rated front bezel sealing gaskets, IK09 impact-rated chemically tempered glass, and intelligent rain-mode touch rejecting firmware algorithms.
Engineering Guide: Sourcing Industrial 5.7" Displays
Key technical evaluations global engineering teams must perform before issuing requests for quotes (RFQ).
1. Capacitive vs. Resistive Touch Integration in 5.7" Enclosures
Choosing between Projected Capacitive (PCAP) and 4-Wire / 5-Wire Resistive Touch Panels (RTP) fundamentally alters mechanical integration and software interaction:
- Projected Capacitive (PCAP): Best suited for sophisticated multi-gesture applications (pinch-to-zoom, swiping). Delivers up to 90% optical transparency, flat-front edge-to-edge flush aesthetics, and exceptional surface endurance. When specified with modern tuning ICs (e.g., FocalTech, EETI, Ilitek), PCAP can track inputs accurately even through 5mm protective acrylic or polycarbonate facings, as well as in the presence of saline droplets.
- Resistive Touch (RTP): A pressure-actuated technology offering an exceptionally cost-effective, high-noise-immunity interface. RTP functions flawlessly with any stylus, gloved hand, or heavy industrial tool. Its physical resilience against severe EMI fields makes it a standard retrofit choice for CNC machinery, legacy avionics, and high-voltage substation switchgear.
2. Optical Stacking: Air Gap vs. Direct Optical Bonding
In harsh or outdoor lighting environments, the boundary layer between the display cover glass and the active LCD cell is critical. Traditional perimeter tape bonding creates a microscopic air gap. The differing refractive indices (Air = 1.0, Glass = 1.5) generate an internal optical reflection of ~4.5% per boundary surface, severely degrading the panel's contrast ratio in bright ambient sunlight.
Our direct optical bonding process utilizes index-matched optical polyurethane or silicone resins (refractive index ~1.49) to eliminate the air interface entirely. This engineering process:
- Reduces total internal reflection to less than 0.2%, dramatically enhancing ambient contrast ratio without excessively elevating backlight power consumption.
- Eliminates internal condensation, fogging, and dust intrusion inside humid or tropical installations.
- Significantly increases mechanical shock absorption, distributing kinetic impact evenly across the rigid aluminum chassis.
3. System Interface Protocol Selection
Industrial processors dictate the underlying communication protocol. We customize 5.7 inch display FPC layouts to support:
- RGB Parallel Interface (18-bit / 24-bit): Highly common in midrange embedded ARM microprocessors (e.g., NXP i.MX6/8, STMicroelectronics STM32F4/F7/H7). Delivers raw video streaming with minimal driver overhead.
- LVDS (Low-Voltage Differential Signaling): Ideal for electrically noisy environments requiring extended harness cable runs between the single-board computer (SBC) and the display unit. Differential signaling cancels out ambient electromagnetic radiation.
- MIPI DSI: For high-density, low-power processing architectures demanding fast frame rates, reduced pin counts, and minimized circuit board routing footprints.
- Integrated HDMI / VGA Driving Assemblies: For quick plug-and-play computing setups (Raspberry Pi, industrial mini-ITX boards, legacy x86 architectures), our factory pre-calibrates complete plug-and-play controller boards equipped with integrated 12V-to-24V DC power converters.
